1.27mm Pitch Pin Header Connector Dual Row Straight Two-Layer Plastic SQ0.4mm H2.0mm 2*30P

12 month ago

60 0 

2 year

Product details

1.27mm Pin Header Connector Dual Row Straight
YZTECH introduces its 1.27mm Pin Header Connector Dual Row Straight,engineered to deliver reliable performance in space-constrained electronic applications.This male 1.27mm pin header two-layer plastic features a substantial 60-pin configuration with a straight plug design,providing robust board-to-board connectivity for complex circuit architectures.The 1.27mm pin header H2.0mm utilizes precision-molded PA6T insulation material that demonstrates exceptional thermal resistance and dimensional stability.With brass contacts finished in protective gold plating,this 1.27mm pin header 60p maintains stable electrical characteristics with a 1A current rating and 300V working voltage,ensuring consistent signal integrity across all contact points.

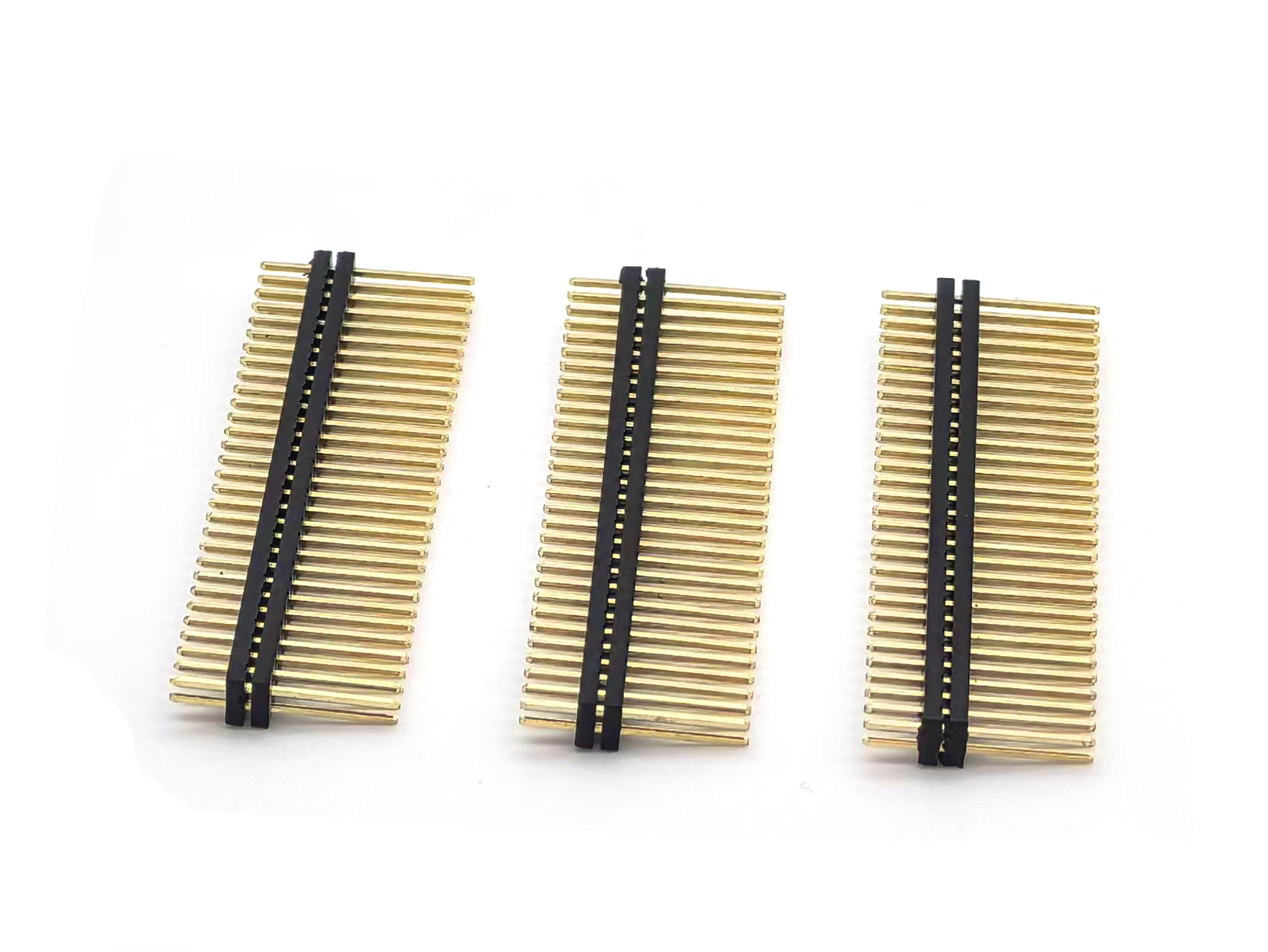

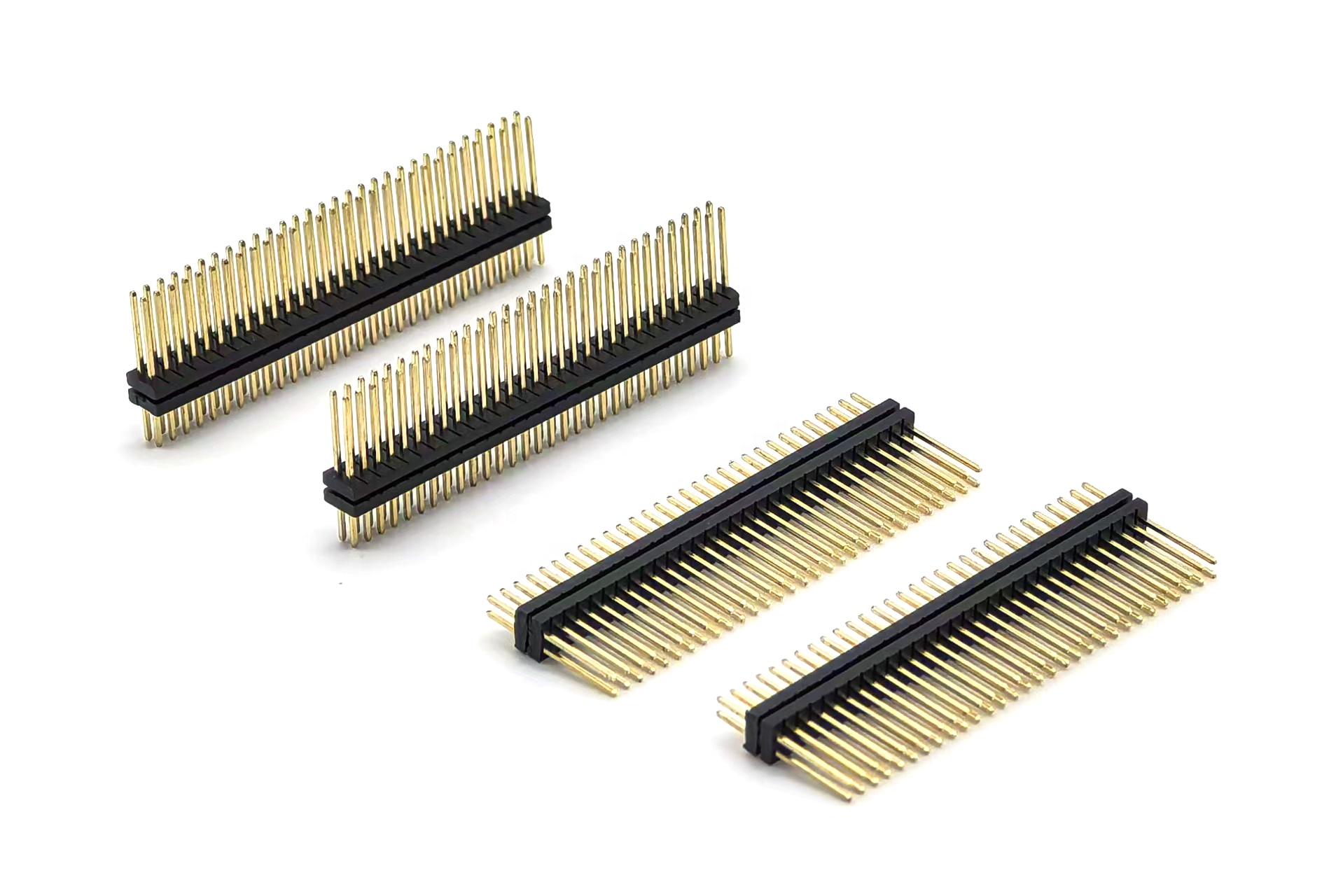

1.27mm Pitch Pin Header Connector Dual Row Straight Two-Layer Plastic SQ0.4mm H2.0mm 2*30P

Constructed to withstand challenging operating conditions,this pin header operates reliably across an extensive temperature range from -45℃ to 105℃,offering enhanced performance in both extreme cold and elevated temperature environments.The premium PA6T housing material provides excellent mechanical strength and insulation properties,while the gold-plated brass contacts ensure minimal insertion force and superior corrosion resistance.Designed for manufacturing efficiency,the connector tolerates maximum welding temperatures of 220℃ for 10 seconds,compatible with standard reflow processes.The secure box packaging guarantees optimal protection during transportation and handling.

This high-density dual row connector addresses the evolving needs of compact electronics across multiple industries.Its fine pitch configuration makes it particularly suitable for sophisticated applications including network communication equipment,industrial automation systems,medical monitoring devices,and advanced computing hardware.By incorporating this 1.27mm pin header into their designs,engineers can achieve higher circuit complexity in limited spaces while maintaining reliable interconnections.
