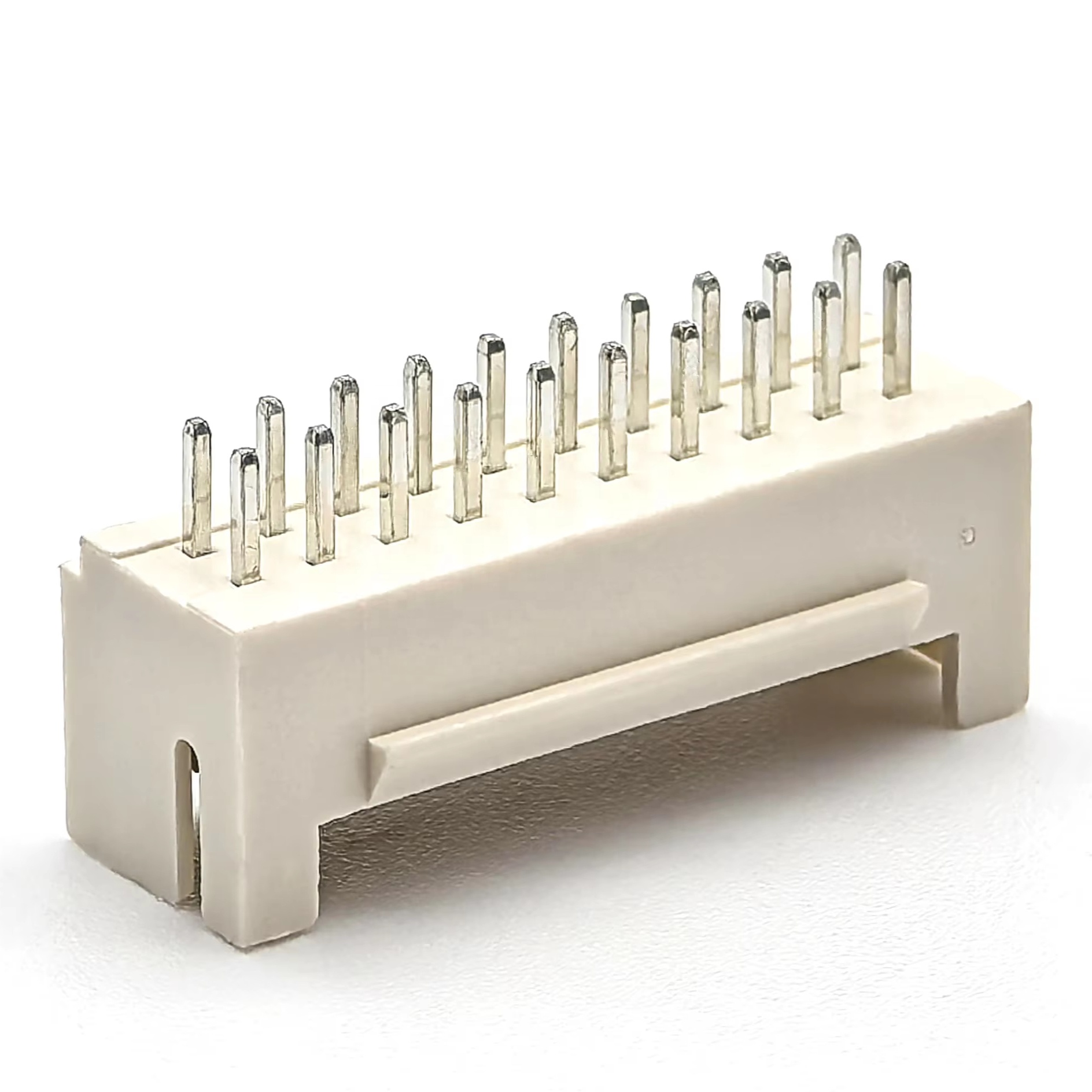

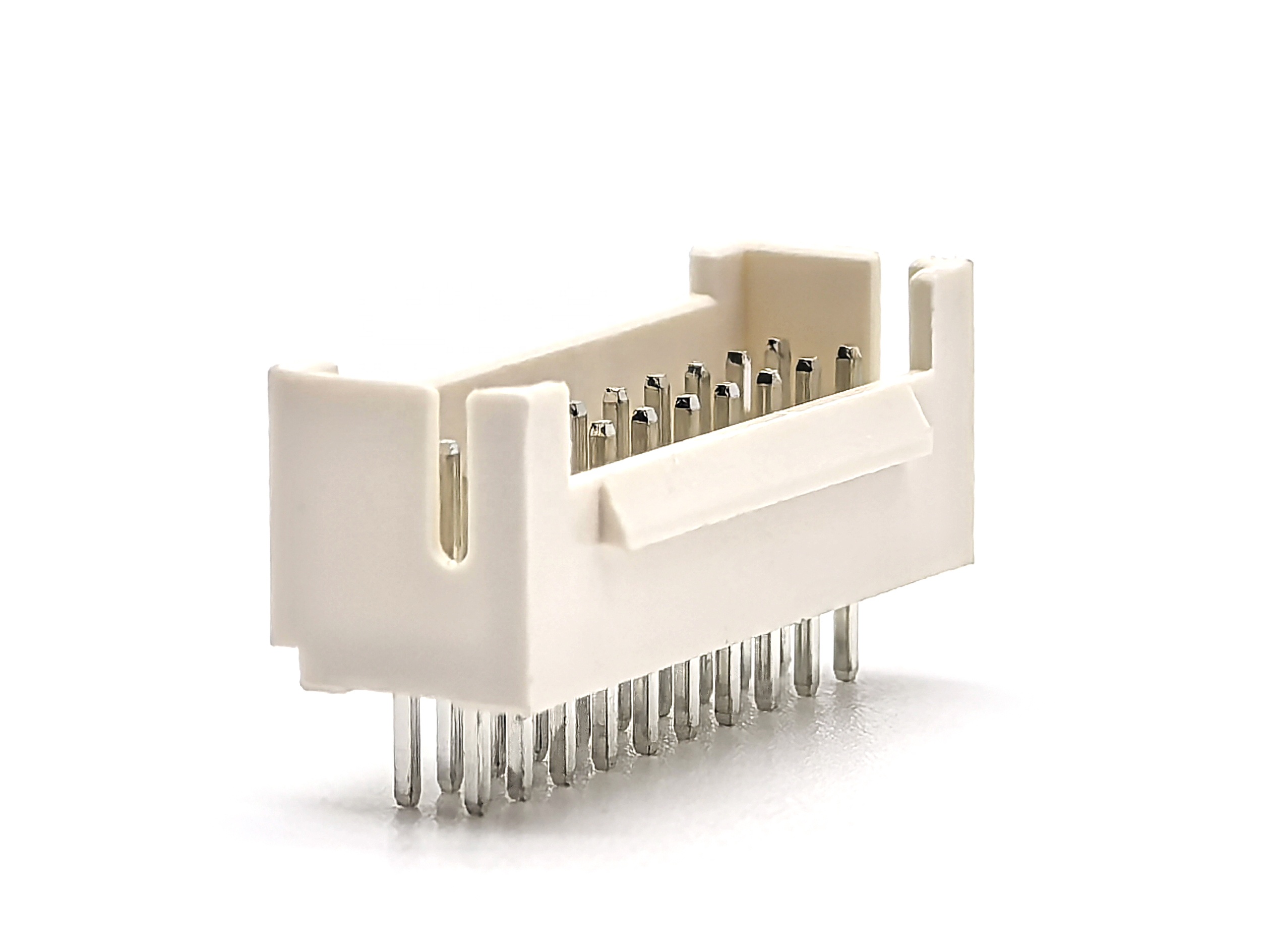

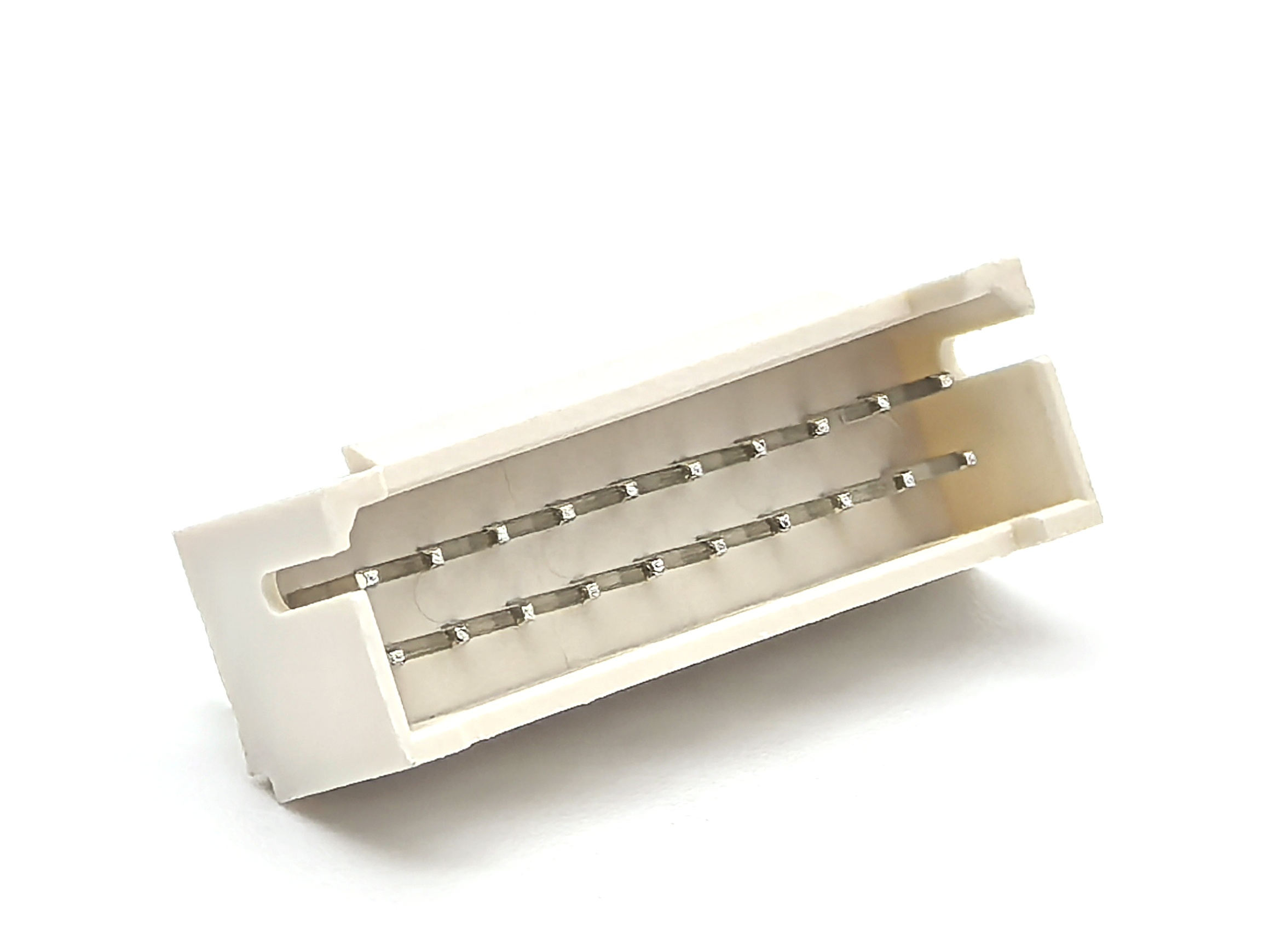

2.0mm Pitch PHK Wafer Pin header Connector Dual Row Straight Dip 2*10P

2 month ago

3 0 

7 month

Product details

YZTECH presents its 2.0mm PHK Wafer series pin header,offering a cost-efficient and reliable solution for general-purpose PCB interconnections.This dual-row male header connector features a 20-position configuration with a low-profile wafer design,enabling space-saving vertical integration on circuit boards.Utilizing PA66 material for the insulator provides good electrical properties and mechanical stability under standard operating conditions.The brass contacts with uniform tin plating deliver solid electrical performance,rated for 2A current and 250V voltage, making this header suitable for various signal transmission and moderate power applications in consumer and industrial electronics.

Engineered for consistent operation in typical electronic environments,this wafer housing terminal performs reliably within a temperature range of -25℃ to +85℃.The PA66 insulating material offers balanced mechanical strength and flame retardancy, while the tin-plated brass contacts ensure reliable connectivity with cost-effective optimization.The straightforward design facilitates easy installation and secure mating with compatible connectors.Packaged in protective bags,these headers are supplied in formats compatible with automated assembly processes, supporting efficient production workflows and simplified inventory management for volume manufacturing.

The YZTECH PHK Wafer 2.0mm Pin Header serves as a practical interconnection solution for diverse electronic products, including home appliances, power supplies, industrial controls, and automotive accessories.Its standardized 2.0mm pitch and dual-row configuration provide design flexibility for various PCB layouts while maintaining competitive pricing.The tin-plated contacts offer excellent solderability and corrosion resistance suitable for most environmental conditions.

2.0mm Pitch PHK Wafer Pin header Connector Dual Row Straight Dip 2*10P
