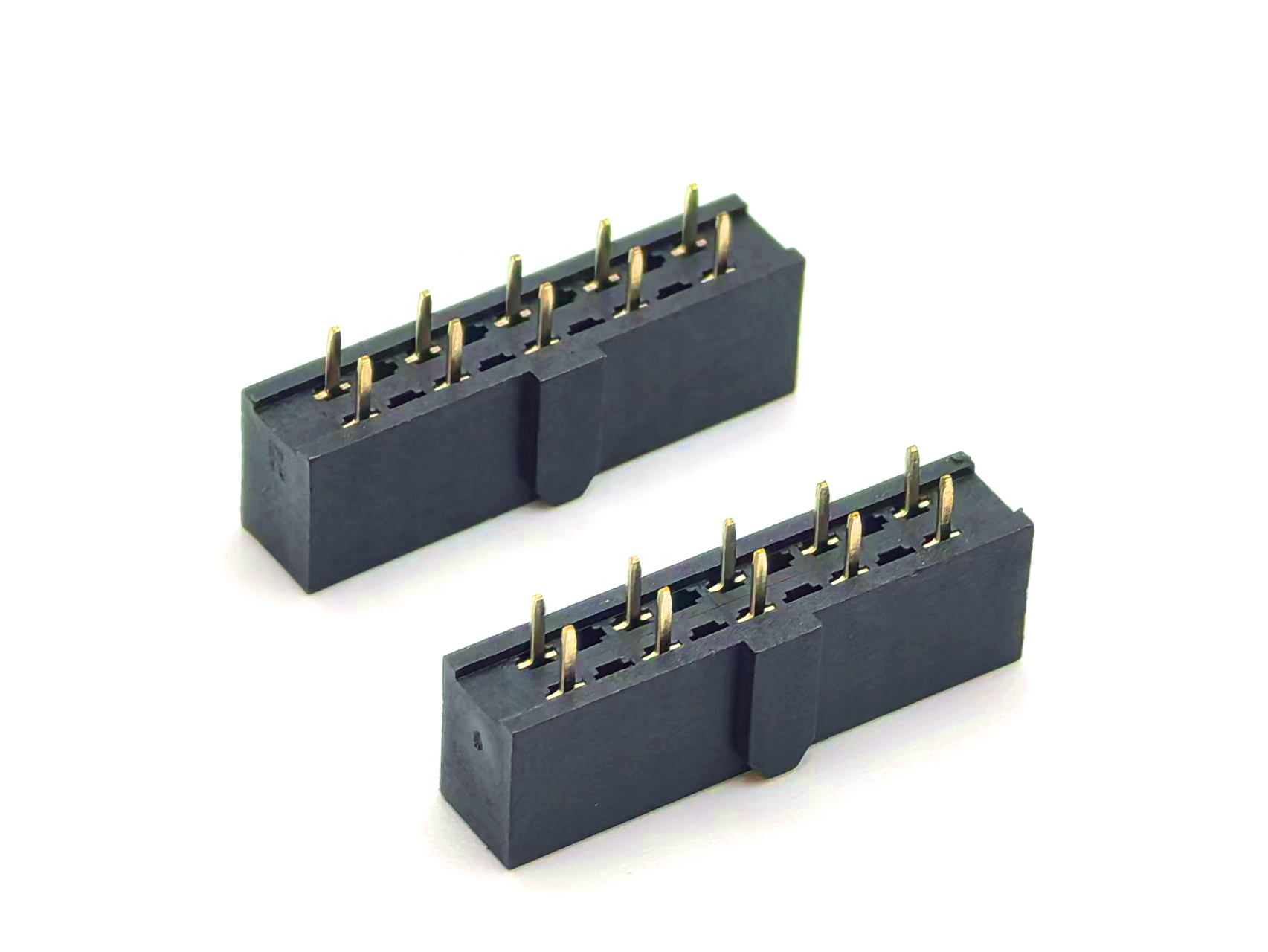

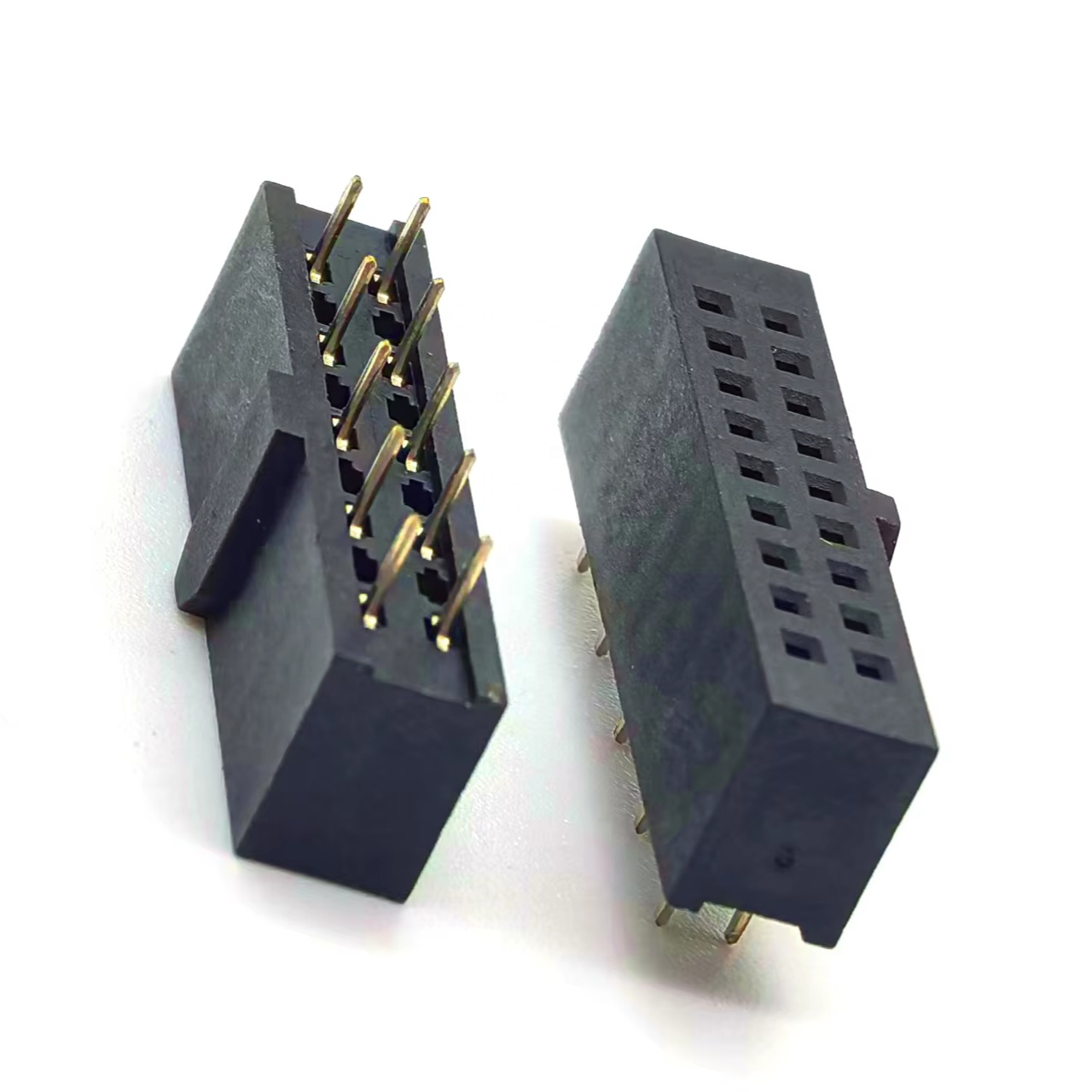

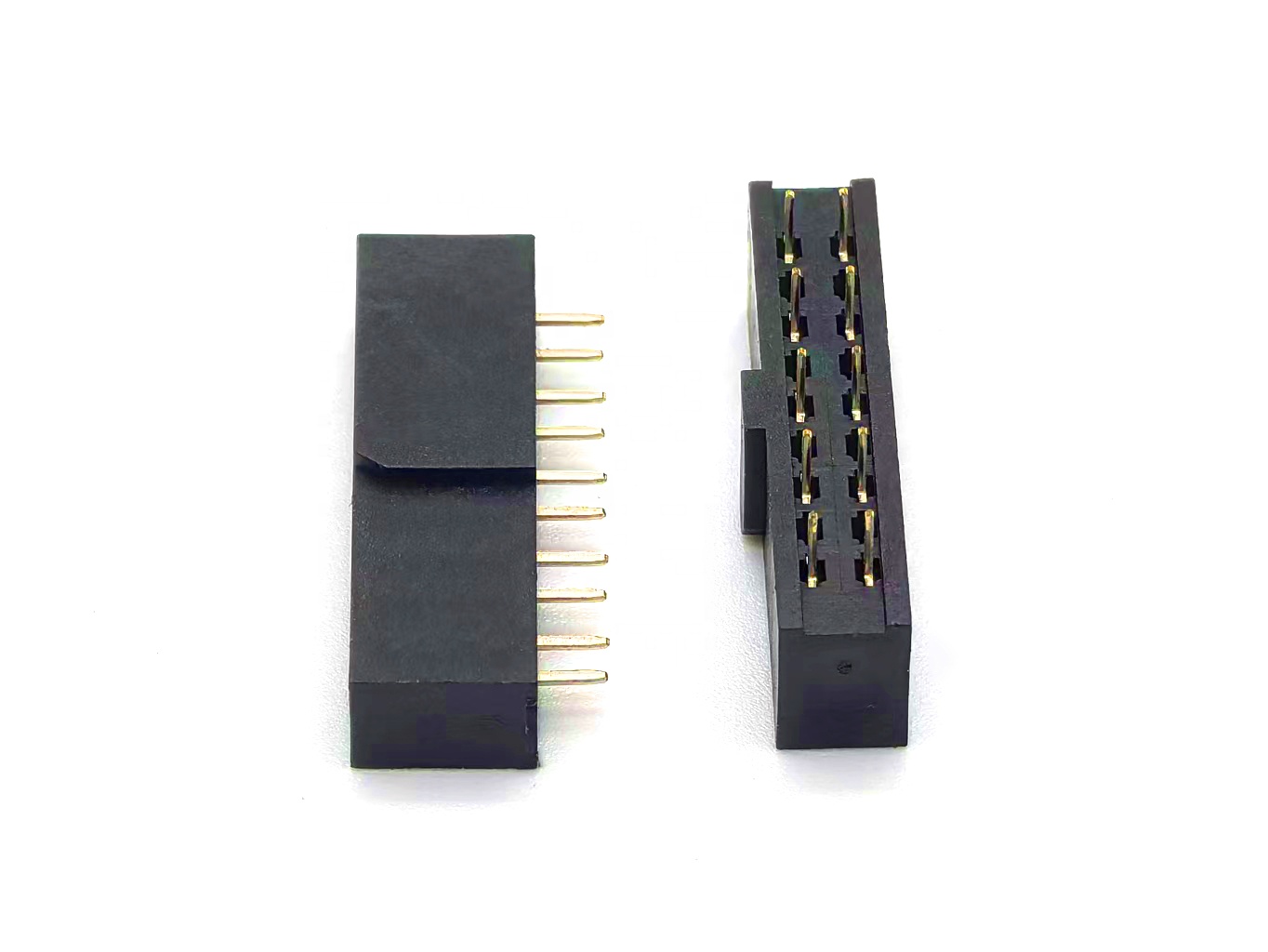

2.54mm Pitch Female Header Connector Dual Row Straight H8.5mm With Even Columns Unpopulated Y-type 2*9P

2 month ago

2 0 

7 month

Product details

This YZTECH 2.54mm pitch dual-row female header features an innovative pin configuration with even columns unpopulated,delivering enhanced design flexibility for specialized PCB applications.The straight-plug connector maintains an 18-position interface while strategically reducing material usage without compromising performance.The brass contacts employ a strategic half gold tin plating,combining the superior corrosion resistance of gold in critical contact areas with the cost-effectiveness of tin plating.With an impressive 3A current rating and 600V voltage capacity,this connector handles both power and signal transmission requirements with reliability.

Engineered for manufacturing excellence, this 2.54mm female header demonstrates remarkable durability across an operating temperature range of -40℃ to +105℃.The hybrid contact plating creates an optimal balance between performance and cost,ensuring reliable connectivity while maintaining competitive pricing.The high-temperature PA6T insulation material withstands deformation and maintains structural integrity under thermal stress.Compatible with automated assembly processes,the header connector endures maximum welding temperatures of 220℃ for 10 seconds and arrives in protective tube packaging that facilitates efficient handling and installation while minimizing damage during transportation and storage.

2.54mm Pitch Female Header Connector Dual Row Straight H8.5mm With Even Columns Unpopulated Y-type 2*9P
