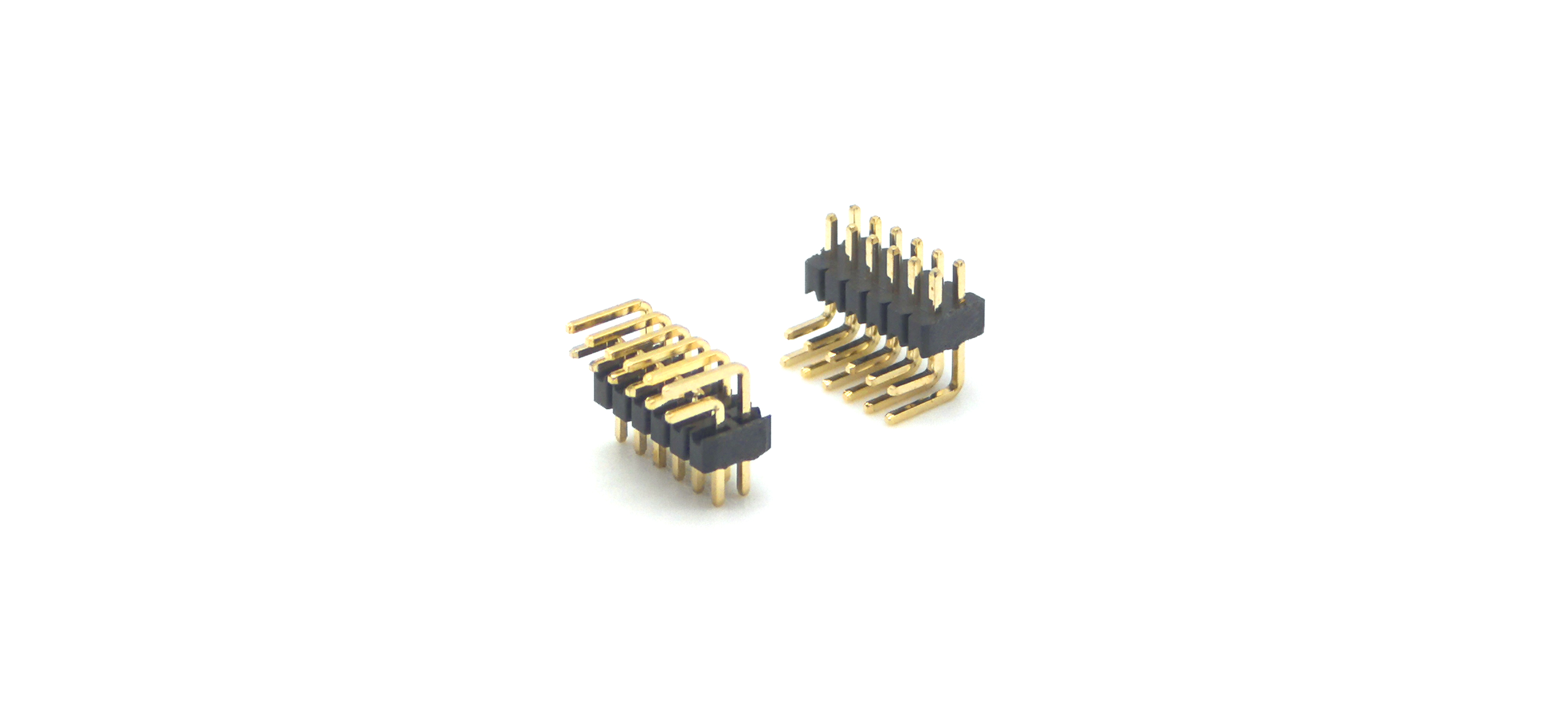

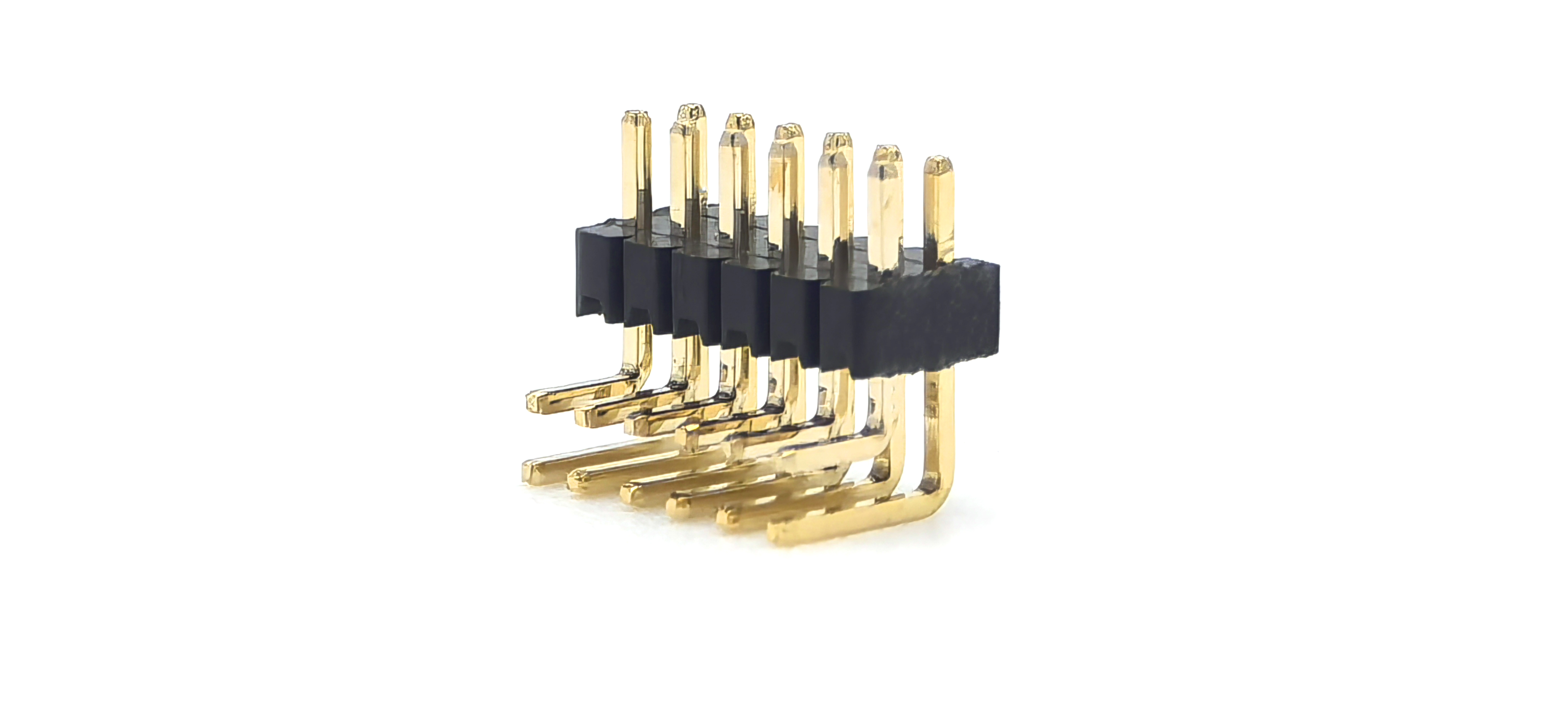

1.27mm Pitch Pin header Connector Right Angle SQ0.4/0.46mm H1.5mm 2*6P

2 month ago

3 0 

7 month

Product details

Unveiling a masterclass in space-efficient engineering,YZTECH’s 1.27mm pitch right-angle pin header reimagines vertical PCB integration.This 12-position male header connector harmonizes parallel board-to-board connections with minimal assembly height—perfect for devices where every millimeter counts. Gold-plated brass contacts forge a 1A/300V powerhouse, balancing high-speed signal integrity with industrial-grade reliability.The PA6T thermoplastic chassis, forged for thermal resilience, anchors mechanical stability while resisting deformation in extreme -45°C to 105°C environments.

Engineered to thrive where others falter,this header connector withstands 260°C reflow soldering for 10 seconds without flinching,safeguarding delicate right-angle pins through automated assembly.PA6T’s superior thermal management ensures dimensional stability across thermal cycles,while gold plating guarantees low-force mating and consistent contact impedance over thousands of cycles.Secure box packaging acts as a fortress during transit, preserving pin integrity until deployment.

Designers champion this 1.27mm pin header for vertical space optimization in stacked architectures—from portable medical devices to industrial IoT hubs.Its right-angle geometry unlocks innovative PCB layouts without compromising signal fidelity.Compliant with global safety benchmarks,it accelerates time-to-market for high-density consumer electronics,data center equipment,and autonomous systems.By merging micro-precision with macro-durability,YZTECH redefines what’s possible in compact board-to-board interconnection—proving that space optimization and rock-solid performance aren’t mutually exclusive in modern electronics.

1.27mm Pitch Pin header Connector Right Angle SQ0.4/0.46mm H1.5mm 2*6P
