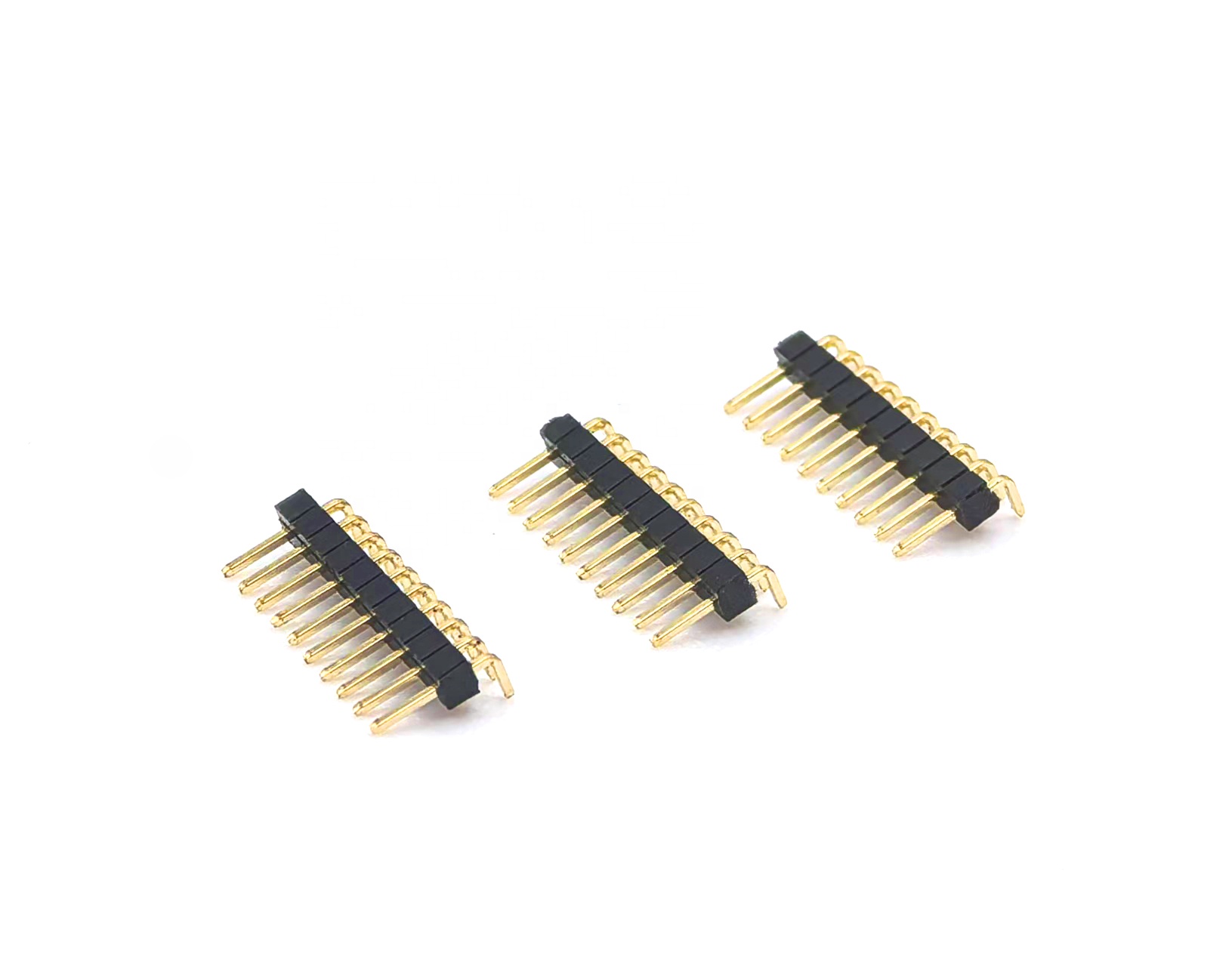

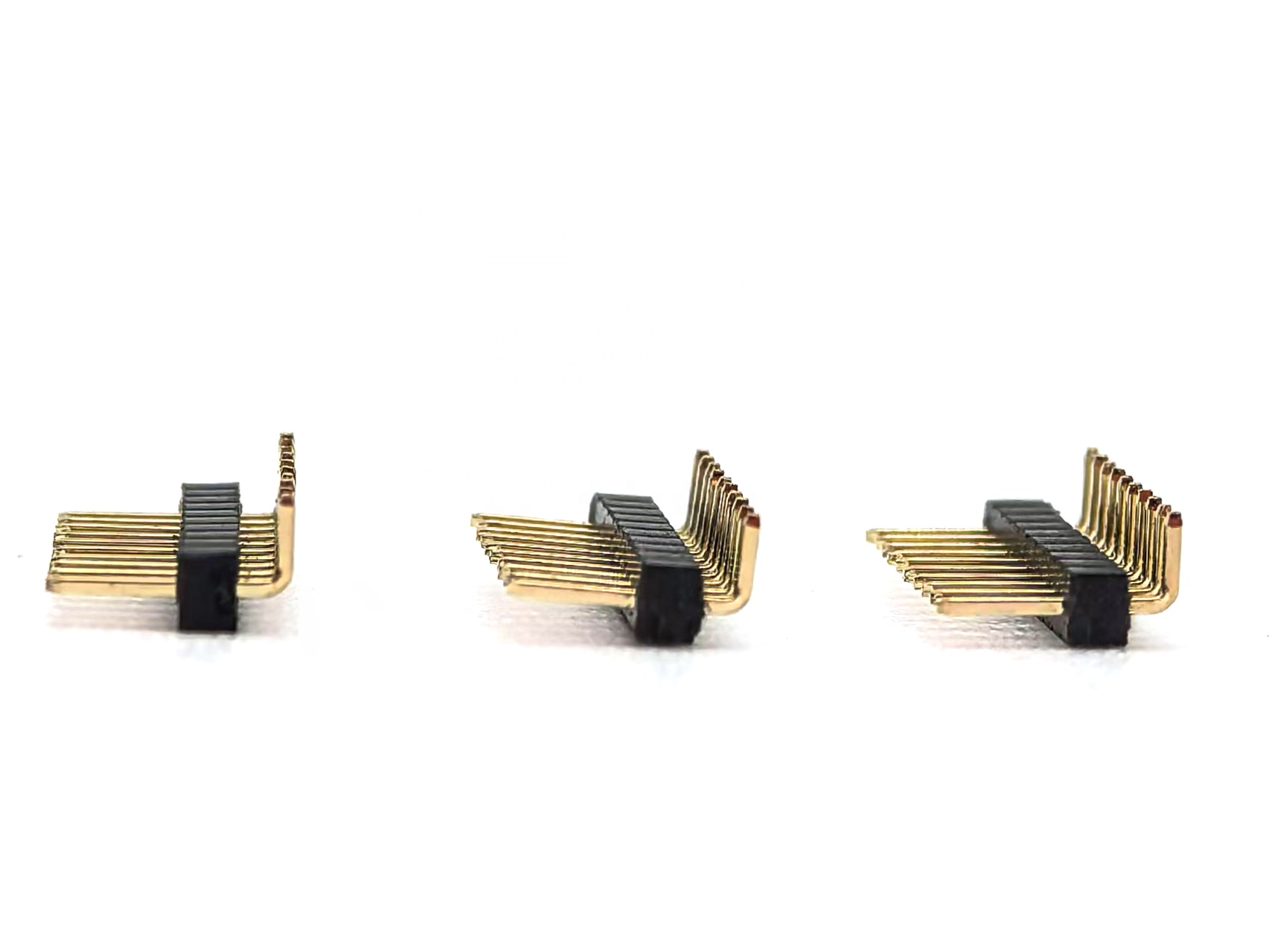

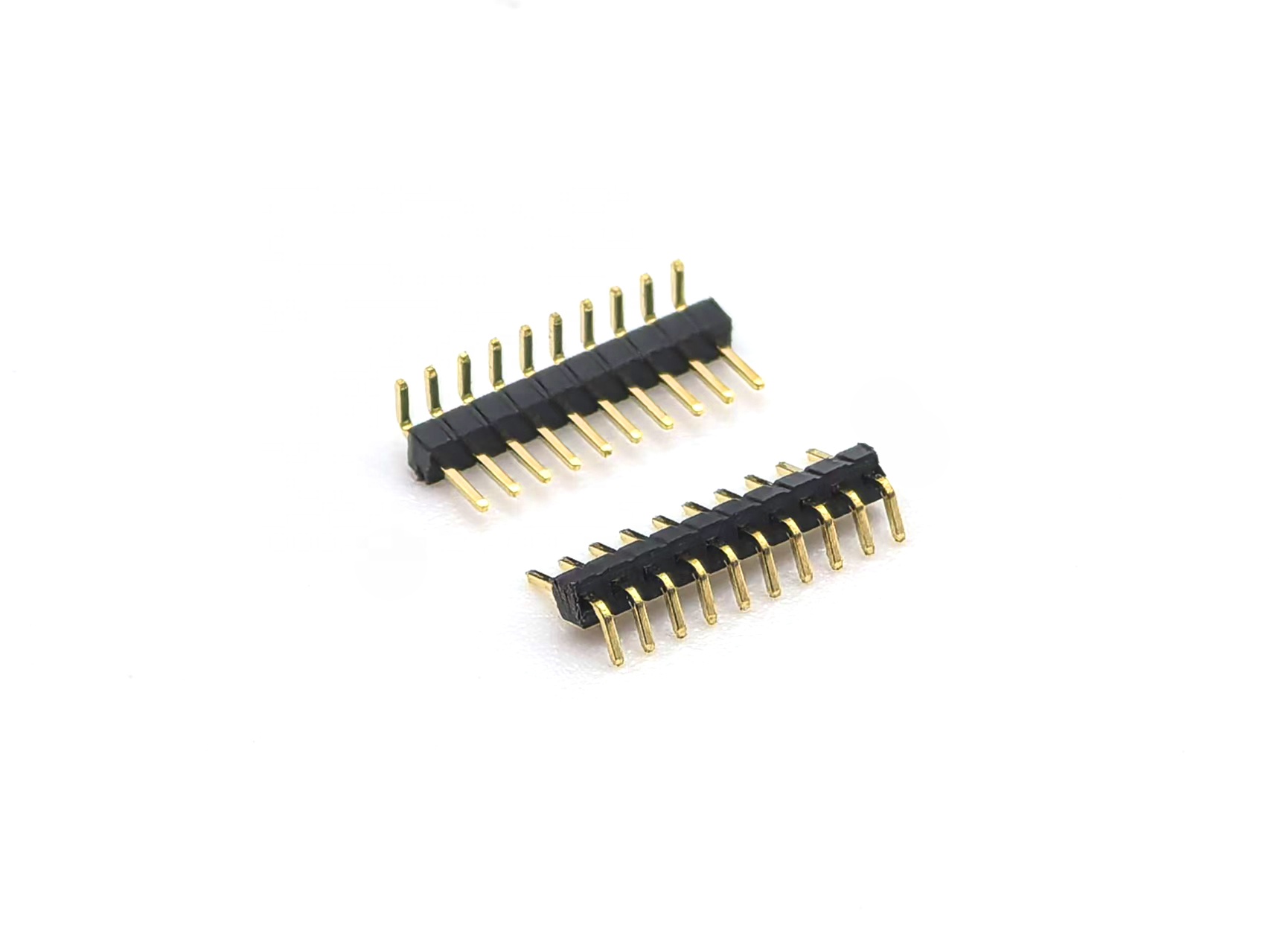

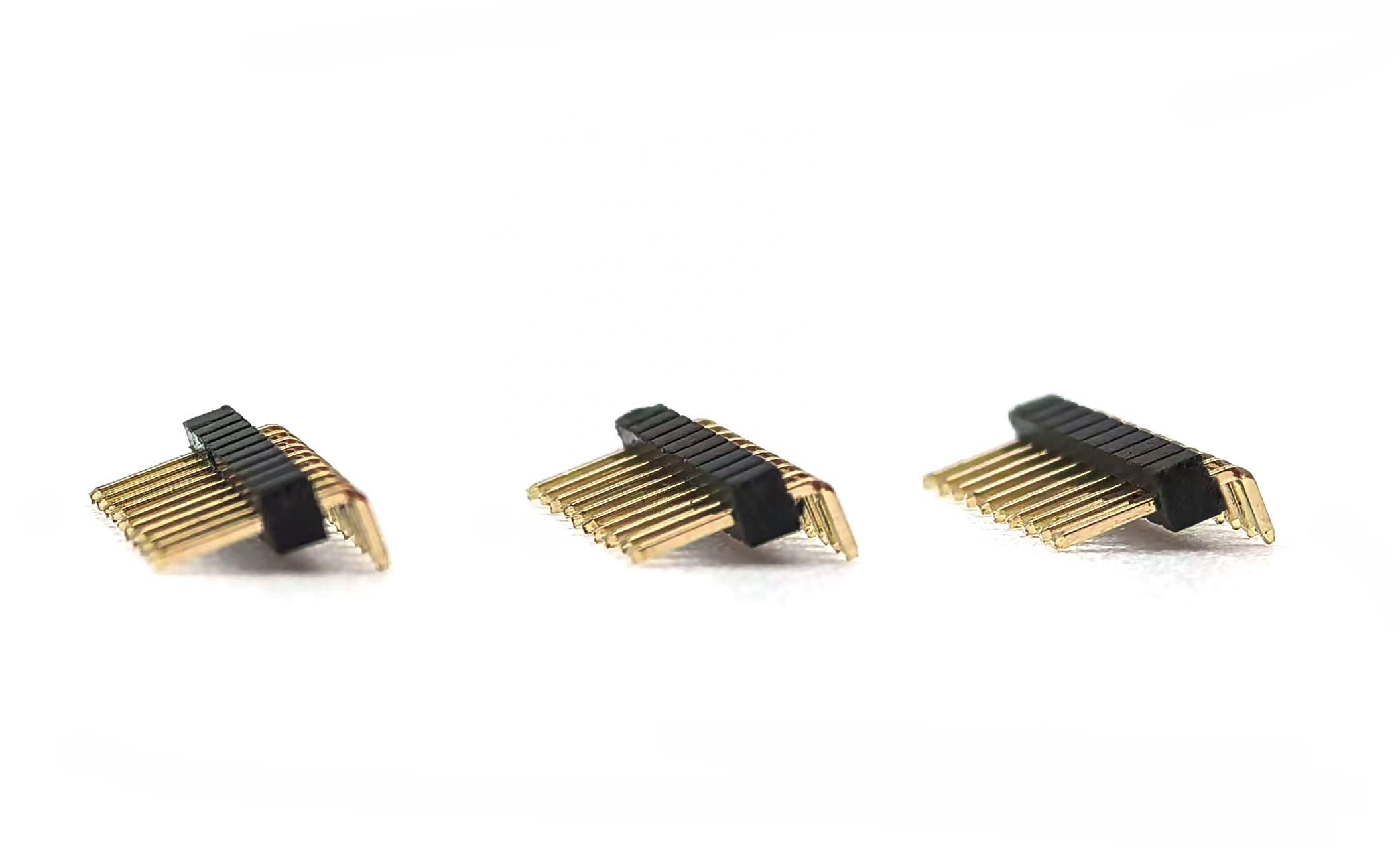

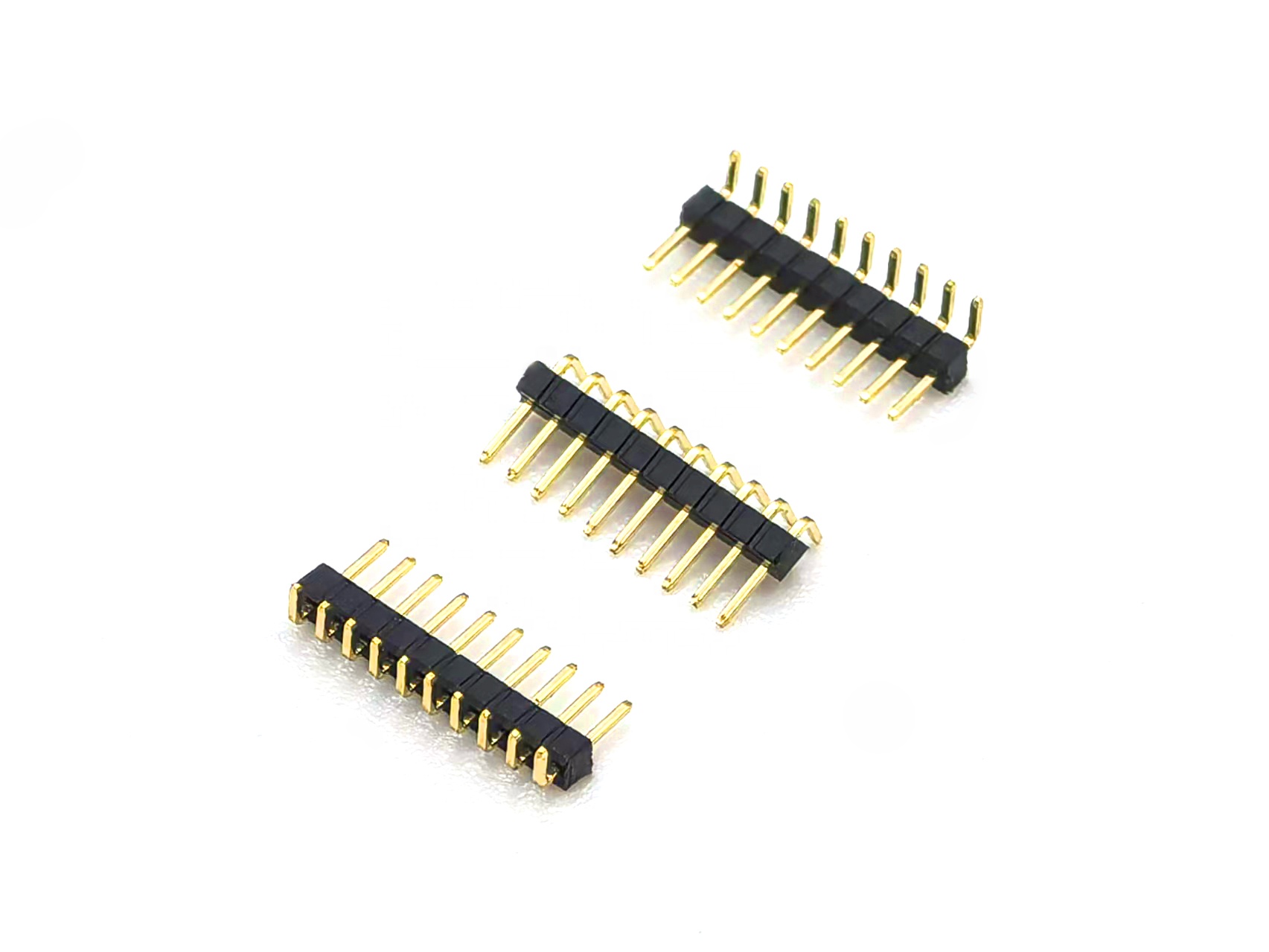

1.0mm Pitch Pin Header Connector Single Row Right Angle H:1.0mm 1*10P

YZTECH introduces its precision-engineered 1.0mm pitch single row pin header, featuring an innovative right-angle bending plug design for ultra-compact PCB applications.This male header connector with 10-position contacts enables efficient parallel board connections while minimizing vertical space requirements.The precision-formed brass contacts with gold plating ensure reliable electrical performance with a 0.75A current rating and exceptional 600V voltage capacity.Manufactured using high-temperature PA6T insulation material,this right-angle header provides superior mechanical stability and thermal resistance in space-constrained electronic assemblies, representing a significant advancement in high-density interconnection technology.



This ultra-fine pitch header demonstrates remarkable durability across an extended operational temperature range from -45℃ to 105℃,ensuring reliable performance in both extreme cold and elevated temperature conditions. The high-grade PA6T thermoplastic housing maintains dimensional stability under thermal stress,while the gold-plated contacts ensure minimal insertion force and stable electrical characteristics through repeated mating cycles.With a maximum welding temperature tolerance of 220℃ for 10 seconds,the connector withstands standard reflow processes without compromising structural integrity.The protective box packaging safeguards the delicate right-angle pins during transportation and handling, ensuring perfect condition for automated assembly processes.The YZTECH 1.0mm pin header delivers exceptional value in applications where maximum space optimization is critical.The 90-degree design facilitates efficient parallel board stacking while maintaining reliable electrical connections between adjacent circuits.
