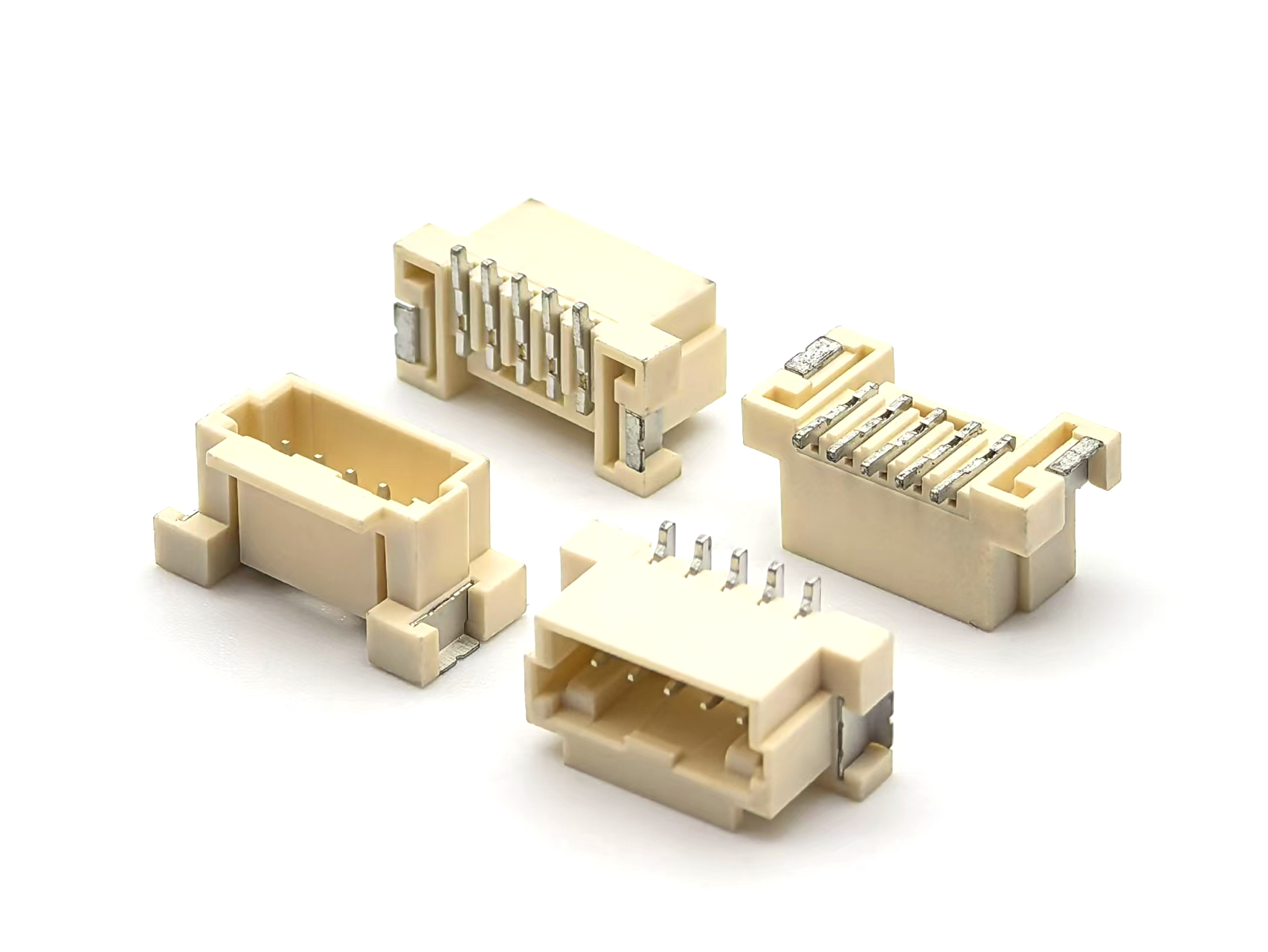

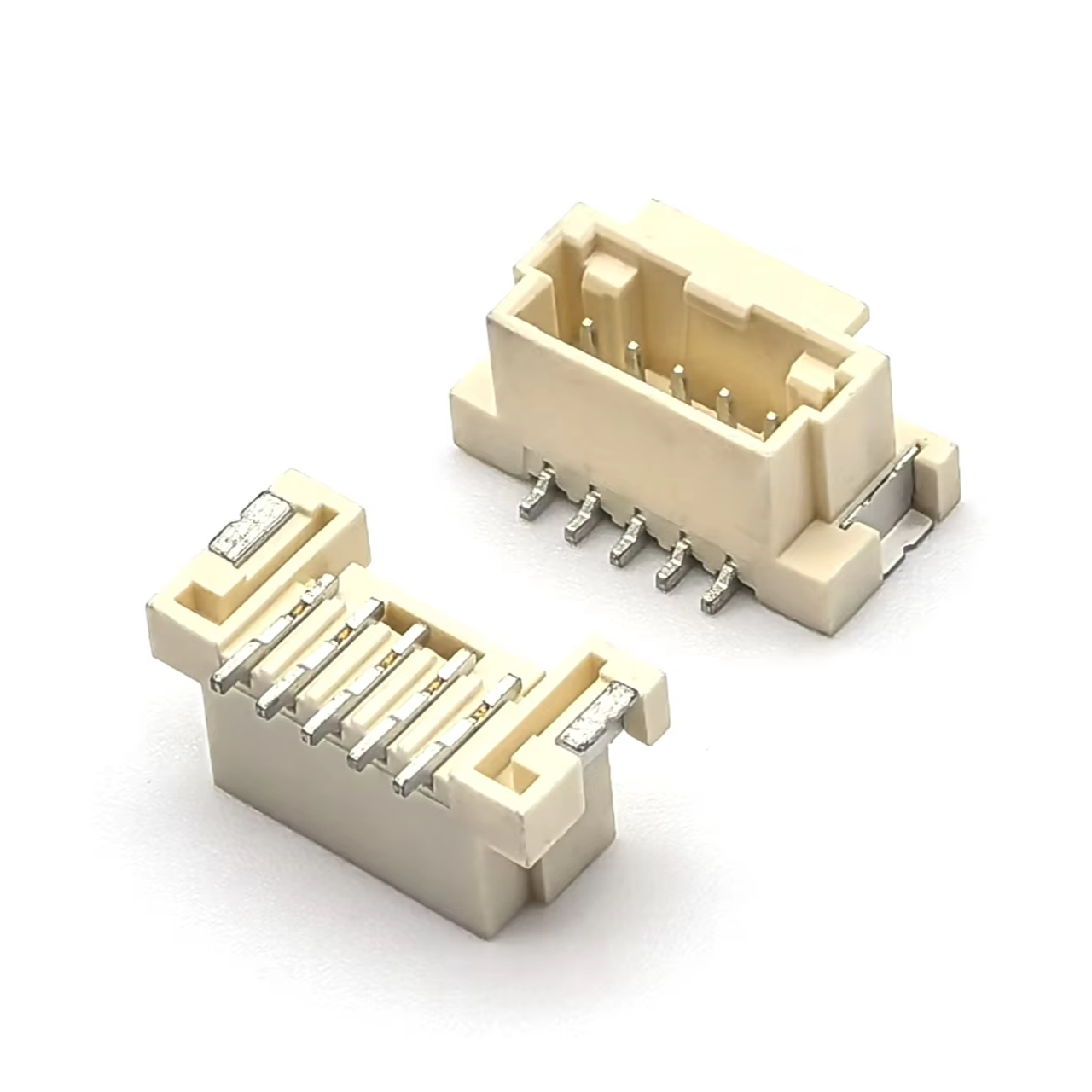

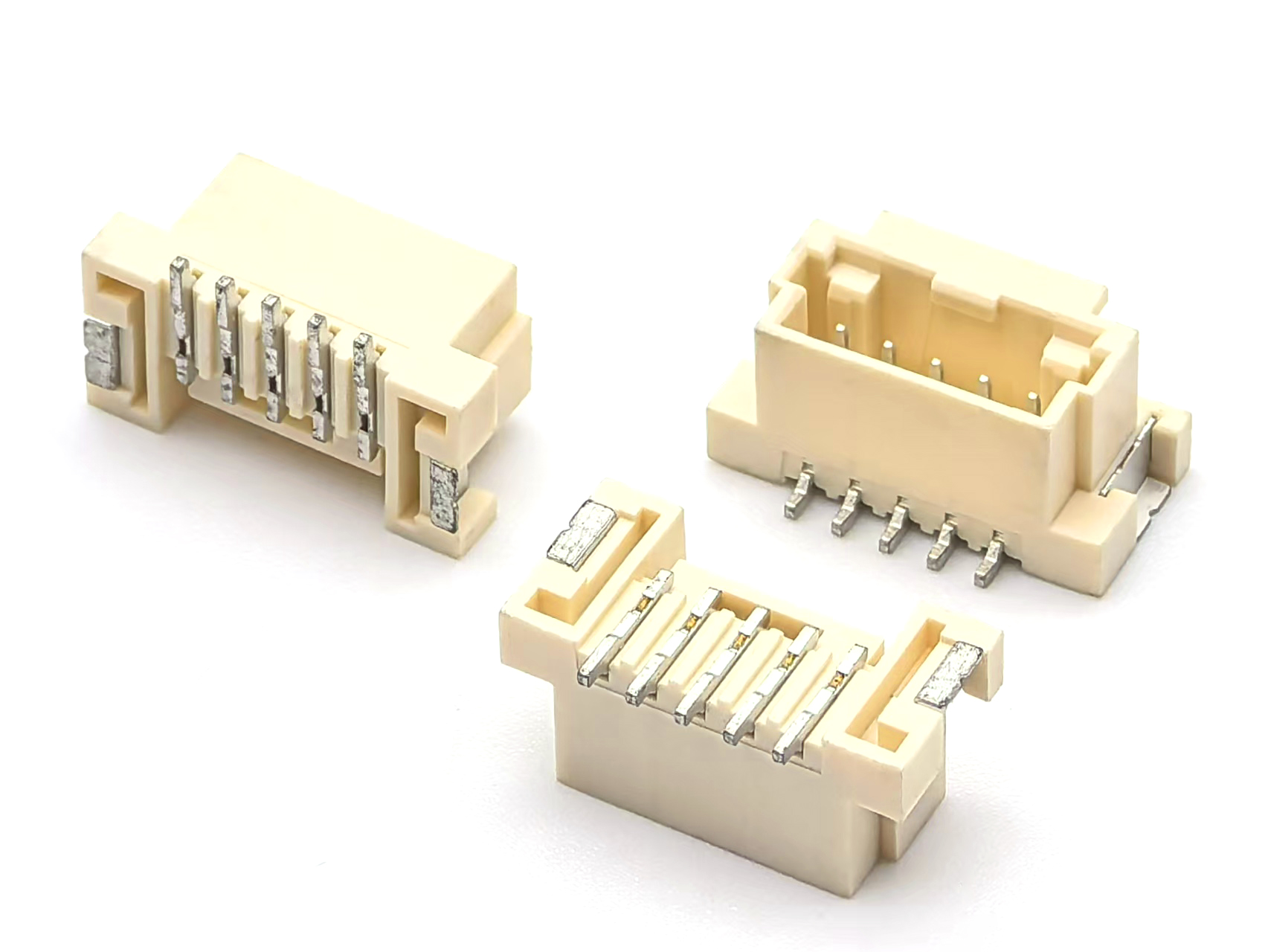

Wafer Vehicle Automotive-Grade Pin Header Connector 5P

Automotive-Grade Connection for Vehicle Electronics

The Wafer Vehicle Automotive-Grade Pin Header Connector 5P is designed for vehicle electronic applications where a compact board connection is needed. It uses an SMD mounting format and a 5-position layout, making it suitable for PCB assemblies where space and connection arrangement both need to be considered.

The connector is rated for 3A current and 125V voltage. Compared with a standard low-current board connector, this specification gives designers more room when selecting a connection point for vehicle lighting and other automotive electronic modules. For customers looking for a vehicle wafer pin header connector smt, the 5P configuration provides a straightforward option for board-level connections.

Tin-Plated Brass Contacts for a Wide Temperature Range

The contacts are made from brass and finished with tin plating. This contact structure is commonly used where practical electrical connection and solderability are important. The working temperature range is -25°C to +105°C, giving the connector a wider operating range for vehicle electronics exposed to changing temperatures.

For automotive lighting assemblies, the connection point may be installed inside an enclosed module where heat can build up during operation. The wider temperature specification is therefore an important part of the selection process. A matching Wafer Housing Terminal can be considered together with the connector when checking the complete mating arrangement.

SMD Reel Packaging for Automated Assembly

This model uses SMD packaging and is supplied in a covered reel package, with a minimum packing quantity of 100 pieces. The reel format is convenient for customers running automated PCB assembly and helps keep the components organized during production.

The batch information identifies this series as a vehicle-lighting automotive-grade pin header connector. If your project requires a wafer pin header vertical smt 2p solution, the mounting direction, PCB layout, pin count, and available clearance should be checked before production. For related connection parts, Buy Wafer Terminals can be used as a reference when comparing different terminal options, while a suitable Housing Connector can be selected for the mating side.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and specializes in precision connectors, industrial terminal blocks, and cable assemblies. For vehicle-related connector products, the company covers product development, tooling, manufacturing, assembly, inspection, and supply, allowing customers to discuss the product with one manufacturing partner instead of coordinating every process separately.

YZTECH Electronics uses production and inspection equipment from Japan, Germany, and Taiwan, with manufacturing processes covering plastic and metal terminal tooling through final assembly. For a vehicle wafer housing connector project, details such as contact material, plating, mounting method, temperature range, and production packaging all need to work together. Yangzhan Electronics provides support around these requirements from its Shenzhen manufacturing base, including related Wafer Pin header Connector solutions for different connection applications.
