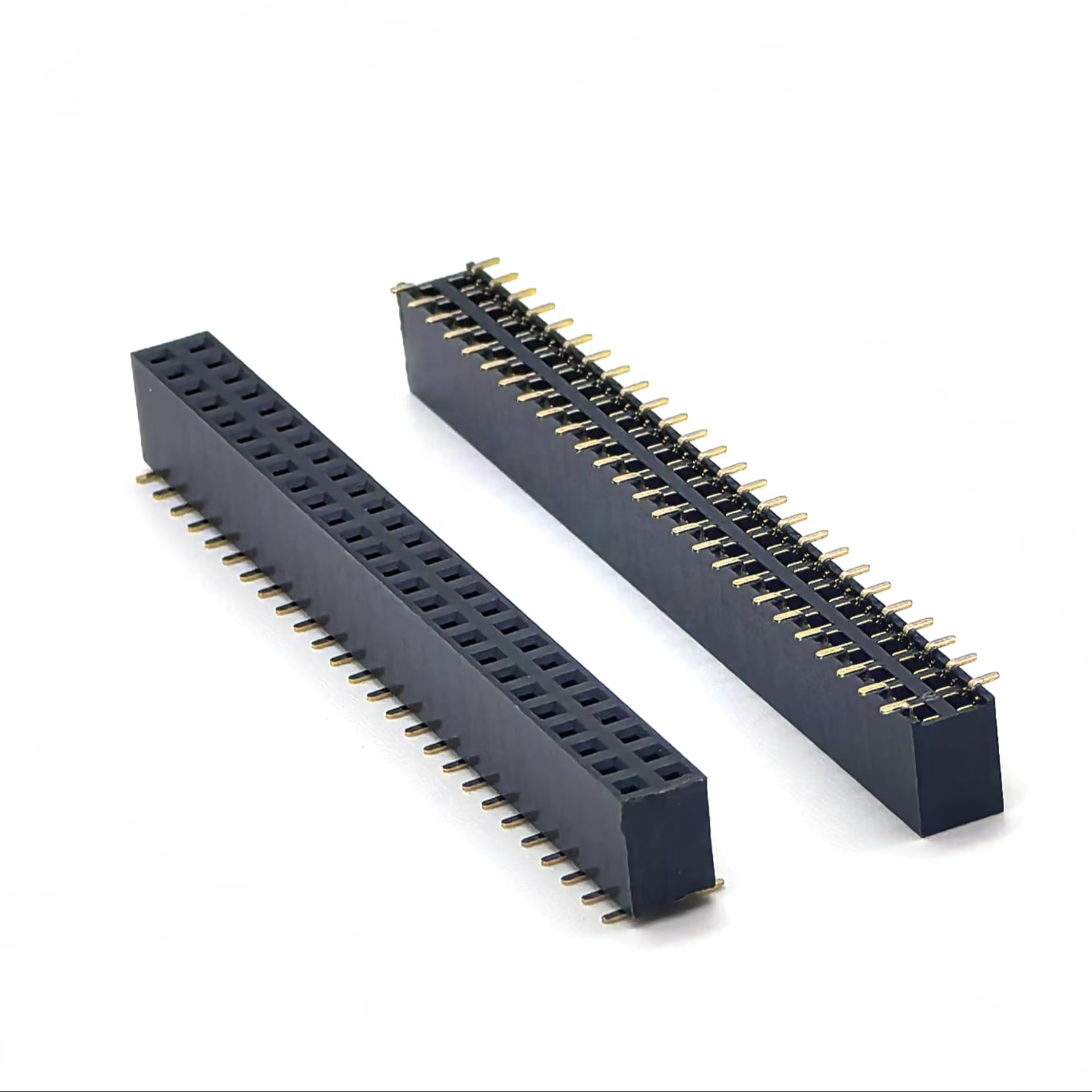

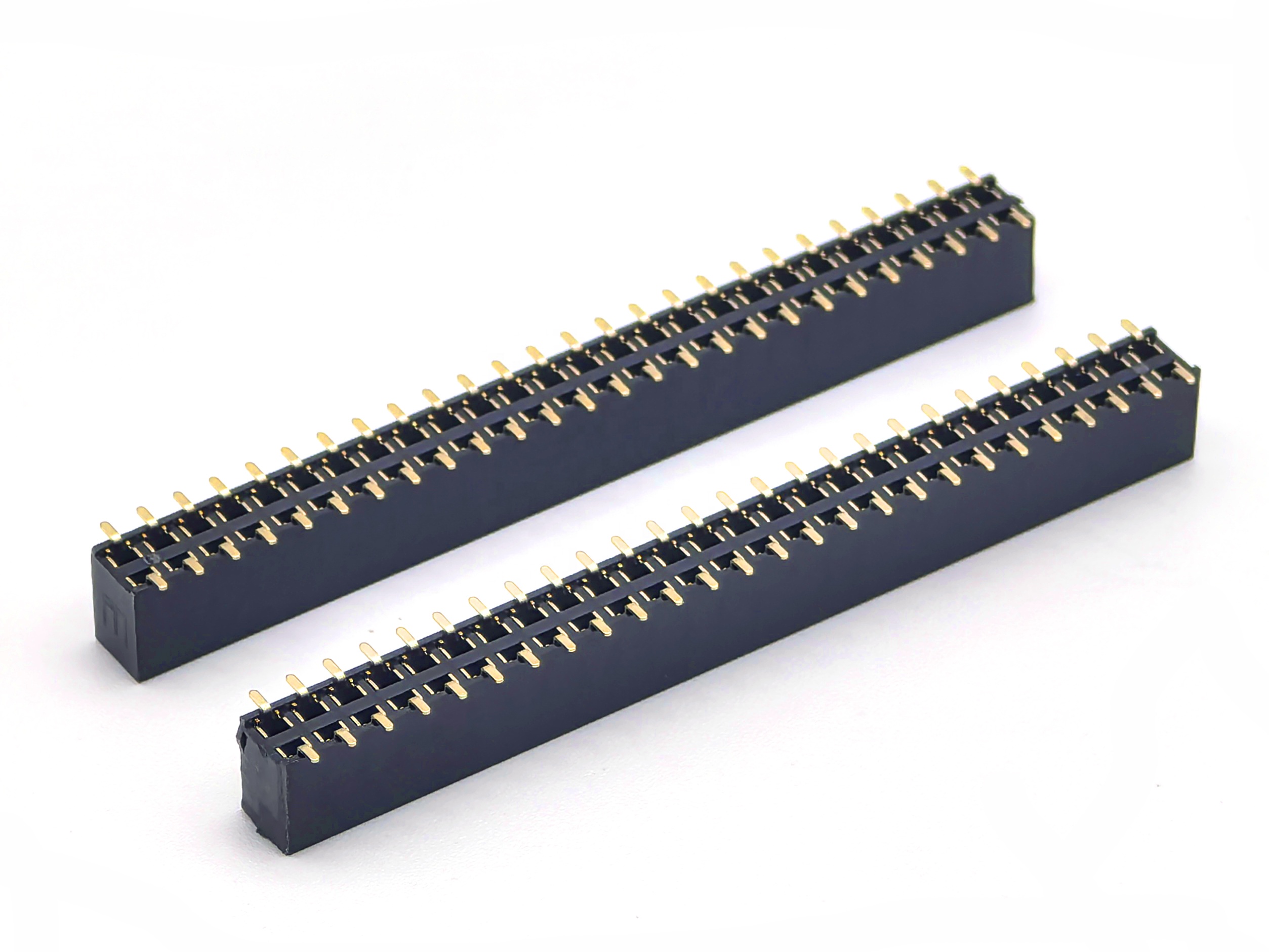

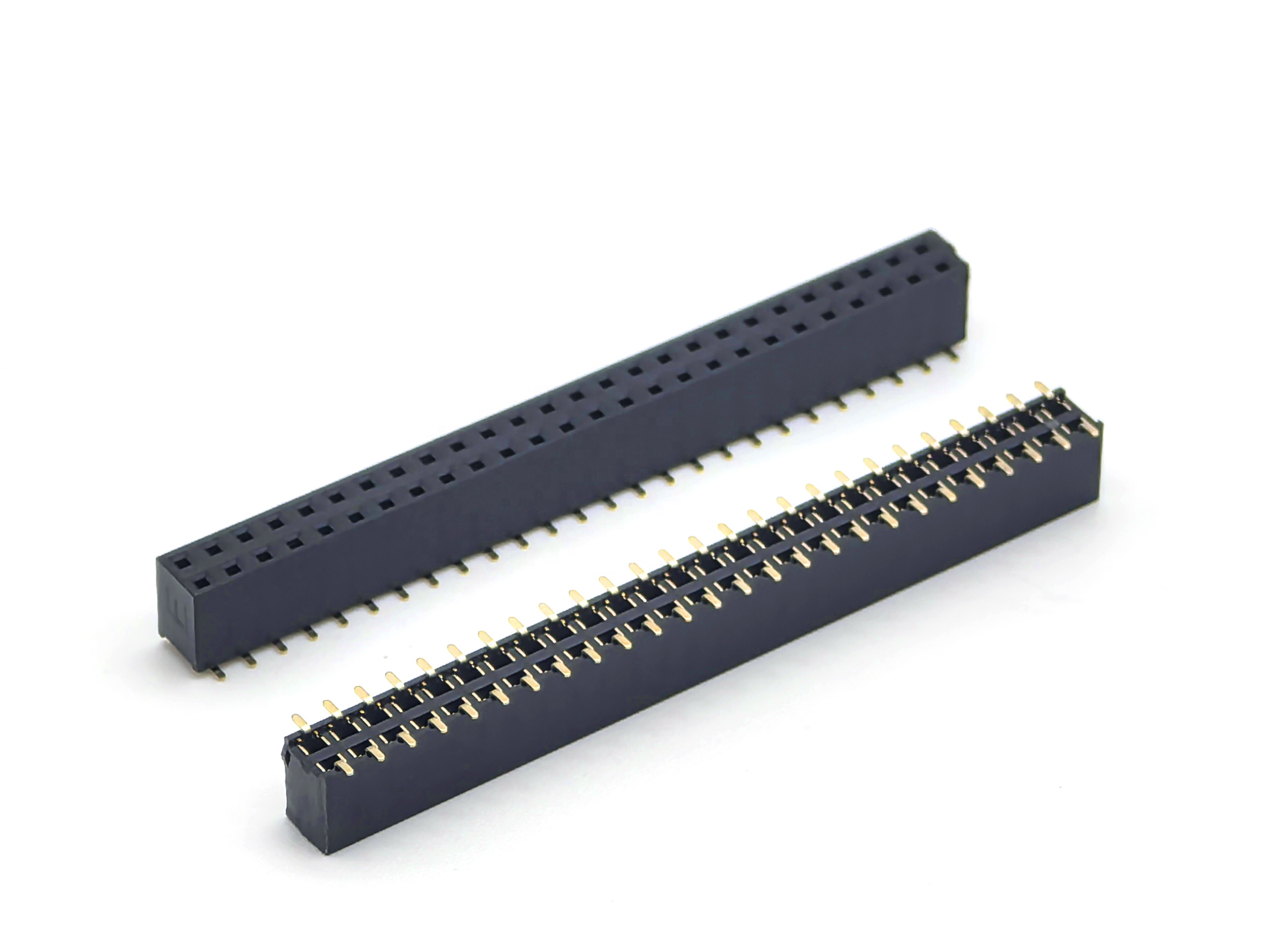

2.54mm Pitch Female Header Connector Dual Row SMT H:8.5mm U-Type 2*26P

2 month ago

2 0 

7 month

Product details

YZTECH introduces its advanced 2.54mm pitch dual-row female header, engineered to meet the demands of complex electronic systems requiring high-density interconnections.This surface-mount connector features a substantial 52-position configuration with vertical mount design,providing extensive connectivity options for sophisticated PCB layouts.Incorporating an innovative half gold tin plating on brass contacts,this header connector combines the superior conductivity of gold in critical contact areas with the cost-effectiveness of tin plating,achieving optimal electrical performance with a 3A current rating and 600V voltage capacity.

This female header demonstrates exceptional mechanical integrity across an operating temperature range of -40℃ to 105℃, maintaining stable electrical characteristics under thermal stress.The premium PA9T housing material offers enhanced resistance to thermal deformation and chemical exposure, ensuring long-term reliability in demanding applications.The strategic implementation of gold plating on contact surfaces combined with tin plating on termination areas provides both excellent contact properties and superior solderability. Designed for manufacturing efficiency,the connector withstands peak reflow temperatures of 260℃ for 10 seconds and arrives in protective tube packaging that facilitates automated assembly while preventing damage to the precision SMT terminals.

The YZTECH 2.54mm female header addresses the evolving needs of advanced electronic systems across multiple sectors,including industrial automation,telecommunications infrastructure,power distribution units,and renewable energy systems.Its high pin count and robust construction make it particularly suitable for applications requiring numerous reliable connections in compact spaces.

2.54mm Pitch Female Header Connector Dual Row SMT H:8.5mm U-Type 2*26P
