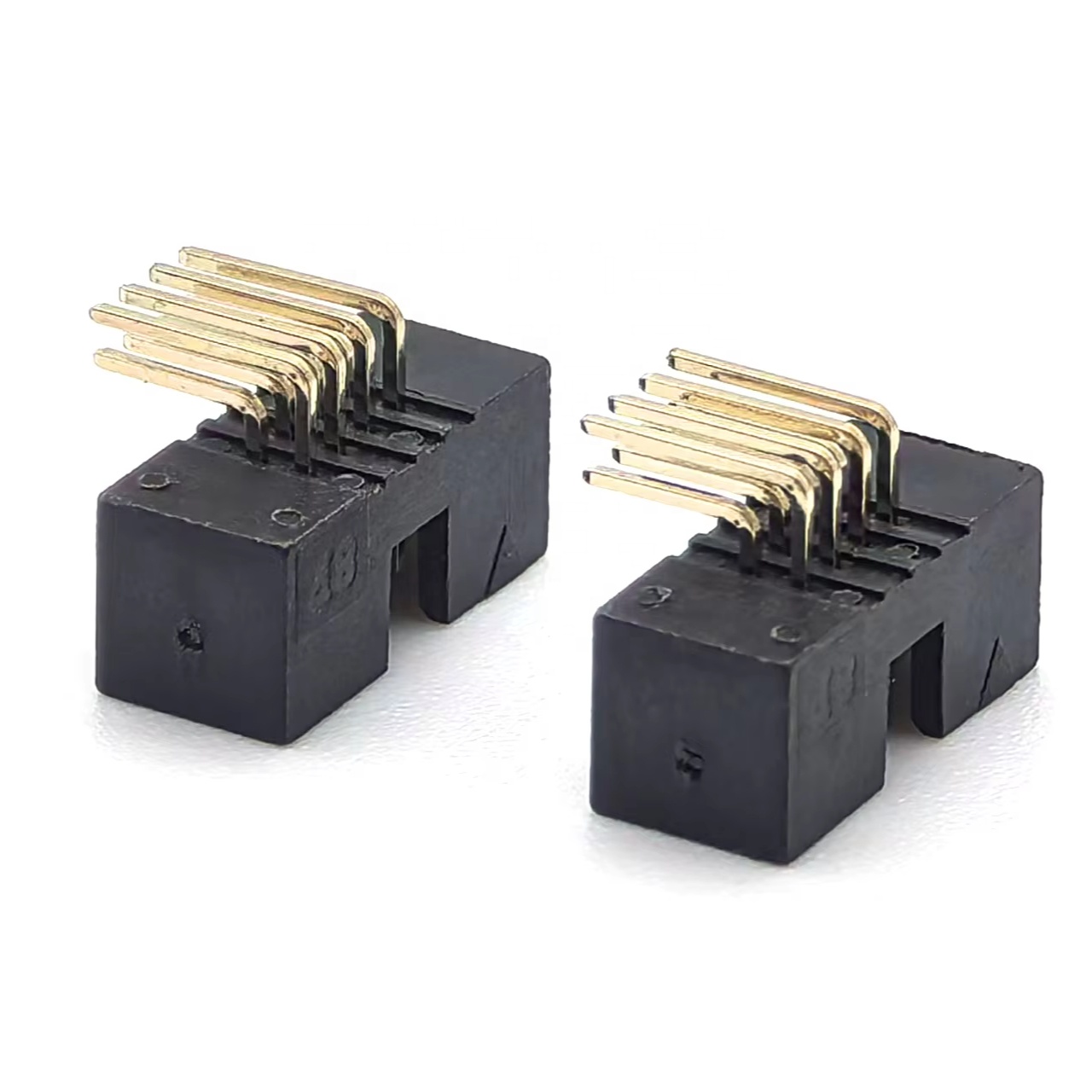

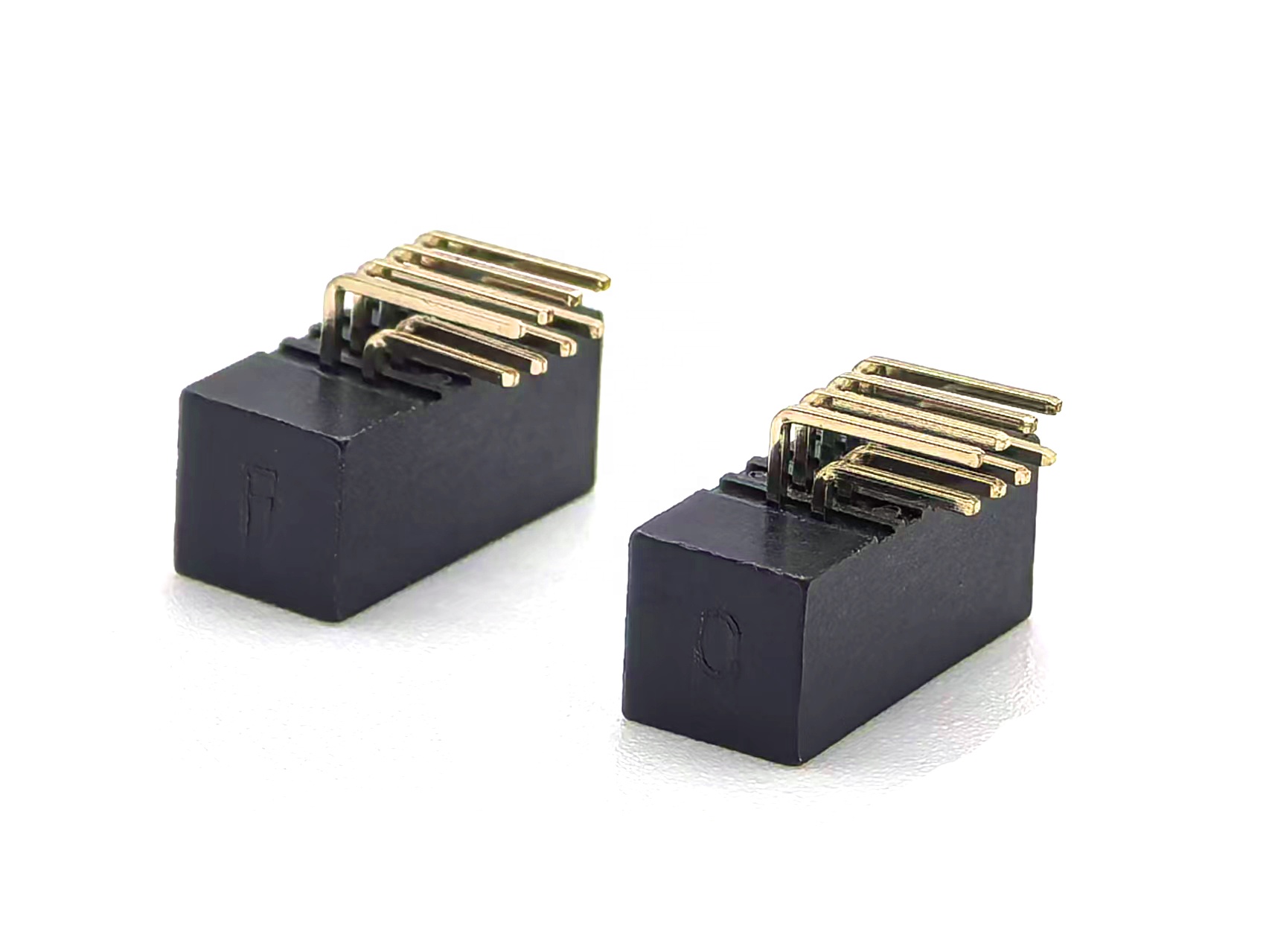

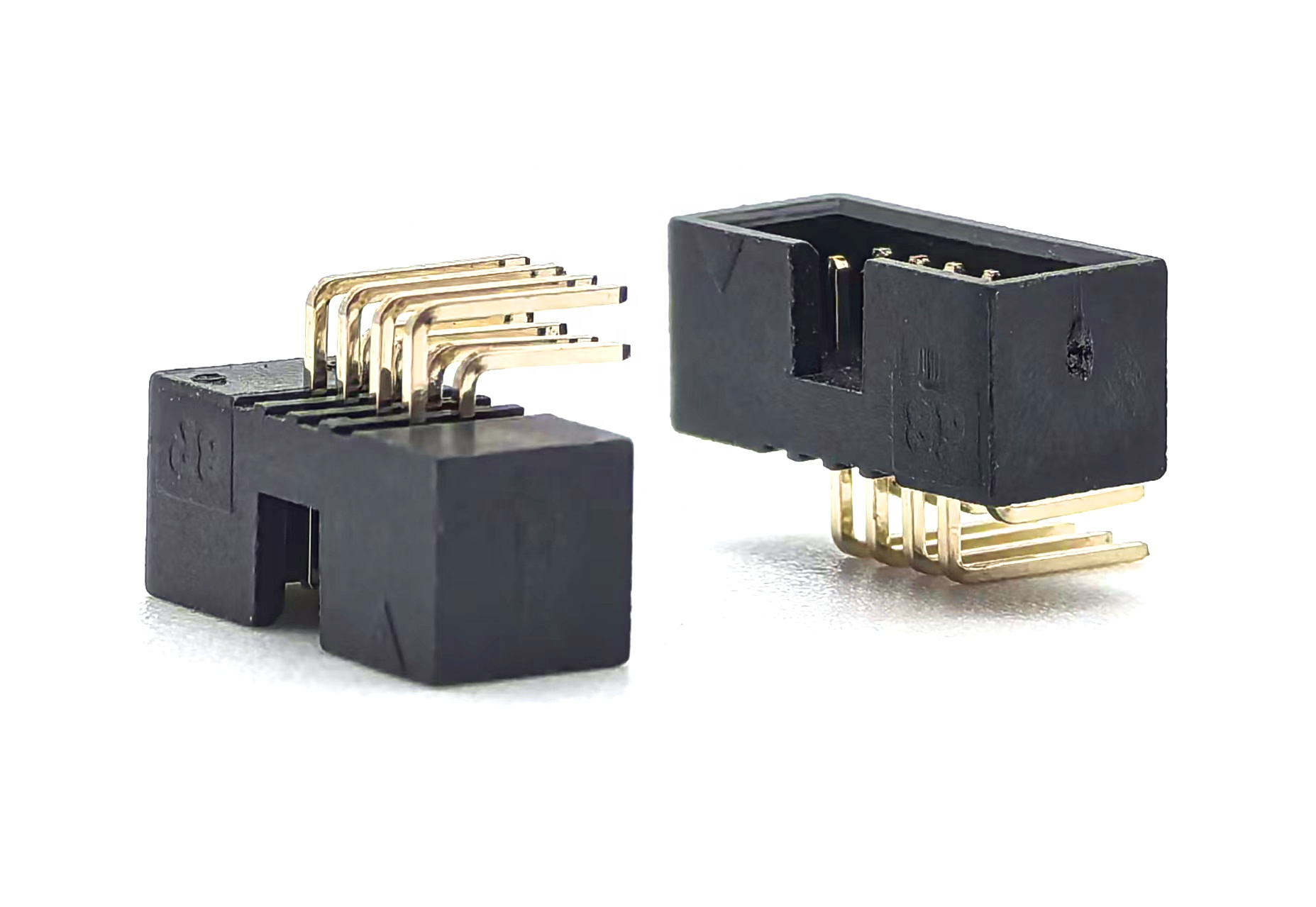

1.27mm Pitch Box Header Connector Right Angle H4.9mm 2*4P

2 month ago

3 0 

7 month

Product details

YZTECH presents its 1.27mm pitch box header connector featuring a space-saving right-angle configuration for efficient PCB integration.This dual-row male header connector with 8-position contacts utilizes a precision bending plug design that enables parallel board-to-board connections while minimizing vertical clearance.Gold-plated brass contacts deliver stable electrical characteristics with a 1A current rating and 300V voltage capacity,making this connector ideal for signal transmission applications where space optimization and reliable connectivity are equally crucial.

This right-angle box header demonstrates consistent operation across a temperature range of -40℃ to 105℃,suitable for various environmental conditions.The high-grade PA6T insulation material maintains dimensional stability under thermal stress, while the gold-plated contacts ensure low insertion force and minimal contact resistance through repeated mating cycles.The connector's UL certification verifies compliance with international safety standards,providing quality assurance for global applications.The secure box packaging protects the precision-formed right-angle pins during transportation and storage,ensuring perfect condition for automated assembly processes and simplified inventory management.

The YZTECH 1.27mm box header addresses the evolving needs of compact electronic devices across multiple industries. Its fine-pitch configuration and right-angle design make it particularly valuable for consumer electronics,medical monitoring equipment, industrial control systems,and telecommunications devices where PCB real estate is limited.

1.27mm Pitch Box Header Connector Right Angle H4.9mm 2*4P
