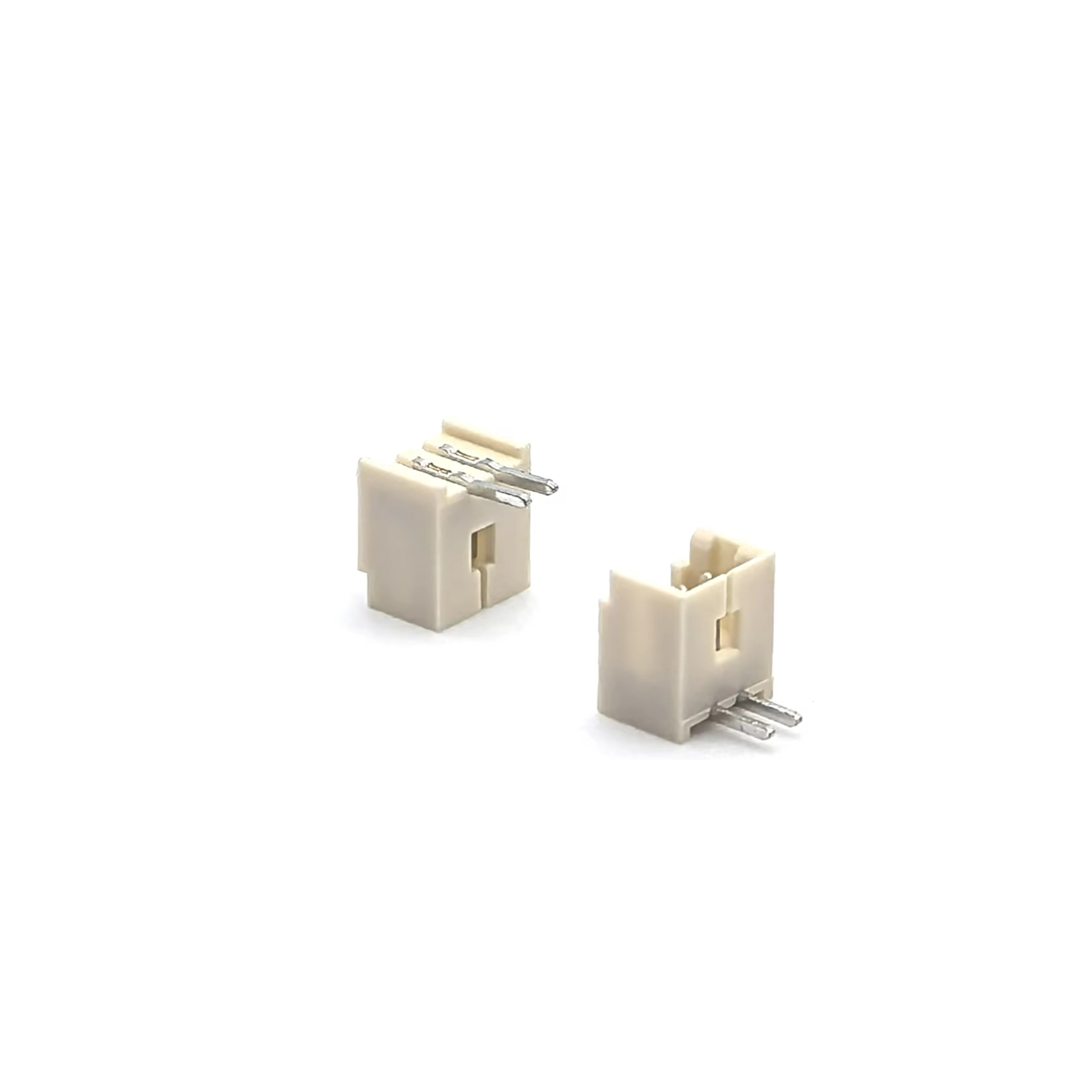

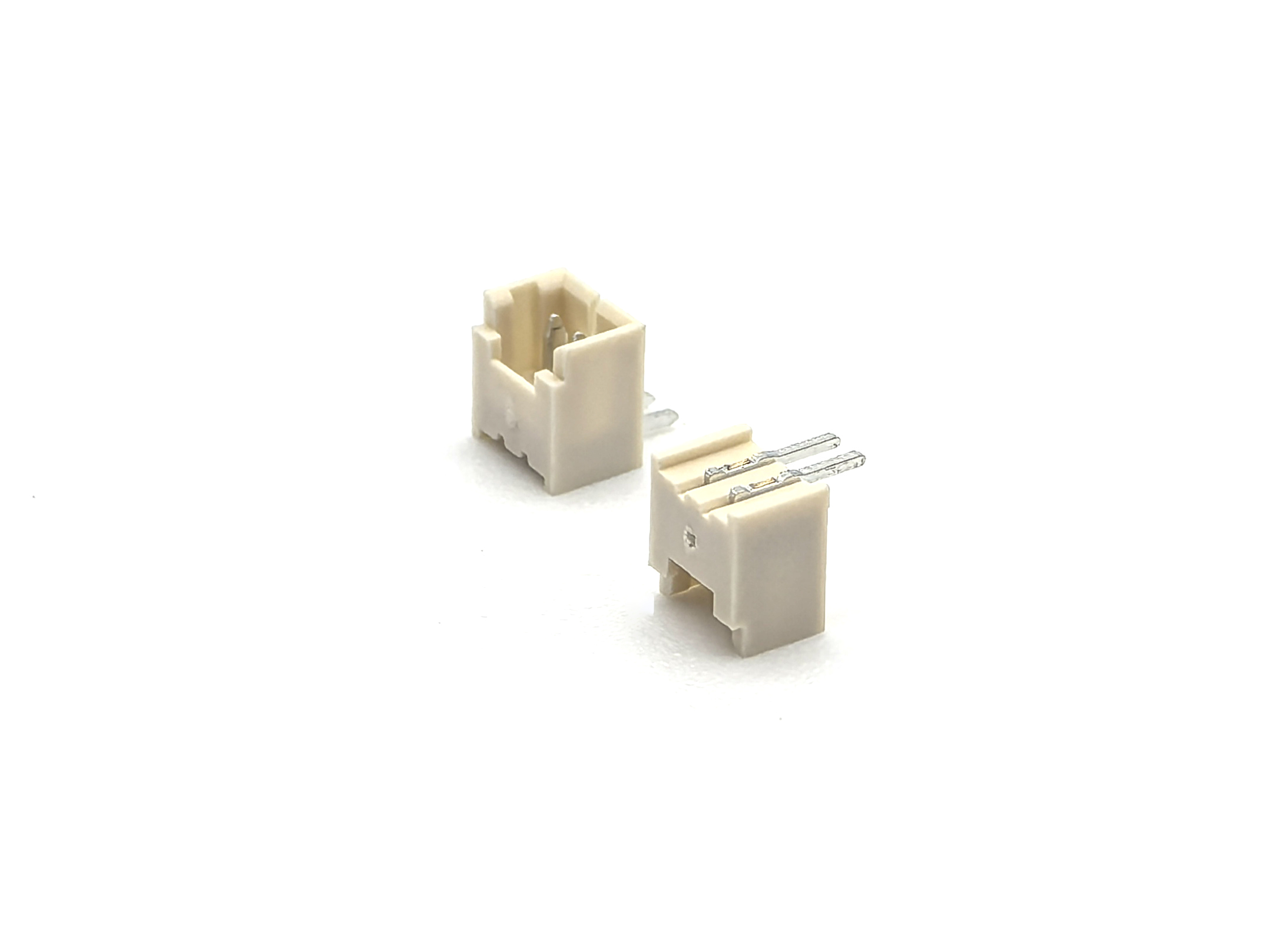

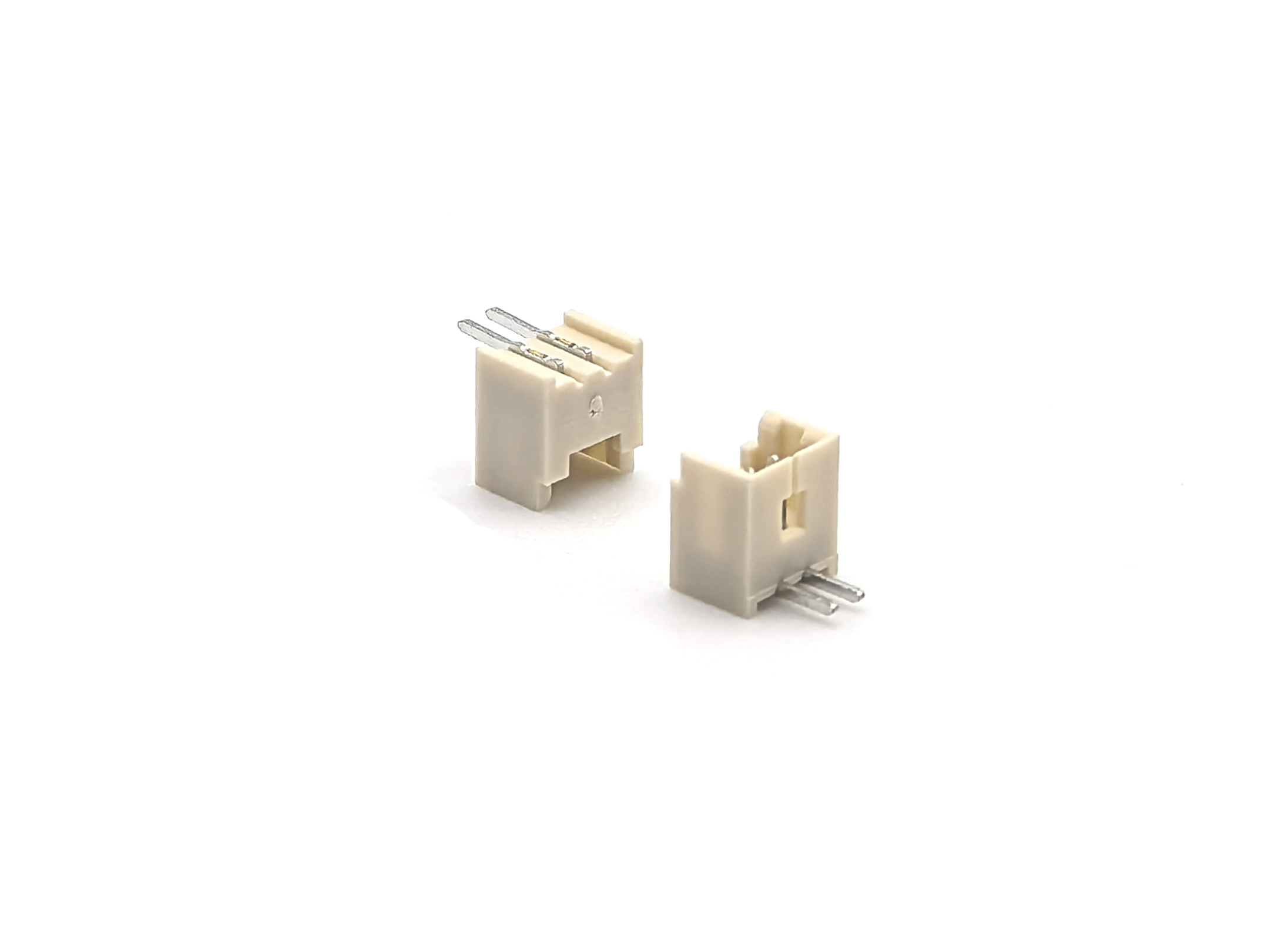

Wafer MLX1.25mm Pin header Connector Right Angle DIP Opening 1*2P

2 month ago

3 0 

7 month

Product details

YZTECH introduces its MLX series 1.25mm pitch wafer pin header,featuring an innovative right-angle design for space-optimized PCB layouts.This compact single-row male connector with 2-position configuration utilizes high-precision copper contacts with uniform tin plating,ensuring reliable electrical performance with a 1A current rating and 125V voltage capacity.The advanced PA9T thermoplastic housing provides superior thermal resistance and mechanical stability in confined spaces.

This wafer header connector demonstrates consistent operation across a temperature range of -25℃ to 85℃,suitable for standard electronic environments.The premium PA9T insulation material offers excellent resistance to thermal stress and mechanical deformation,while the tin-plated copper contacts ensure optimal solderability and corrosion resistance.The precision-molded right-angle pins provide secure PCB attachment and reliable mating with corresponding connectors.The protective box packaging safeguards the delicate terminals during transportation and handling,ensuring perfect condition for automated assembly processes and simplified inventory management in volume production scenarios.

The YZTECH MLX1.25mm right-angle wafer header addresses the evolving needs of compact electronic designs across multiple applications.Its ultra-fine pitch configuration makes it particularly valuable for consumer electronics,automotive control modules,sensor interfaces, and portable medical devices where PCB real estate is extremely limited.This wafer housing terminal enables the development of increasingly miniaturized products while maintaining the performance standards required in competitive global markets.

Wafer MLX1.25mm Pin header Connector Right Angle DIP Opening 1*2P
