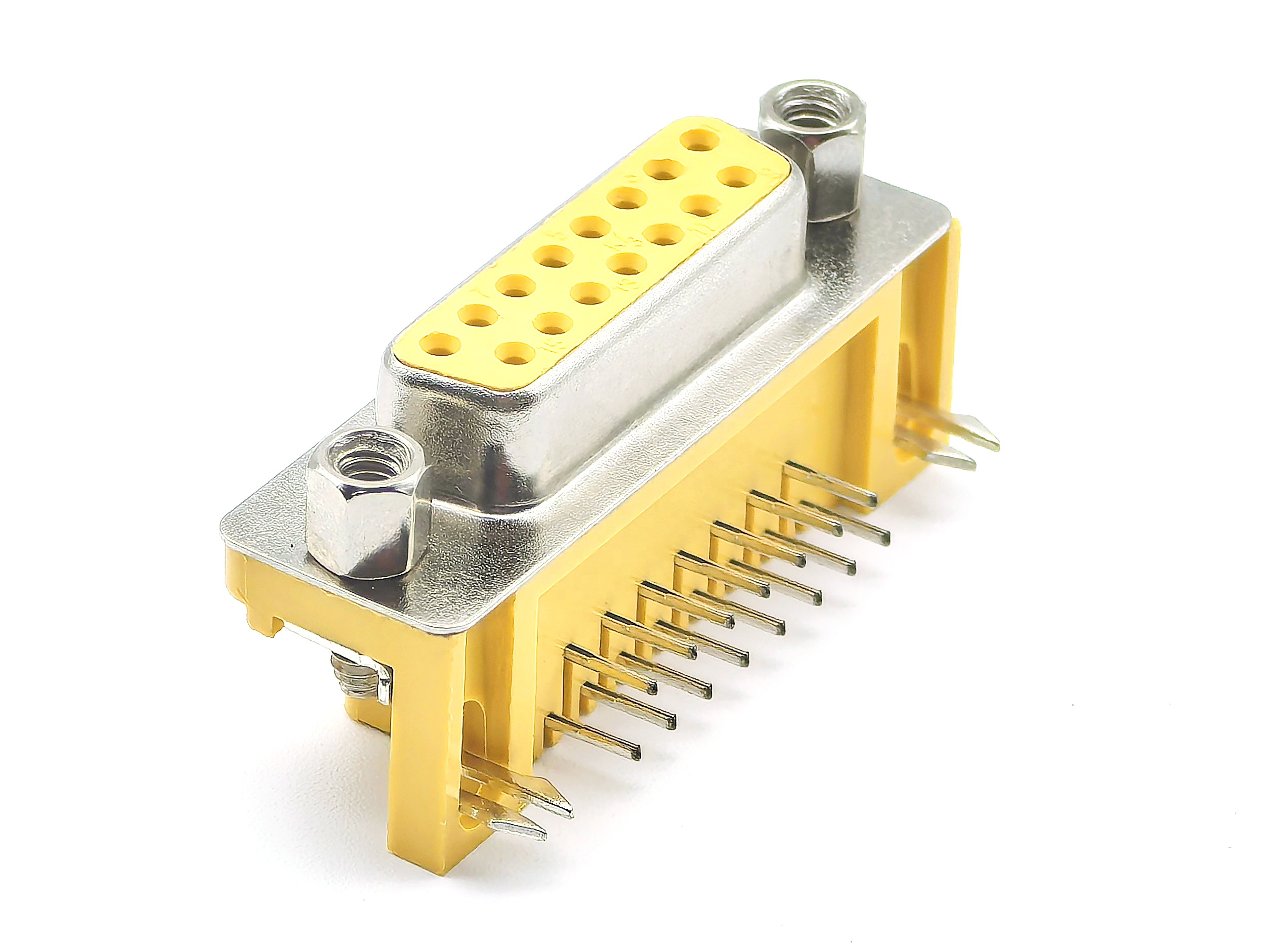

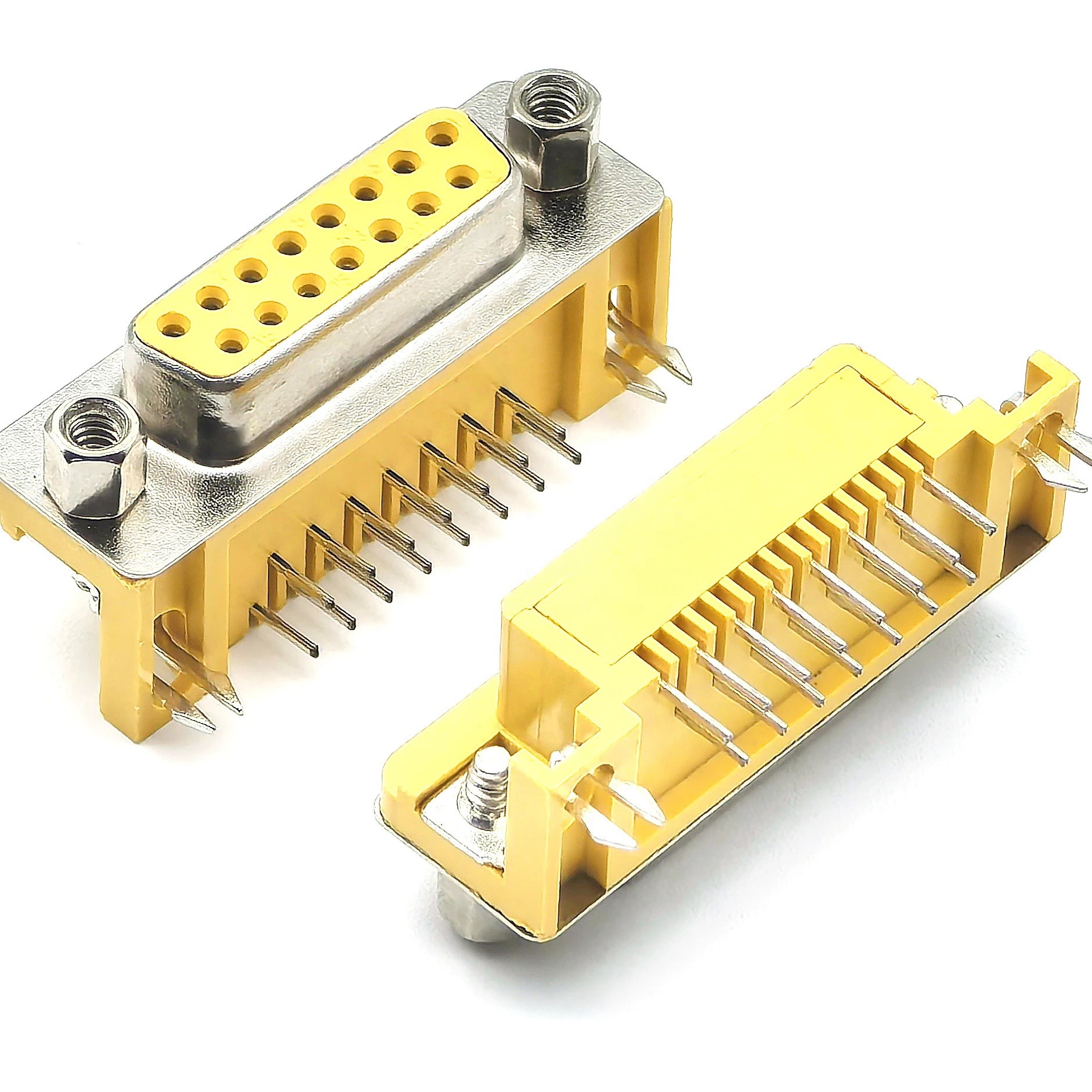

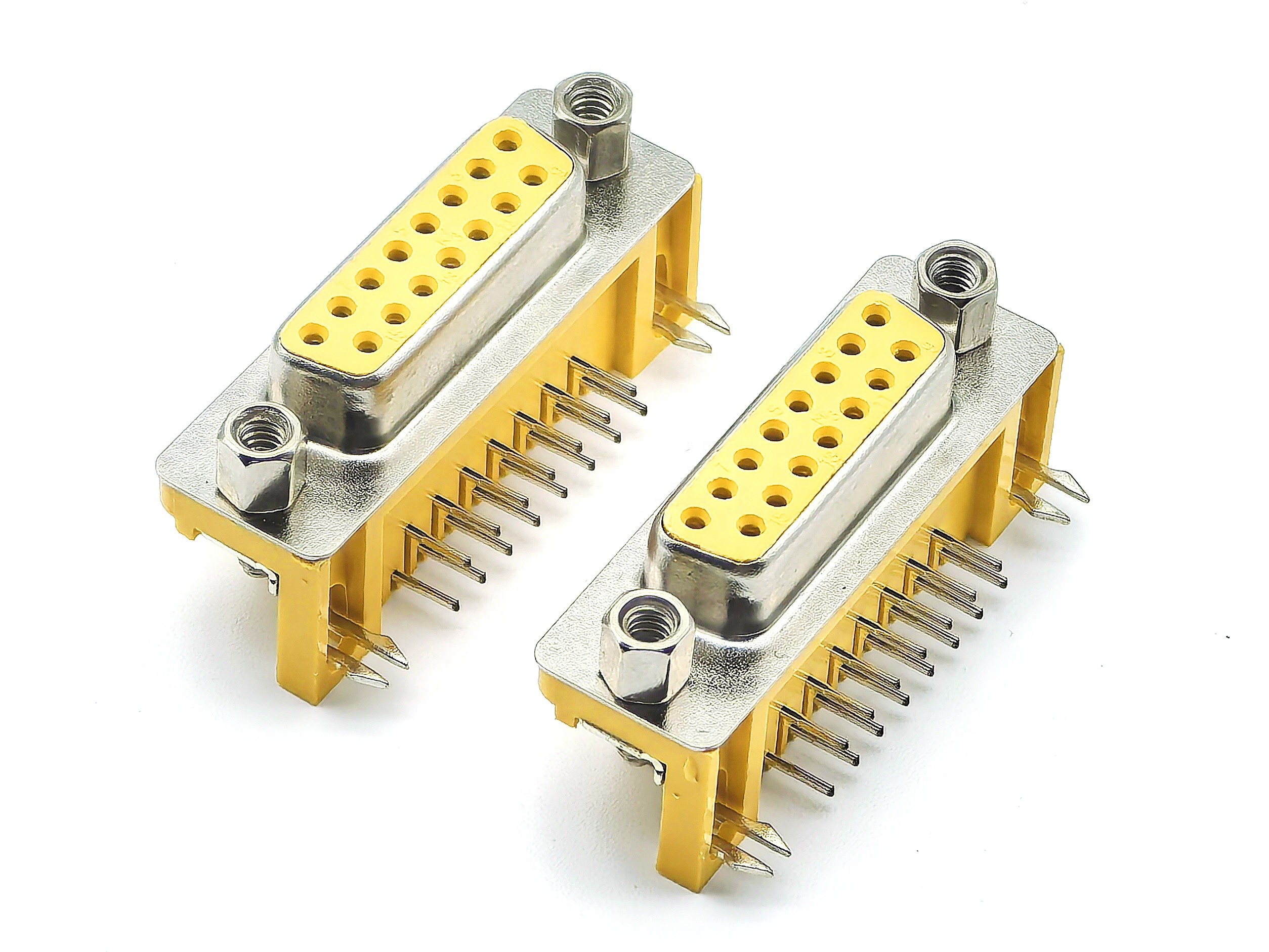

D-SUB Female Right Angle DIP Rivet TYPE With Boardlock & Front Jackscrew Foot Print=8.08mm 15P

2 month ago

3 0 

7 month

Product details

Introducing YZTECH’s high-reliability 15-pin solder type D-Sub connector,reimagined with a right-angle DIP configuration to maximize PCB space efficiency.This dual-row header connector employs an innovative sinking plate installation method,ensuring unmatched mechanical stability and secure mounting in compact layouts.The striking yellow plastic housing not only provides instant visual identification but also withstands mechanical stress,while nickel-plated copper contacts deliver 1A current capacity with superior corrosion resistance. Engineered for harsh environments,this header connector guarantees precise signal integrity across industrial control systems and communication equipment.

Operational from -55°C to 105°C, this d-sub connector female excels in extreme thermal conditions,from Arctic cold to desert heat.Its robust yellow housing maintains structural integrity under prolonged mechanical stress, and nickel-plated contacts ensure lasting conductivity without oxidation.UL-certified for global safety standards,it withstands 250°C soldering temperatures for 5 seconds, ensuring compatibility with high-temperature manufacturing processes.Secure box packaging protects the connector during transit and storage, minimizing damage risks in global supply chains.

Ideal for space-constrained applications like industrial automation,data communication systems,and embedded computing,this 15-pin D-Sub female header connector redefines compact reliability. Its right-angle design optimizes board real estate while maintaining reliable signal transmission—critical for high-precision instrumentation.The dual-row configuration supports dense pin arrangements without sacrificing mechanical durability.

D-SUB Female Right Angle DIP Rivet TYPE With Boardlock & Front Jackscrew Foot Print=8.08mm 15P
