PVC 3D doll making whole process
12 month ago
Product details

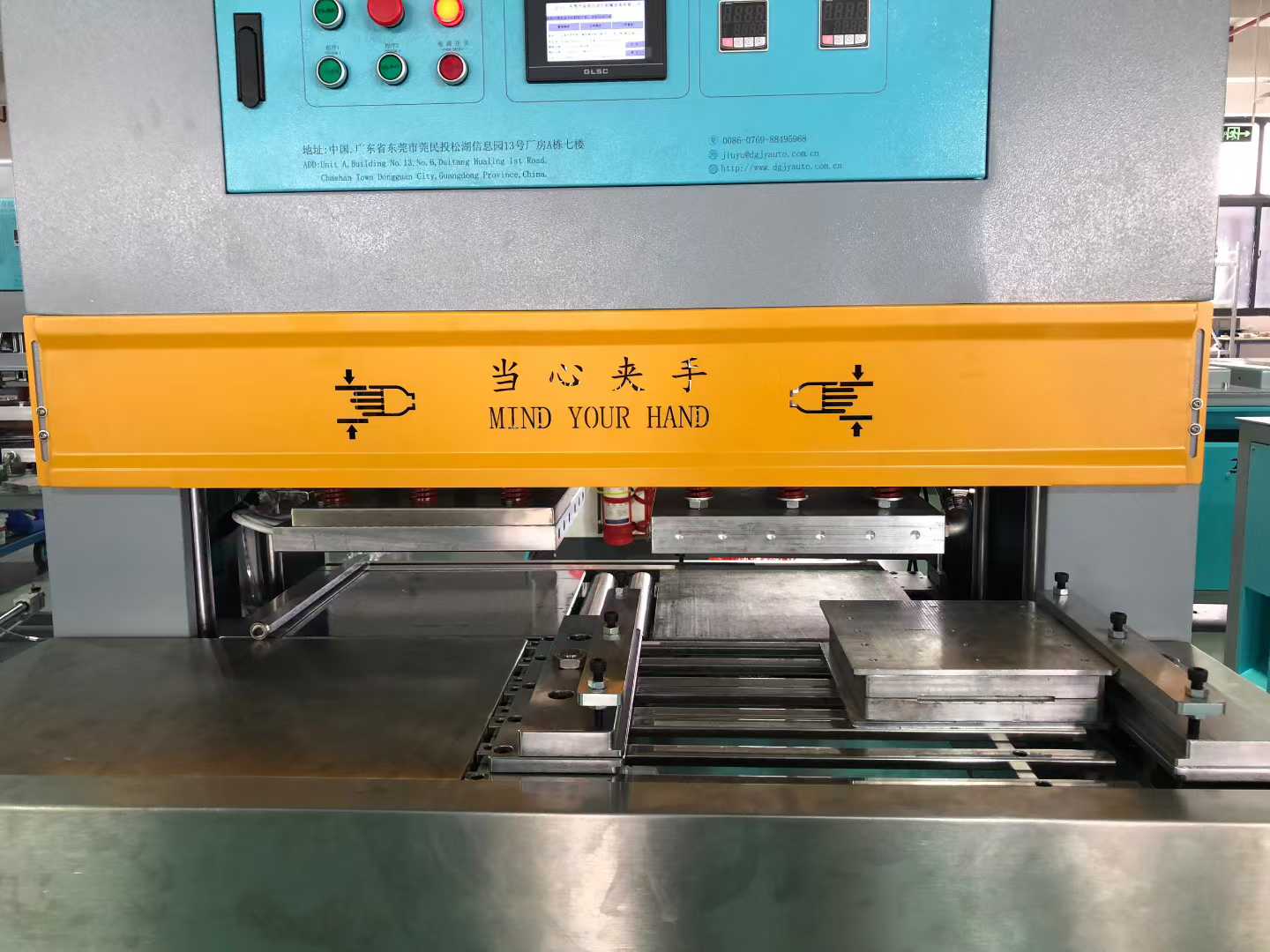

Fully‑Automatic Dual‑Station PVC Mould‑Clamping Press
Machine Features
1. Adopts dual‑station alternate working mode for high production efficiency.
2. Equipped with hot‑press curing & water‑cooling shaping function, prevents product deformation.
3. PLC + touch‑screen control, multiple sets of process recipes can be stored.
4. Built‑in automatic mould‑opening mechanism, reduces manual prying‑mold labor.
5. Adopts gas‑hydraulic booster cylinder, stable clamping pressure for consistent product quality.
6. Integrated heating oven optional, saves workshop floor space.
Machine Application
Suitable for 3D double‑sided PVC crafts: PVC keychains, rubber badges, zipper pulls, soft‑glue ornaments & toy accessories, etc.
Completes procedures: dispensing → pre‑baking → hot‑press mould‑closing → water‑cooling shaping → demoulding.
| Model | JY-E08 |
| Voltage | 380V,3phase |
| Station | 2 |
| WorK area | 300*300mm |
| Cooling type | Water cooling |
| Total power | 6KW |
| Size | 1000*660*1500*mm |
| Weight | 210KG |
| Cylinder type | multi-stage-air cylinder |
A PVC molding machine, also called a hot and cold pressing molding machine or an integrated drip molding molding machine, is a specialized piece of equipment for soft PVC drip molding processes. It primarily produces 3D double-sided PVC products, relying on hot pressing curing combined with water cooling to press two drip molding molds together into a complete, three-dimensional soft PVC product.
3D PVC keychains, cartoon doll pendants
Double-sided zipper pulls, double-sided badges, 3D epoxy trademarks
Soft rubber 3D ornaments, toy accessories, and other two-piece molded products

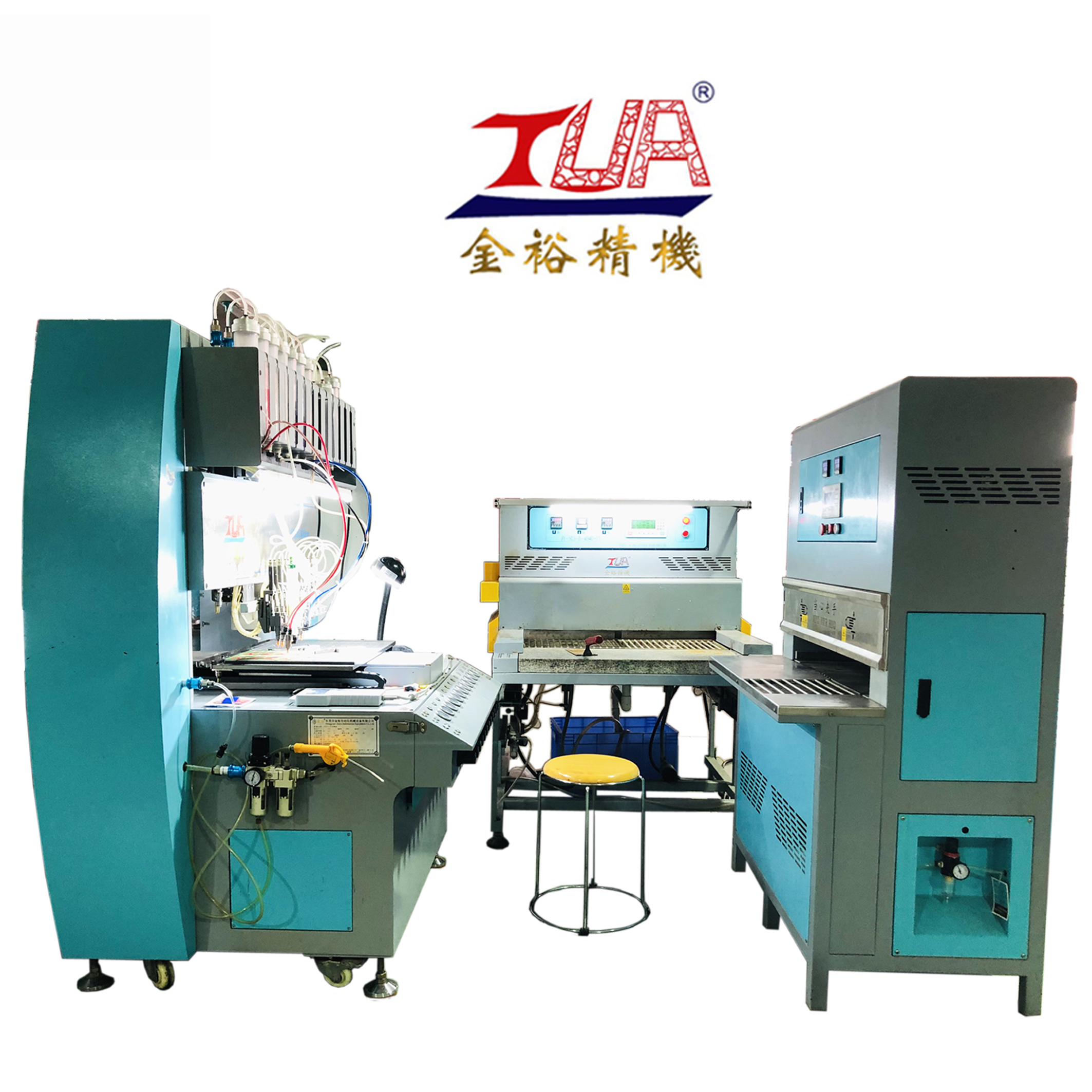

> Process Link: Dispensing machine → Pre-baking in oven → Hot pressing, curing, cold pressing, and water cooling → Mold opening and part removal
1. Hot pressing station: Upper and lower heating plates, multiple heating tubes, PID temperature control, completing mold closing and PVC vulcanization and bonding
2. Cold pressing station: Water-circulating cooling plate, rapid cooling and shaping, preventing product deformation and excessive burrs
3. Power unit: Mainstream is a **pneumatic-hydraulic booster cylinder (different from ordinary cylinders), stable pressure, uniform pressing, and good edge trimming effect
4. Mold entry and exit mechanism: Cylinder pushes and pulls the mold entry and exit station, dual-station alternating operation
5. Control system: PLC + touch screen, storing multiple process formulas, temperature, pressure, and time adjustable
6. Cooling system: Circulating water cooling / Air-cooled with a drip tray to remove heat from the mold.
7. High-end model: Equipped with a baking chamber and automatic mold opening mechanism, eliminating the need for manual mold prying, reducing labor costs, and the all-in-one machine saves factory space.
Differences between the two models:
1. Separate mold closing machine: Independent mold closing machine with an external drip molding oven; suitable for large-scale production and flexible integration with multiple dispensing machines.
2. Integrated baking and mold closing machine: Oven + hot press + cold press integrated into one unit, small footprint, single-person operation, suitable for small to medium-scale production, with automatic mold opening, eliminating the need for manual mold prying.
