WAFER HAC Pin Header Connector 6P

6-Pin HAC Design for Straight Plug-In Connections

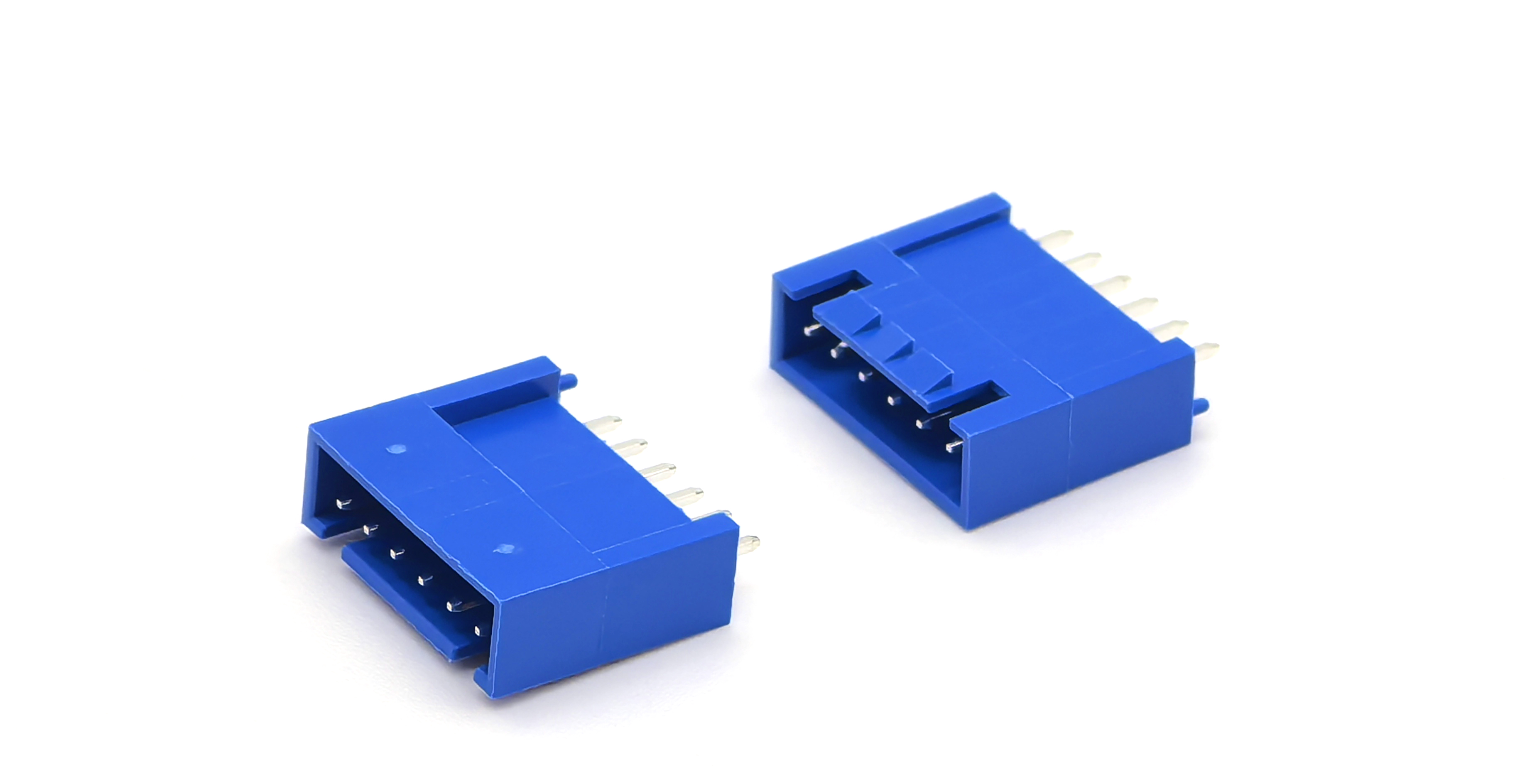

The WAFER HAC Pin Header Connector 6P is a straight plug-in connector with six positions. It is designed for applications where the connector needs to be installed directly through a plug-in mounting method, giving the PCB connection a simple and easy-to-follow layout.

With a rated current of 3A and rated voltage of 250V, this model can be used for electronic assemblies that need a little more voltage capacity than smaller low-voltage board connectors. If you are comparing a hac wafer pin header connector, the 6-position layout is a practical choice when several contacts need to be brought together in one connector.

PA66 Housing with Two Color Options

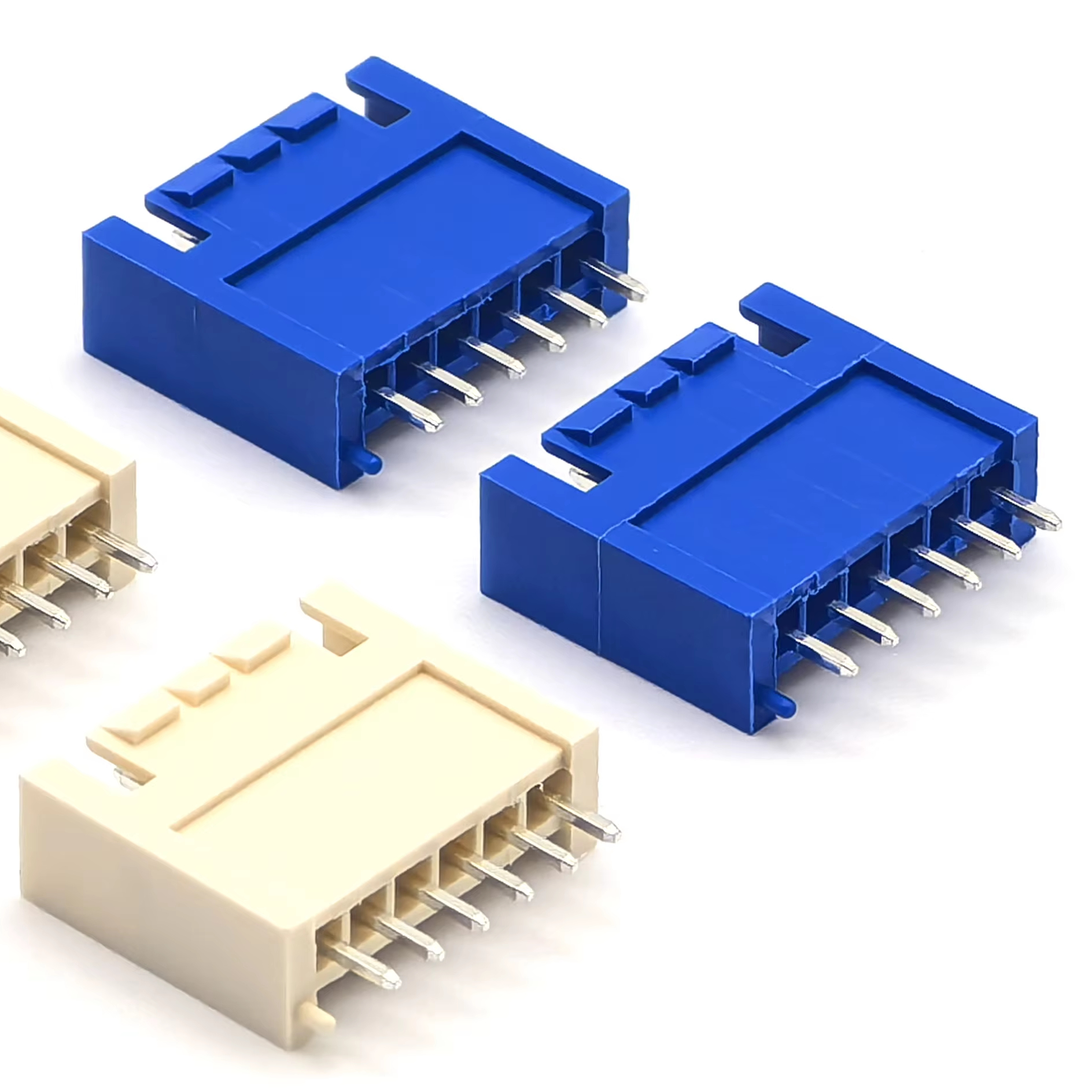

The connector housing is made from PA66 and is available in blue and beige. The housing material provides a solid structure around the contacts, while the two color options can also make it easier to identify different connection groups during assembly or maintenance.

The contacts are made of copper and use tin-nickel plating. The working temperature range is -25°C to +85°C, covering a broad range of normal electronic equipment environments. When matching the connector with the mating side, a suitable Wafer Housing Terminal can be selected based on the actual cable and connection arrangement. This is especially useful for projects using an hac wafer housing connector 6p configuration.

Bag Packaging for Bulk Supply

Unlike reel-packed SMT components, this connector is supplied in bags with 500 pieces per bag. This type of packing works well for customers purchasing larger quantities for manual assembly, production lines, or regular stock requirements.

The bagged format also keeps the connectors together during storage and shipment, while the blue and beige housing options give customers a simple way to separate different versions when handling multiple connector specifications. For customers sourcing similar parts, Buy Wafer Terminals can be a useful starting point for comparing related terminal products, while Housing Connector options can be checked according to the mating requirements.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and focuses on precision connectors, industrial terminal blocks, and cable assemblies. The company handles product development, tooling, processing, assembly, inspection, and sales, so customers can discuss connector requirements with one supplier throughout the development and production process.

For HAC products such as this 6P pin header, details such as housing material, color, contact material, plating, electrical rating, and packaging all need to match the intended application. YZTECH Electronics works with production and inspection equipment from Japan, Germany, and Taiwan and supports the development of plastic and metal tooling as well as final assembly. Customers looking for a related Wafer Pin header Connector can also discuss different pin counts and connection configurations with the Shenzhen-based team.
