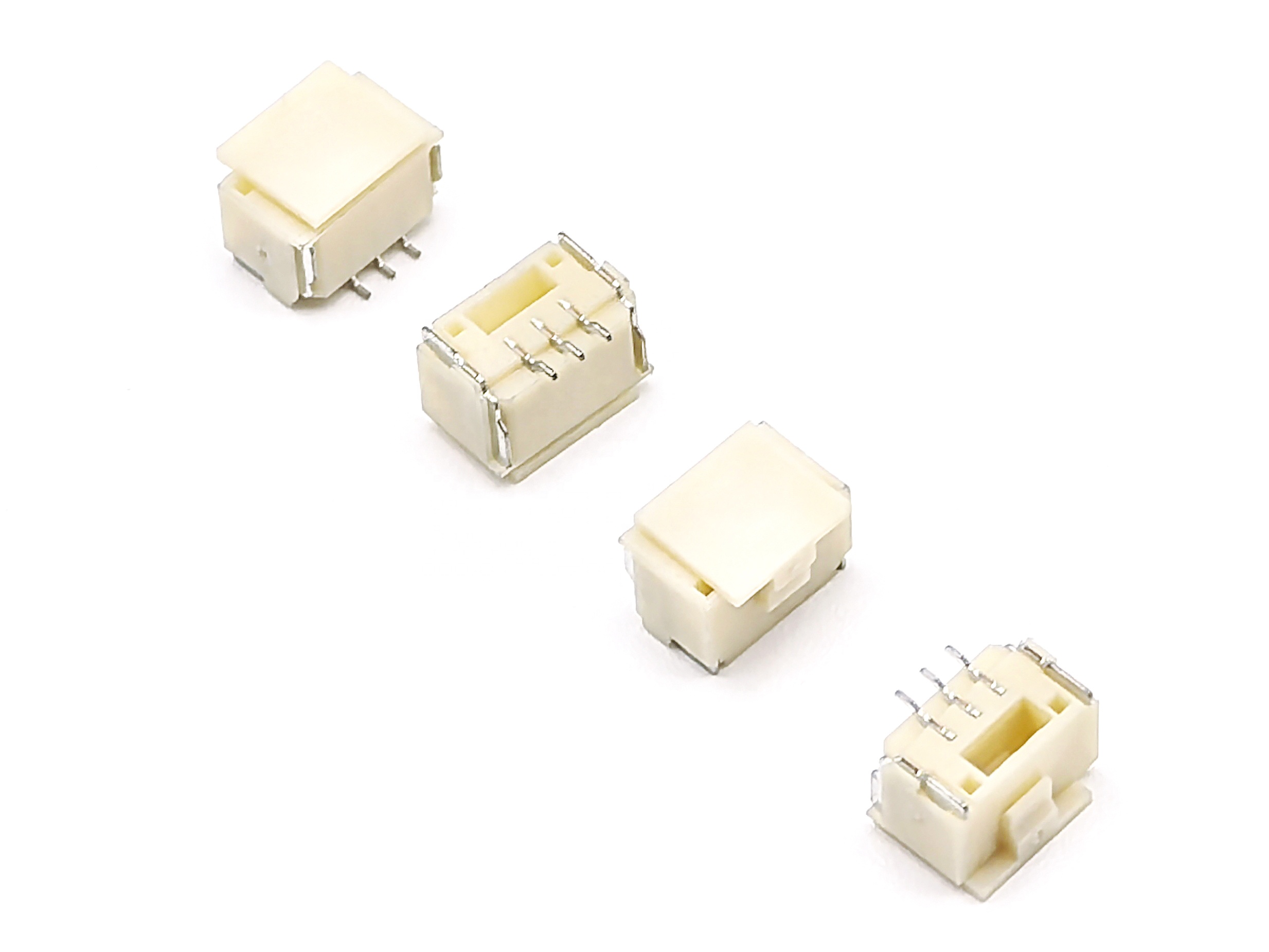

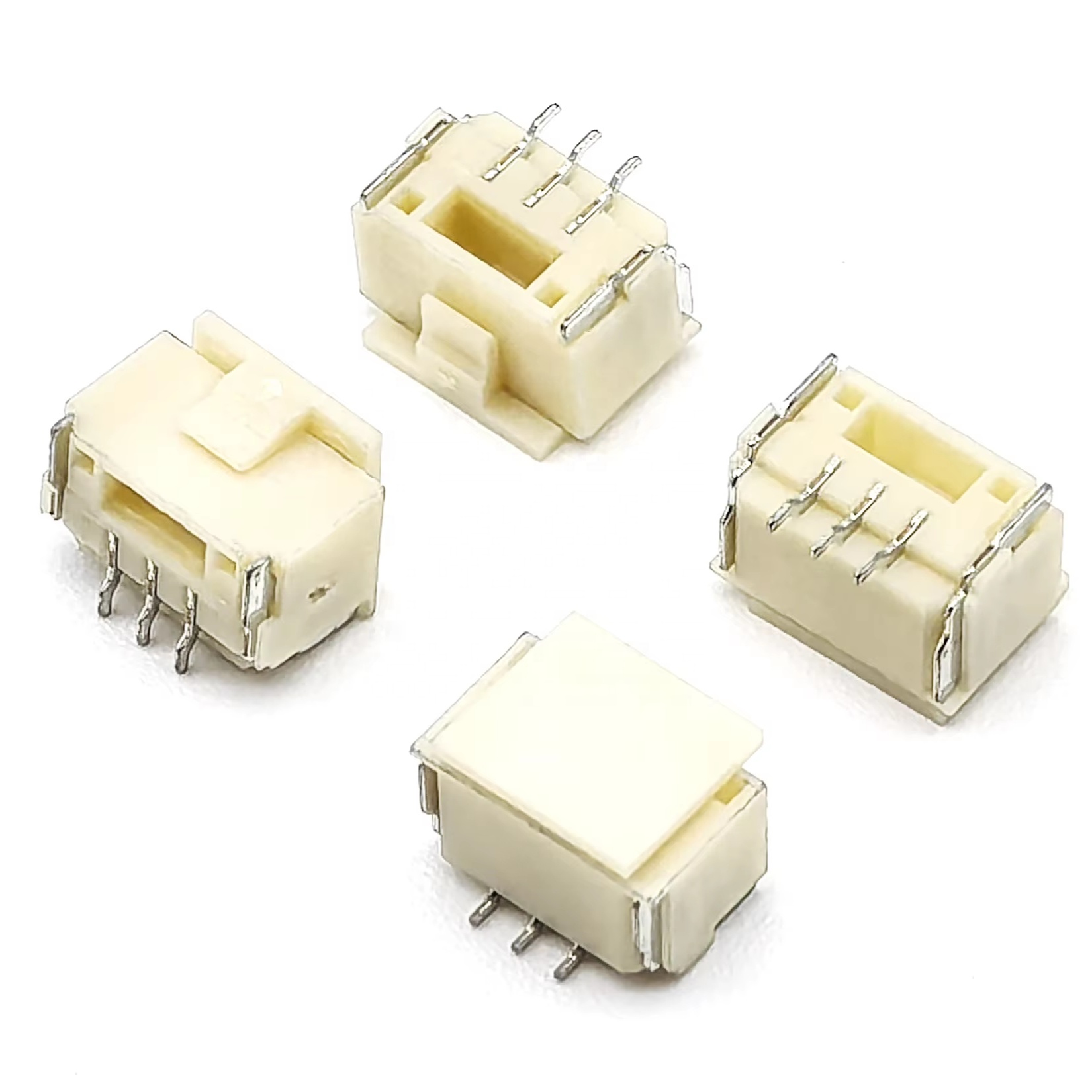

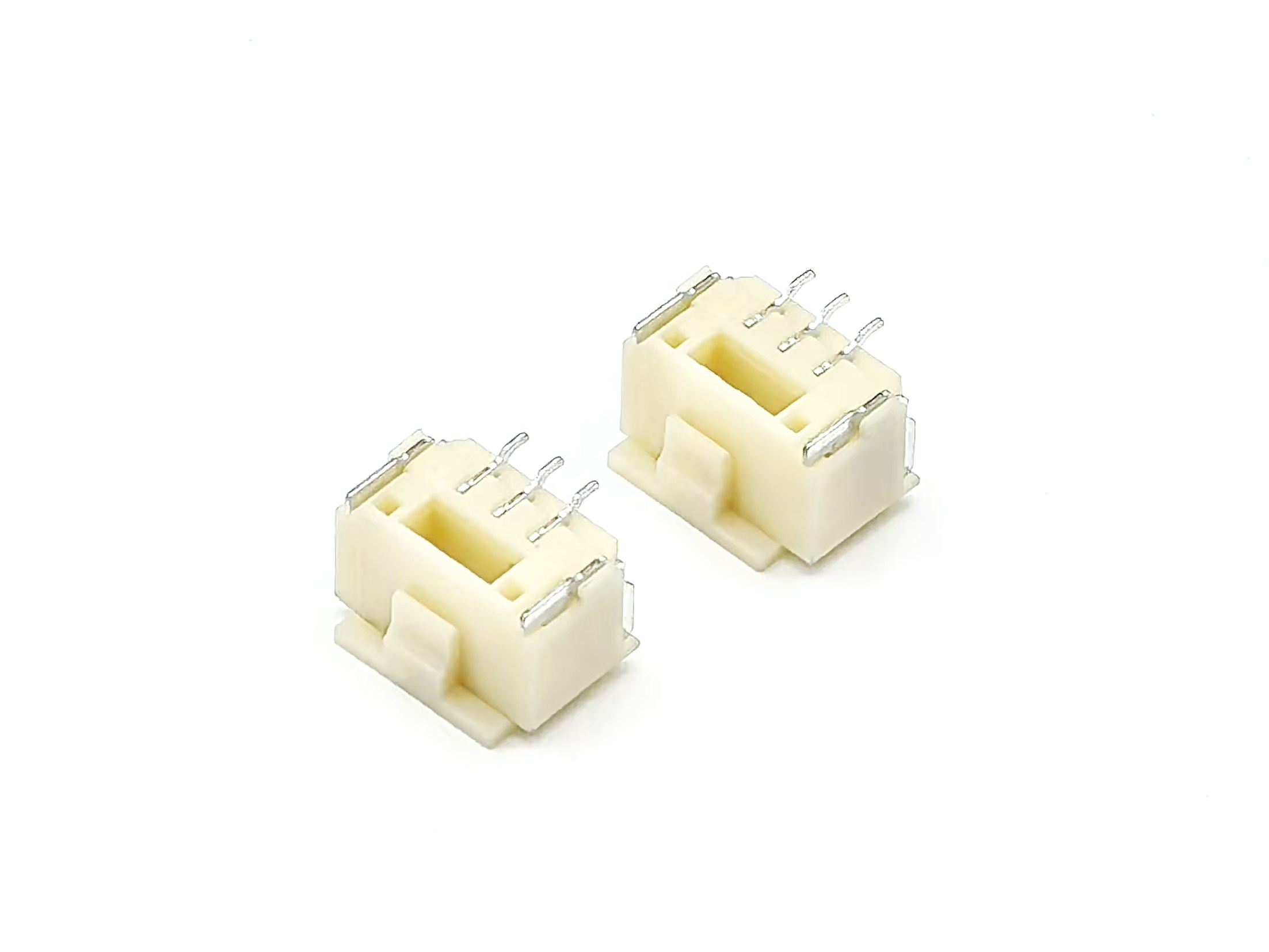

GH1.25mm Pitch Wafer Vertical SMT Pin header Connector 3P

2 month ago

3 0 

7 month

Product details

YZTECH’s GH1.25mm Pitch Wafer Vertical SMT Pin Header Connector introduces a groundbreaking approach to space optimization in PCB design.This 3-pin single-row DIN-type header connector features a vertical mount configuration,perfect for Z-axis constrained applications where traditional horizontal connectors cannot fit.

Engineered with phosphor bronze contacts coated in tin plating,it delivers 1A current at 50V while ensuring corrosion resistance and electrical reliability.The PA6T colloidal material exceeds industry standards with its exceptional thermal stability (-25°C to +85°C) and mechanical resilience,maintaining dimensional integrity through reflow soldering and repeated thermal cycles.The phosphor bronze contacts with tin plating provide over 500 mating cycles with consistent low contact resistance，ideal for industrial controls and automotive electronics.The 1.25mm pitch ensures precise signal integrity for both digital and analog applications,supporting high-speed data transmission without crosstalk.Its 50V rating suits low-voltage power distribution and signal routing in compact modules,while the vertical orientation optimizes airflow in densely packed enclosures.

The reel packaging supports automated pick-and-place equipment,streamlining assembly and reducing labor costs.With a focus on reliability,efficiency,and compliance,this wafer housing terminal empowers engineers to achieve superior performance in miniaturized designs while meeting international standards.Contact YZTECH today to explore how our vertical mounting expertise and custom engineering solutions can elevate your next-generation PCB designs and accelerate market entry in competitive global landscapes.

GH1.25mm Pitch Wafer Vertical SMT Pin header Connector 3P
