0603 SMD LED 520nm Green Color Mini Package 1608

2 month ago

4 0 

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

9 year

Product details

1608 SMD LED are one of the mini SMD LED. SMD 0603 LED common size is 1.60.80.6mm. But for 0603LGC-04T, its size is thinner than common 0603 SMD LED which is 1.60.80.4mm. With this thin size, 0603LGC-04T are perfectly and widely used in LED back light application. In Best LED factory, this is the smallest size SMD LED and this size are also available in kinds of color. Such as: red, orange, yellow, yellow green, cyan, green, blue, infrared and white. Not just for the LED back light, this 0603 SMD LED are also perfectly work for backlight of automobile dashboard ect application and other area that you can think of. Uniform light output, long life-solid state reliability, low Power consumption are all the advantage of this small SMD LED.

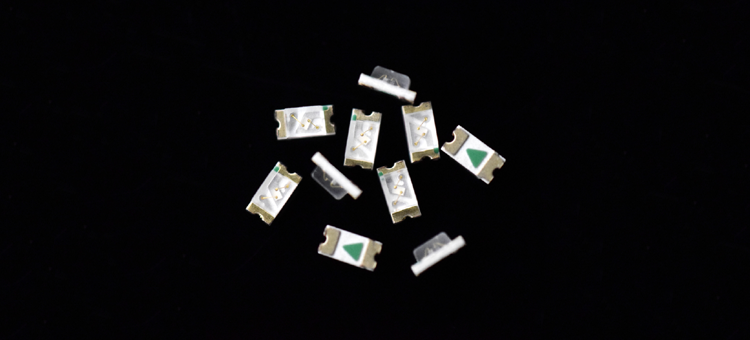

Green SMD LED 0603

- Size: 1.6*0.8*0.4mm

- Chip Number: 1 chip

- Color: Green

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

Green SMD LED 0603 Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	105mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	100°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8	3.0	3.4	V	IF=20mA
Luminous Intensity	IV	300	500	600	mcd	IF=20mA
Peak Wavelength	λP		530		nm	IF=20mA
Dominant Wavelength	λD	517	520		nm	IF=20mA
Half Width	Dl		18		nm	IF=20mA
Viewing Half Angle	2q1/2		±70		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		10		ns	IF=20mA
Fall Time	Tf		10		ns	IF=20mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related LED -

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention
