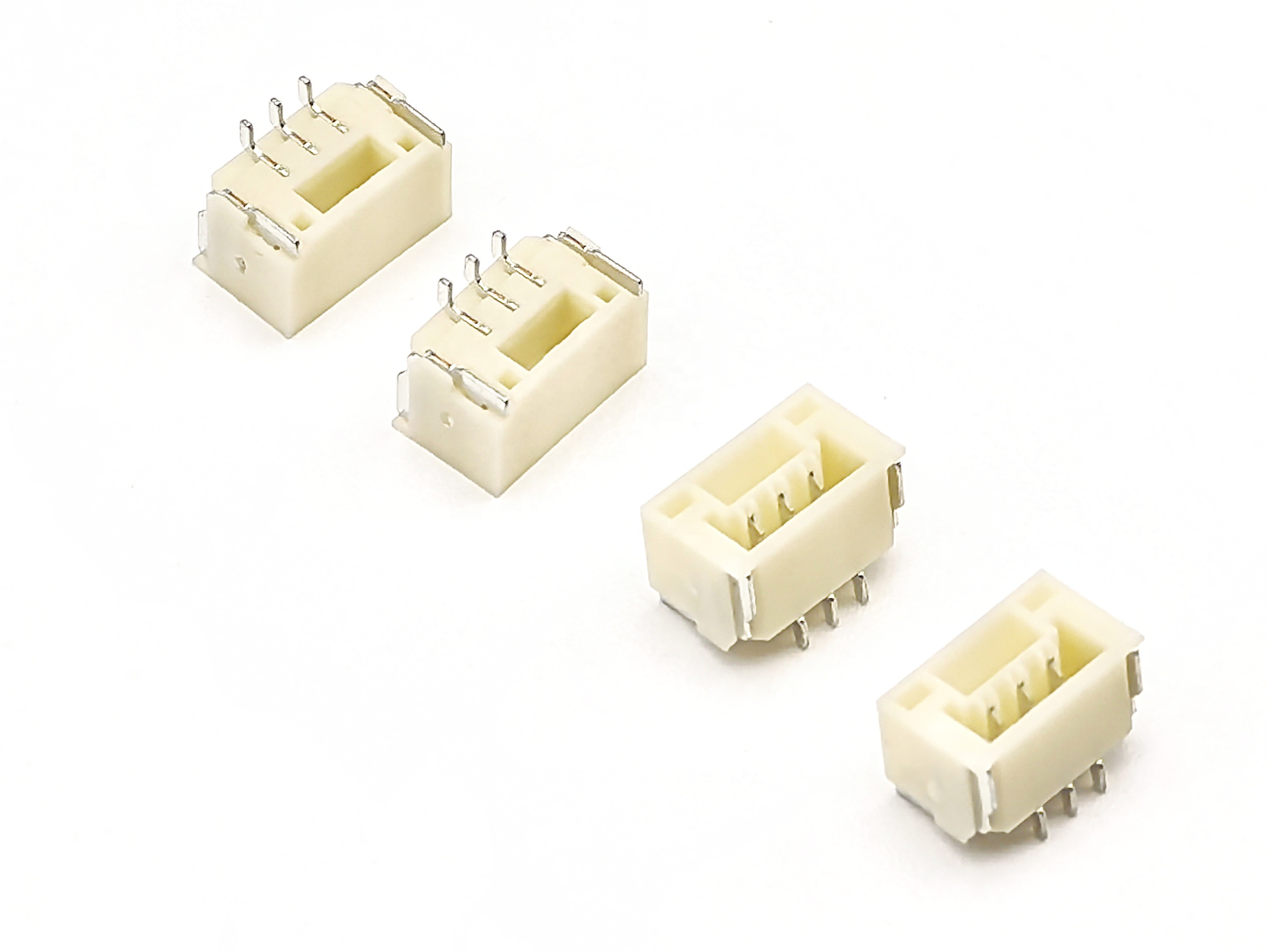

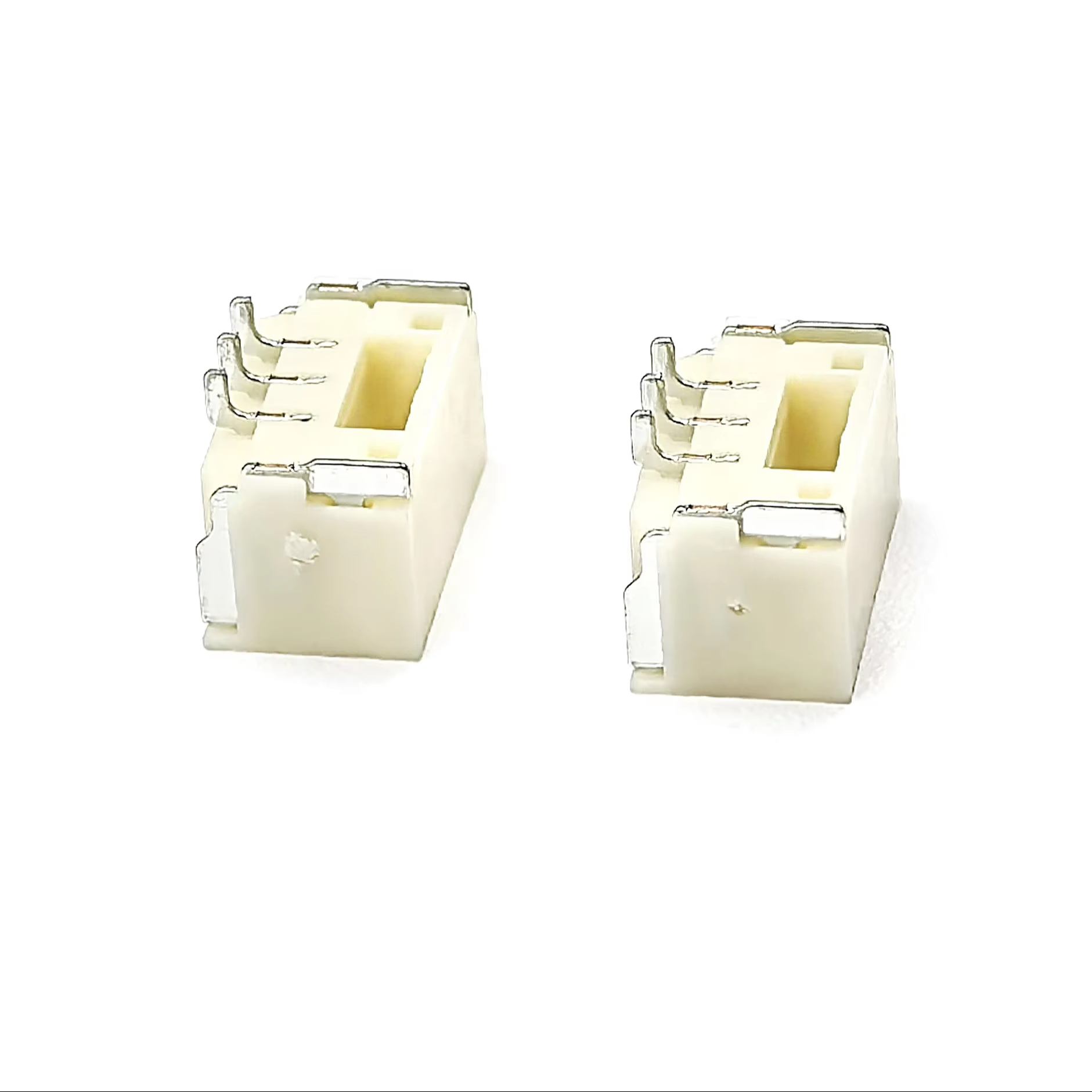

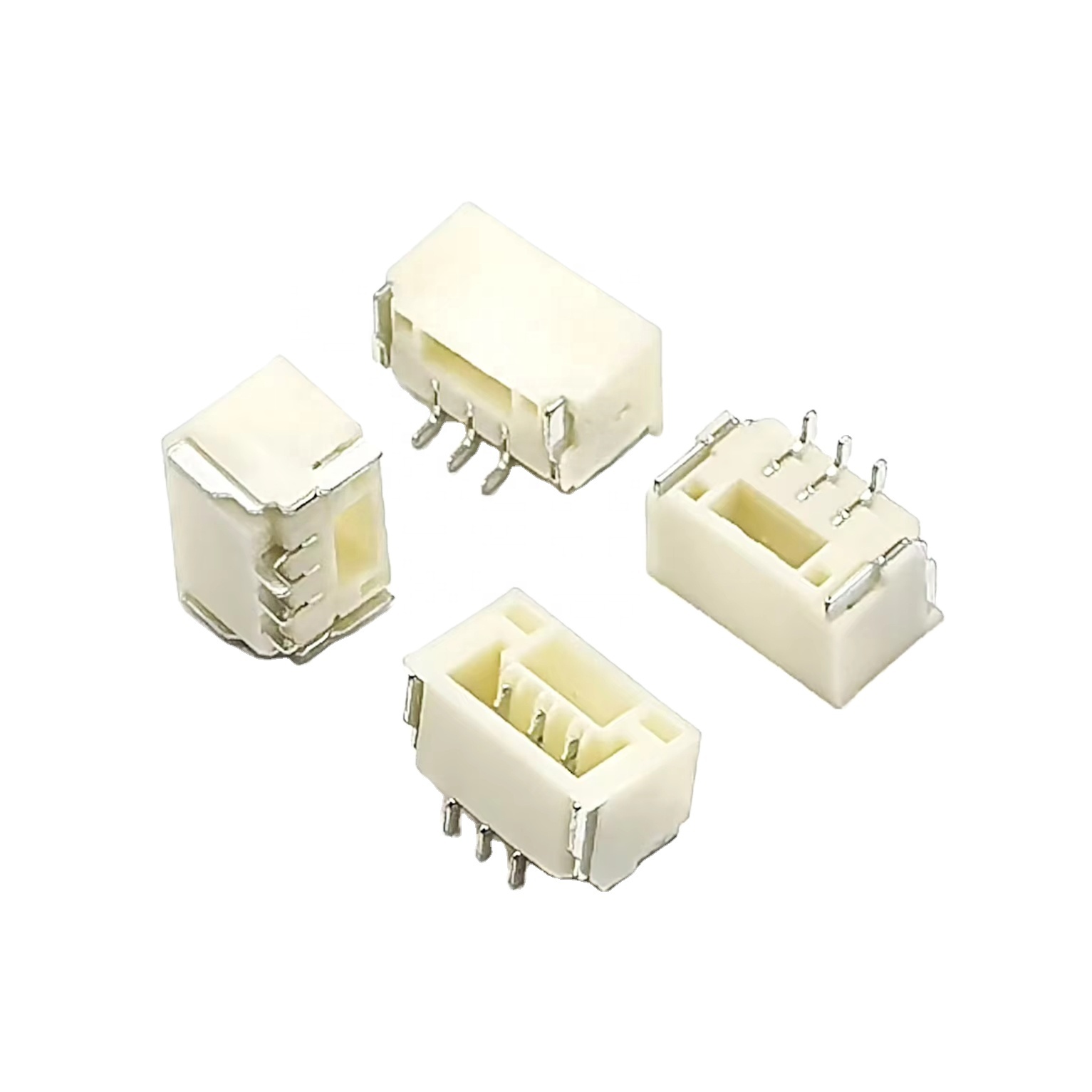

GH1.25mm Pitch Wafer Right-Angle SMT Pin header Connector 3P

2 month ago

3 0 

7 month

Product details

In the context of increasingly miniaturized electronic devices,YZTECH introduces the GH1.25mm pitch wafer right-angle SMT pin header connector,providing an ideal interconnection solution for compact PCB layouts.This 4-position single-row header connector adopts an innovative horizontal surface-mount installation method,enabling parallel board-to-board connections through its 90-degree right-angle design while effectively conserving vertical space.The carefully selected phosphor bronze contacts combined with the tin-plating process ensure stable electrical performance under 1A current and 50V voltage.

This right-angle connector delivers outstanding performance within an operating temperature range of -25℃ to 85℃, with its structural design fully considering the requirements of modern electronic manufacturing.The selected PA6T material not only possesses excellent thermal stability but also maintains precise dimensional tolerances.The tin-plated phosphor bronze contacts ensure both good solderability and excellent corrosion resistance.The 1.25mm fine pitch achieves an optimal balance between connection density and manufacturing processes.The thoughtfully designed reel packaging ensures precise positioning and efficient installation during automated production.

This right-angle SMT connector demonstrates its unique value across multiple industry sectors. Its compact right-angle design is particularly suitable for space-constrained applications such as consumer electronics,communication equipment, medical instruments, and industrial control systems.This wafer housing terminal fully embodies YZTECH's technical expertise in the field of miniaturized connectivity solutions,providing global electronic manufacturers with innovative and practical interconnection options.

GH1.25mm Pitch Wafer Right-Angle SMT Pin header Connector 3P
