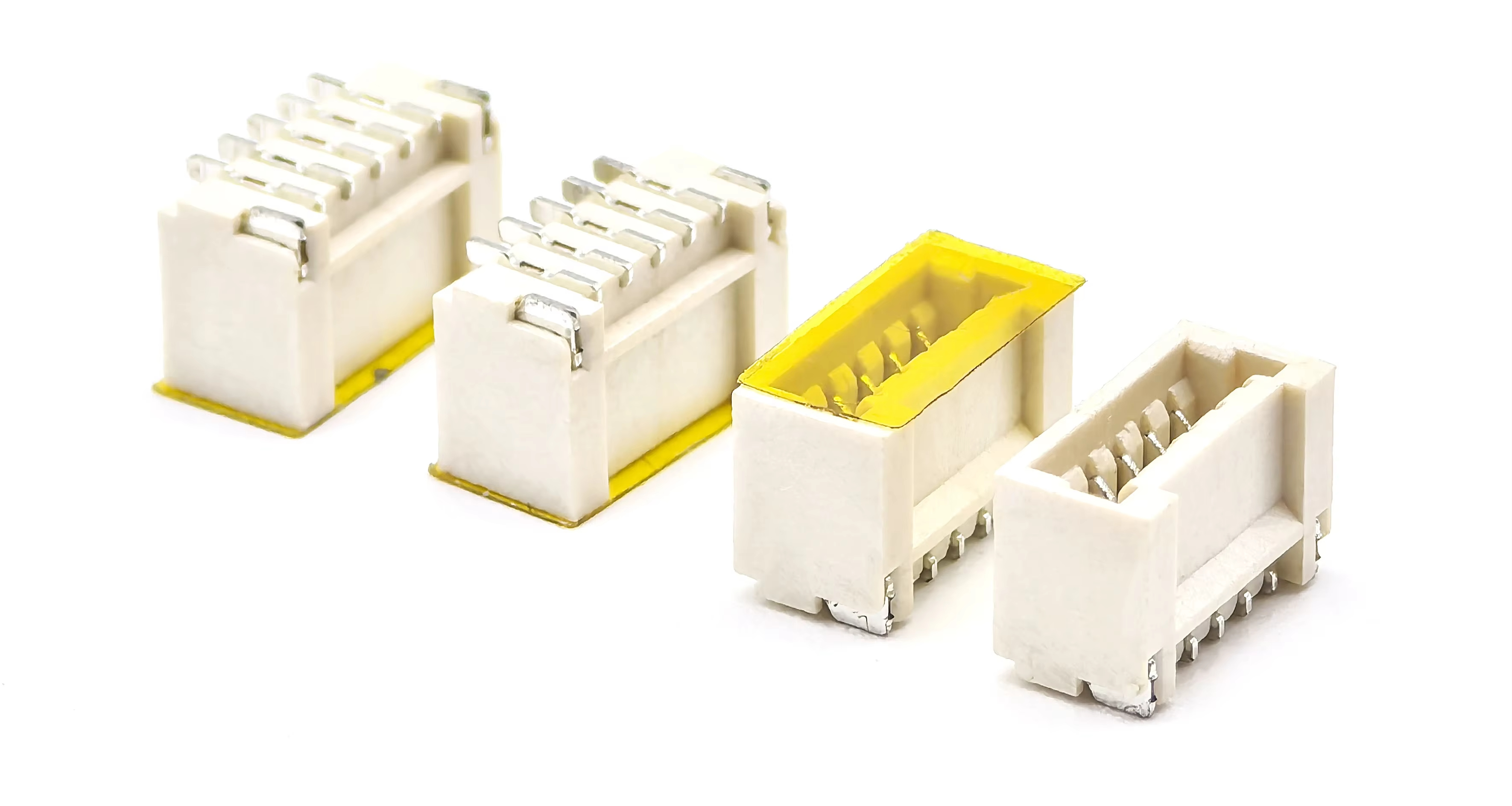

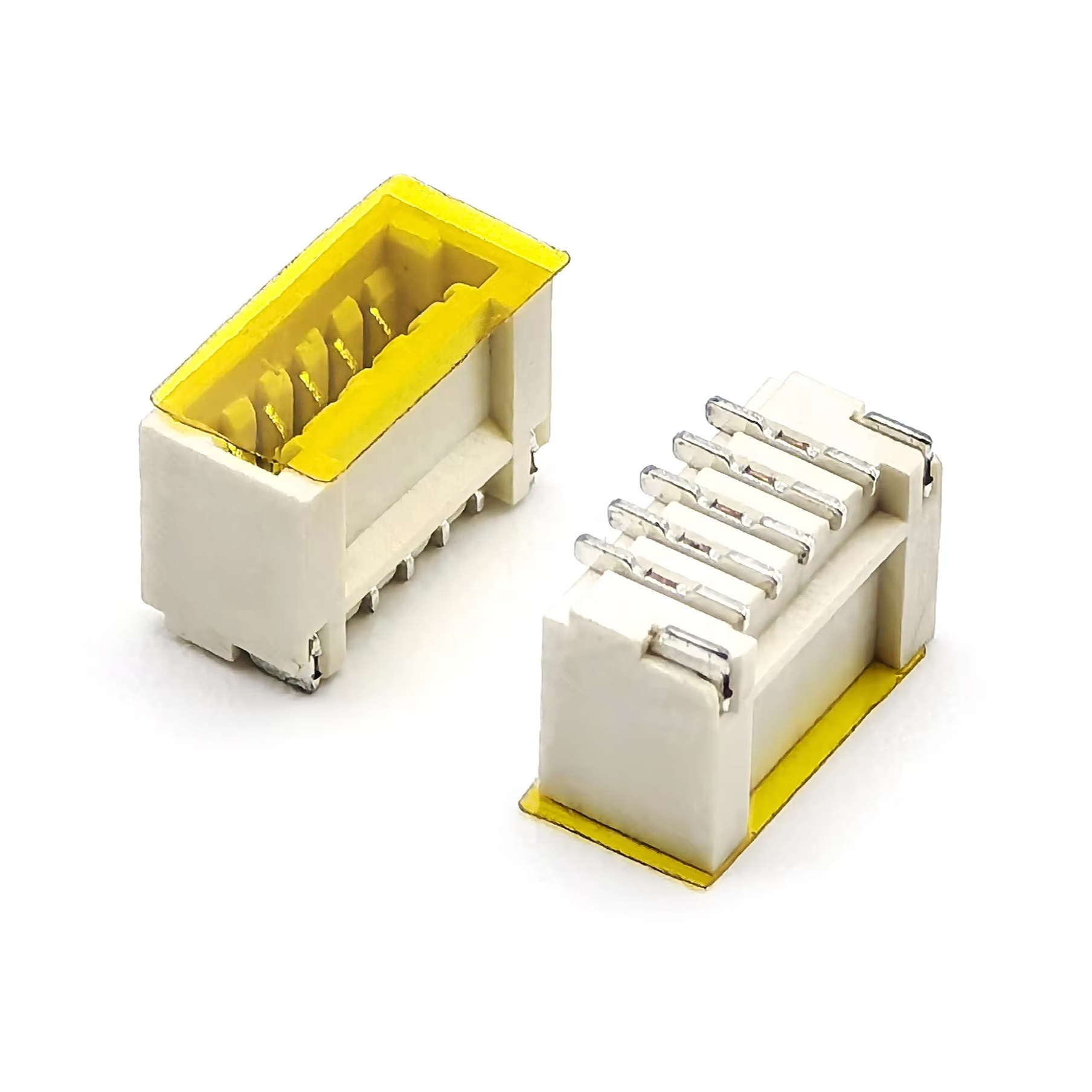

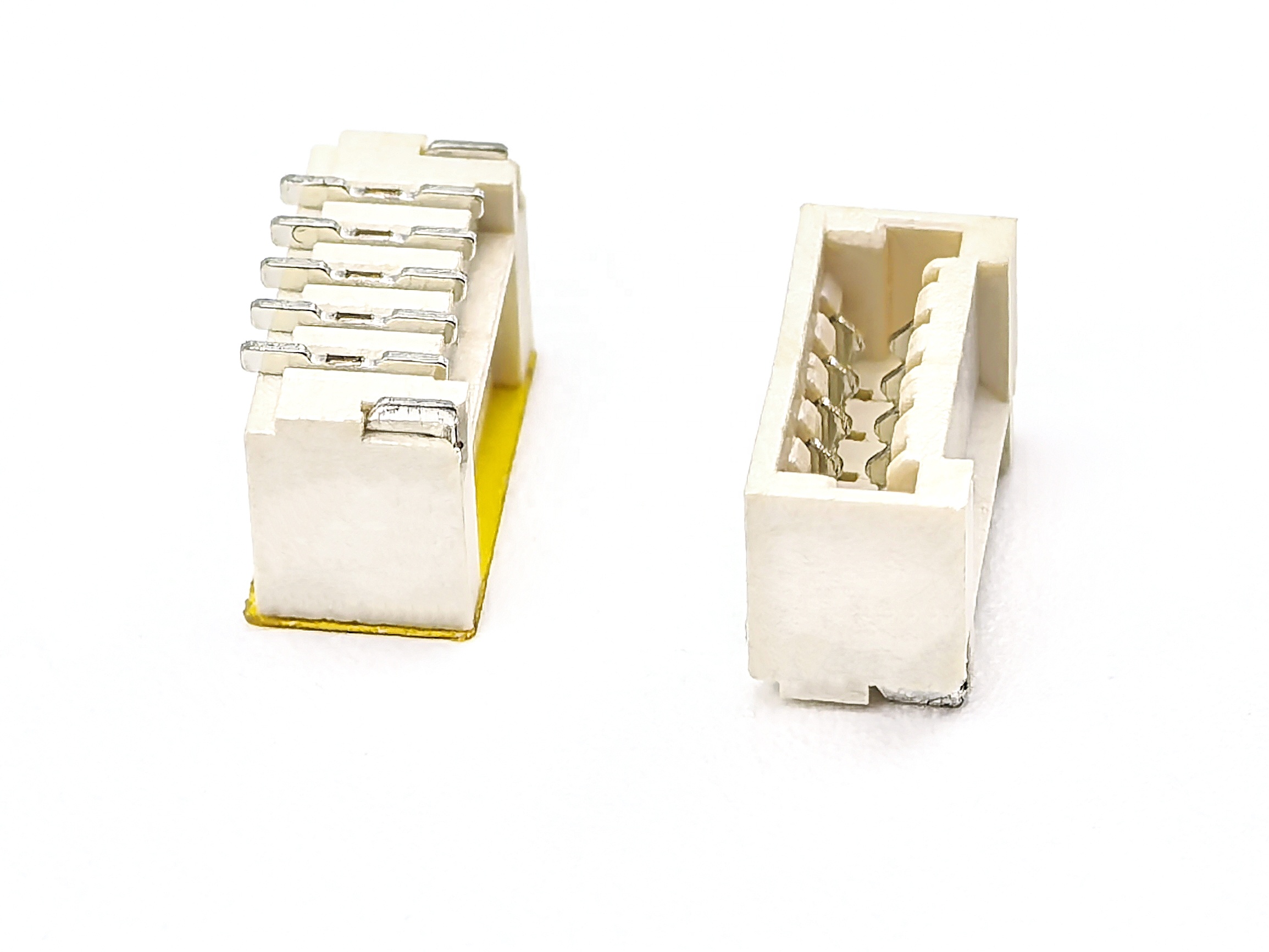

1.0mm Wafer Vertical SMT Pin Header 5P

Compact 1.0mm Pitch for Space-Saving PCB Layouts

The 1.0mm Wafer Vertical SMT Pin Header 5P is designed for applications where PCB space is limited. With a 1.0mm pitch and five contacts arranged vertically, it keeps the connection area compact and leaves more room for other components on the board.

This 1.0mm pitch wafer smt pin header uses an SMT mounting style, so it can be placed directly on the PCB through standard surface-mount assembly processes. For projects that need a small connection footprint, the compact design makes it a practical option. It can also be matched with a suitable Wafer Housing Terminal according to the cable and mating requirements.

Phosphor Bronze Contacts with Tin Plating

The connector uses phosphor bronze for the contacts and features tin plating on the contact surface. This combination is commonly used for PCB connection applications where stable electrical contact and straightforward soldering are required.

The rated current is 1A and the rated voltage is 125V, with an operating temperature range of -25°C to +85°C. If you are comparing options for a 1.0mm wafer pin header connector smt, these specifications can be checked together with the required pin count, mounting direction, and mating component before placing an order. Customers sourcing similar products can also use Buy Wafer Terminals as a starting point when comparing wafer connector options.

SMT Reel Packaging for Volume Assembly

This 5-position vertical header is supplied in reel packaging with a mylar reel label. The minimum packing quantity is 100 pieces, making it suitable for customers who need small batches as well as regular production supply.

For equipment and electronic assemblies using compact board connections, the 1.0mm wafer housing connector smt format provides a small footprint while keeping the mounting direction clear. The vertical structure is especially useful when the PCB design calls for a connector that occupies limited horizontal space. For related board-side options, customers can also review Housing Connector and Wafer Pin header Connector configurations based on the required mating arrangement.

Product Specifications

Why Choose Shenzhen Yangzhan Electronics?

Yangzhan Electronics, also known as YZTECH Electronics, was established in 2014 and focuses on precision connectors, industrial terminal blocks, and cable assemblies. The company covers product development, manufacturing, processing, sales, and technical service, giving customers a single point of contact from connector development through production.

For compact products such as this 1.0mm SMT pin header, manufacturing consistency is important because small changes in dimensions or assembly can affect the final mating result. Yangzhan Electronics uses production and inspection equipment from Japan, Germany, and Taiwan, and supports processes ranging from plastic and metal terminal tooling to assembly and inspection. The company ships from Shenzhen and works with customers on connector requirements for different electronic applications.
