Heat Shrink End Caps
2 month ago

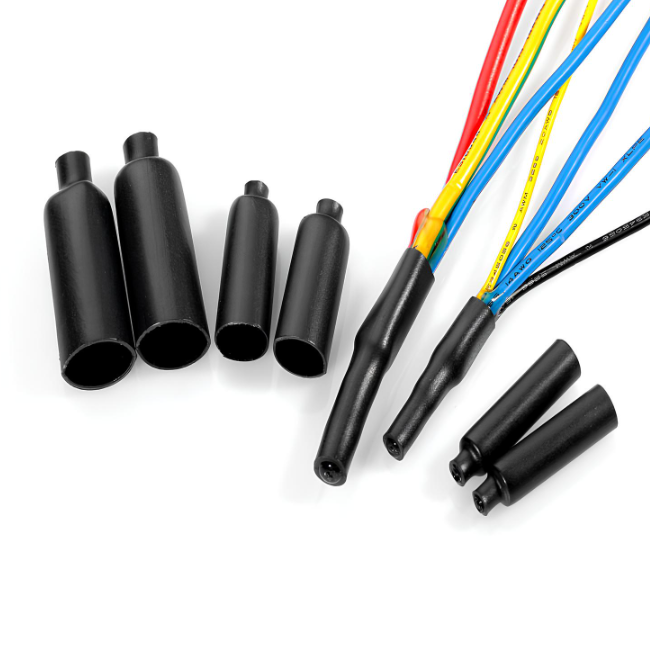

Electrical Cable End Caps
Product Description:
Product Applications:

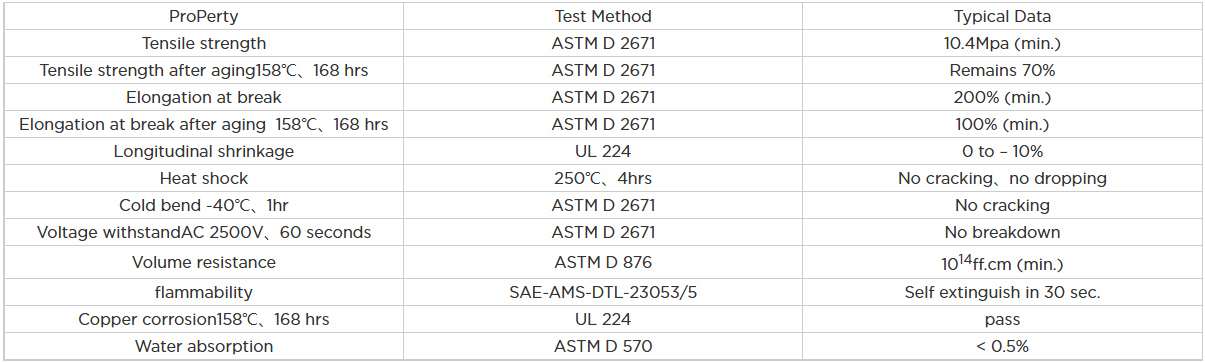

Technical Performance:

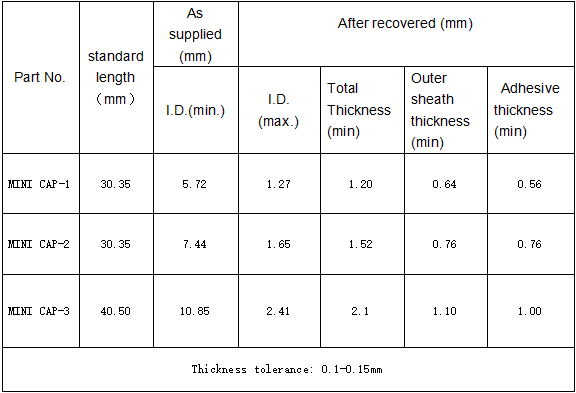

Product Specifications:
Thickness Tolerance:
Size Selection:
- General Recommendation: It is recommended to order the largest available size that can shrink tightly around the component.
- Customization: Other cap lengths are available upon request. Full specifications can be tailored to meet your specific requirements.

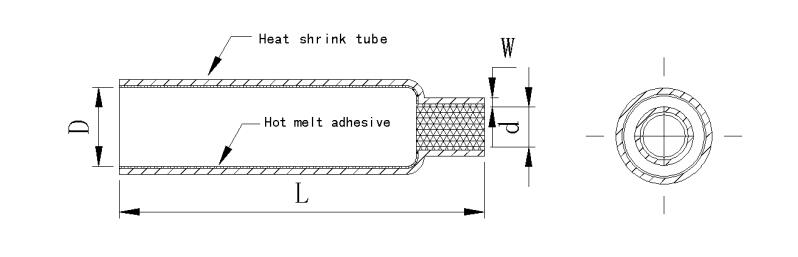

Structural Analysis Diagram:
Usage Steps:
- Cleaning: Wipe the cable or wire end with anhydrous ethanol and let it dry completely.
- Cap Selection: Choose the appropriate size based on the cable diameter and the end cap's shrinkage ratio.
- Capping: Slide the end cap over the cable end. If used with a heat shrink tube, overlap the end cap with the tube to ensure waterproofing.
- Heating: Use a heat gun to move uniformly from the closed end to the open end of the cap, ensuring the cap shrinks evenly.
- Seal Inspection: Stop heating once hot-melt adhesive seeps out from the open end.
- Cooling: Wait for the end cap to cool down completely before proceeding with subsequent operations.
