Sintering Machine-1

Film Sintering Machine

Reliable Sintering Machine for Production Lines is a cutting-edge solution designed to enhance the efficiency and precision of material consolidation processes. Our sintering equipment portfolio includes High Efficiency Sintering Machine, Sintering Machine for Magnetic Materials, Uniform Sintering Sintering Machine and Mesh Belt Sintering Machine 500-2000mm Belt Width, covering diverse industrial sintering scenarios. This advanced sintering machine design ensures optimal performance in industrial applications where high-quality results are essential. Whether you're involved in metallurgy, ceramics, or advanced materials manufacturing, this sintering machine for material consolidation offers a robust and reliable system that meets the demands of modern production lines.

• Application: Produce various film sintering wires. This equipment can be customized as Sintering Machine for Magnetic Materials to meet the sintering processing needs of magnetic raw materials.

• Control: Servo motor (tapping heads) + Touch screen + PLC (main unit).

• Advantages: As a typical High Efficiency Sintering Machine, it features high speed, easy to use, wide production range, adjustable, low failure rate. Adopting dual radiation furnace heating structure, the machine realizes even temperature distribution, serving as a stable Uniform Sintering Sintering Machine for consistent sintering quality.

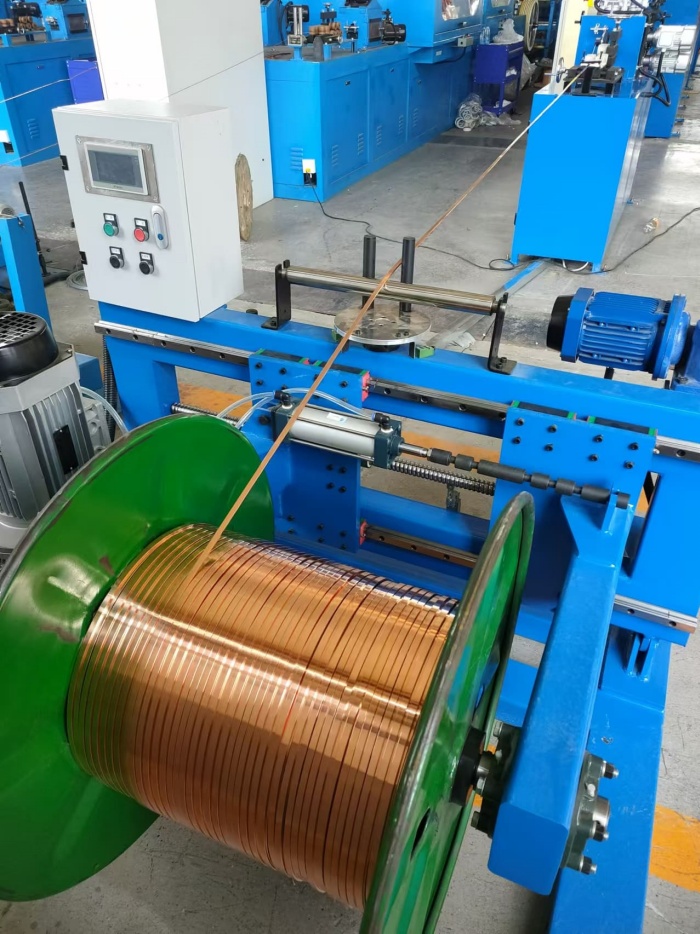

• Process: Centering pay off → Gross viscosity locator → Straightener → Cleaner → 2×Concentric film taping heads → Pneumatic main traction → High frequency induction heating → 3×High temp silicone rubber rollers → 2×Radiation furnaces → Water cooling → Drying → Pneumatic auxiliary traction → Meter counting → Online voltage monitoring → Centering take-up.

• Production Specs:

- Bare wire: 3-20mm (width), 1-10mm (thickness), 3-100mm² (single-section), 1-8mm (round diameter).

- Insulation: Polyimide film/composite (0.025-0.13mm thickness, 10-30mm band width); 1/2 layers.

- Wrapping: Seamless & overlap.

For large-scale continuous production, the matched Mesh Belt Sintering Machine 500-2000mm Belt Width is available, featuring wide belt width and strong production capacity.
