SB81 hydraulic breaker
3 year ago
Box Type Hammer Product Description
STB Hydraulic Hammer Features:
• Available for 0.8 - 55 Ton any brand excavators.
• Simplicity in construction, easy to use and maintain
• Most advanced processing equipment and technology
• One to two-year warranty
• Long service life
• 24 hours online after-sales service
• Application
Mining------------Mining,Second-time breaking
Metallurgy-------Clearing slag,Demolition of furnace and foundation
Road------------- Repairing,Breaking,Foundation work(asphalt road)
Railway----------Tunneling,Demolition of bridge
Construction----Demolition of building and reinforced concrete
Ship repairing--Clearing clam and rust from the hull
Others----------- Breaking frozen mud
Technology Parameters:
1)STB series hydraulic hammers
|
Decription/Model |
STB40 |
STB45 |
STB53 |
STB68 |
STB75 |
STB85 |
STB100 |
STB125 |
STB135 |
STB140 |
STB150 |
STB155 |
STB165 |
STB175 |
||
|
Operating Weight |
Side Type |
kg |
101 |
113 |
175 |
267 |
368 |
505 |
776 |
1,364 |
1,487 |
1,737 |
2,150 |
2,503 |
3,096 |
3,735 |
|
Top Type |
96 |
110 |
223 |
296 |
404 |
647 |
865 |
1,447 |
1,575 |
1,920 |
2,478 |
2,544 |
2,728 |
4,015 |
||
|
Box Type |
129 |
148 |
206 |
337 |
425 |
697 |
865 |
1,239 |
1,497 |
1,756 |
1,960 |
2,350 |
2,780 |
3,685 |
||
|
Operating Pressure |
bar/psi |
90-120 |
90-120 |
90-120 |
110-140 |
120-150 |
130-160 |
150-170 |
150-170 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
160-190 |
|
|
Setting Pressure |
bar/psi |
150 |
150 |
150 |
170 |
180 |
190 |
210 |
210 |
210 |
220 |
230 |
230 |
230 |
230 |
|
|
Required oil flow |
l/min |
15-30 |
20-40 |
20-50 |
40-70 |
50-90 |
60-100 |
80-110 |
90-120 |
100-150 |
120-180 |
130-190 |
180-240 |
200-260 |
210-290 |
|
|
Working Tool |
Diameter |
mm |
40 |
45 |
53 |
68 |
75 |
85 |
100 |
125 |
135 |
140 |
150 |
155 |
165 |
175 |
|
Weight |
kg |
7 |
8 |
9 |
16 |
21 |
30 |
55 |
103 |
127 |
134 |
170 |
183 |
220 |
260 |
|
|
Impact Rate |
bpm |
800-1100 |
700-1200 |
600-1100 |
500-900 |
400-800 |
400-800 |
350-700 |
350-650 |
350-600 |
350-500 |
300-450 |
350-450 |
250-400 |
200-350 |
|
|
Hydraulic Hose |
inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
1 |
1 |
1 |
1 1/4 |
1 1/4 |
1 1/4 |
1 1/4 |
|
|
Suitable Excavator |
tons |
0.8~2.5 |
1.2~3 |
2.5~4.5 |
4 ~ 7 |
6 ~ 9 |
7~14 |
11 ~ 15 |
15-18 |
18 ~ 21 |
20 ~ 26 |
25 ~ 28 |
28 ~ 35 |
30 ~ 40 |
40 ~ 55 |
|
2)Furukawa HB series hydraulic hammers
| Model No. | Chisel diameter | Weight(kg) | Working flow(l/min) | Impact rate(bmp) | Hose diameter(inch) | Tons | Applicabel excavator |
| HB20G | 135mm | 2000 | 1250-150 | 400-800 | 1 | 18-25 | any brand |
| HB30G | 150mm | 2800 | 150-190 | 300-750 | 1 | 25-30 | any brand |
| HB40G | 160mm | 3500 | 190-250 | 250-500 | 5/4 | 35-45 | any brand |
PICTURES
What accessories come together with the hydraulic breaker?
1). 2 pcs in/out hydraulic hoses
2). 2 pcs moil type chisel tools.(Using 42crmo good material, 2-3 times longer life than normal)
3). 1 pc nitrogen gas bottle.
4). 1 sets nitrogen charge guage kits.
5). 1 set tool box.(including the maintenance tool)
6). 1 set product brochure,hydraulic breaker manual book and parts book
ALL THE PRICE WITH SPARE PARTS ABOVE

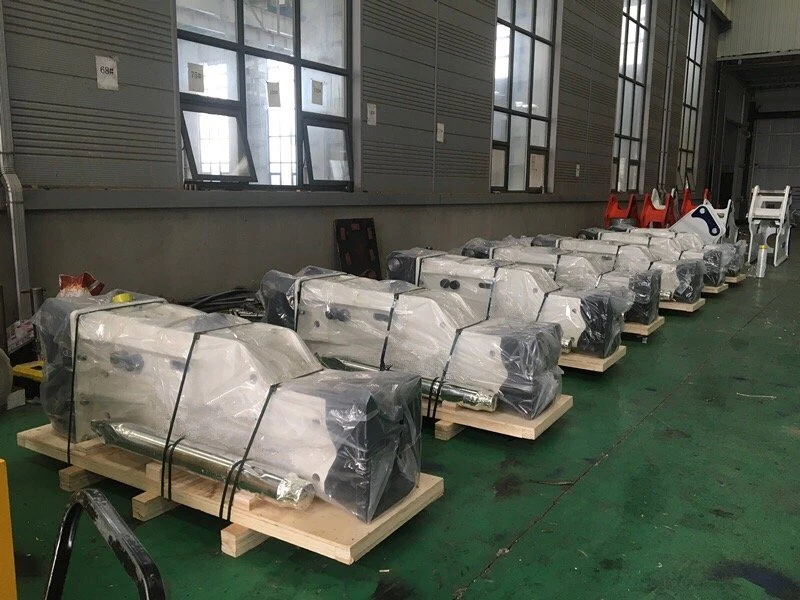

Packing and delivery time
1)Inner is stretch film or breaker coat, outside is export wooden case or pallets as customer's request
2).Delivery time:Usually 3-7days (1-5sets) after down payment and drawing confirmation.
3).We can arrange ocean or air transportation according to your request from any port of China.
HOW TO CHOOSE OUR BREAKER ?
1. PLEASE LET US KNOW YOUR EXCAVATOR MODEL NUMBER OR WEIGHT OF MACHINE.
2.PLEASE LET US KNOW WHAT COLOR DO YOU NEED FOR BREAKER .

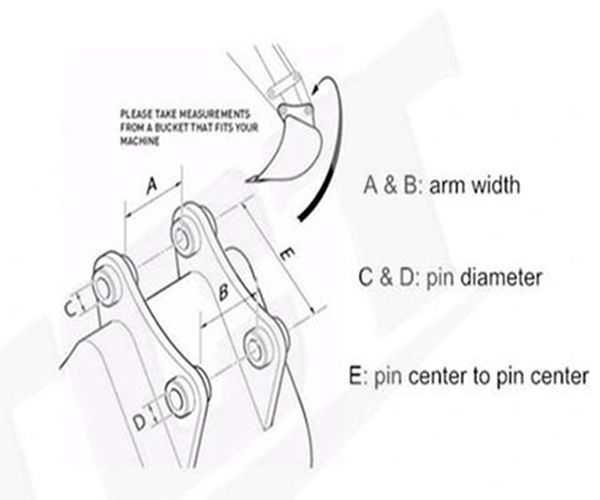

3.PLEASE CHECK THE" A B C D E "SIZE AS FOLLOWING FOR US:ARM EAR WIDTH ,PIN DIAMETER AND PIN CENTER TO PIN CENTER SIZE .
How to install the breaker to excavators?
If you want to install hydraulic breaker to your excavator, you need to check some dimensions of your excavator. We will make the breaker dimensions matching to your excavators, so that you can install immediately while you get the breaker from us.
Please check the above dimensions in the picture. Pin Hole Diameters: C D ;Arm and Link Width: A B ;
Note: To most of excavators A=B, C=D but some excavators or backhoes have different A,B,C,D If you want to add quick coupler to exchange the attachments quickly.You aslo need to check the pins distance too.Please check the above picture.
Pins Distance E.
