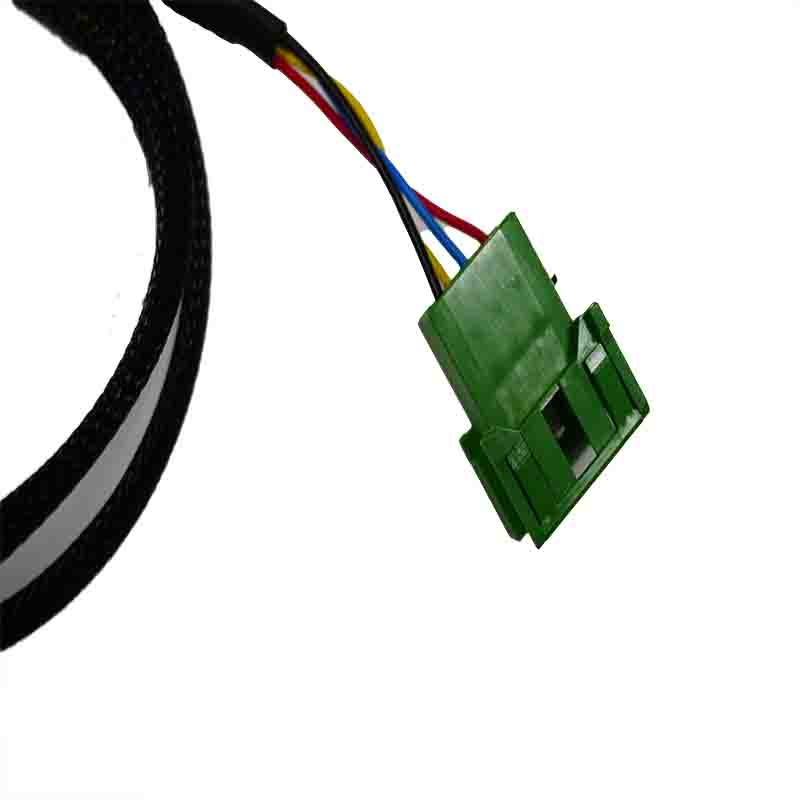

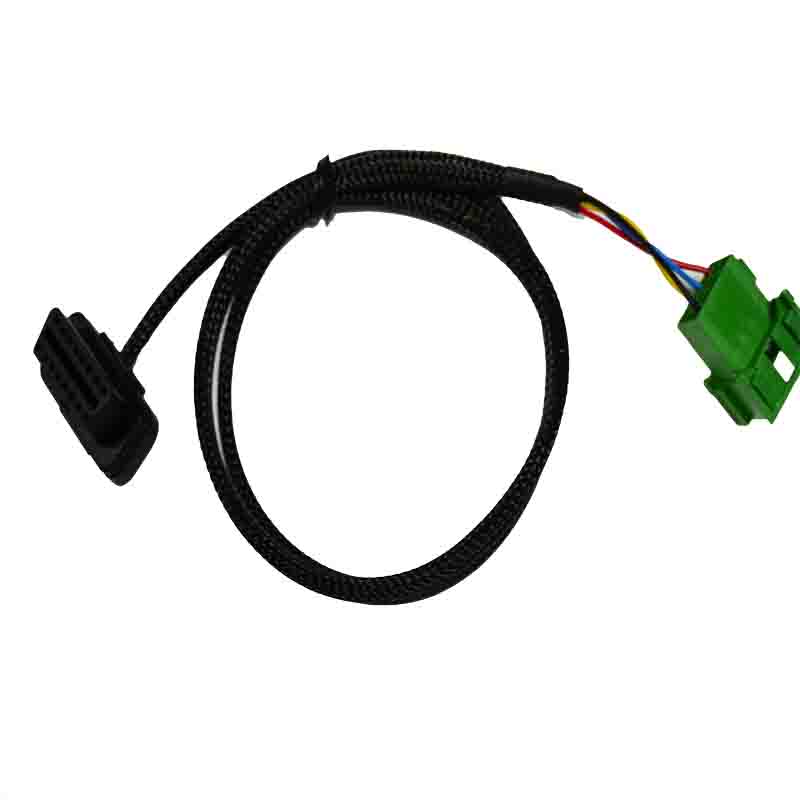

OBDII-16P Female Elbow to 12P Green Core
2 month ago
Shenzhen Fubang Wire harness Co.,Ltd
13 month
Product details
In the landscape of automotive diagnostic connectivity, the OBDII-16P Female Elbow to 12P Green Core stands out as a specialized adapter, bridging standard OBDII interfaces with 12-pin devices while solving space and compatibility challenges. This component combines a 16-pin female elbow connector (matching universal OBDII ports) with a 12-pin green-core terminal, tailored for scenarios where compact installation and precise signal matching are critical—making it a go-to solution for automotive technicians, fleet managers, and aftermarket accessory installers.

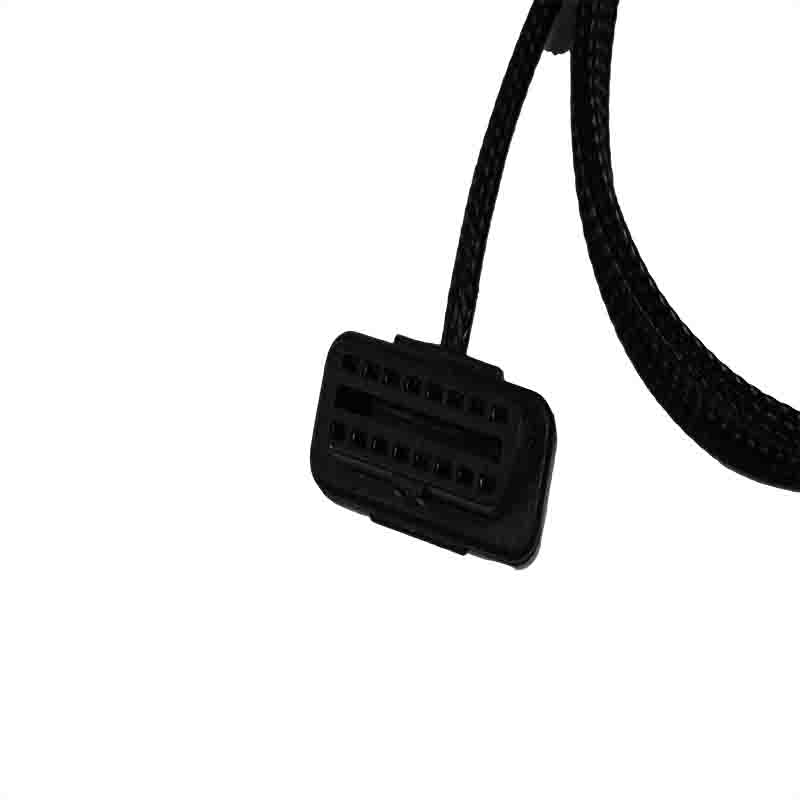

Its design addresses two key pain points: space constraints and pin compatibility. The elbow (right-angle) structure of the 16P female connector is a game-changer for tight under-dash or engine bay areas. Unlike straight connectors that require extra clearance for plugging/unplugging, the 90-degree angle lets the adapter sit flush against surfaces, avoiding damage from wiring tension or nearby components. The 16-pin configuration adheres to OBDII standards (ISO 15031), ensuring seamless connection to any vehicle’s OBDII port—covering passenger cars, trucks, and light commercial vehicles. On the other end, the 12P green-core terminal serves as a targeted interface: the green core is not just a color identifier but a marker for standardized 12-pin pinouts, often used in specialized diagnostic tools, telematics devices, or custom vehicle electronics that rely on 12-channel signal transmission.
Functionally, this adapter prioritizes signal accuracy and durability. The 16P female pins are crafted from brass with nickel plating, minimizing electrical resistance and corrosion—critical for maintaining stable communication between the vehicle’s ECU and external tools. The 12P green-core terminal uses high-conductivity copper cores insulated with heat-resistant PVC, supporting voltage ranges of 12-24V (compatible with most automotive electrical systems) and ensuring safe operation even in high-temperature engine bays. Additionally, the adapter’s housing is made of flame-retardant ABS plastic, meeting UL94 V-0 standards to prevent fire risks, while a rubber O-ring around the 16P connector enhances dust and moisture resistance (rating up to IP65), suitable for harsh automotive environments.
Its applications are closely tied to automotive diagnostics and customization. For technicians, it enables connection between standard OBDII scanners and 12-pin diagnostic modules (e.g., specialized emission testers or advanced engine analyzers), eliminating the need for multiple adapters. In fleet management, it links OBDII ports to 12-pin telematics devices—tracking fuel consumption, vehicle location, and maintenance needs without modifying the vehicle’s original wiring. Aftermarket use is equally important: it powers 12-pin accessories like custom dash displays or performance monitors, with the green core simplifying wiring (as installers can quickly identify the correct terminal by color).
Key advantages make it indispensable: space efficiency from the elbow design, universal compatibility with OBDII ports, color-coded clarity (green core for easy identification), and robust durability for long-term use. It also reduces installation time—technicians don’t need to rewire or splice cables, lowering the risk of electrical faults. For users, this means reliable diagnostic data transfer, simplified accessory integration, and peace of mind in harsh automotive conditions.
In essence, the OBDII-16P Female Elbow to 12P Green Core is more than an adapter—it’s a precision tool that merges standardization with specialization, solving real-world connectivity challenges for anyone working with automotive OBDII systems.
