Product details

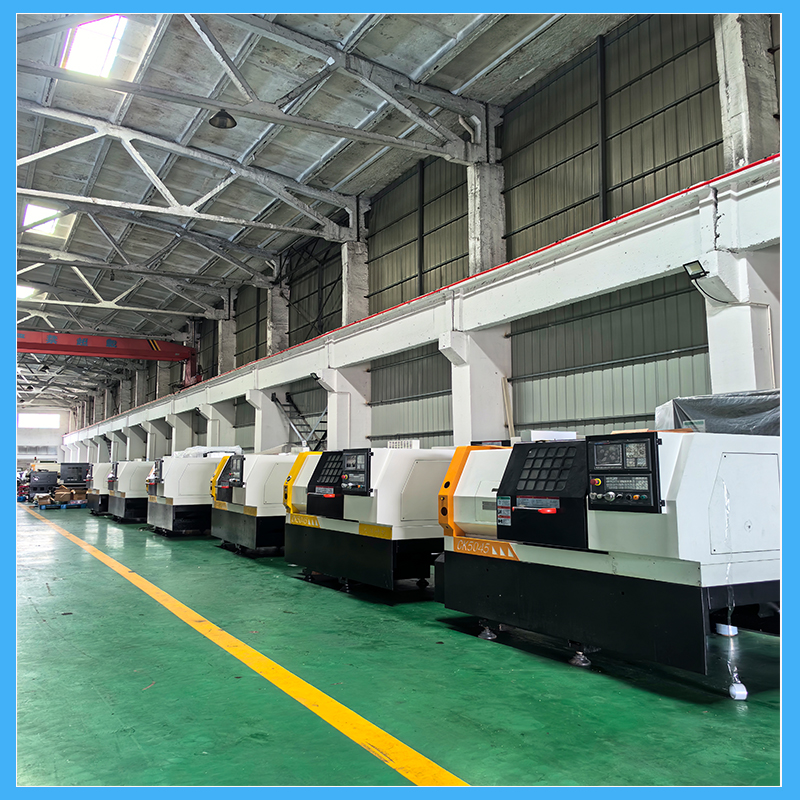

Structural characteristics: The rectangular guide rail structure of the 5045 CNC Rectangular Rail Lathe is one of its prominent characteristics. For example, the CK5045 CNC lathe adopts rectangular guide rails in the X and Z directions, which have high rigidity and can withstand large cutting forces and loads, suitable for heavy cutting processing. Some of the machine tools also adopt the integral casting bed, which further enhances the rigidity and stability of the machine tool. In addition, some 5045 rectangular rail CNC machine tools are equipped with a central screw, which can improve the transmission accuracy and stability.

- Performance parameters: Taking the FXK5045 CNC Vertical Lifting Table Milling Machine as an example,Its working table area is 500 × 1800mm, the working table travel X-axis is 1100mm, Y-axis is 330mm, Z-axis is 600mm, the spindle speed is 35.5- 1800r / min, the main motor power is 15kw, the positioning accuracy can reach 0.035 mm, and the repeat positioning accuracy is 0.020 mm.The X-axis unilateral travel of the CK5045 CNC lathe is 230mm, the Z-axis travel is 470mm, the diameter of the spindle through hole is 62mm, the standard main motor is a 7.5kw servo main motor, and a 11kw servo main motor can also be selected.

- Numerical control system: The 5045 rectangular rail CNC machine can be configured with various numerical control systems, such as Guangshu 980TB3, FANUC 0i-mate-MC, Mitsubishi M80 system, and Siemens 828D system. Among them, the FANUC 0i-mate-MC system has the functions of controlling 3 axes, interlocking 3 axes, and minimum input unit of 0.001 mm, and also has a variety of functions such as program editing, interpolation function, and feed function.

- Functional components: This type of machine tool is usually equipped with a variety of functional components, such as a three-speed spindle box, high-precision single axis, electric knife holder, hydraulic chuck, etc. Taking the CK5045 CNC Lathe Machine as an example, it can be equipped with a four-position electric knife holder, a 25-square knife holder size, a 250 solid hydraulic chuck, and a hollow hydraulic chuck can also be selected.
