Product details

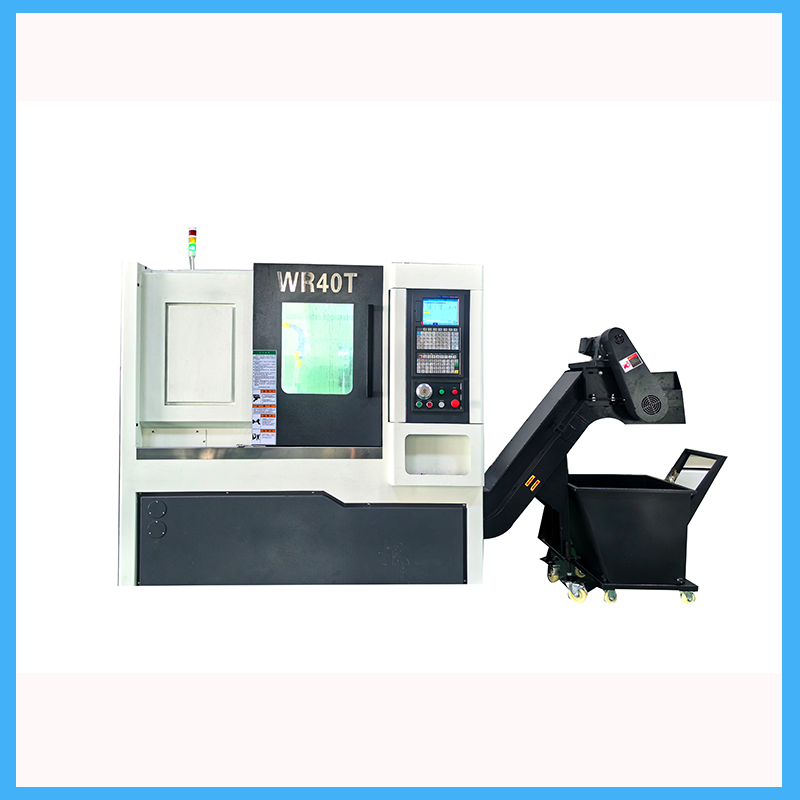

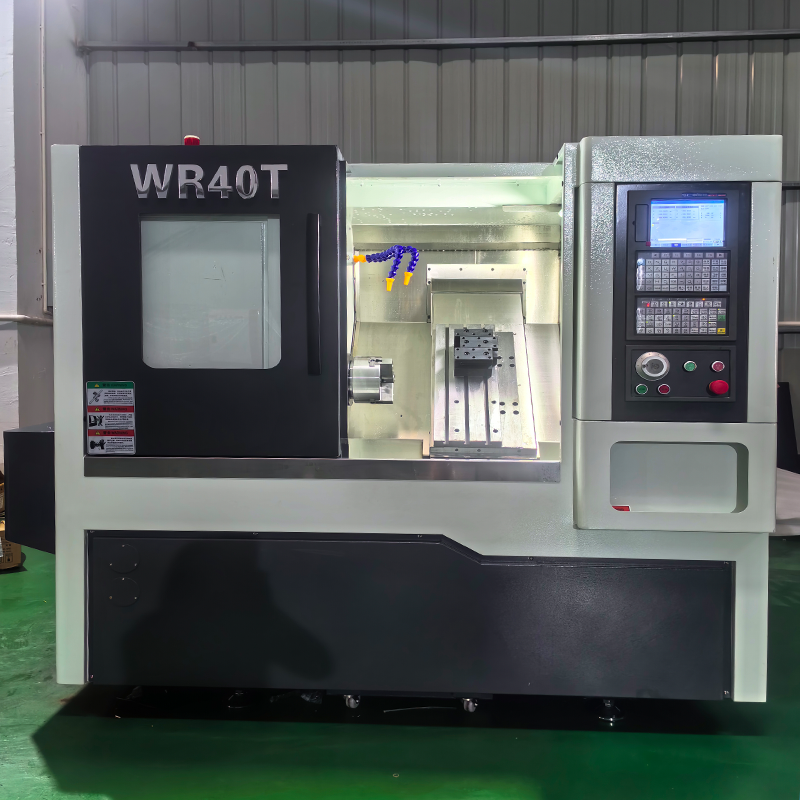

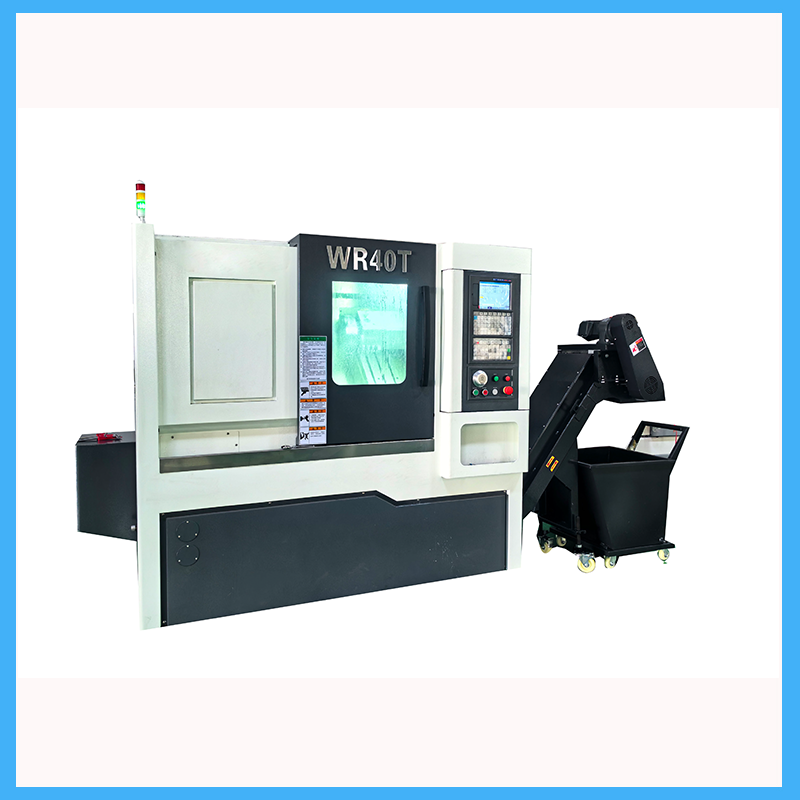

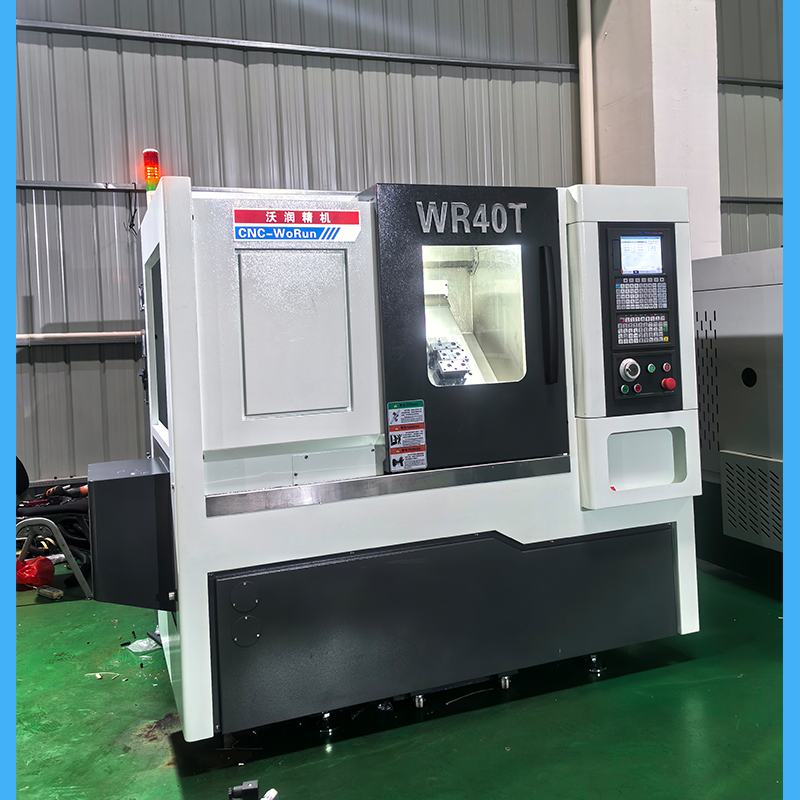

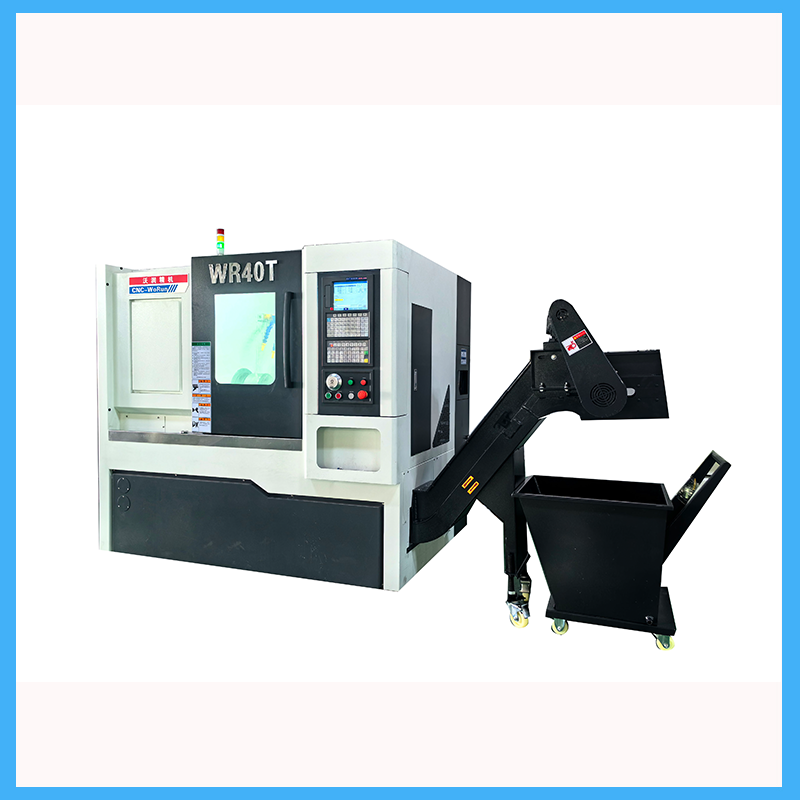

The 40T CNC Slant Bed Lathe is the main equipment for efficient processing of small and medium-sized precision parts.

1.Core structure and advantages: This CNC Lathe generally adopts 30° overall slant bed design, cast iron resin sand casting and aging treatment, strong anti-shock, good thermal stability;The X/Z axis is equipped with high-rigidity linear rails, coupled with a precision ball screw direct connection servo motor, with repeat positioning accuracy of ±0.005mm, displacement speed of up to 30m/min, and high processing efficiency and accuracy;The full-closed protection design can smoothly remove slag and reduce oil pollution, and the automatic lubrication system can reduce component wear.

2.Key parameters: The maximum turning diameter of the bed is usually Φ400-500mm, and the maximum machining length is about 300-750mm;The diameter of the spindle through hole is 56-70mm, the speed range is 0-6000rpm, and the power of the spindle motor is mostly 5.5-11kw; The standard configuration is a 6-inch chuck, and the number of knives is usually 3, which can complete multiple processes in one clamping.

3. Applicable scenarios: With the characteristics of fast changing tools and high precision, Slant bed CNC Lathe Machine is suitable for batch processing of small and medium-sized precision parts such as shafts and sleeves. It is often used in the automotive parts, electronic accessories and other industries, and can also be connected to automated devices to realize unmanned production.
