Product details

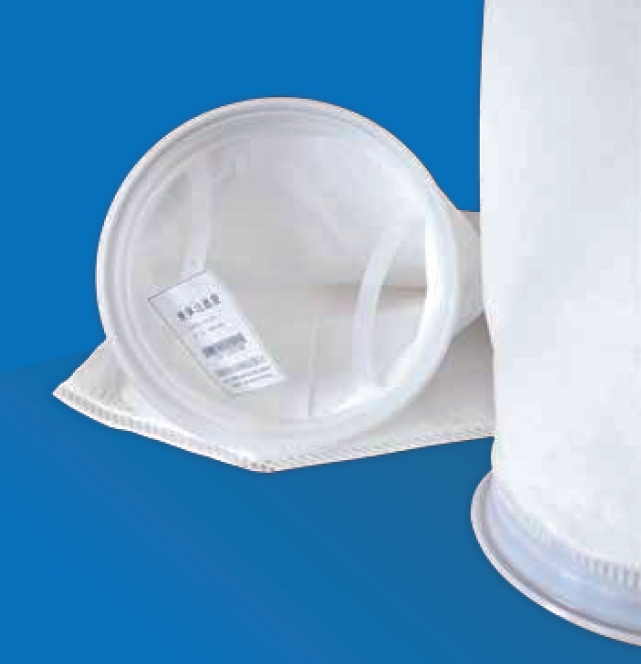

The ZERRU ZGD-01D series high flow filter bag, which can also be referred to as a high capacity filter bag, is a new generation of liquid bag filter elements. This innovative design offers significant advantages over traditional filter bags, particularly in terms of filtration efficiency and capacity. The filtration area of a single high flow filter bag is about 0.9m², which is 1.8 times that of the traditional standard No. 2 filter bag. This increase in surface area improves the filtration processing capacity of a single machine by 1.8 times and represents a major innovation in the field of liquid bag filtration.
The 01D filter bag, which is also known as an Oil absorption filter bag and a Food and beverage filter bag due to its versatility, is combined with a dedicated support net. This combination makes it suitable for the vast majority of No. 2 bag filters and multi bag filters in the market. The use of Polypropylene in the construction of these filter bags ensures durability and resistance to a variety of liquids, making them ideal for a wide range of applications, including those in the food and beverage industry where hygiene and purity are paramount.
By incorporating these high flow filter bags into existing filtration systems, users can expect enhanced performance and efficiency, making the Zhuo Nuo ZGD-01D series a valuable addition to any liquid filtration process.
| ZERRU Filter Bag Performance Table | ||||
| Filter bag series | 材质 Material | Filter type | 通用型号 Universal model | Filtering accuracy |
| Standard filter bag | PO/PE/NMO | Relative and absolute filtering | 1#/2#/3#/4#/5# | 0.5~ 1000 |
| Durable needle felt filter bag | PP/PE/PTFE | Deep relative filtration | 1#/2#/3#/4#/5# | 0.5~2000 |
| Durable mesh filter bag | NMO/PP/PE | Surface relative filtration | 1#/2#/3#/4#/5# | 25~2000 |
| Multi layer high-efficiency filter bag | PP/PE | Deep relative filtration | 1#/2# | 0.2~50 |
| Absolute precision filter bag | PP/PE | Deep absolute filtering | 1#/2# | 0.2~50 |
| Ultra long lifespan filter bag | PP/PE | Surface relative filtration | 1#/2# | 0.2~50 |
| Activated carbon filter bag | PP/PE | Deep adsorption filtration | 1#/2#/5# | 1~100 |
| Oil absorption filter bag | PP | Deep relative filtration | 1#/2#/5# | 1~50 |
| Folding filter bag | PP | Deep absolute filtering | 1#/2# | 1~50 |
| Anode filter bag | PE/PP | Surface relative filtration | 非标定制 | 50~200 |

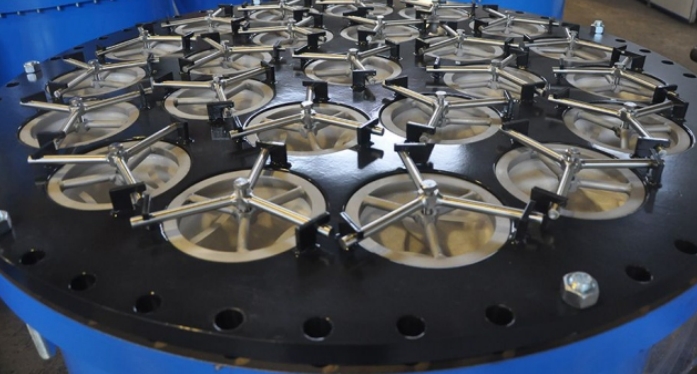

| Zhuo Nuo bag filter model | |
| ① 过滤器型号缩写 Abbreviation of filter model | |
| ②设备壳体材料滤袋数量 Number of filter bags for equipment shell material S-stainless steel C-carbon steel P-duplex steel N-nickel alloy H-Hastelloy alloy | |
| CO Carbon Steel Lined PO CP Carbon Steel Lined PP CE Carbon Steel Lined PTFE | |
| The number represents the number of filter bags. For example: 3=3 bag filter | |
| ③ Flange specifications | PL Plate Flat Welding SO Neck Flat Welding WN Neck Flat Welding The number represents the flange diameter. For example: 100=DN100 |
| ④ Form of flange sealing surface | RF convex surface FF full plane RJ ring connection surface MFM concave convex surface TG tenon groove surface |
| ⑤ Flange standard | HG - Ministry of Chemical Industry Standard DIN - German Standard JIS - Japanese Standard GB - National Standard ANSI - American Standard |
| ⑥ Pressure rating of filter pipe flange | For example: P06=PN6 |
| ⑦ Filter filtration accuracy | For example: 5=5 μ m |
| ⑧ Internal and external surface treatment of filters | A-sandblasting B-polishing C-electrolysis D-painting E-spraying epoxy resin F-phosphating J-degreasing |
| A/b=sandblasting on the outer surface/polishing on the inner surface | |
| ⑨ Filter flow direction selection, for example: T8=TYPE8 | |
