Product details

Our high-strength magnetism is easy to clean

Embedded grid provides unparalleled horizontal pollutant removal, removing submicron iron and quasi magnetism from the most demanding and challenging process environment. The ZMC-S Magnetic easy clean filter -Single is a highly efficient solution for this purpose. This unit contains a high-strength magnetic grille that is easy to clean, which is also known as the easy clean Grate Magnets. The grille is produced around a food grade seal by a three cone locking nut that ensures uniform pressure, a feature common in the Easy cleaning Rotary Magnets and automatic cleaning Rotary Magnets。

It is common to install many units throughout the entire processing facility to ensure that pollutants are removed at the source of generation. All dry powder and granular materials can be processed through this unit. Electrical safety interlocks can be installed on the grid to stop the process unexpectedly opened, which is a standard feature in the ZMC-S Magnetic easy clean filter -Single and other similar models like the Easy cleaning Rotary Magnets。

Benefifits

• Easy to clean

• Removes micron sized contaminants

• High collection capacity

• Reduces 'spark' risk

Performance

Magnetic Performance 7000, 9000, 10000

Performance Reading On tube surface

Magnet Grade N35 & N45 – Inspected and confifirmed via hysterograph

prior to use

Temperature

-20°C / +90°C

Pressure

+ / - 0.2 Bar

Suitability

Suitable Products Dry powders and granulates

Suitable Location Inlet / outlet points, pre- / post-silo and machinery points

Materials

Magnetic Material Rare Earth Neodymium Iron Boron - (NdFeb)

Housing

316 grade stainless steel

Tubing

316 grade stainless steel

Sealing

Self adhered white foam

Tri-cone Nuts

Stainless Steel

Surface Finish

Brushed internally / Polished externally to 0.6μm

Cleaning

When the unit requires cleaning, simply remove the outer grid securing tri-cone

locking nuts and remove the grid from the housing. Remove the central tri-cone

locking nut and separate the grid assembly allowing all attracted contamination to

simply fall away.

Options

• Stainless Steel Toggle Clamps • Larger sizes available

• Pharmaceutical specifification • Safety relay switches

• Metal Detectable Seal

• Higher temperature versions available

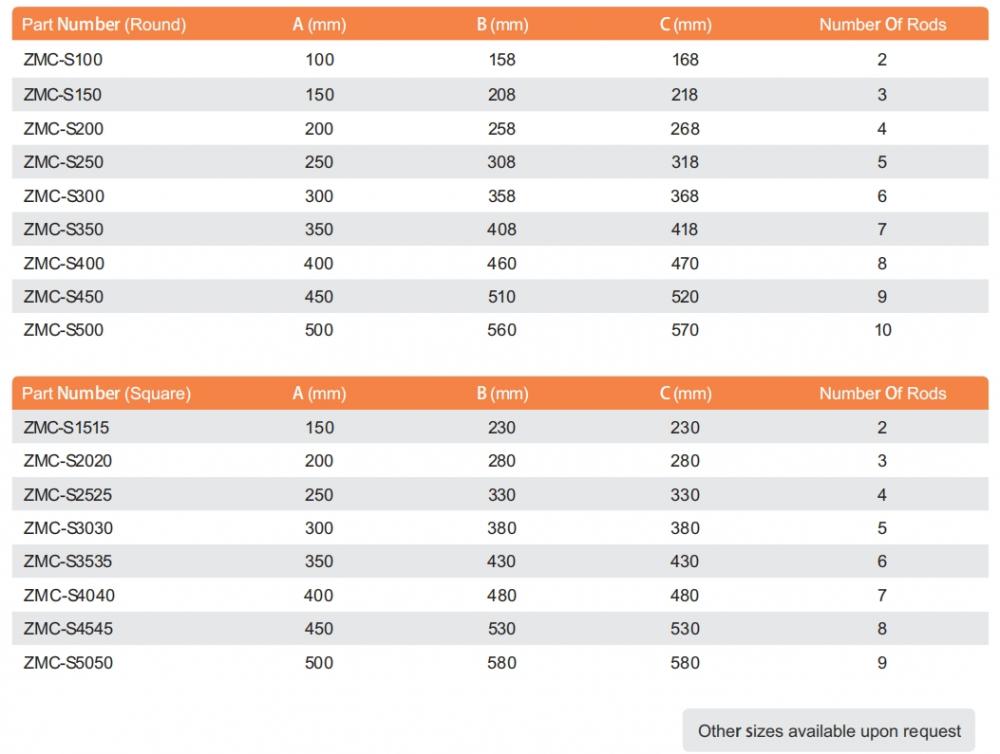

20240613111307 Png
