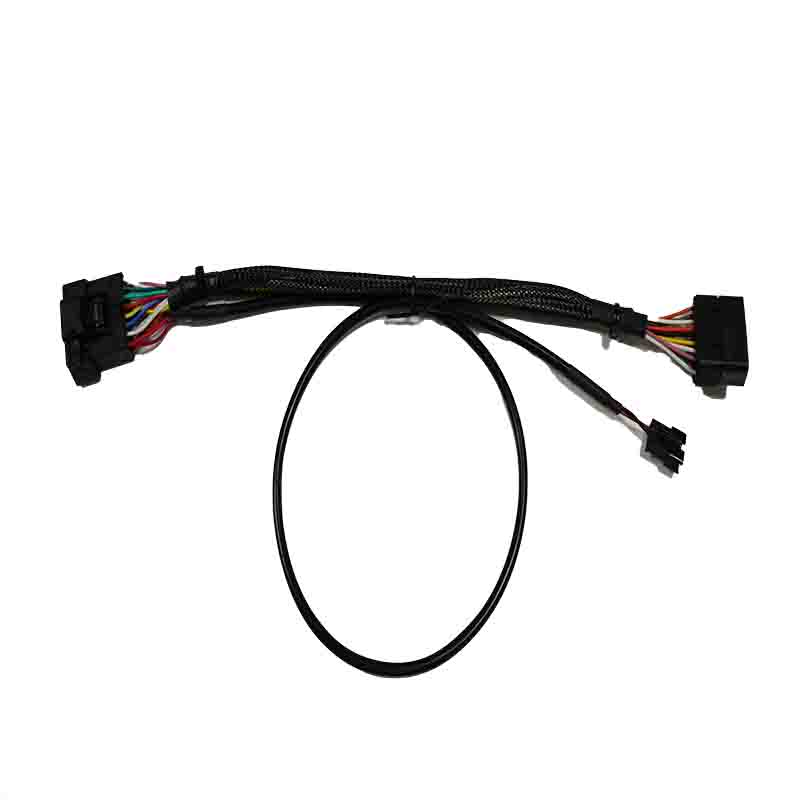

Universal OBD cable standard connectors and lengths
9 month ago
Product details
On-board Diagnostics (OBD) cables serve as the critical link between vehicles and diagnostic tools, enabling mechanics and car owners to access engine data, troubleshoot faults, and monitor performance. Their functionality hinges on standardized connectors and appropriate lengths, which vary by vehicle model and usage scenario but adhere to global industry norms.

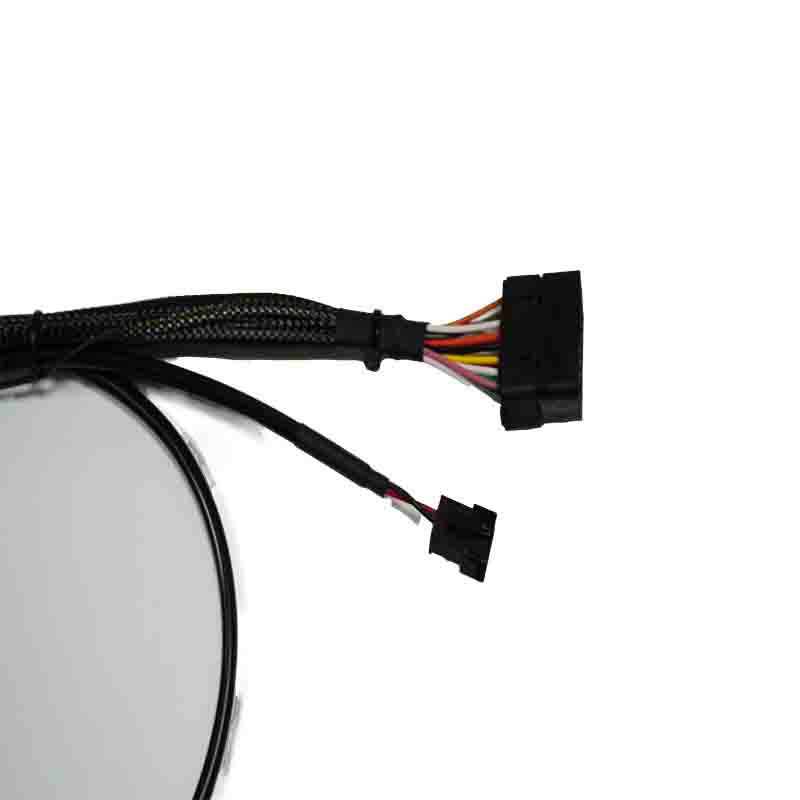

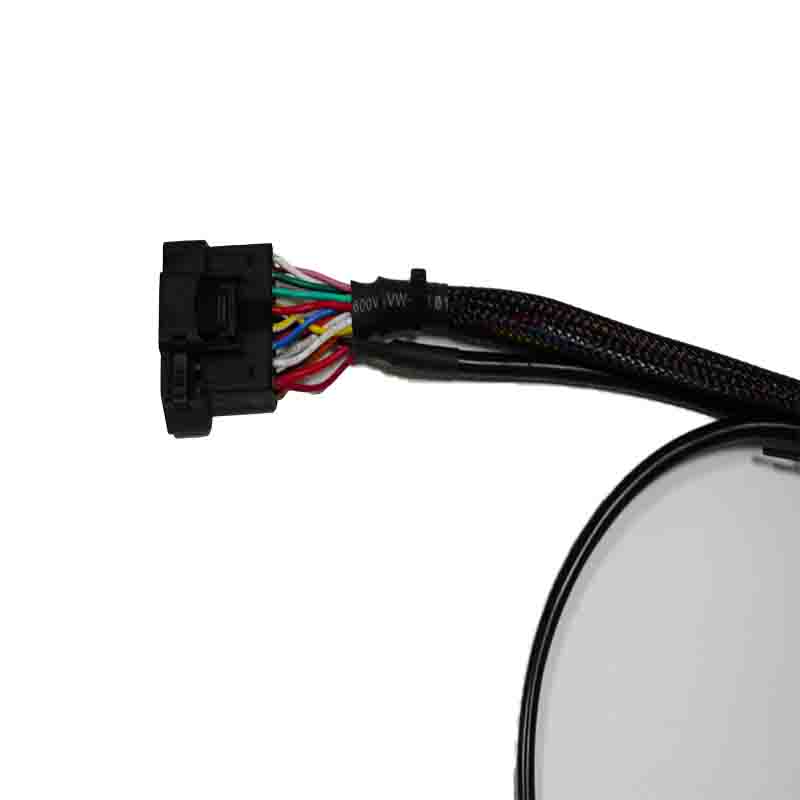

The cornerstone of universal OBD cables lies in their connectors, governed primarily by two global standards: OBD-I and OBD-II. Introduced in the 1980s, OBD-I connectors are vehicle-manufacturer specific, with variations in pin count (ranging from 4 to 16) and shape—for example, GM’s 12-pin connector differs from Ford’s 6-pin design. This lack of uniformity led to the adoption of OBD-II in the 1990s, mandated by regulatory bodies like the EPA in the U.S. and the EU’s ECE regulations. OBD-II connectors feature a universal 16-pin design, typically rectangular with a trapezoidal shape to prevent reverse insertion. Key pins are standardized: Pin 16 supplies 12V power from the vehicle battery, Pins 4 and 5 serve as ground, and Pins 6 and 14 handle CAN bus communication, the dominant protocol in modern vehicles. This standardization ensures OBD-II cables work across 98% of vehicles manufactured post-2001 globally.
| Item | Description |
| Product Name | Universal OBD cable standard connectors and lengths |
| Type | Automotive Universal OBDII Diagnostic Extension Wiring Harness |
| Voltage | 12V / 24V DC, Customized Available12V / 24V DC, Universal Compatibility for Passenger & Commercial Vehicles, Customized Available |
| Pins Material | Nickel-Plated Brass Terminals, Gold-Plating Optional |
| Plug Material | PA66+GF Automotive Grade Standard OBDII Connector Housing |
| Working Temperature | -40℃~+105℃ Or Customized |
| Length | Standard Length: 500mm / 1000mm / 1500mm Optional, Customized Length Available |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤2Ω |
| Application Fields | Automotive universal OBD diagnostic tool extension, vehicle on-board diagnostic system interface expansion, auto repair shop multi-brand vehicle diagnostic wiring, fleet vehicle batch detection harness, vehicle modification circuit layout, passenger car & commercial vehicle OBD interface extension, DIY automotive electronic test projects, custom universal OBD wiring harness |
| Specific Shipping Cost | Please Contact Us |
Cable length is another vital parameter, balancing accessibility and signal integrity. The most common lengths for consumer and professional use fall between 1.5 meters and 3 meters. A 1.5-meter cable is ideal for personal use, as it connects a handheld diagnostic tool to the OBD port (usually located under the dashboard) without excess slack, reducing tripping hazards and clutter. Professional mechanics often prefer 2.5 to 3-meter cables, allowing them to operate diagnostic laptops placed on workbenches or vehicle seats while maintaining a stable connection. Longer cables (4-5 meters) exist for specialized scenarios, such as heavy-duty trucks where the OBD port may be positioned further from the operator’s workspace, but these require shielded wiring to mitigate signal degradation caused by electromagnetic interference (EMI) from the vehicle’s electrical system.
High-quality universal OBD cables combine standardized connectors with durable materials—PVC or TPE insulation for flexibility, tinned copper conductors for efficient data transfer, and gold-plated connector pins to resist corrosion. Whether for a home mechanic using a Bluetooth OBD adapter or a dealership technician running advanced diagnostics, adherence to connector standards and proper length selection ensures reliable, consistent performance, making the humble OBD cable an indispensable tool in modern automotive maintenance.
