Product Name: High - Flow Pneumatic Control Valve

Keywords: Efficient Valve for Pneumatic Systems, Reliable Valve for Industrial Automation, High - Performance Valve for Air Handling

Product Introduction:

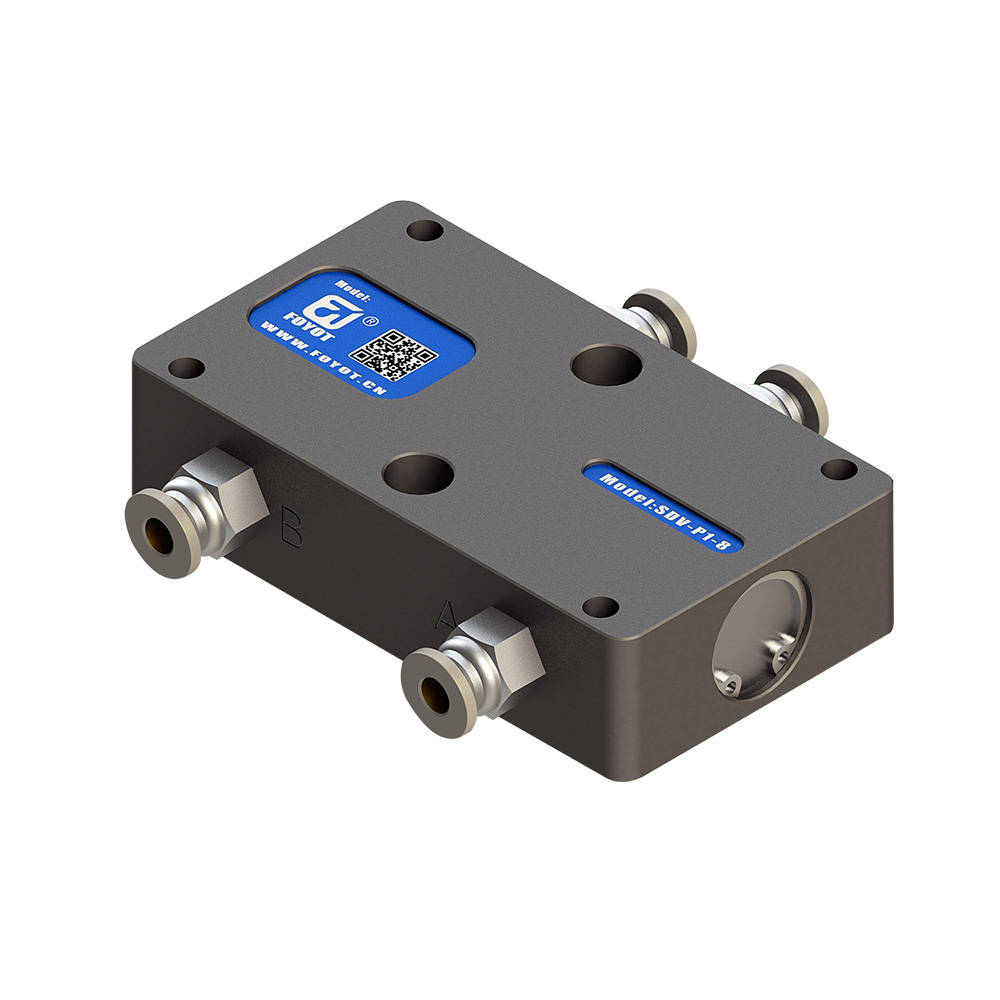

Introducing the High - Flow Pneumatic Control Valve, model SDV - P1 - 8, a top - notch solution designed to enhance performance in pneumatic systems, industrial automation, and air handling applications. Weighing just 0.22kg, it features a compact and lightweight design, making it easy to integrate into various setups.

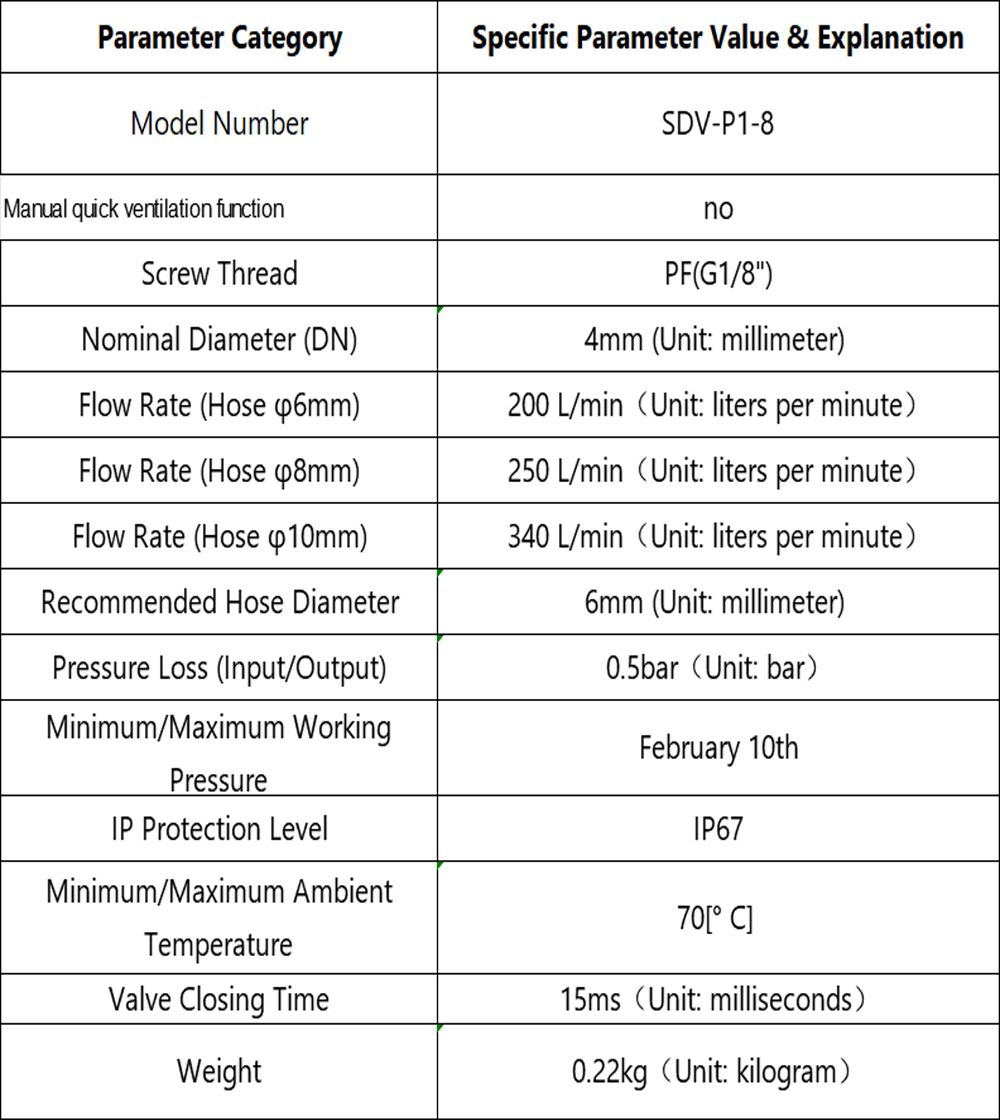

With a nominal diameter of 4mm and screw thread PF (G1/8"), it ensures secure connections. The valve offers impressive flow rates—200 L/min for φ6mm hose, 250 L/min for φ8mm hose, and 340 L/min for φ10mm hose—enabling efficient air transmission. The recommended hose diameter is 6mm, and the pressure loss (input/output) is 0.5bar, ensuring minimal energy waste.

In pneumatic systems, this efficient valve regulates air flow precisely, contributing to the smooth operation of pneumatic devices. For industrial automation, the reliable valve plays a crucial role in controlling air - powered machinery and processes, ensuring consistent and accurate performance.

In air handling applications, the high - performance valve manages air distribution effectively, optimizing the flow of compressed air in various industrial environments. It has an IP protection level of IP67, providing excellent protection against dust and water, and can operate in an ambient temperature of up to 70°C, adding to its durability. The valve closing time is 15ms, ensuring rapid response. All in all, this pneumatic control valve is a valuable asset for optimizing operations in industries relying on pneumatic power
