DL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines (1)

3 week ago
0 0
Product details

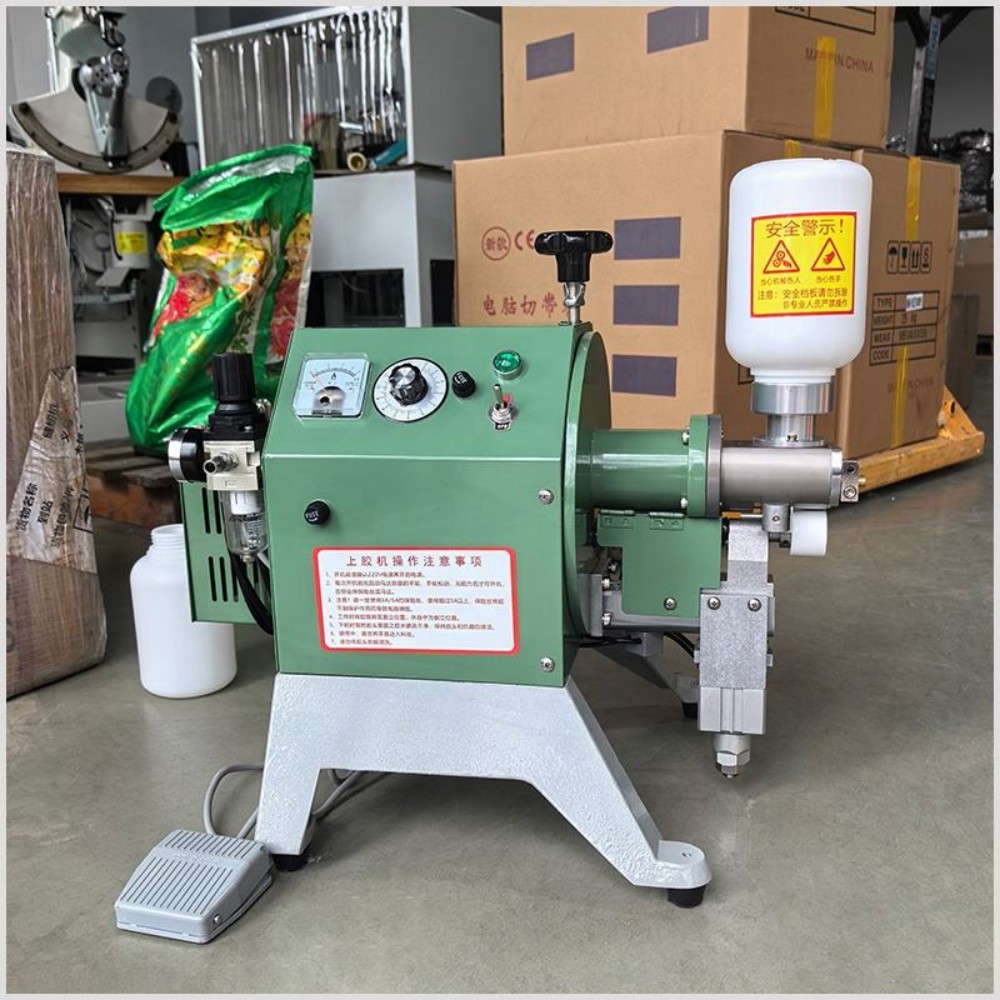

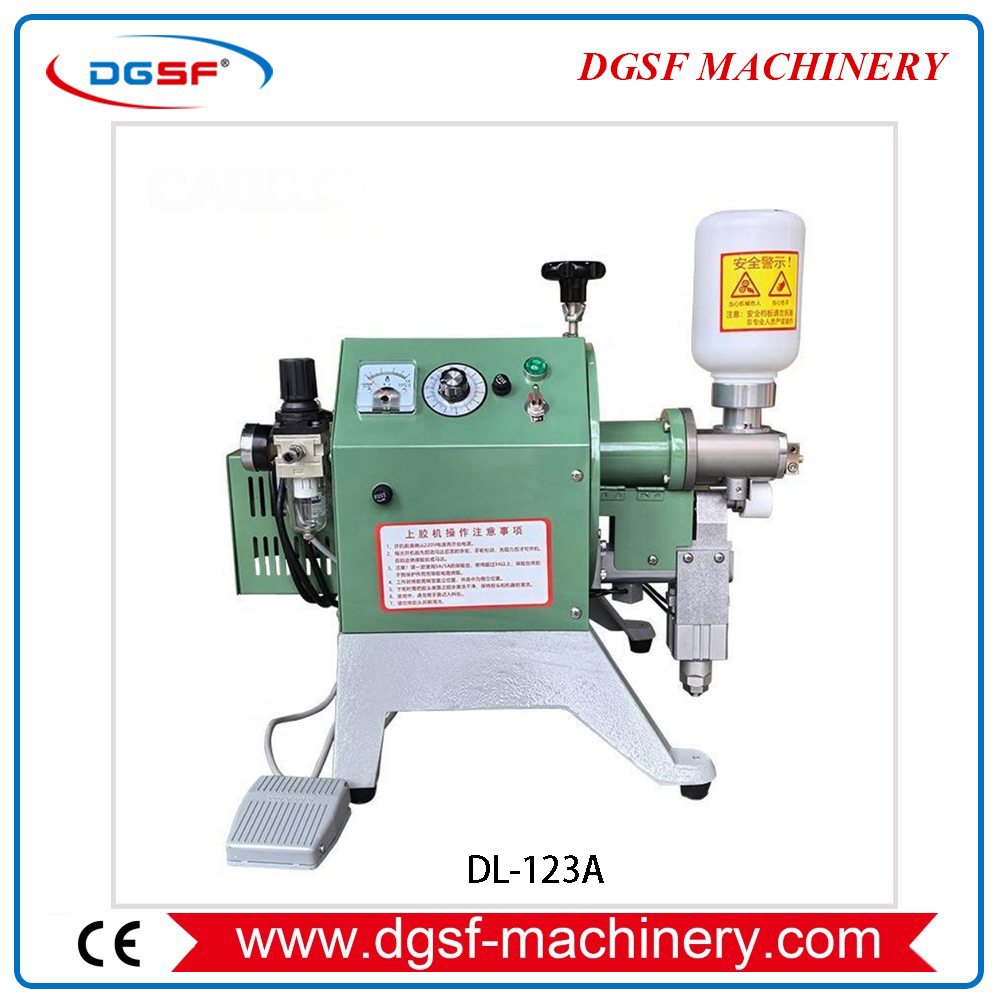

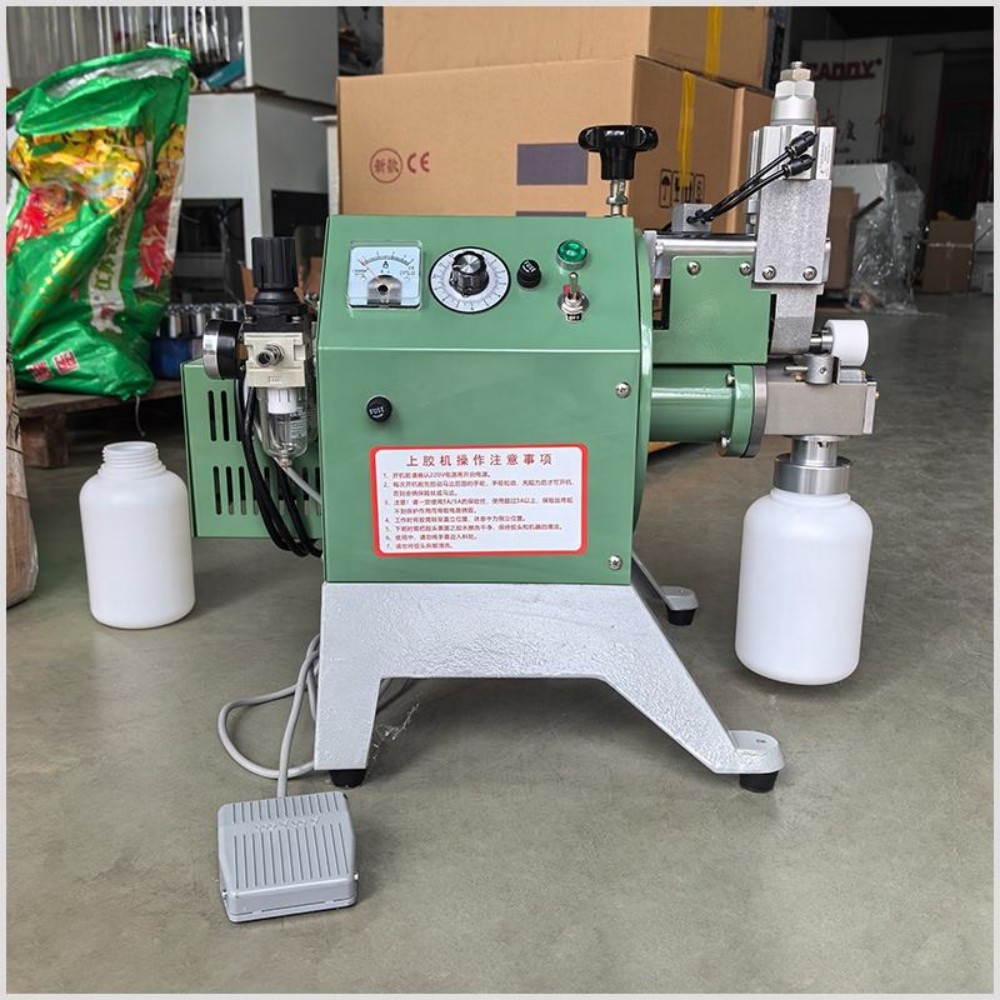

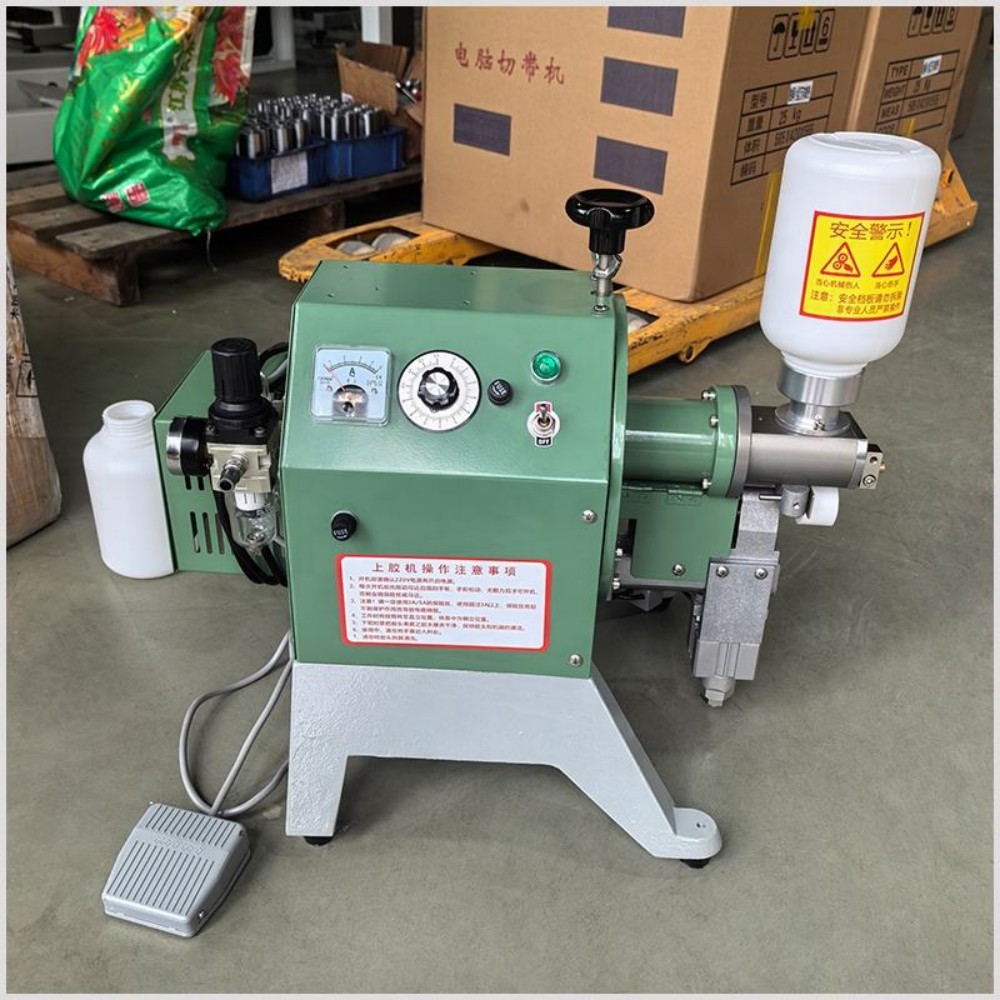

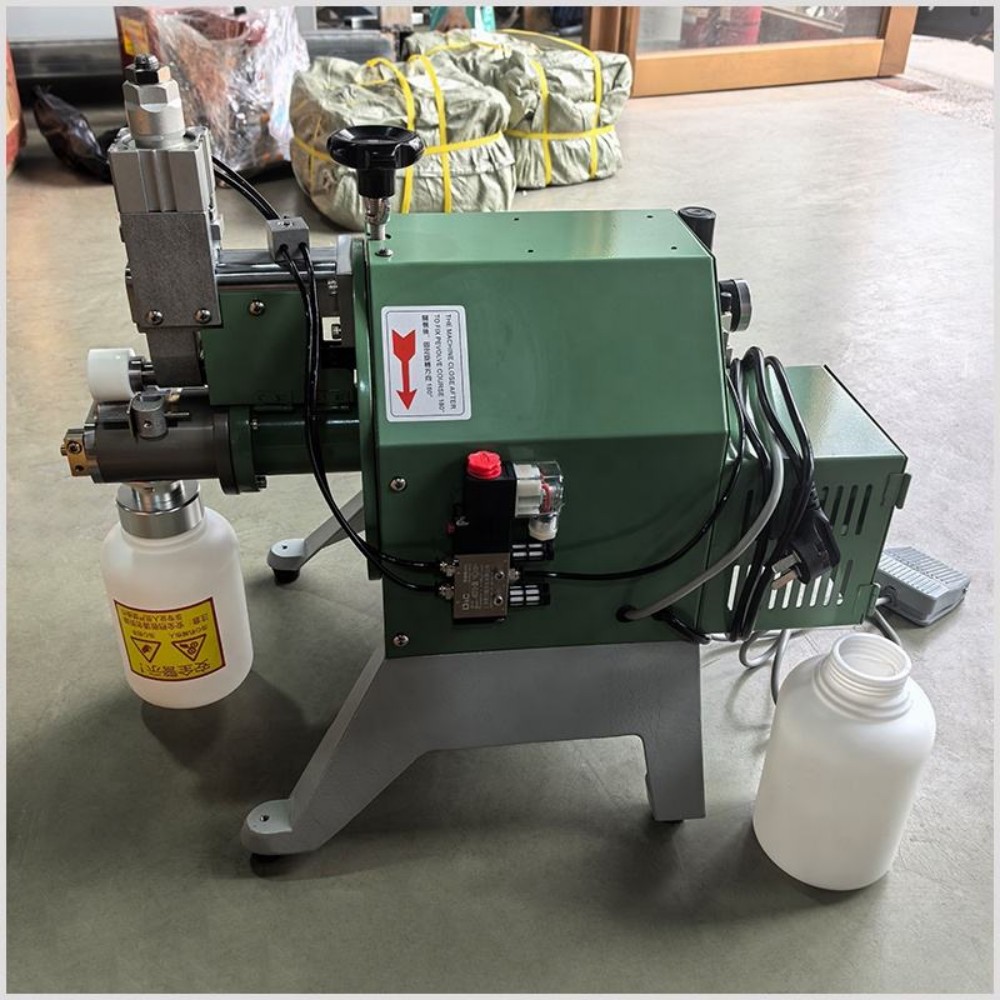

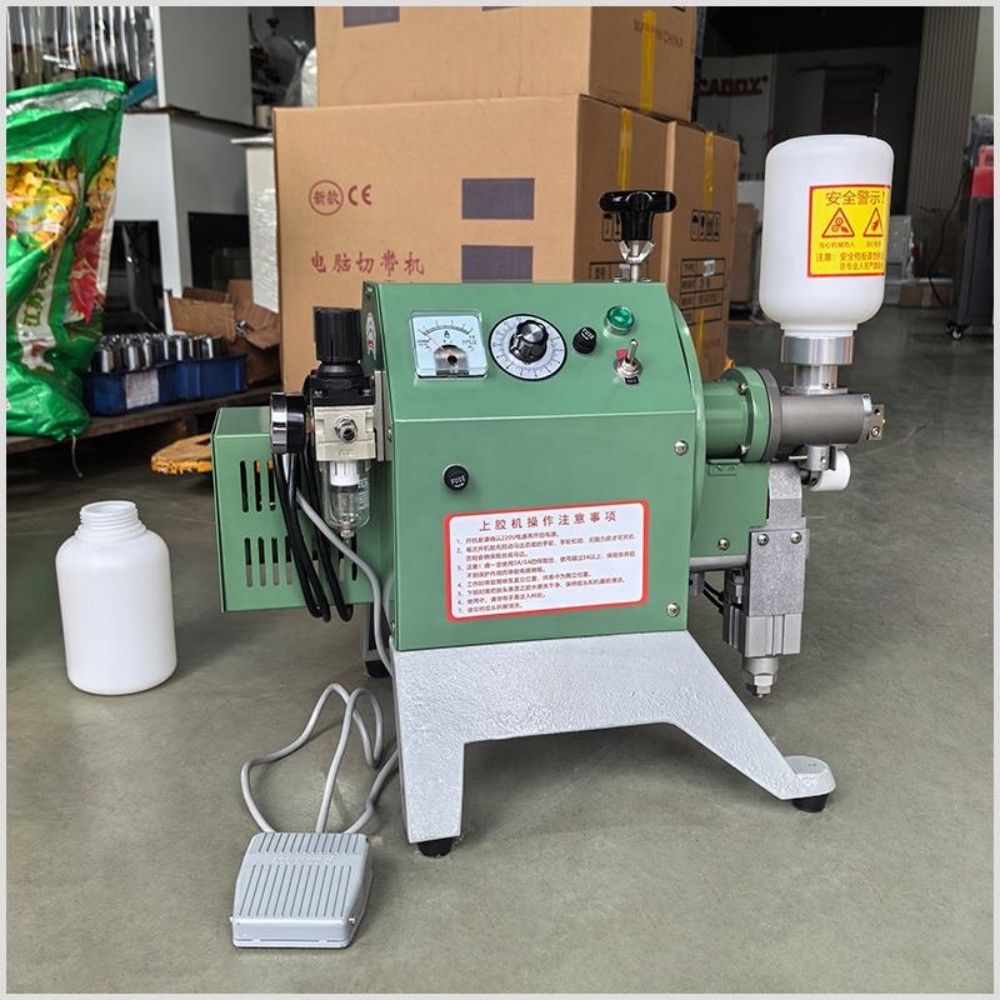

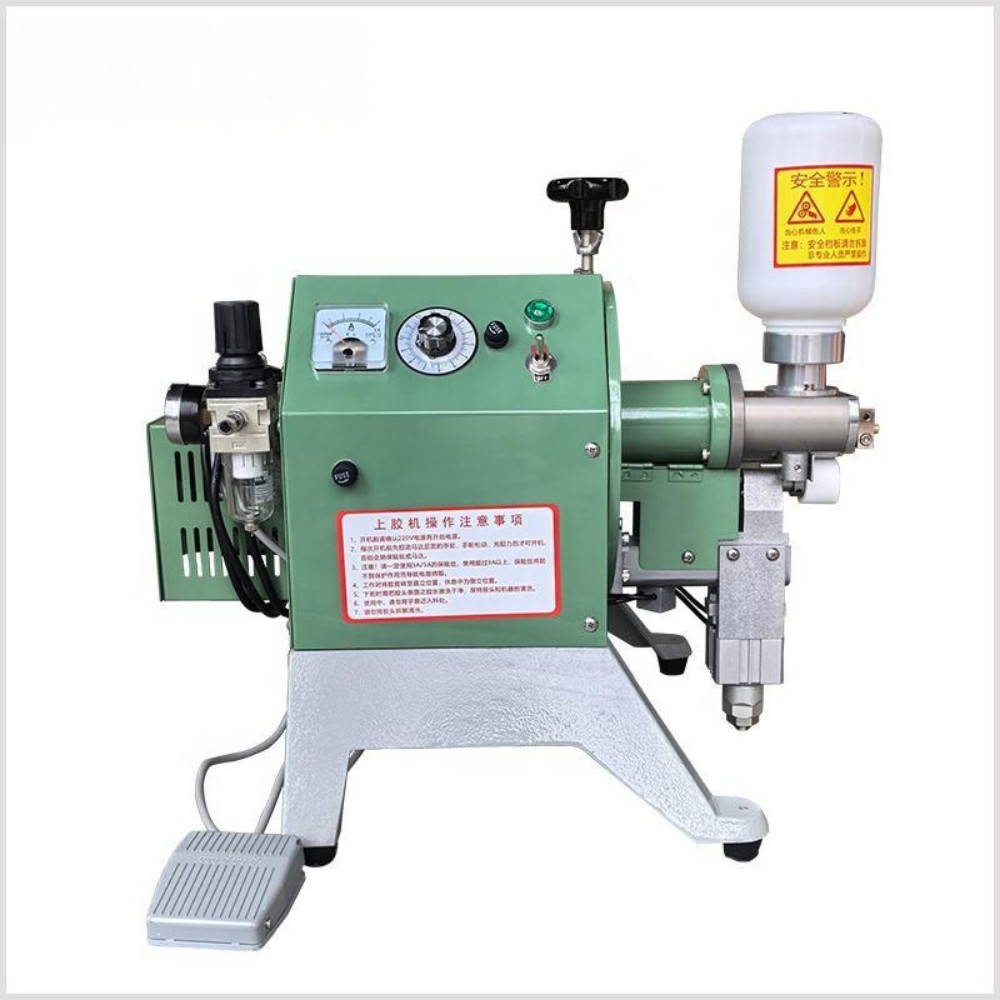

DL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines

Features

Multiple specifications, please contact customer service before placing an order:

3/5/7/10/12/15/25mm

1. This machine is suitable for gluing the edges of shoes, belts, handbags, luggage, leather, cardboard, sponge, EVA, cloth, packaging boxes and other products.

2. The seal of this machine is a glue bottle design. The glue is not easy to volatilize and solidify. It meets the European and American countries' requirements for glue-free glue and environmental protection. The adjustment handle can adjust the amount of glue. It is equipped with a 360-degree swivel device, and the machine is out of use. When using, the glue can be recycled into the glue pot, no glue leakage, easy to operate, easy to clean, and labor-saving.

How to use and precautions:

1. Confirm that the power supply is 220V before plugging in.

2. Turn the motor knob on the left to see if the shaft can rotate, and confirm whether there is dry glue in the roller.

3. Turn on the power switch only after the speed adjustment knob is reset to zero.

4. Turn on the motor switch, adjust the speed slowly, and adjust the thickness knob (not too tight). When shutting down, the speed must return to zero and then turn off the power switch to ensure the safety of the electrical appliance.

5. Rotate the glue bottle upwards and tighten the fixing screw to introduce an appropriate amount of glue.

6. According to the thickness of the product to be glued, adjust the upper and lower handwheels and rotate them in the same direction. While adjusting, observe the height of the bottom wheel. Glue the product once for a test, and adjust the amount of glue according to the need. Then it can work normally.

MODEL

DL-123A

Voitagt

220/230V

Power

0.2KW

Packing size

42*60*65CM

Package weight

38KG

Cut width

3/5/7/10/12/15/25MM

default nameDL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines (6)DL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines (3)DL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines (5)DL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines (2)DL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines (1)DL-123A Multifunction Multiple Specifications Upper Edge Pneumatic Gluing Machines (4)
