PET Braided Self-closed Wrap

9 month ago

42 0 

Dongguan Gushang Electronic Technology Co.,LTD

12 month

Product details

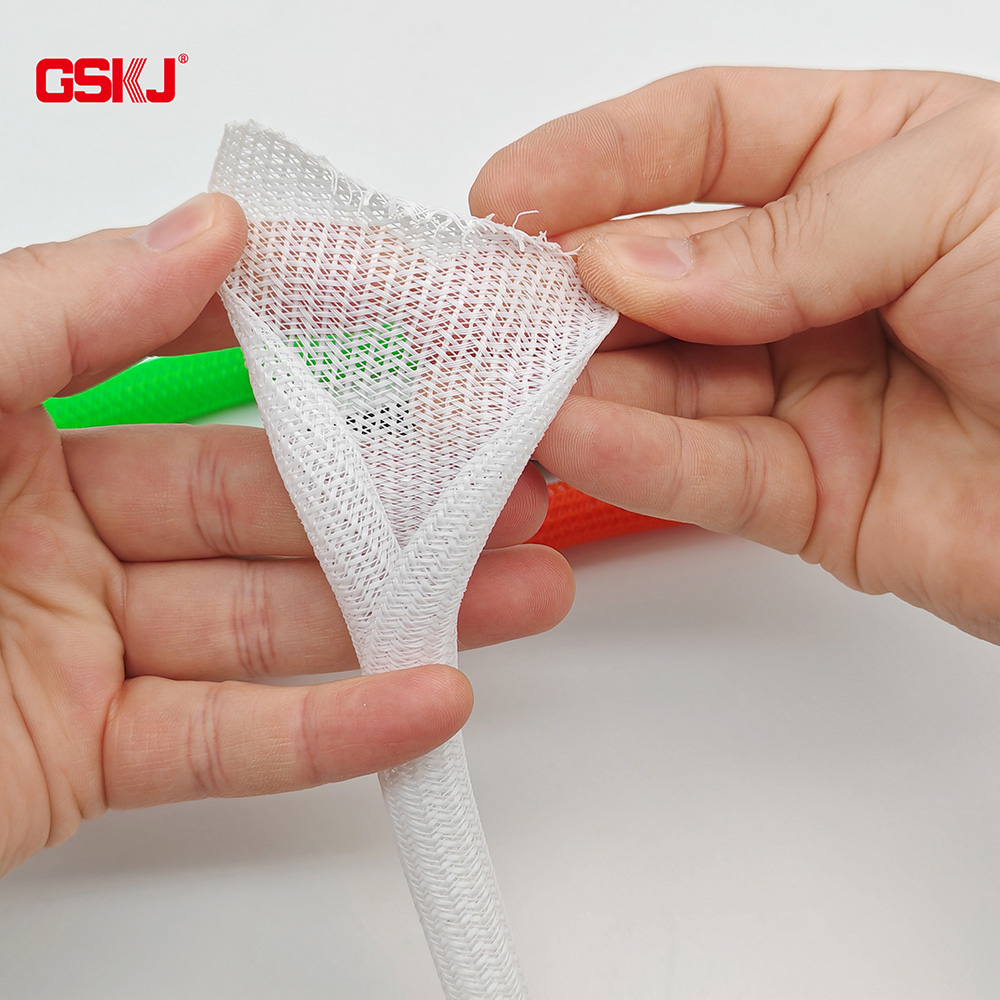

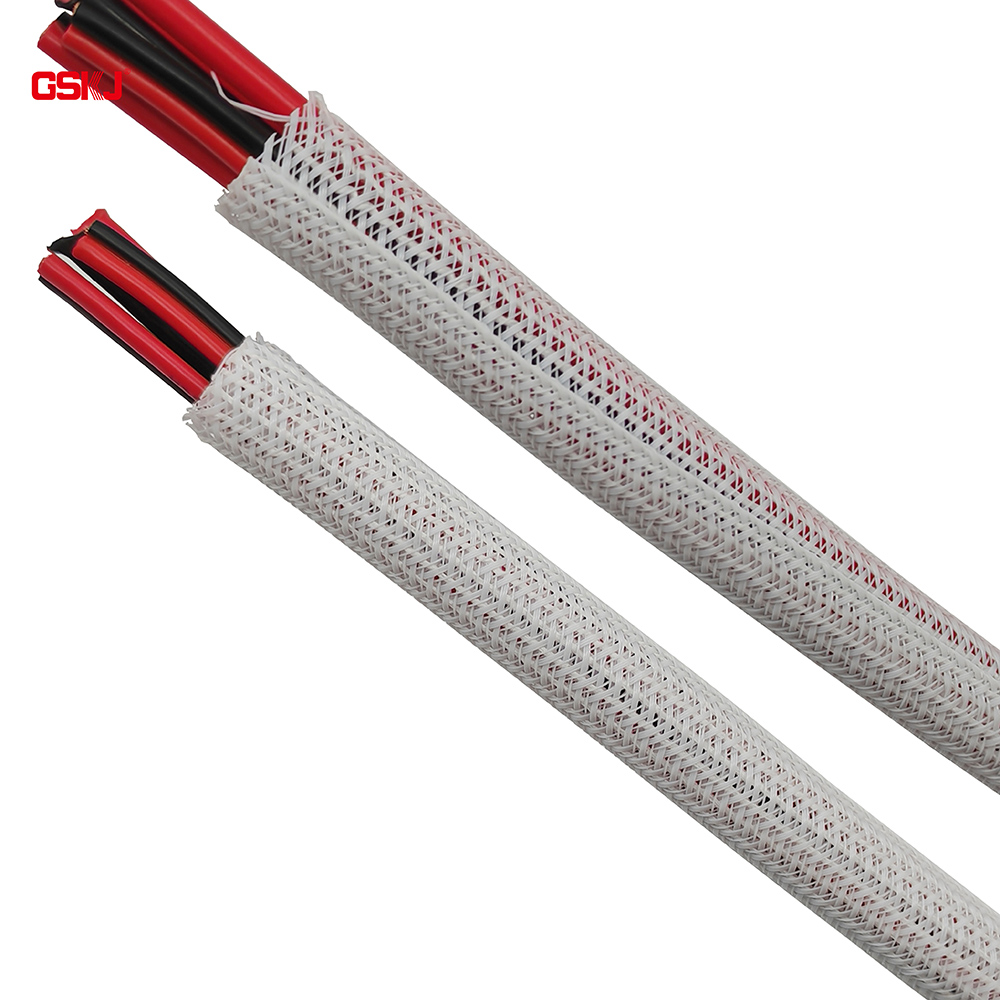

GSKJ Semi-Transparent PET Self-closing Sleeve, Harness Classification & Error Prevention

Multi-system harnesses in industrial production lines and power distribution cabinets are often messy, leading to an 8% wiring error rate, time-consuming rework and short-circuit safety hazards. PET Self Closing Wrap for Harness adopts a semi-transparent weave + multi-color customization solution to enable rapid harness classification and identification, reducing misconnection risks from the source.

This Halogen Free Braided Wrap is made of high-purity eco-friendly polyester, certified to RoHS halogen-free and EN45545-2 railway fire protection, withstanding -50℃ to 150℃. Compared with Nylon Self closed Cable Sleeve, it features unique semi-transparent properties, clearly showing internal wire numbers and insulation conditions, and supports mass production in black, white, red and orange colors, corresponding to power, signal, control and high-voltage systems respectively.

The Self Closing Braided Wrap features a memory open design for one-hand wrapping without tape; the Self Closing Cable Wrap wraps tightly without loosening and has passed ISO6722 testing with ≥500 friction cycles under 7N load; the Self Closing Wire Wrap fits all harness sizes from 1mm to 100mm, simultaneously wrapping multiple wires of different diameters for flexible routing.

Specification Sheet
Specification Sheet
Part No.	Inner Diameter (mm)	Max. Bundle Diameter (mm)	Expanded width (mm)	Packing (m/r)


GSKJ-SCW -005	5	6	28±2	100
GSKJ-SCW -008	8	9	40±2	100
GSKJ-SCW -010	10	11	50±5	100
GSKJ-SCW -013	13	14	60±5	100
GSKJ-SCW -016	16	17	80±5	100
GSKJ-SCW -019	19	20	105±5	50
GSKJ-SCW -025	25	27	125±8	50
GSKJ-SCW -029	29	31	145±8	50
GSKJ-SCW -038	38	40	188±10	25
GSKJ-SCW -050	50	52	248±10	25
