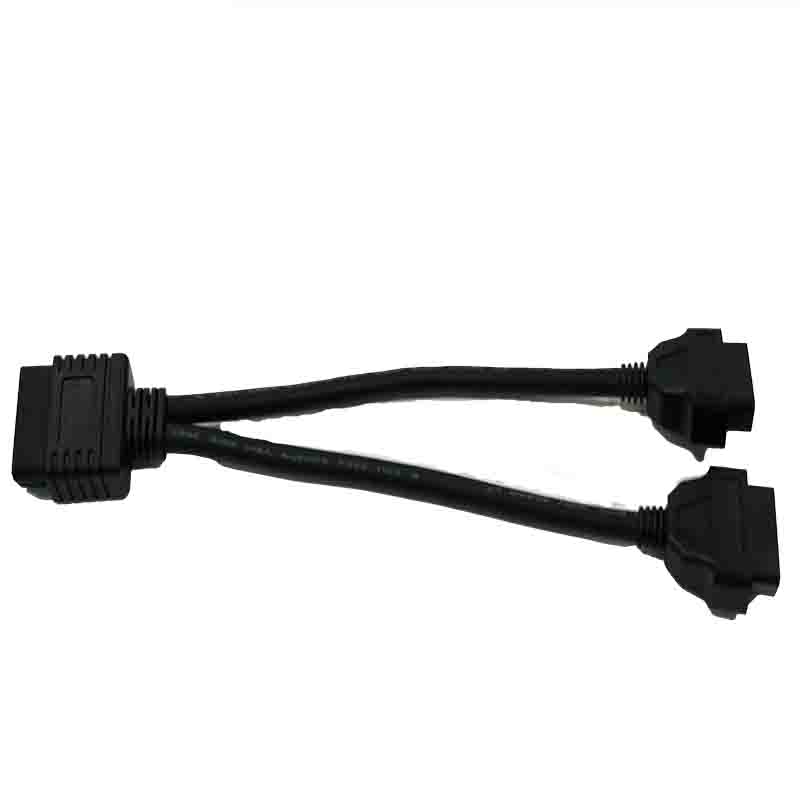

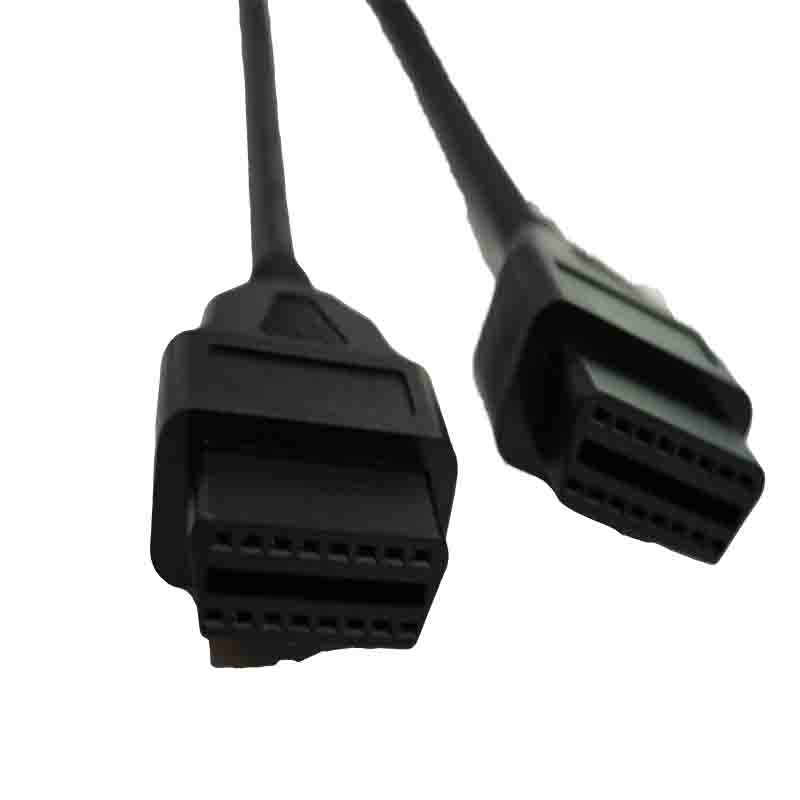

OBDII 16P connector for two connections
8 month ago
Product details
In the realm of automotive diagnostics and data transmission, the OBDII-16P male connector designed to interface with two OBDII-16P connectors emerges as a pivotal component. This specialized connector addresses a common challenge faced by mechanics, automotive enthusiasts, and fleet managers: the need to simultaneously access, monitor, or transfer data between multiple OBDII-compliant systems without frequent plug-and-play operations.
At its core, this connector retains the standard 16-pin configuration mandated by OBDII protocols, ensuring universal compatibility with all OBDII-equipped vehicles manufactured since the late 1990s. What sets it apart is its dual-output design, which splits the signal from a single input—whether from a vehicle’s OBD port, a diagnostic scanner, or a data logger—into two independent, stable channels. This means users can connect both a diagnostic tool for real-time fault code reading and a telematics device for long-term data tracking, all while maintaining consistent communication with the vehicle’s ECU (Engine Control Unit).
| Item | Description |
| Product Name | OBDII 16P connector for two connections |
| Type | Automotive OBDII Dual-Channel Diagnostic & Power Supply Wiring Harness |
| Voltage | 12V / 24V DC, Customized Available |
| Pins Material | Nickel-Plated Brass Terminals, Gold-Plating Optional |
| Plug Material | PA66+GF Automotive Grade OBDII Connector Housing |
| Working Temperature | -40℃~+105℃ Or Customized |
| Length | Standard Length: 500mm / Customized Length Available |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤2Ω |
| Application Fields | Automotive dual-channel OBD diagnostic and power supply, vehicle ECU programming multi-signal transmission, auto repair shop dual-device simultaneous detection wiring, on-board electronic equipment dual-circuit connection, vehicle modification circuit expansion, passenger car & commercial vehicle OBD interface dual-connection extension, DIY automotive electronic test projects, custom dual-channel OBD wiring harness |
| Specific Shipping Cost | Please Contact Us |
The practical advantages of this connector are manifold. For automotive repair shops, it streamlines workflow: technicians no longer need to switch between tools when conducting comprehensive diagnostics, reducing service time and improving efficiency. Fleet operators benefit from its ability to integrate monitoring systems, allowing simultaneous tracking of fuel consumption via one connector and engine performance via the other. Even casual users find value in it, as it enables pairing a dashcam with OBD data integration and a portable scanner for on-the-go troubleshooting.
Reliability is a key feature of high-quality models. Premium versions incorporate gold-plated pins to minimize signal interference and corrosion, ensuring stable data transmission even in harsh automotive environments—where temperature fluctuations, vibration, and electrical noise are common. They also adhere to strict OBDII standards, preventing voltage spikes or data loss that could compromise vehicle systems or diagnostic accuracy.
In summary, the OBDII-16P male connector for two OBDII-16P connectors is more than just an adapter; it’s a productivity-enhancing tool. By eliminating the limitations of single-port access, it empowers users to maximize the utility of their OBDII devices, fostering more efficient diagnostics, comprehensive data collection, and seamless integration of automotive electronics. As vehicles grow increasingly connected, this versatile connector remains an essential asset for anyone working with modern automotive systems.
