358 High Security Fence – Anti-Climb & Anti-Cut Welded Mesh for Airport
What Is 358 Security Fence?
The name "358" refers to: 3 inches (76.2mm) horizontal x 0.5 inches (12.7mm) vertical x 8 gauge (4.0mm) wire. This dense mesh prevents climbing, cutting, and tampering.
Also known as prison mesh or anti-climb fence, 358 provides 91% fewer footholds than chain link. Each intersection is resistance-welded for rigidity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Mesh Aperture (H x V) | 76.2mm x 12.7mm (3" x 0.5") |
| Wire Diameter | 4.0mm standard (5.0mm, 6.0mm optional) |
| Panel Height | 1.8m, 2.0m, 2.4m, 3.0m (custom up to 5.2m) |
| Panel Width | 2.0m, 2.5m, 3.0m |
| Post Section | 60x60mm, 80x80mm, 100x100mm (wall 2.0-3.0mm) |
| Post Spacing | 2.5m – 3.05m |
| Surface Finish | HDG (≥65μm) + powder coating (RAL) |
| Fixings | Stainless steel anti-theft bolts, clamp bars |
| Standards | ISO 9001, BS EN 10223-8, BS 1722-14 |

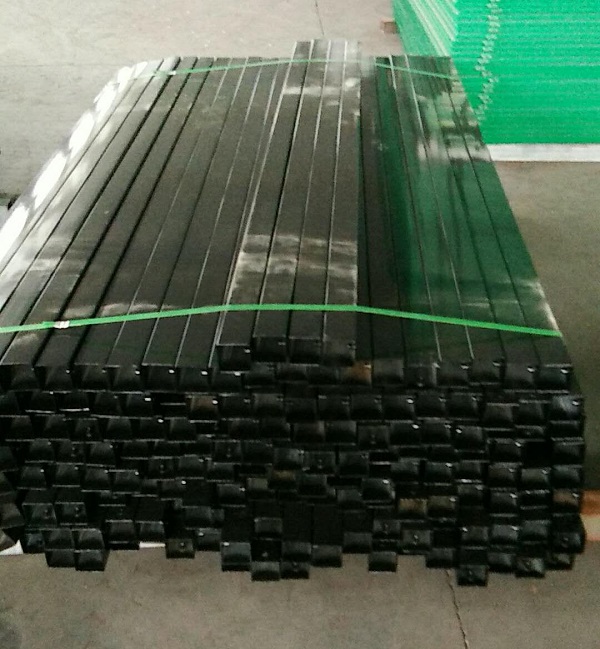

Robust Post & Fixing System
Heavy-duty square posts (60-100mm) are hot-dip galvanized and powder coated. Panels overlap posts by min 75mm, secured with slotted clamp bars and M8 bolts.
Anti-theft stainless fixings prevent removal. Foundations require concrete footings (min 300mm dia. x 800mm depth).
Security Accessories & Integration
Add barbed wire arms, concertina razor wire, or cranked anti-climb brackets above the fence line. Brackets withstand significant upward force.
358 integrates with vibration sensors, fiber optic cables, CCTV, and access control gates. Open mesh maintains surveillance sightlines.
Key Advantages
12.7mm openings
4-6mm wire
Open for CCTV
Security fixings
20-30 years
Applications
Nigeria, Kenya, SA
SE Asia perimeters
Europe & UAE
South America
Defense contracts
Worldwide
RFQ Information
Send these details and ANJIA will provide a quote with CAD and loading plan within 12 hours.
Packing & Delivery
Packing: Pallet + waterproof film + corner protectors
Loading: 20GP – 200-250 panels | 40HQ – 500-600 panels
Lead Time: 15-25 days (stock colors ready)
Ports: FOB Tianjin / Qingdao / Guangzhou
ANJIA Group – Since 1996
Founded 1996, 72,000m² ISO facility
Auto welding & galvanizing, 200+ RAL
Kenya warehouse, Brazil partners
Free CAD & engineering
Exported to 80+ countries. Mill certificates (EN 10204 3.1) and SGS/BV inspection available.
FAQ
3" (76.2mm) horizontal x 0.5" (12.7mm) vertical x 8 gauge (4.0mm) wire — the global standard for high-security perimeter fencing.
358 has dense 76.2x12.7mm mesh that prevents climbing and resists tools. Chain link has large openings that provide footholds and can be cut with bolt cutters in under 60 seconds.
HDG (≥65μm) plus powder coating is recommended. For tropical marine areas, PVC coating provides maximum protection.
Yes. Y posts, barbed arms, and concertina razor (BTO-22 or CBT-65) available. All accessories in one container.
Standard: 15-25 days. Custom coatings: 20-30 days. Rush orders can be discussed.
