Upgraded 360° spin cabinet hardware Max 600mm width

The upgraded 360° rotating hardware system is specifically designed to solve the common issue of poorly utilized corner spaces, perfectly fitting corner cabinet sizes up to a maximum of 600×600 mm.

Featuring a unique dual (upper and lower) rotation mechanism, the system achieves a 180° opening, 180° closing, and a continuous 360° smooth rotation. This makes the previously hard-to-reach corner area fully accessible—easy to reach, easy to view, and easy to use—significantly boosting storage efficiency.

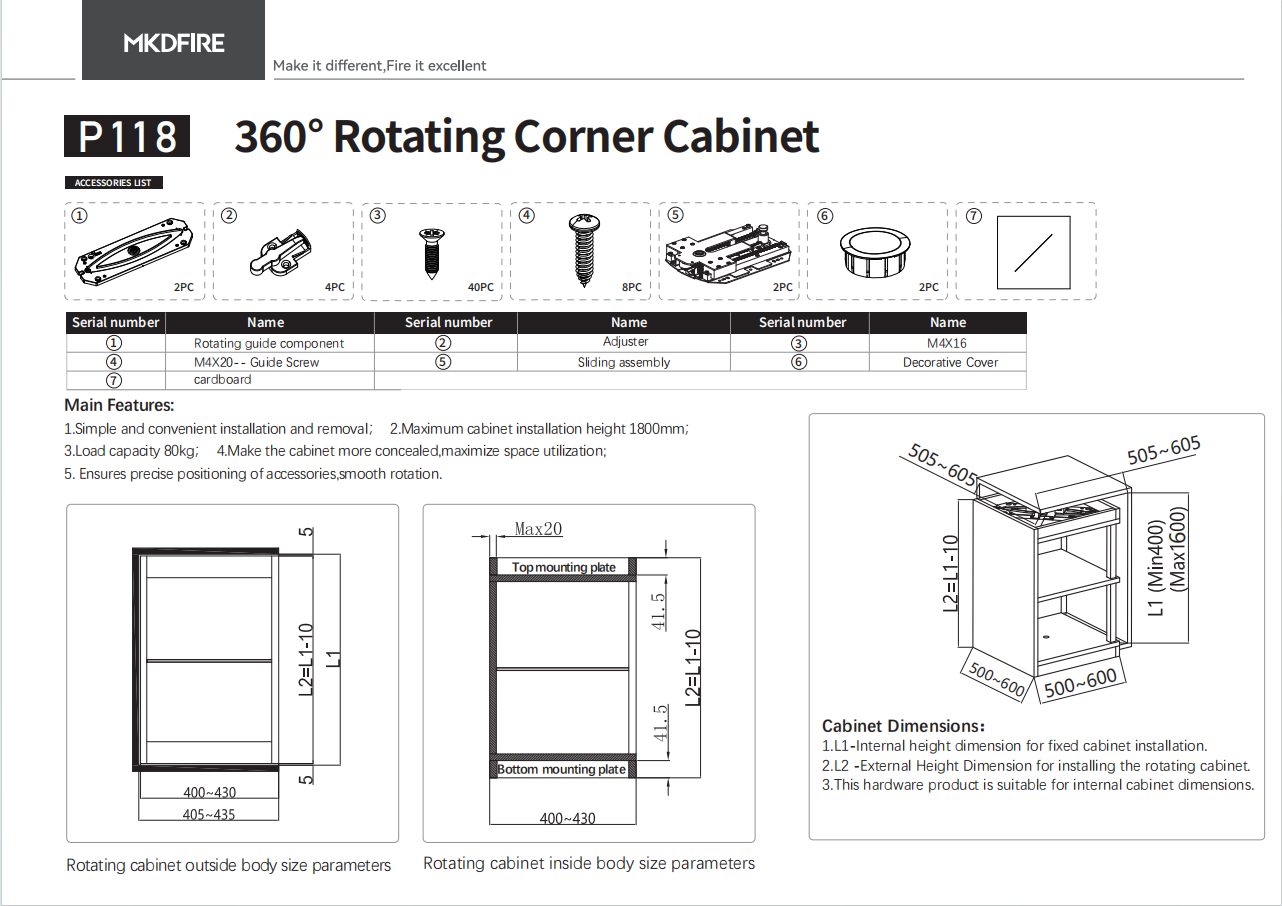

Applicable Dimensions and Load Capacity

Applicable Corner Cabinet Size: Upgraded and expanded from 500×500 mm to 600×600 mm.

Installation Height Range: 400 mm to 1600 mm.

Wide Range of Applications: Suitable for kitchens, wardrobes, storage units, and various custom cabinet designs.

Exceptional Load Capacity: Constructed with high-strength steel and engineering-grade plastic components, the system supports an ultra-strong load capacity of up to 80 kg, ensuring long-term stability and wobble-free rotation.

Whether used for brand-new custom cabinets or for upgrading existing units, this upgraded 360° rotating hardware system is an effective solution for enhancing corner functionality and maximizing the value of corner spaces, transforming hidden areas into convenient and practical storage zones for greater efficiency in modern homes.
