M03.5 Clip on Soft Close 3D Hinge (classic Blum CLIP top with BLUMOTION 973A system)

Our Blum style CLIP top hinge solution provides a versatile hybrid system. As a quick-install hinge featuring a clip-on mechanism, it allows you to switch between a soft-close hinge and a standard hinge (ordinary hinge) without changing your inventory. Engineered as a highly compatible alternative to the classic Blum CLIP top with BLUMOTION 973A system, this solution reduces SKU management costs for hardware wholesalers & distributors while maintaining functional reliability through our proprietary hydraulic damper technology.

Ⅰ. 2-in-1 Hybrid Design: From Soft Close Hinge to Normal Hinge

This clip-on BLUMOTION style hinge offers configuration flexibility. Retain our M01 external soft-close damper to ensure a controlled, silent closing process, or remove the M01 detachable BLUMOTION buffer to convert it into a standard hinge. This allows interior designers & contractors to customize the door’s closing action based on specific project requirements, from kitchens to office furniture, utilizing a modular mechanism similar to the traditional Blum 973A0500.

Ⅱ.LIJIALI Precision Hydraulic Damping

The hydraulic damper hinge performance is powered by our in-house developed M01 hydraulic cylinder. Specifically engineered for a 2-way force opening and closing process, this buffer hinge mitigates door bounce. The small-angle soft-close damper ensures a decelerated close in the final stages to protect fingers. This cold-rolled steel hinge has been tested for over 50,000 cycles, meeting the durability expectations of standard Blum cabinet hinges.

Ⅲ.Designed for Modern Minimalism

Specially calibrated for thin panels (14-20mm), this furniture hinge provides secure installation and flush alignment for wood veneers and glass-framed doors. Available in two finishes: Black nickel and white nickel.

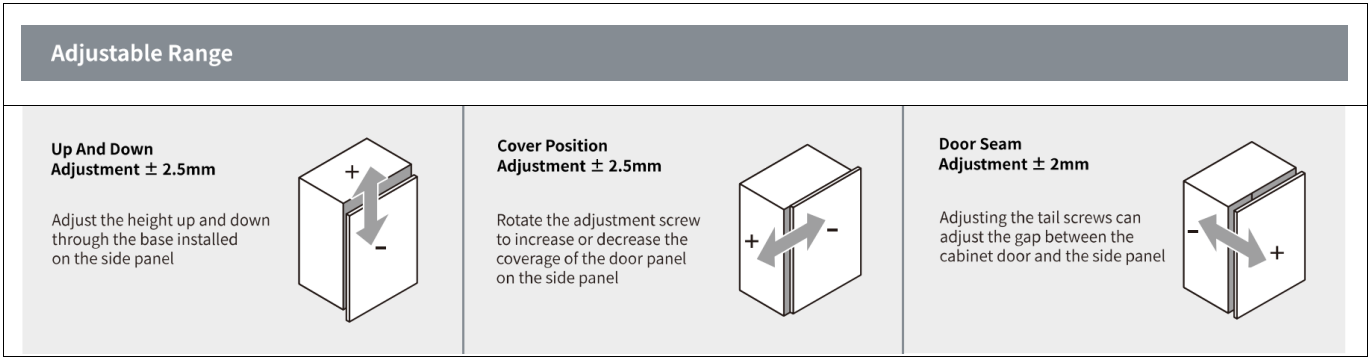

Ⅳ.Precision 3D Adjustment Hinge

Eliminate misaligned doors with our integrated 3D adjustment hinge system, delivering the same alignment flexibility as a Blum CLIP top hinge. This cabinet door hinge allows for precise adjustment:

Vertical Adjustment: ± 2.5mm

Overlay Adjustment: ± 2.5mm

Gap/Depth Adjustment: ± 2.0mm

Product Specifications
