Manually Operated Linear Motion Units
2 month ago
| Model Number | Table Size(mm) | Thickness(mm) |
Travel(mm) | Lead Screw Diameter | Lead(mm) | Rail Specifications | Load capacity | Weight(kg) |
| XKT80-L50 | 50x90 | 78 |
50 | ø16mm | 5 |
Width：15 mm
Height：8 mm
|
490N(50kgf) | 1.81 |
| XKT80-L100 | 100 | 2.05 | ||||||

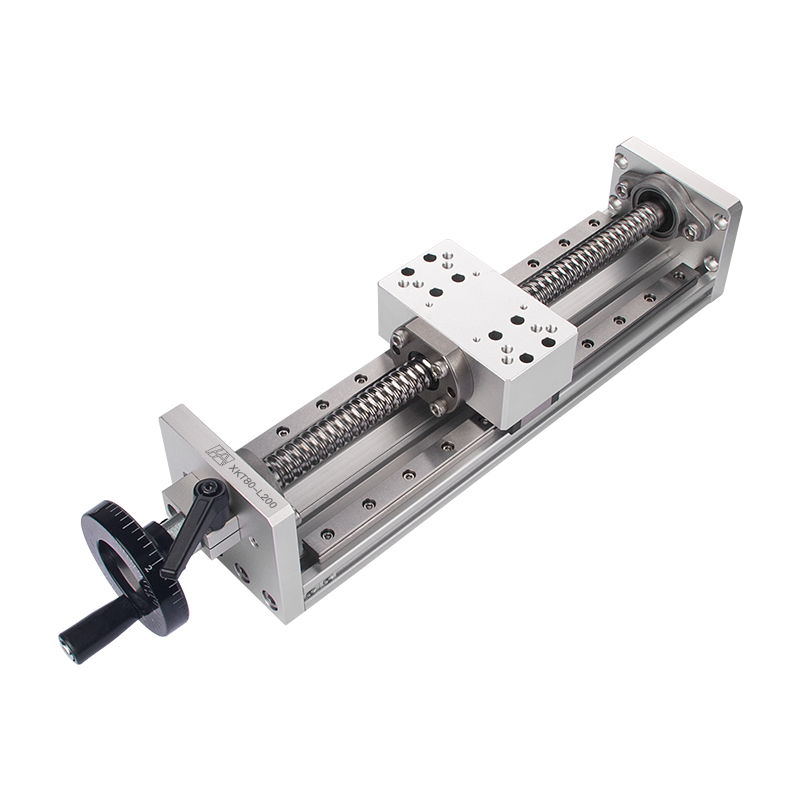

| XKT80-L200 | 200 | 2.49 | ||||||
| XKT80-L300 | 300 | 2.92 | ||||||
| XKT80-L400 | 400 | 3.35 | ||||||

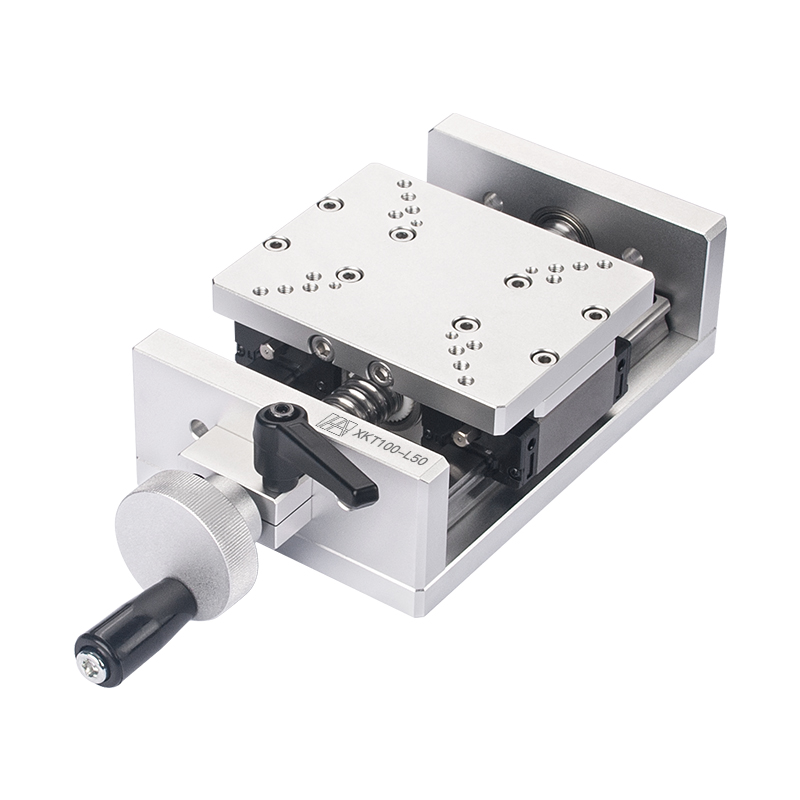

| XKT100-L50 | 80x100 | 50 | 50 |
Width：15 mm
Height：12.5 mm
|
2.07 | |||
| XKT100-L100 | 100 | 2.37 | ||||||
| XKT100-L200 | 200 | 2.69 | ||||||
| XKT100-L300 | 300 | 3.01 | ||||||
| XKT100-L400 |
400 | 3.66 | ||||||

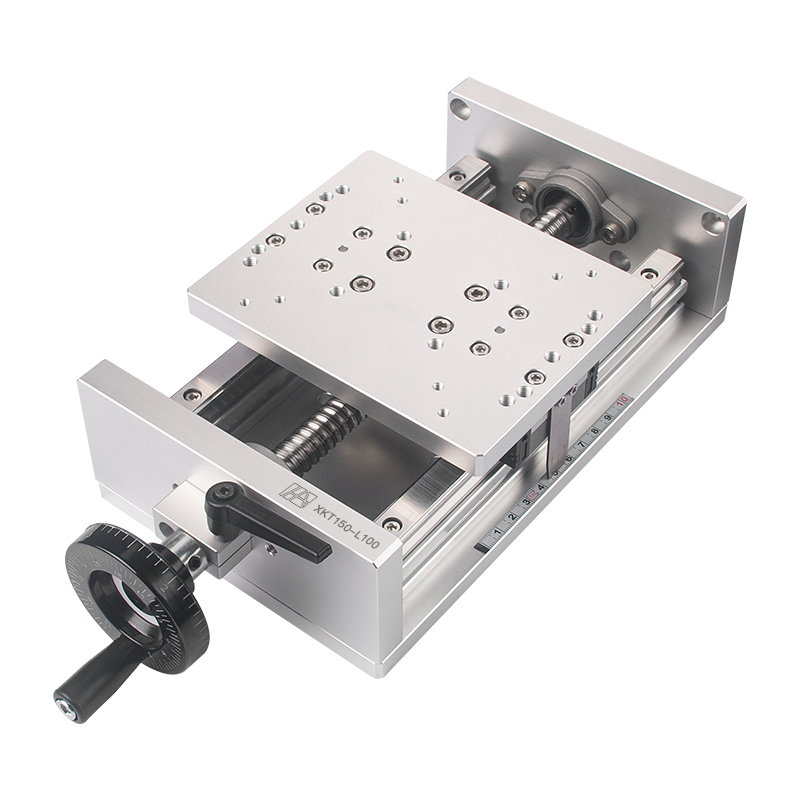

| XKT150-L100 | 120x149 | 72 | 100 | 4.31 | ||||
| XKT150-L200 | 200 | 5.2 | ||||||

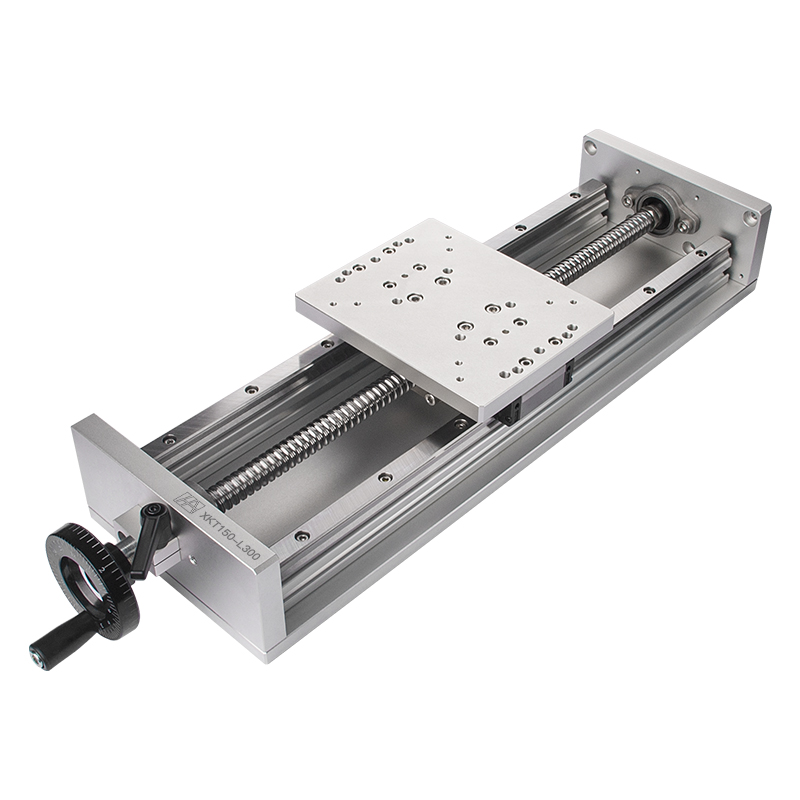

| XKT150-L300 | 300 | 6.08 | ||||||
| XKT150-L400 | 400 | 6.96 | ||||||
| XKT200-L100 |
120x200 | 72 | 100 | 5.03 | ||||
| XKT200-L200 |
200 | 5.92 | ||||||
| XKT200-L300 |
300 | 6.8 | ||||||

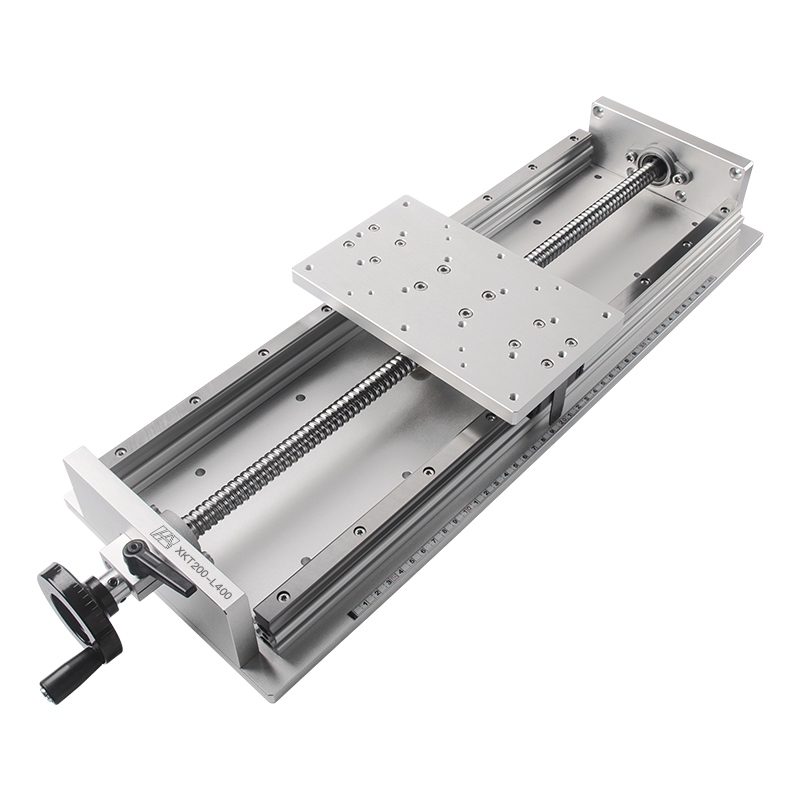

| XKT200-L400 |
400 | 7.68 | ||||||
| XKT200-L500 |
500 | 8.56 |
