ODOT CN-8034 EtherNET/IP Network Adapter

The CN-8034 Ethernet/IP I/O module supports standard Ethernet/IP protocol access. The adapter supports a Max. input of 504 bytes and a Max. output of 504 bytes. It supports 32 pcs of extended IO modules.

ODOT Automation has officially launched CN-8034 EtherNET/IP network Adapter this month.

It has been tested successfully with PLC such as AB(1769-L16ER-BB1B), Delta (AS228T-A), Omron (NX1P2-9024DT) and other controllers.

Technical Parameters

The network adapter is also compatible with CODESYS V3.5.

Max. input is 504 byte;Max. output is 504 byte

Max. explicit message connection is 10

Max. implicit message connection is 5

Max. CIP connection is 10

Max. Bus length is 100m

2*RJ45, 10/100Mbps, self-adaption, full duplex

Technical Parameters

Hardware Specification
System Power	Nominal:24VDC, Range: 19.2～28.8VDC Current: Max.2A@24VDC Protection: Reverse Protection, Overcurrent Protection
Power Consumption	110mA@24VDC
Internal BUS Supply Current	Max：2A@5VDC
Isolation	System Power to Field Power Isolation
Field Power Supply	Power Supply：19.2～28.8V（Nominal 24VDC）
Field Power Supply Current	Max. DC 8A
IO Modules Supported	32 pcs
Wiring	Max.: AWG 18 Min.: AWG 24
Installation	35mm DIN-Rail
Size	11551.575mm
Weight	130g
Environment Specification
Operating Temperature of Vertical Installation	-35℃~70℃
Operating Temperature of Horizontal Installation	-35℃~60℃
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40℃~85℃
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40℃~75℃
Ingress Protection Rating	IP20
Ethernet/IP Parameter
Protocol	Ethernet/IP
Max. input length	504 Bytes per assembly instance
Max. output length	504 Bytes per assembly instance
Max. no. of explicit message connections	10
Max. no. of implicit message connections	5
Max. no. of CIP connections	10
Network Interface	2 *RJ45
Speed	10/100Mbps, MDI/MIDX, Full-Duplex
Max.Bus Legenth	100m

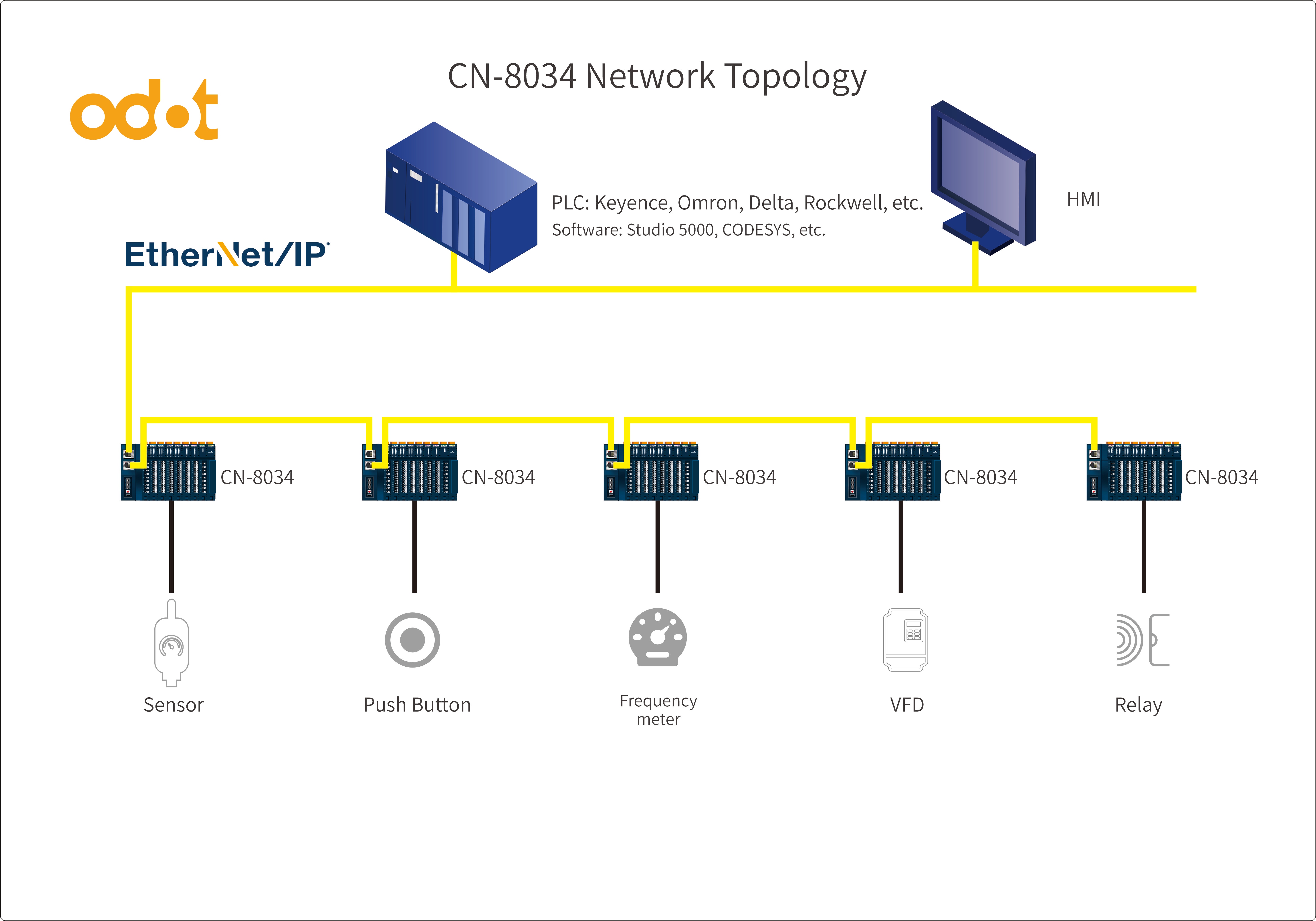

Application scenarios:

FQA

Q：What is the maximum input/output capacity of CN-8034?

A：Input 504 bytes, output 504 bytes, suitable for small to medium EtherNET/IP automation systems.

Q：How many remote IO modules can CN-8034 expand?

A：Up to 32 C-series remote IO modules.

Q：What network interfaces does CN-8034 have?

A：Dual Ethernet ports, 10/100Mbps, supporting EtherNET/IP communication protocol.

Certifications & Quality Assurance:

ODOT products comply with international industrial standards, including CE and RoHS, and undergo strict quality control to ensure long-term reliable operation in industrial environments.

Technical Support

Fast Delivery

ODOT maintains sufficient inventory for standard models.

Most products can be shipped within 1-3 working days, helping customers accelerate project schedules.

Professional technical support and application assistance are available throughout the project lifecycle.
