ODOT CN-8033 EtherCAT IO Module Network Adapter Remote Control

The CN-8033 EtherCAT I/O module supports standard EtherCAT protocol access.

The adapter supports a Max. input of 1024 bytes and a Max. output of 1024 bytes. It supports 32 pcs of extended IO modules.

Technical Parameters

Hardware Specification
System Power	Nominal:24VDC, Range: 19.2～28.8VDC Current: Max.2A @ 24VDC Protection: Reverse Protection, Overcurrent Protection
Power Consumption	110mA @ 24VDC
Internal BUS Supply Current	Max：2A @ 5VDC
Isolation	System Power to Field Power Isolation
Field Power Supply	Power Supply：19.2～28.8V（Nominal 24VDC）
Field Power Supply Current	Max. DC 8A
IO Modules Supported	32 pcs
Wiring	Max.: AWG 18 Min.: AWG 24
Installation	35mm DIN-Rail
Size	11551.575mm
Weight	130g
Vibration Resistance	Comply with IEC 61131-2 and EC 60068-2-6
Impact resistance	Comply with IEC 61131-2 and IEC 60068-2-27
EMC Performance	Comply with IEC 61131-2 and IEC 61000-4
Environment Specification
Operating Temperature of Vertical Installation	-35℃~70℃
Operating Temperature of Horizontal Installation	-35℃~60℃
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40℃~85℃
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40℃~75℃
Ingress Protection Rating	IP20
EtherCAT Parameter
Protocol	EtherCAT
Process data area	Input Max.1024 Bytes, Output Max.1024 Bytes
Network Interface	2 *RJ45
Speed	10/100Mbps, MDI/MIDX, Full-Duplex
Max.Bus Legenth	100m

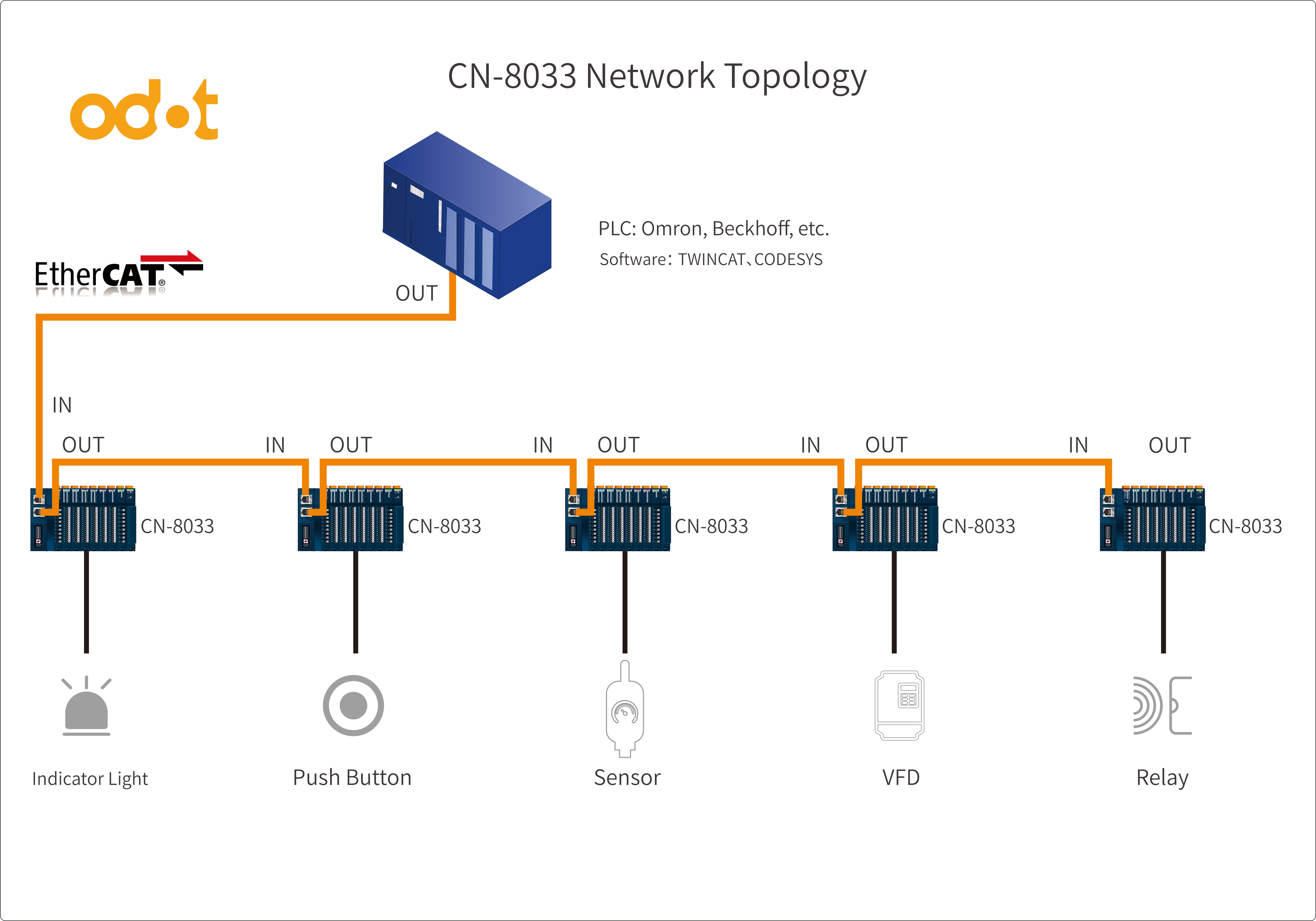

Application scenarios:

FQA

Q：What is the communication speed of CN-8033?

A: Dual Ethernet ports, 10/100Mbps, supporting real-time EtherCAT communication.

Q：What is the maximum I/O capacity of CN-8033?

A：Input 682 bytes, output 597 bytes.

Q：How many remote IO modules can CN-8033 expand?

A: Up to 32 C-series remote IO modules.

Certifications & Quality Assurance:

ODOT products comply with international industrial standards, including CE and RoHS, and undergo strict quality control to ensure long-term reliable operation in industrial environments.

Technical Support

Fast Delivery

ODOT maintains sufficient inventory for standard models.

Most products can be shipped within 1-3 working days, helping customers accelerate project schedules.

Professional technical support and application assistance are available throughout the project lifecycle.

ODOT In Hannover Messe

Our Team

Similar Video Recommendation

< >

How to learn ODOT 16DI PNP DT-222F in one min._20260116_14574239

Introducing the CT-121F

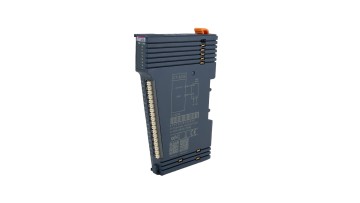

ODOT DT-122F 16-Channels digital input NPN module Explained(1)(1)_20260116_14580547

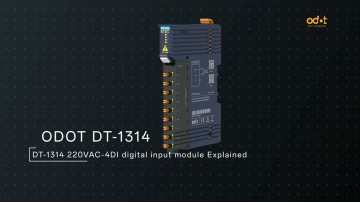

How to learn the ODOT DT-1314 220VAC 4DI Digital Input Module_20260119_18030096
