The operation of four-station liquid silicone mixing machine
9 month ago
Product details
We also have matching mixers to work with this batching machine.
After precise batching, materials go into the mixer. This is an independent 4-station mixer.
Each station has separately adjustable speed and timer control. It replaces manual mixing to achieve even blending. You can add silicone color paste during mixing.
Clamps on the mixing heads firmly hold the containers. No need for constant monitoring. The machine stops automatically once the set time is up, ensuring highly uniform mixing.
| Name | Mixer |
| Model | JY-XC03-A4-V2 |
| Voltage | 220V |
| Station | 4 |
| Mixing stirring capacity | 0.5L |
| Mixing blade | φ45mm |
| Total power | 0.48KW |
| Weight | 150KG |
With four stations, you can mix different colors at the same time, or use each station individually.
We supply these two machines — the batching machine plus the 4-station mixer — as a set, specially for multi-color silicone product production lines.
After precise proportioning by the batching machine, materials will be transferred to this independent mixer.
It adopts a 4-station design. Every station supports independent speed adjustment and timing control. It replaces manual operation to fully homogenize materials, with silicone color paste addable during mixing.
Fixtures mounted on mixing heads securely clamp containers in place. No on-site supervision is required. The unit will stop automatically when the preset time expires, delivering consistent and thorough mixing.
The four stations allow simultaneous mixing of different colors, or independent operation of each station.
The combination of the batching machine and 4-station mixer is specially developed for multi-color silicone production lines.
Automatic Liquid Silicone Batching Machine & 4-Station Mixer Complete Set

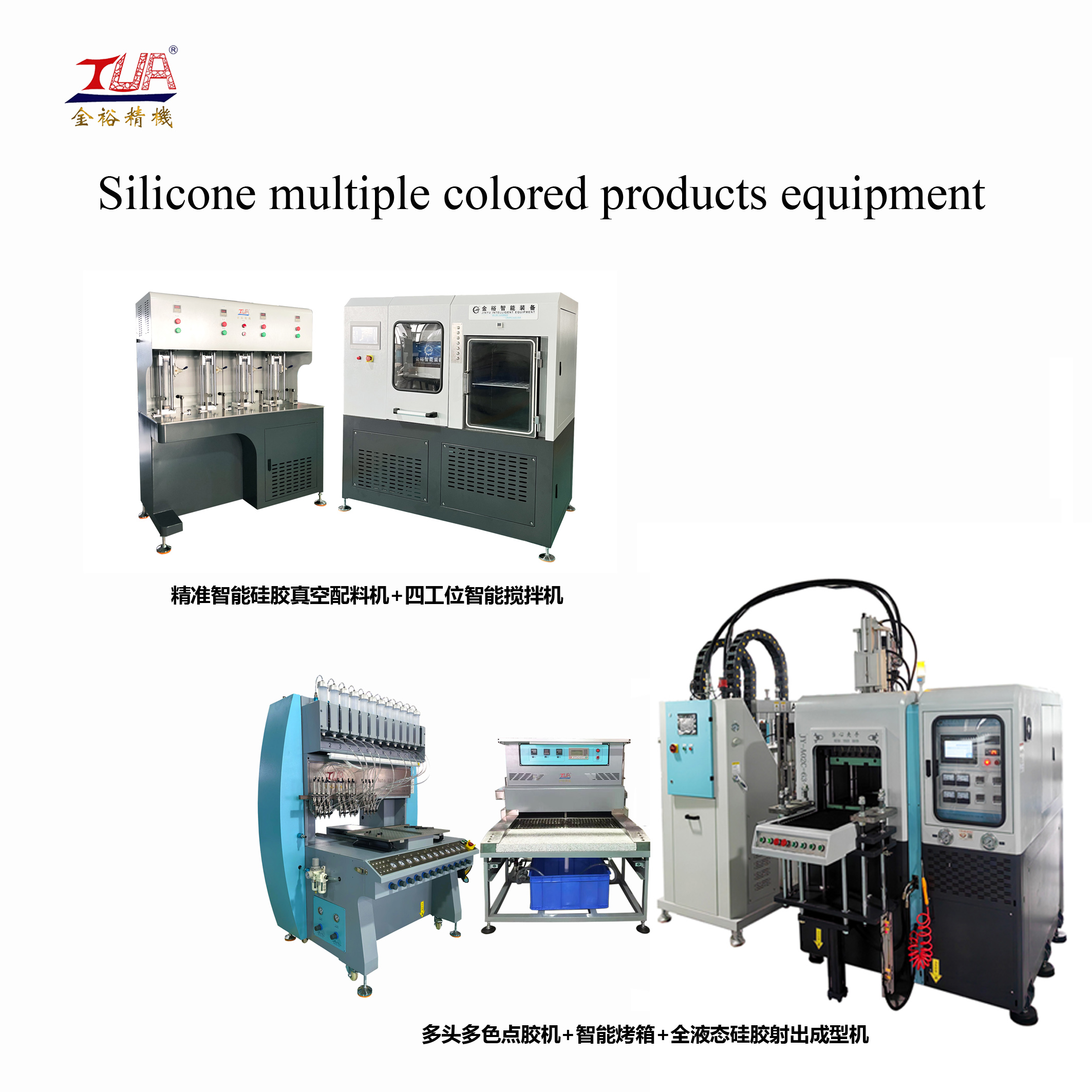

This professional supporting equipment set consists of two core machines: an automatic intelligent silicone batching machine (equipped with a matching vacuum degassing system) and an independent 4-station silicone mixer. It is specially designed and developed for multi-color liquid silicone product production, perfectly replacing traditional manual material proportioning and mixing processes, greatly improving production efficiency and finished product quality stability.

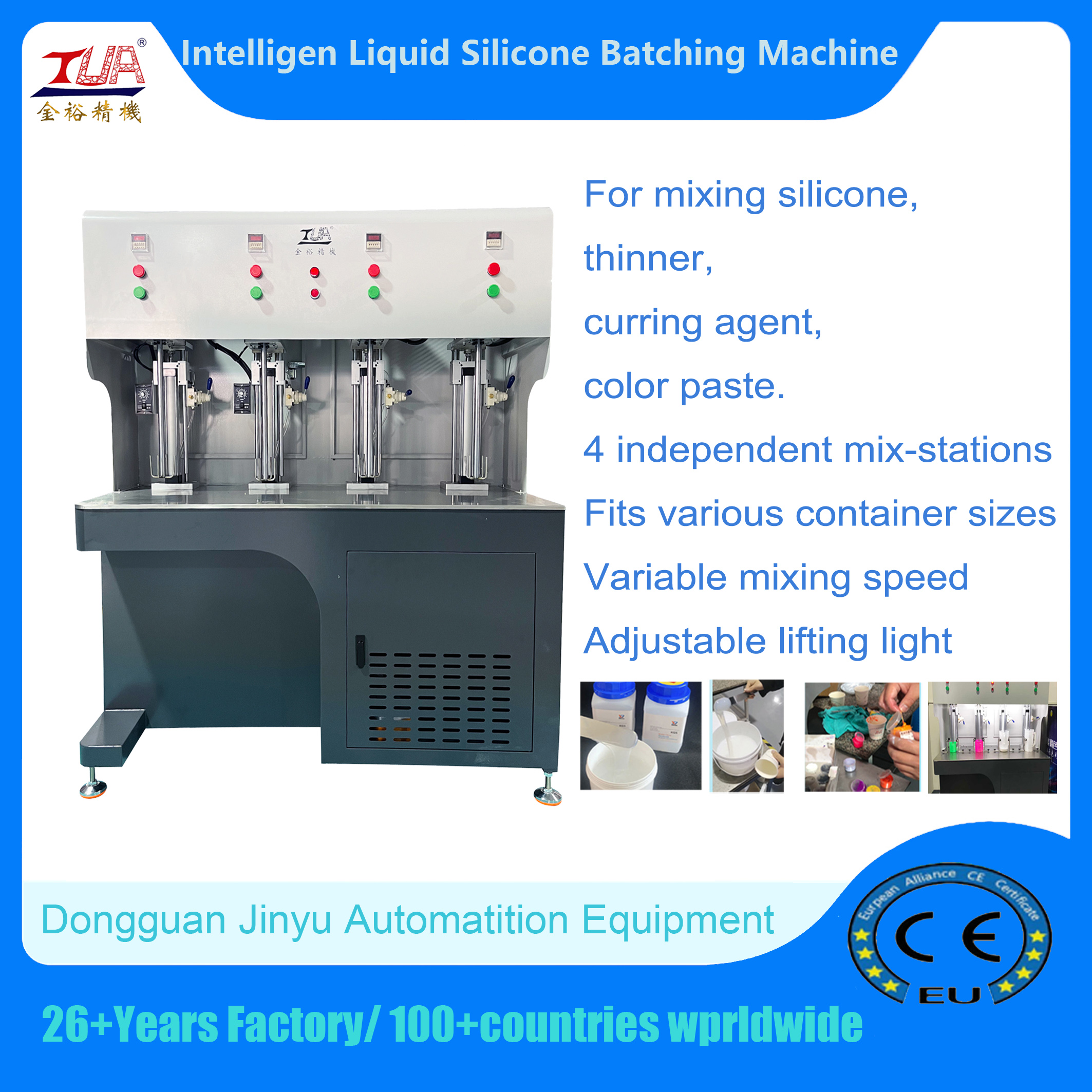

The automatic silicone batching machine realizes intelligent and precise proportioning for liquid silicone, curing agent, diluent and various silicone color pastes. Workers only need to input the accurate proportion parameters on the touch screen, and the machine will automatically discharge materials according to the set formula. It completely avoids weighing errors and proportion deviations caused by manual operation, ensuring consistent material proportion for every batch of raw materials, which is the core premise of high-quality silicone products.
This batching machine is equipped with a dedicated vacuum box degassing system. After material proportioning and stirring procedures, the mixed liquid silicone material will be placed into the vacuum box. The vacuum system thoroughly extracts all air bubbles generated during material mixing. This effectively eliminates common defects such as pinholes, bubbles and uneven surfaces on finished silicone products, ensuring smooth and flawless product appearance and stable product quality.
Supporting the batching and degassing process is our exclusive independent 4-station silicone mixer. Each station is equipped with independent speed regulation and independent timing control functions, which can work simultaneously or operate separately according to production needs, realizing the simultaneous stirring of different colors of silicone materials without color crossover.
Each stirring head is fitted with a special fixture, which can firmly clamp the material container to prevent shaking, spilling and uneven stirring during operation. The whole stirring process is fully automated without manual real-time monitoring. The machine will automatically stop working after reaching the set stirring time, ensuring that the silicone materials and color paste are mixed extremely evenly every time.
This two-machine combination set covers the whole process of silicone material proportioning, uniform stirring and bubble removal. It is a professional auxiliary equipment set for standardized, high-efficiency and high-quality production of various multi-color silicone accessories, silicone daily necessities and customized silicone products.

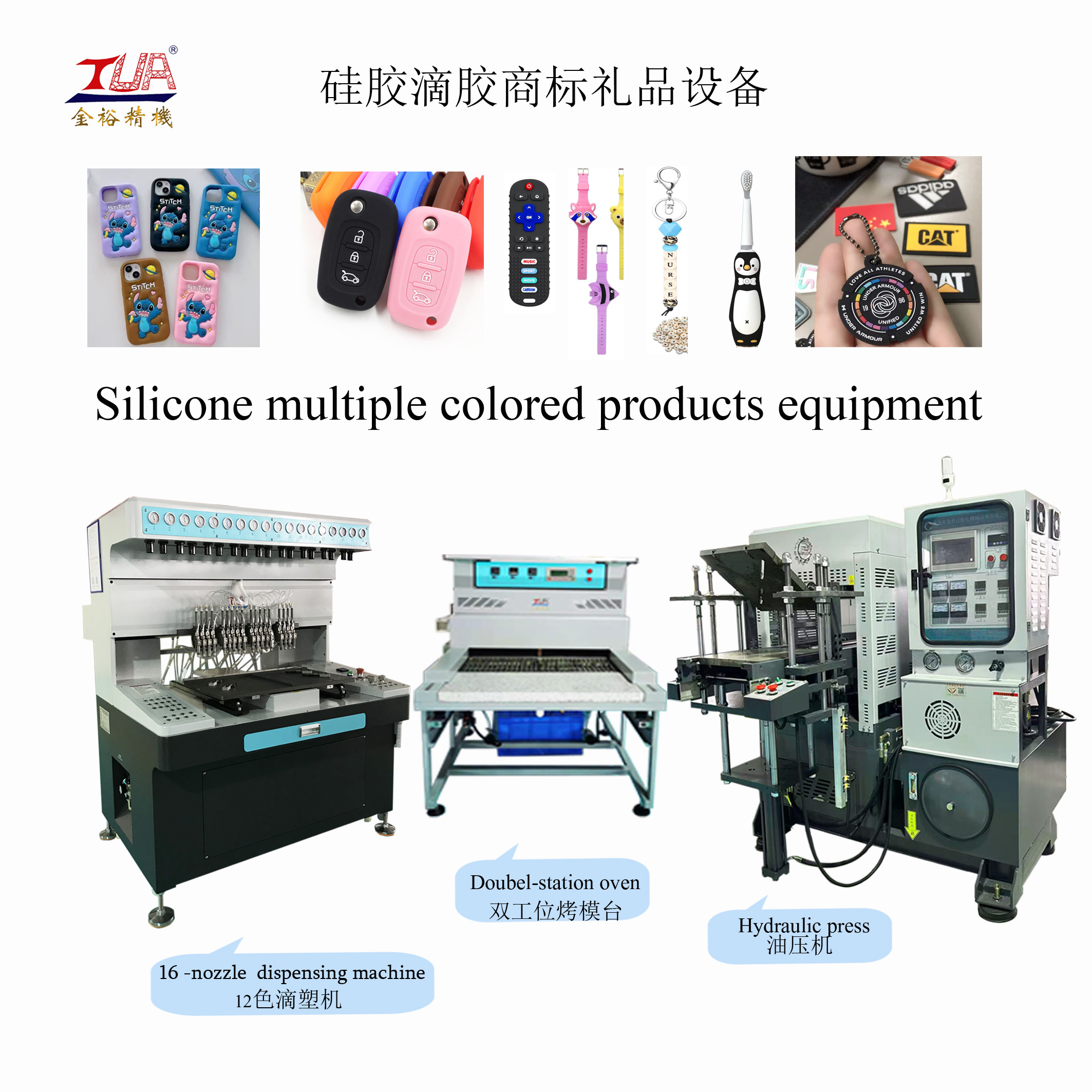

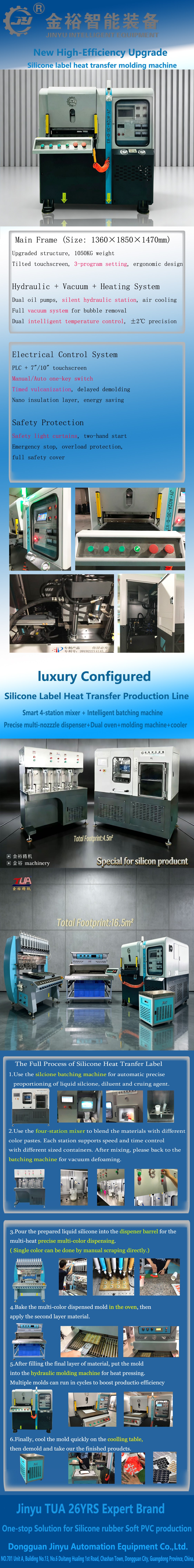

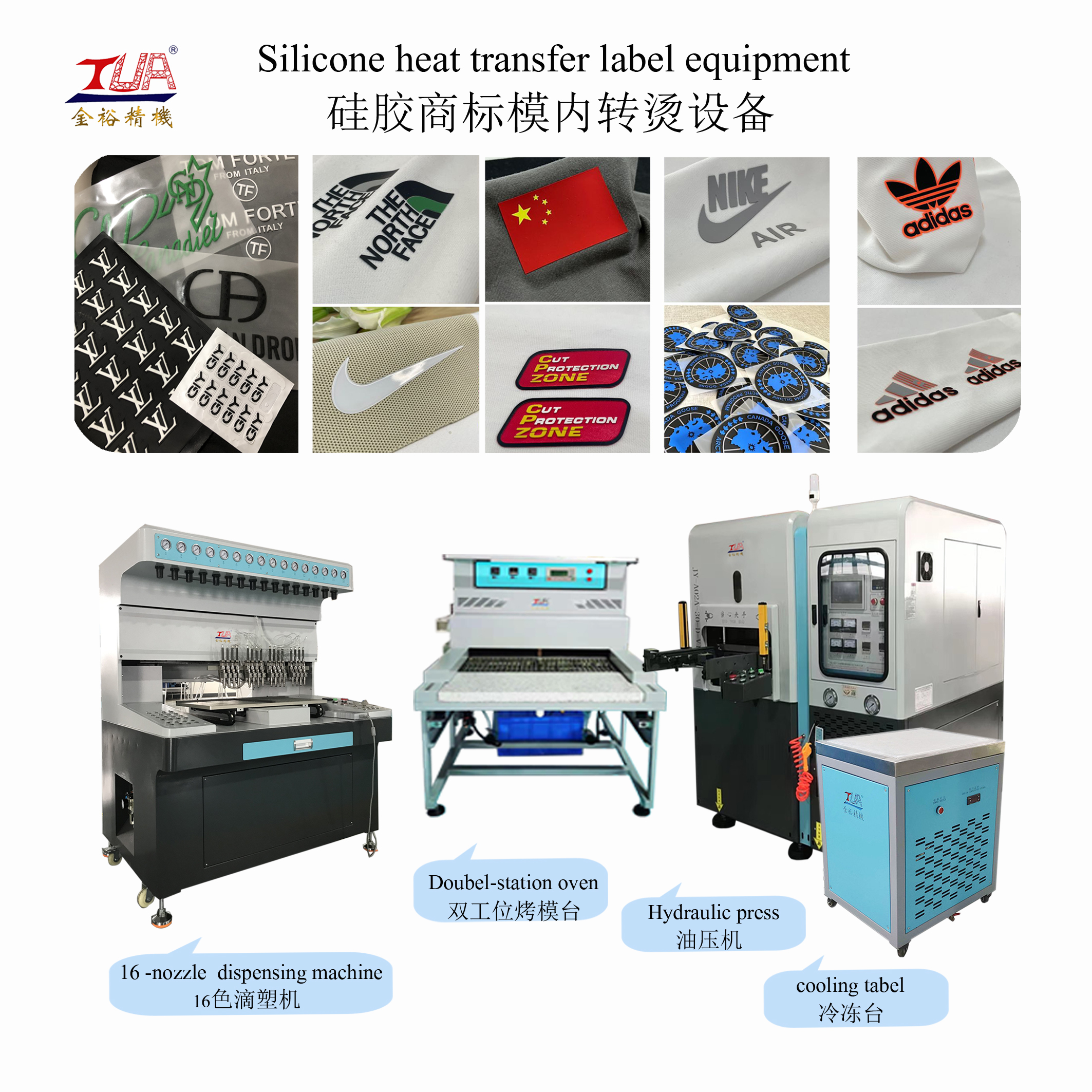

For example, the bellow is the full process of silicone label products production line and equipment introduction.
