Nitrogen Oxygen Tester Node Jumper Cable
3 month ago
Product details
FUBON is a professional manufacturer of specialized connection cables, focused on building precise, reliable harnesses for diagnostic, testing, and industrial applications. We design every product to meet strict electrical and mechanical standards, ensuring consistent performance in demanding environments.

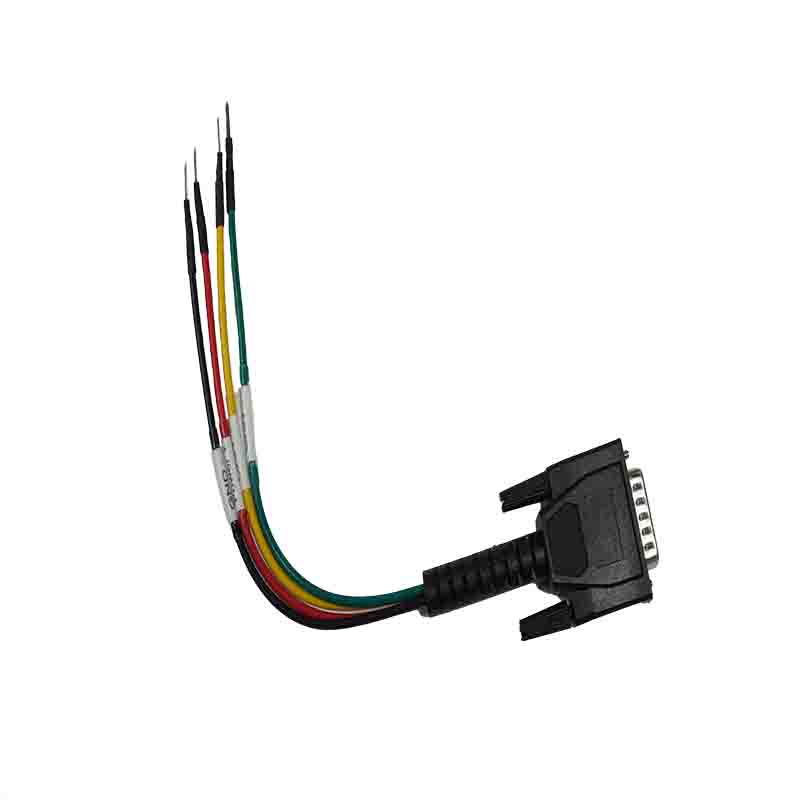

This Nitrogen Oxygen Tester Node Jumper Cable is a purpose-built adapter for connecting DB15-based testing equipment to vehicle CAN bus and power/ground points. It features a DB15 male connector on one end, splitting into four color-coded, labeled leads for direct connection to test nodes. Each branch measures 260±10mm in length, with exposed pin tips ready for quick, error-free insertion into test points.
As a compact, application-specific electrical harness assembly, this jumper is engineered for clean signal and power transfer. The molded DB15 connector provides a secure, vibration-resistant fit, while color-coded and clearly labeled leads eliminate confusion during setup. Every cable undergoes full electrical testing to verify continuity, insulation resistance, and voltage withstand performance.
Built with the same care as our automotive solutions, it follows the strict quality standards used in every car wiring harness we produce. The durable black PVC insulation, reinforced strain relief, and tinned terminals ensure reliable operation even with repeated use in busy workshop environments.
| Item | Description |
| Product Name | Nitrogen Oxygen Tester Node Jumper Cable |
| Connector Configuration | • P1: DB15P male connector (black molded housing, screw lock type) • P2: 4 individual OBD-style male pin terminals (Power+, GND-, CAN+, CAN-) |
| Length | • Total cable length (each branch): 260±10mm • Length from label to exposed pin tip: 80±5mm • Exposed pin length: 10±2mm |

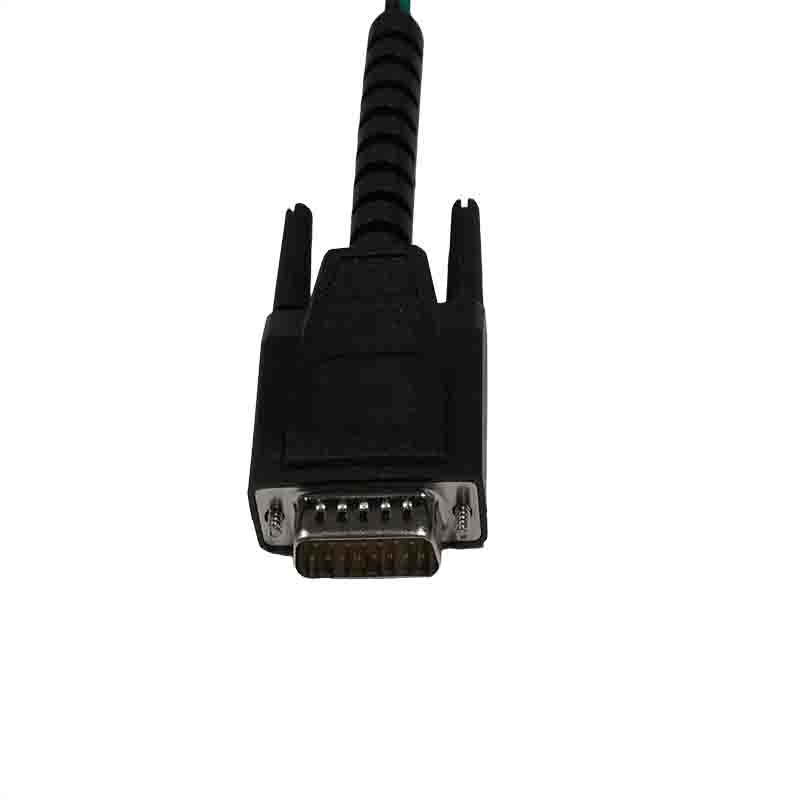

| Appearance Features | 1. Main Connector: Black DB15 male plug with molded strain relief, smooth finish, and screw posts for secure mounting 2. Branch Wires: 4 color-coded wires (red/black/yellow/green), each individually sleeved and labeled ("Power+", "GND-", "CAN+", "CAN-") 3. Terminals: Stripped, tin-plated male pins with heat-shrink protection at the base, ready for direct test point insertion 4. Cable Management: All wires neatly bundled, with clear markings for quick identification |
| Electrical Performance | • 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤2Ω • Insulation resistance: ≥10MΩ • Meets RoHS requirements |
| Application | Specialized jumper cable for nitrogen/oxygen tester systems, used to connect DB15-based equipment to CAN bus, power, and ground test points |
This jumper cable is designed to work seamlessly with the vehicle’s existing infrastructure, just like any high-quality vehicle wiring harness. It provides a direct, temporary connection for diagnostic testing, allowing technicians to tap into power, ground, and CAN signals without modifying the original vehicle wiring.
For automotive testing applications, it functions as one of the most practical vehicle electrical cables in your tool kit. Its short, flexible leads and labeled pins make it easy to work in tight spaces, while the durable construction holds up to daily use in service bays.
As a specialized test tool, it joins our range of automotive diagnostic cables, built to help technicians connect, test, and troubleshoot with confidence. It’s a simple but essential tool that streamlines the process of interfacing specialized testers with vehicle systems.
