1.27mm Pitch Pin header Connector Dual Row Straight H:5.0mm PA6T Material 2*5P

1.27mm Pitch Pin header Connector 2*5P

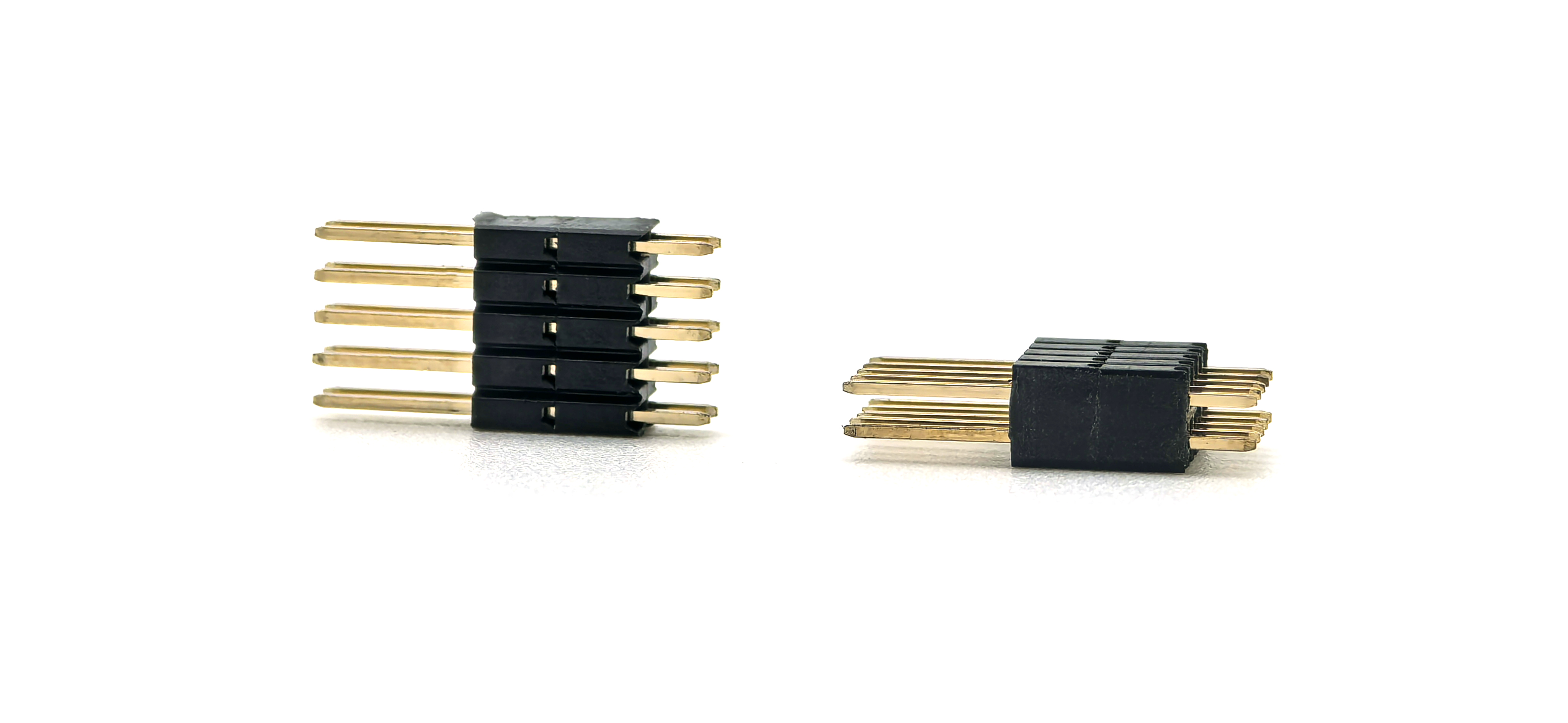

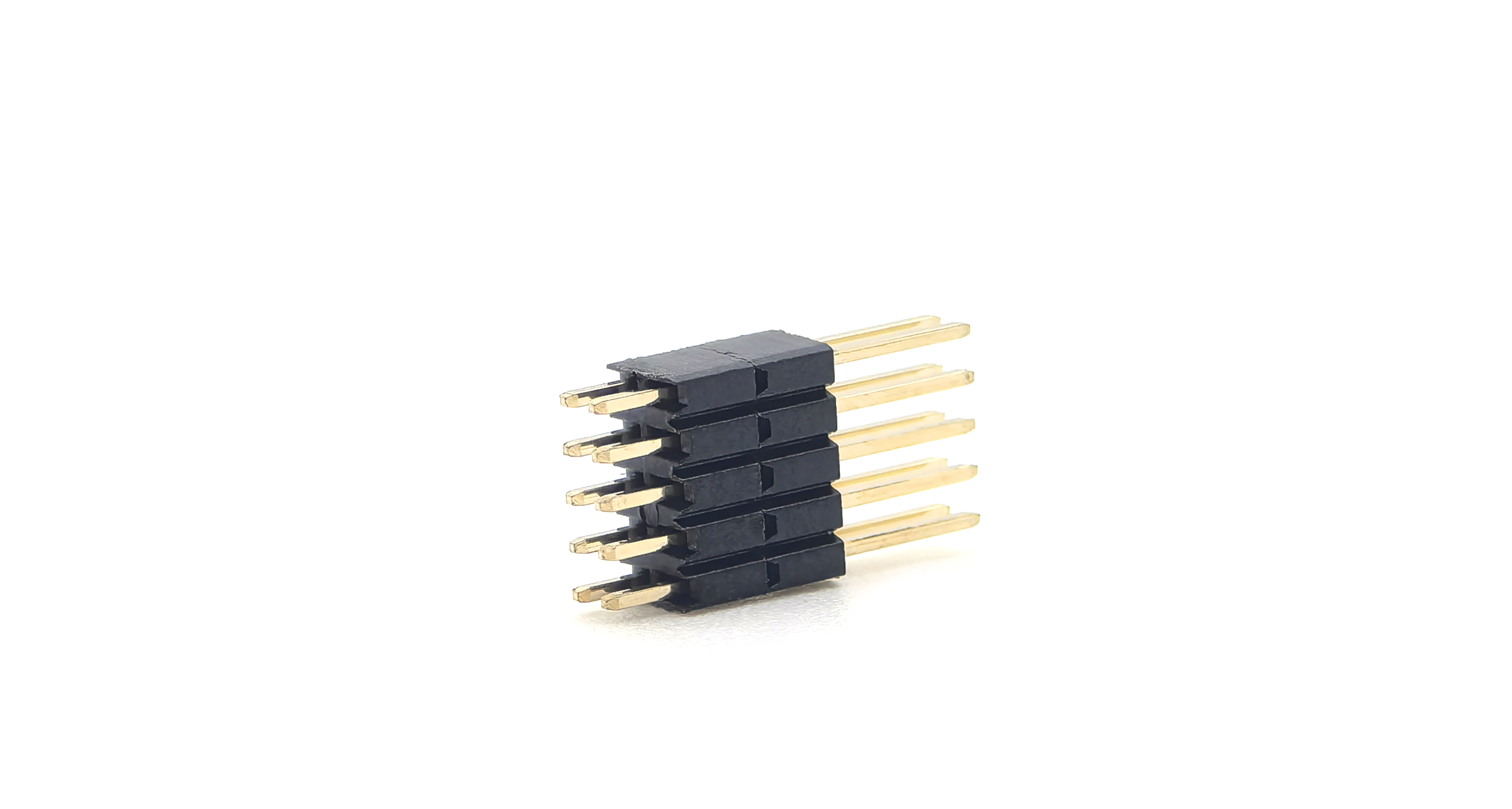

Engineered for precision PCB interconnection,the YZTECH 1.27mm Pitch Pin header Connector 2*5P features a compact 1.27mm pitch layout with a 2*5P configuration.Designed as a male rectangular DIN-type connector,it delivers reliable signal transmission in space-constrained electronic assemblies.The insulator stands 5.0mm high,making it suitable for applications where low-profile mounting is essential.This model supports a rated current of 2A and withstands up to 300V,ensuring stable performance in industrial control,communication devices,and automation systems.Its straight-through installation simplifies automated soldering processes.You could find the 1.27mm pin header connector 10p in the 1.27mm Pin Header of the catalog.

Manufactured with brass contacts featuring a high-reliability gold plating,this h5.0mm 1.27mm pin header guarantees low contact resistance and excellent corrosion protection,even under frequent mating cycles.The housing is molded from PA6T,a high-temperature nylon that maintains dimensional stability across a wide operating range of -45℃ to +105℃.With a maximum soldering temperature of 260°C for up to 10 seconds,the component supports lead-free reflow processes.Electrical ratings include 300V AC/DC and 2A per contact,making it suitable for dense PCB layouts.

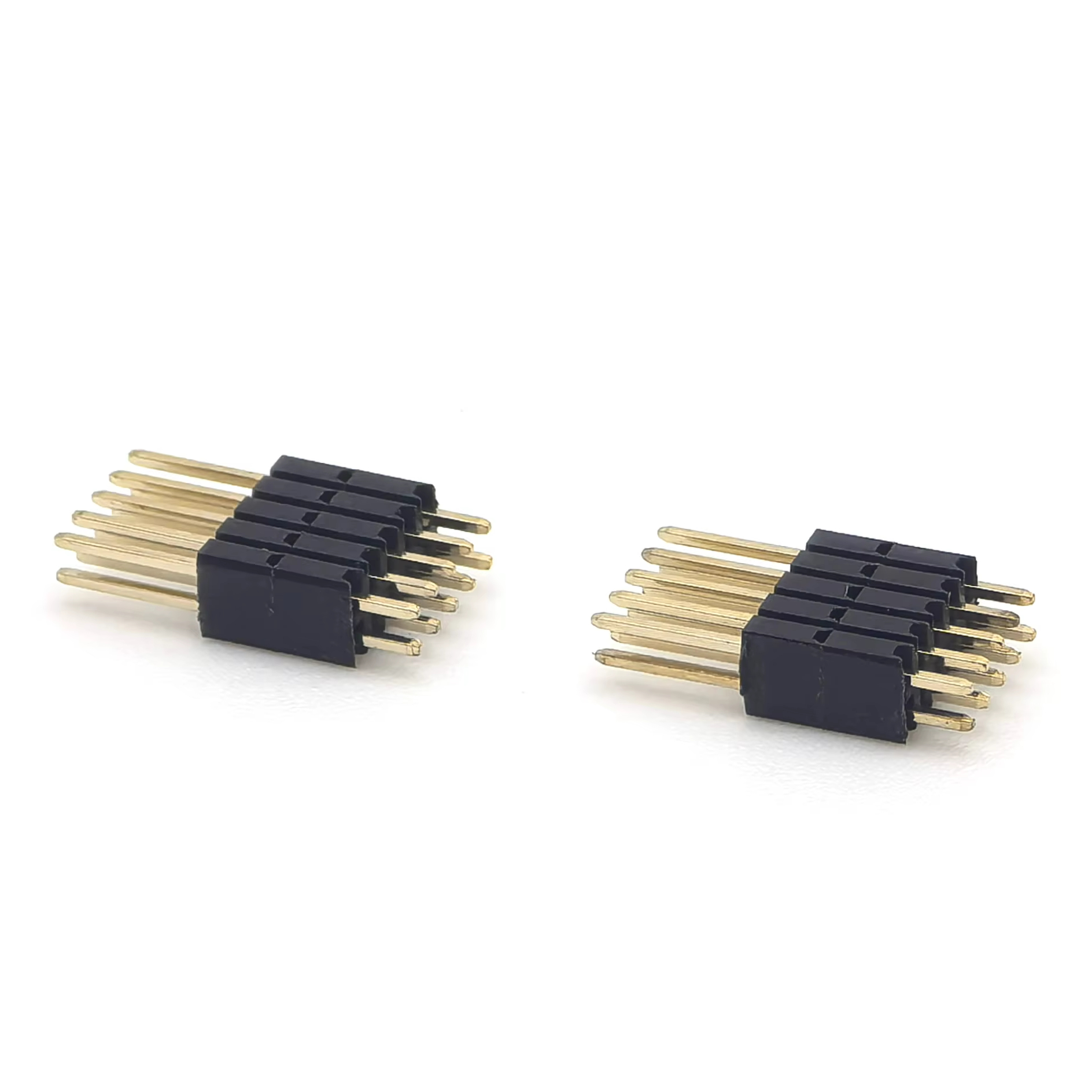

The dual row arrangement doubles the I/O density compared to single-row versions,while the 1.27mm fine pitch allows designers to reduce board space without sacrificing connection count.Each 1.27mm pin header dual row straight is precisely spaced to meet DIN mechanical standards,ensuring repeatable insertion force and long-term contact retention.Supplied in bag-and-box packaging to prevent electrostatic damage and pin deformation during storage and shipping,the YZTECH pin header is ready for automated pick-and-place lines.
