Nitrogen and Oxygen Sensor Auto Wire Temperature Sensor Harness

3 month ago

27 0 

2 year

Product details

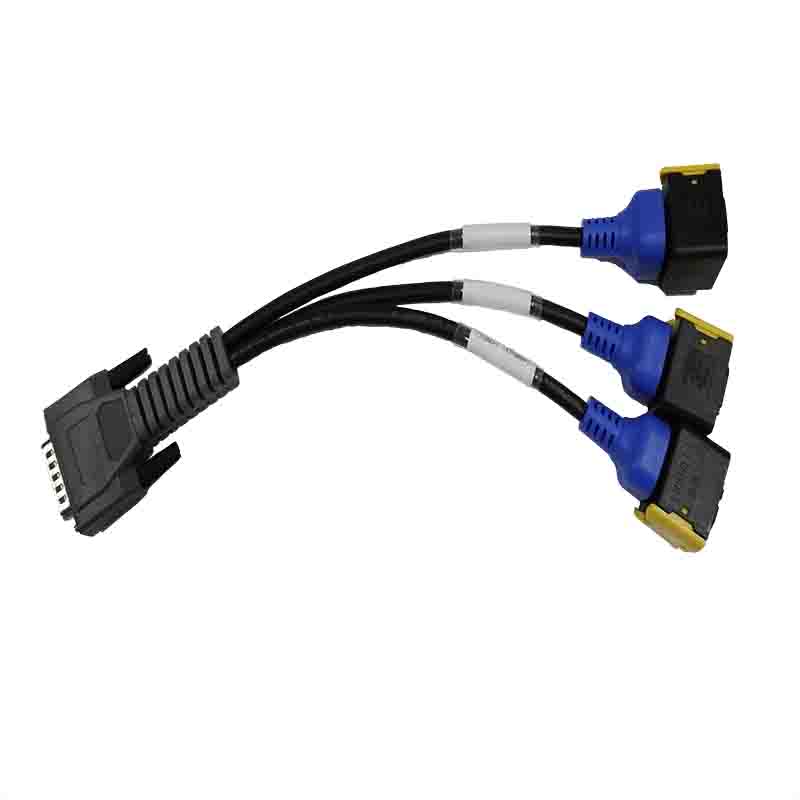

This Nitrogen and Oxygen Sensor Auto Wire Temperature Sensor Harness is a multi-branch adapter designed for connecting DB15-based diagnostic tools to vehicle temperature and NOx sensor interfaces. It features one DB15 male connector on one end, splitting into three identical 4-pin square connectors on the other. With each branch measuring 300±30mm, it allows you to connect multiple sensor modules to a single tester at once.

As a purpose-built electrical harness assembly, this cable is engineered for reliable multi-signal transmission. The color-coded conductors and clearly labeled branches help eliminate setup errors, while the molded strain relief at the DB15 end protects the connection under repeated use. Every unit undergoes full electrical testing to confirm continuity, insulation resistance, and signal integrity.

Item	Description
Product Name	Nitrogen and Oxygen Sensor Auto Wire Temperature Sensor Harness
Connector Type	• P1: DB15P male connector (black molded housing, screw lock) • P2/P3/P4: Three identical 4P square connectors (black housing, blue strain relief, yellow locking clip)
Length	• Total length (each branch): 300±30mm • Distance from split point to each branch: 50±5mm • Connector-to-tubing length: 25±5mm

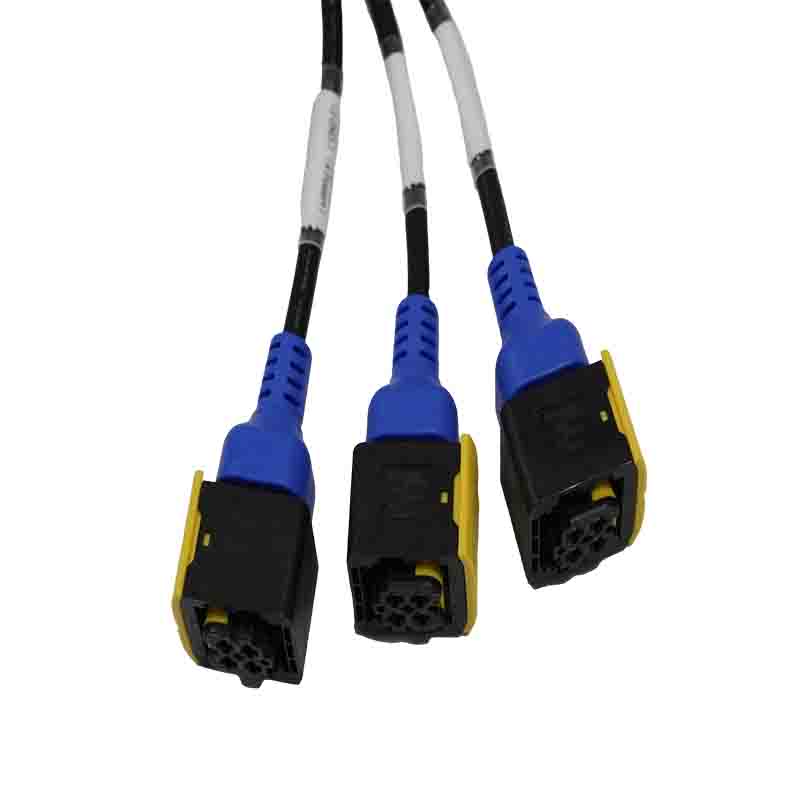

Appearance Features	1. Cable & Markings: Black PVC jacket, color-coded internal conductors (orange/black/yellow/green), with labeled heat-shrink tubing at each branch ("(1GND-)(2CAN+)(3CAN-)(4Power+)" etc.) 2. Connectors: Three 4-pin square connectors with blue relief and yellow clips, designed for secure locking 3. Split & Strain Relief: Reinforced split point marked "Temp", molded relief at DB15 end, and smooth black cable finish
Electrical Performance	• 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Insulation resistance: ≥10MΩ • Meets RoHS requirements
Application	Specialized harness for temperature sensor systems, connecting DB15-based testers to multiple vehicle sensor interfaces simultaneously

Designed with the same care as a production-grade car wiring harness, it uses durable black PVC insulation and automotive-style locking connectors. The blue relief boots and yellow locking clips ensure a secure, vibration-resistant fit in the vehicle’s sensor ports, making it suitable for both bench testing and on-board diagnostics.

It follows the same strict quality standards as a factory-installed vehicle wiring harness, with consistent crimping, routing, and labeling. This ensures that even when used in harsh engine bay environments, the harness maintains reliable connections for temperature and NOx sensor readings.

From single-sensor adapters to multi-branch diagnostic cables, FUBON provides the connection tools you need to work efficiently with today’s complex automotive systems.
