1.27mm Female header U-type 2*5P

1.27mm Female header Connector Straight 10P

The YZTECH 1.27mm Female header Connector Straight 10P delivers a compact and rugged board-to-board interfacing solution engineered for modern space-constrained electronic assemblies.Each 1.27mm female header w3.0mm is supplied in tube packaging followed by protective carton boxing,ensuring secure transit and compatibility with automated pick-and-place equipment commonly employed in high-volume electronics manufacturing.This packaging approach minimizes static damage risk and part intermixing during material handling and inventory management.You could find it in the 1.27mm Female Header of the catalog.

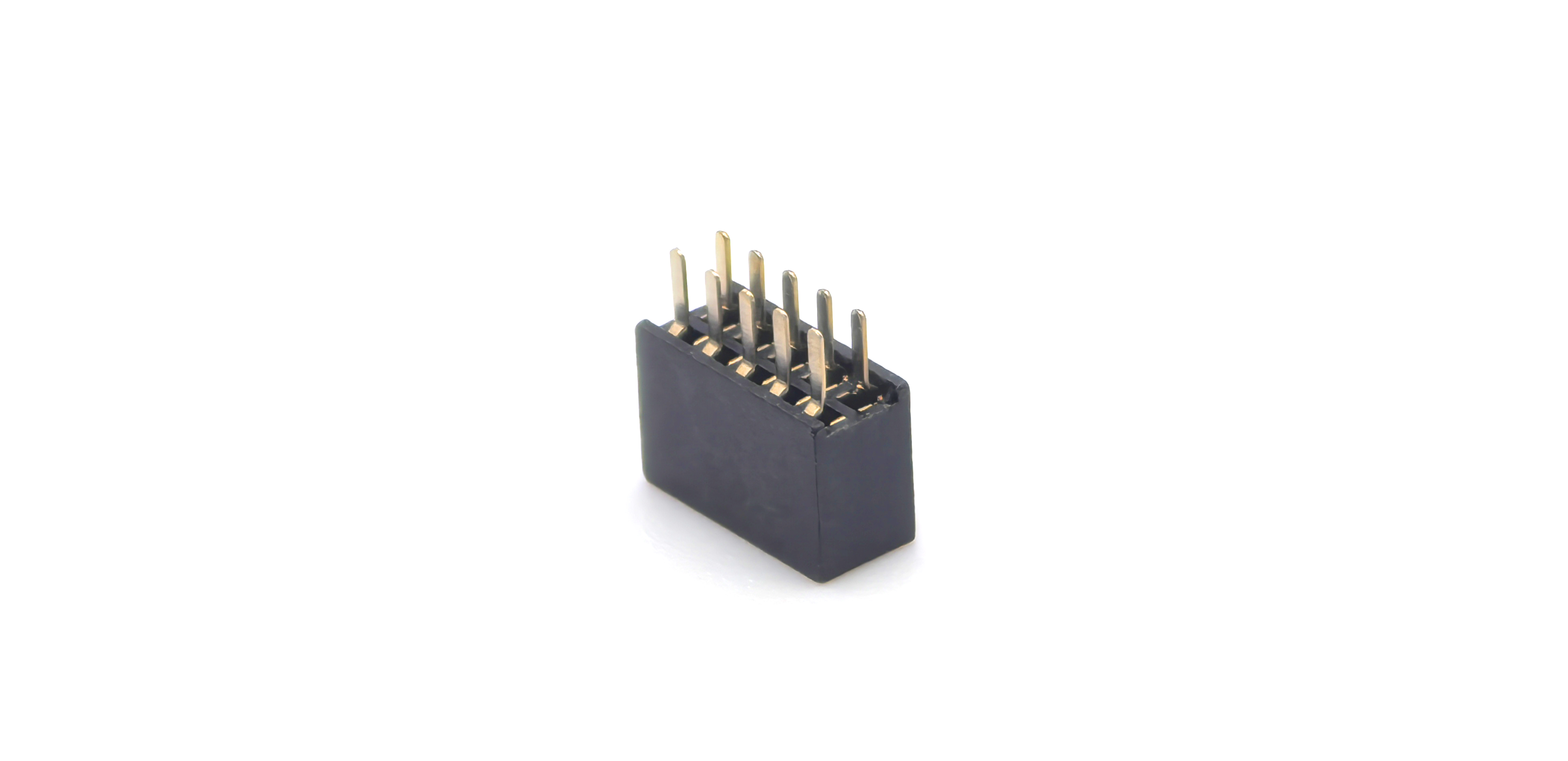

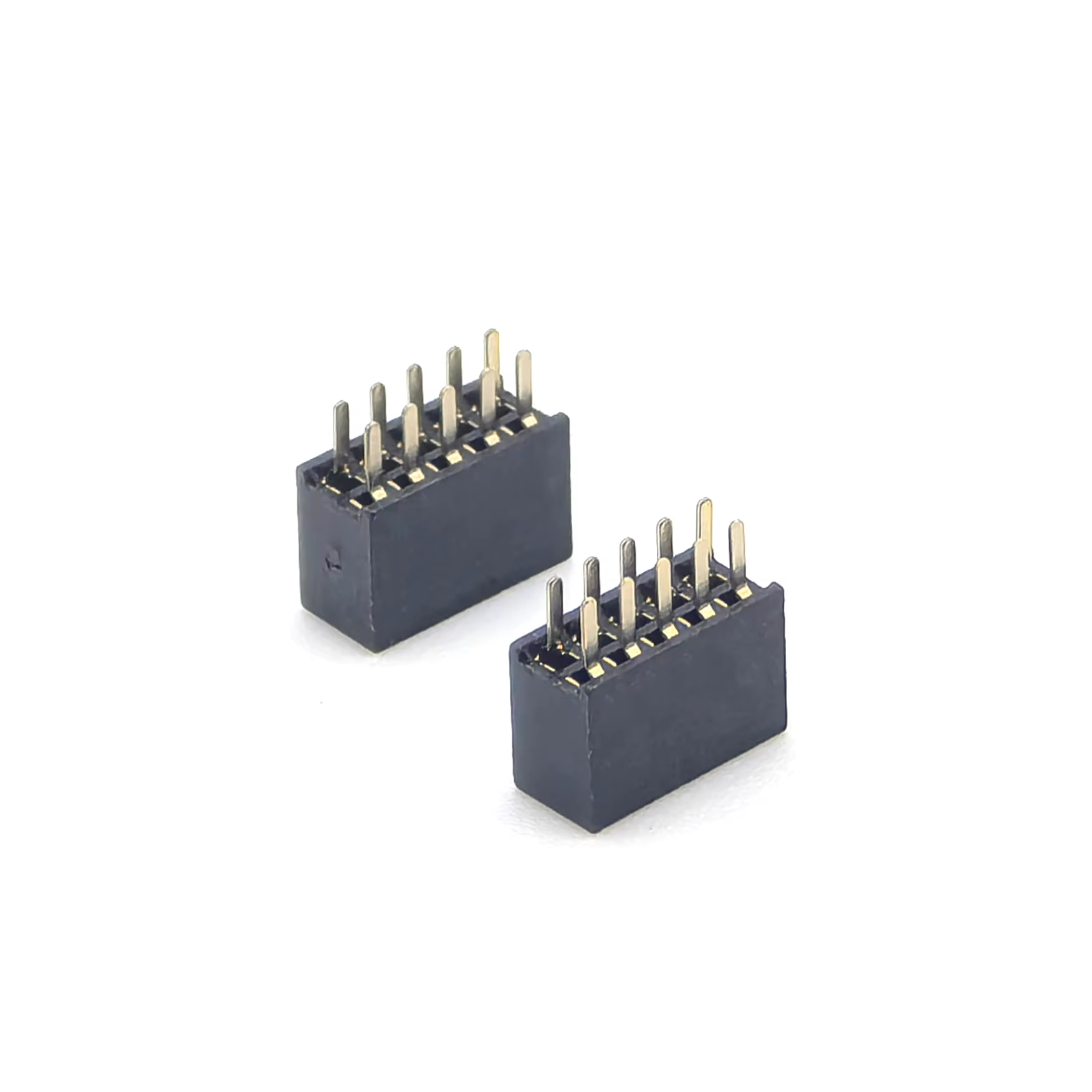

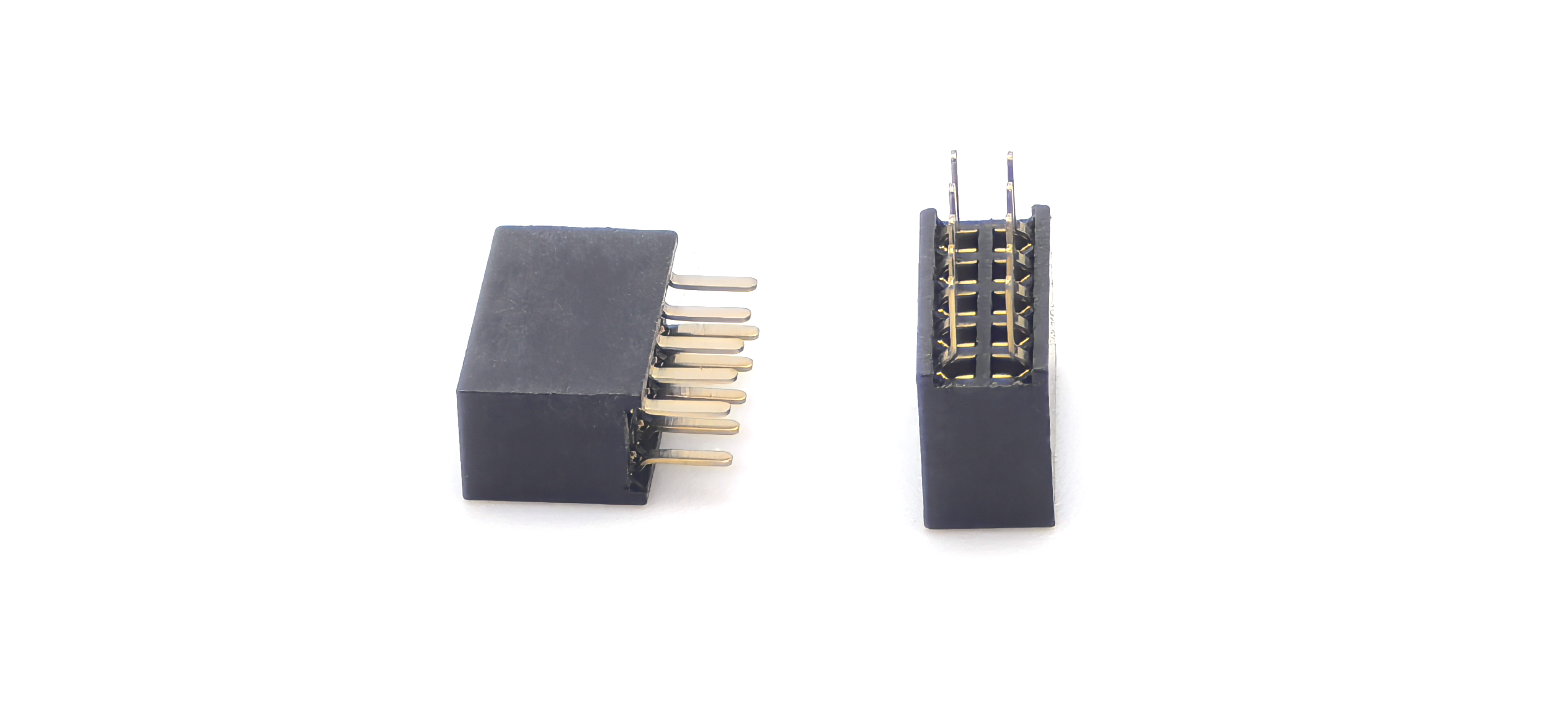

Designed in compliance with DIN interconnection standards,this straight 1.27mm female header straight pc2.0 features a dual-row configuration with 5 pins per row housed within a low-profile rectangular insulator measuring just 4.3mm in height and 3.0mm in width.The U-type contact structure ensures secure mating with corresponding male pin headers,making it particularly well-suited for high-density PCB layouts where board real estate is at a premium.

With an operating temperature range spanning from-45°C to+105°C,this 10p 1.27mm female header connector reliably performs across diverse environmental conditions encountered in industrial control systems.The rated current of 3A per contact supports both signal transmission and low-power distribution applications,while the maximum rated voltage of 1000V provides ample headroom for designs requiring robust electrical insulation.The electronic connector supports through-hole manual or wave soldering operations with a maximum soldering temperature of 220°C for up to 10 seconds,accommodating standard PCB assembly workflows without risk of insulator deformation or contact misalignment.Straight mounting configuration simplifies PCB layout and insertion automation,while the rectangular body shape enables straightforward visual alignment during manual assembly or machine placement.
