Interlock Plunger Safety Switch Replacement for John Deere AM104403

3 month ago

11 0 

9 year

Product details

YESWITCH Plunger Seat Safety Switch is a precise safety interlock core component specially designed for riding equipment. It is a normally-closed plunger safety seat switch, with a meticulously designed structure to establish a robust human-machine safety barrier. It features a flame-retardant PP casing and high-toughness plunger, along with dual normally-closed (NC) tin-plated brass terminals. It has a instantaneous reset function, can precisely sense the seat pressure state, and achieve a "seat-in disconnection, seat-out closure" instantaneous response logic, accurately monitoring the operator's seating status, thereby completely eliminating the risk of equipment misoperation from the root cause.

From lawn mowers to small construction machinery, from agricultural tractors to special operation vehicles, this push button seat switch, with IP44 dust-proof and splash-proof performance and a wide temperature range of -30℃ to 80℃, remains stable and reliable in harsh outdoor environments. With a mechanical lifespan of 100,000 times and gold-plated low-resistance terminals, the electrical connection remains efficient and stable under high-frequency start-up conditions. The snap-in embedded installation makes replacement and maintenance easy and efficient, and is a key component for ensuring the operational safety of garden machinery, small construction machinery, and other equipment.

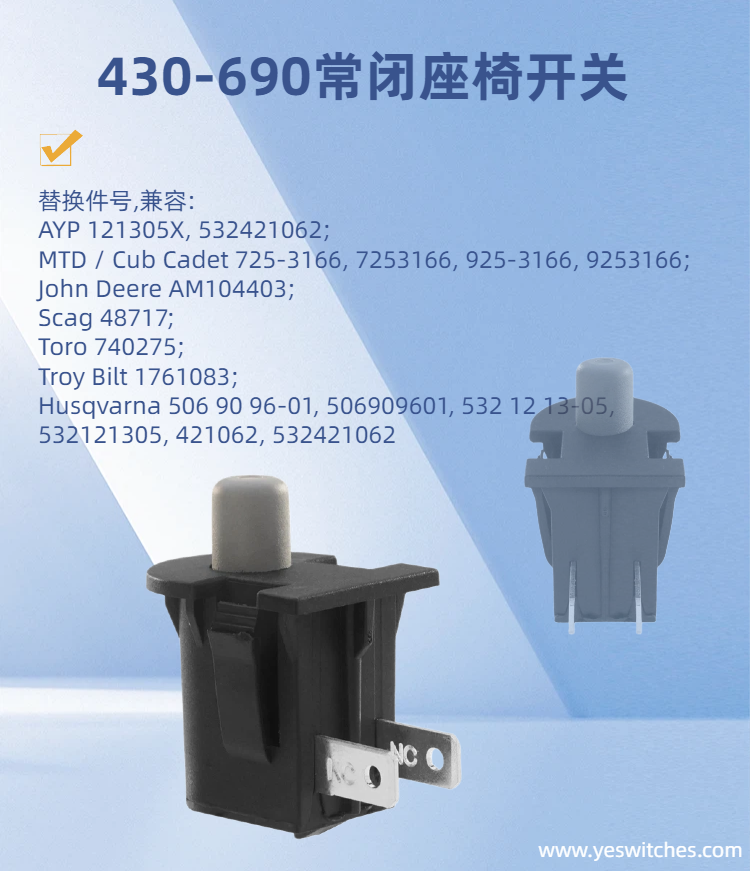

The Momentary Plunger Seat Switches can be perfect replacement for 430-690 NC.

Compatible with John Deere AM104403

Compatible with AYP 121305X,532421062

Compatible with MTD / Cub Cadet 725-3166, 7253166, 925-3166, 9253166

Compatible with Scag 48717, Toro 740275

Compatible with Troy Bilt 1761083

Compatible with Husqvarna 506 90 96-01,506909601, 532 12 13-05,532121305,421062,532421062.

SPECIFICATION

Operating Pressure	1600gf ±300gf
Operating Stroke	9.5mm ±1.0
Function	(ON)-OFF Momentary (（Normally Closed， NC）
Body	PP,UL rated:94V-2 Black
Pluger	PP,UL rated:94V-2 Black
Terminal	Brass,Gold plate
Rating	3A 18VDC/5A 24V DC
Contact Resistance	50mΩ MAX
Insulation Resistance	100mΩ MIN
Dielectrcal life	10000 cycles
Mechanical life	100000 cycles
Operating Tenperature	-30°C~80°C
Relative Air Humidity	45%~85%

Product Features and Advantages

Reliable safety interlock: Normally closed instantaneous reset structure. When the operator leaves the seat, the circuit automatically closes, triggering the equipment to stop. It complies with safety standards for European and American garden machinery, effectively preventing the risk of misoperation.
Durable and resistant to environmental interference: UL94V-2 flame-retardant housing, dustproof and splash-proof (IP44 protection level), suitable for wide temperature ranges of -30℃ to 80℃, and does not age or crack easily when used outdoors for a long time.
Stable electrical performance: Tin-plated brass terminals reduce contact resistance, with a high-voltage-resistant design, mechanical life up to 100,000 times, meeting stable operation requirements under high-frequency start-up conditions.
Easy installation and efficient operation: Snap-fit embedded design, no need for additional tools, can be quickly embedded into standard seat installation positions, compatible with replacement of the same series products, reducing maintenance costs.
Compliance certification quality: Certified by international standards such as CE and RoHS, in line with environmental protection and safety regulations, suitable for export equipment requirements, with stable and reliable quality.

Application Scenario

Garden machinery: Riding lawn mowers, lawn trimmers, and pruning machine seats should ensure the operator's seat is securely fixed to prevent the blades / engines from continuing to operate after the operator leaves the seat.
Small construction machinery: Small forklifts, aerial work platforms, and electric transport vehicles should have seat interlocks to ensure the equipment can only be started after the operator is in place.
Agricultural equipment: Small tractors, tea-picking machines, and agricultural transfer vehicles should have seat safety monitoring to avoid the risk of incorrect operation during field operations.
Special vehicles: Electric sightseeing vehicles, site operation vehicles should have seat status detection to achieve driving safety interlock control.
Industrial equipment: Seats of small construction machinery and material handling equipment should have safety protection to enhance the safety of human-machine operation.

FAQ

Q1: What does the "NC" terminal of PG-03A represent?

A1: "NC" stands for Normally Closed—Momentary Plunger Seat Switches. It indicates that the circuit is conductive when the plunger is not pressed (the operator is not seated), and the circuit is disconnected when the plunger is pressed (the operator is seated). It is used to trigger the safety shutdown logic.

Q2: How to solve if there is no change in the circuit after installation?

A2: ① Check if the snap-in clips are fully inserted into the installation position and if the plunger stroke is within the standard range (9.5mm ± 1mm); ② Confirm if the terminal wiring is secure and if there is any rust or loosening; ③ Use a multimeter to test: it should be conductive when not pressed and disconnected when pressed. If the status is abnormal, the switch is ineffective.

Q3: Is customization of parameters supported?

A3: Customization in batches is supported. Parameters such as working pressure, terminal type (e.g. NO/NC conversion), and wire length can be adjusted.

Choosing YESWITCH Plunger Interlock Safety Switch means choosing international-certified quality and ultimate safety experience - ensuring peace of mind for every operation, empowering equipment safety and safeguarding operators.
