Black DB15 Cable with Dual Male and Female Connectors

3 month ago

20 0 

2 year

Product details

FUBON is a trusted manufacturer of reliable connection cables built to keep your diagnostic tools and test systems working seamlessly. We design every cable for consistent signal integrity and long-lasting performance, whether used in professional workshops or field environments.

This Black DB15 Cable with Dual Male and Female Connectors is a heavy-duty extension cable designed for diagnostic equipment with DB15 interfaces. With a total length of 1000±20mm, it features a DB15 male connector on one end and a matching female connector on the other, creating a simple, secure way to extend the reach of your tools. The molded strain relief at both ends prevents wear and tear, even with frequent use.

Built with the same focus on durability as our standard car wiring harness products, this cable uses a tough black PVC jacket and high-quality stranded conductors. The color-coded internal wiring ensures consistent signal transmission across power, ground, and data lines, supporting reliable communication between your device and its connected modules.

Item	Description
Product Name	Black DB15 Cable with Dual Male and Female Connectors

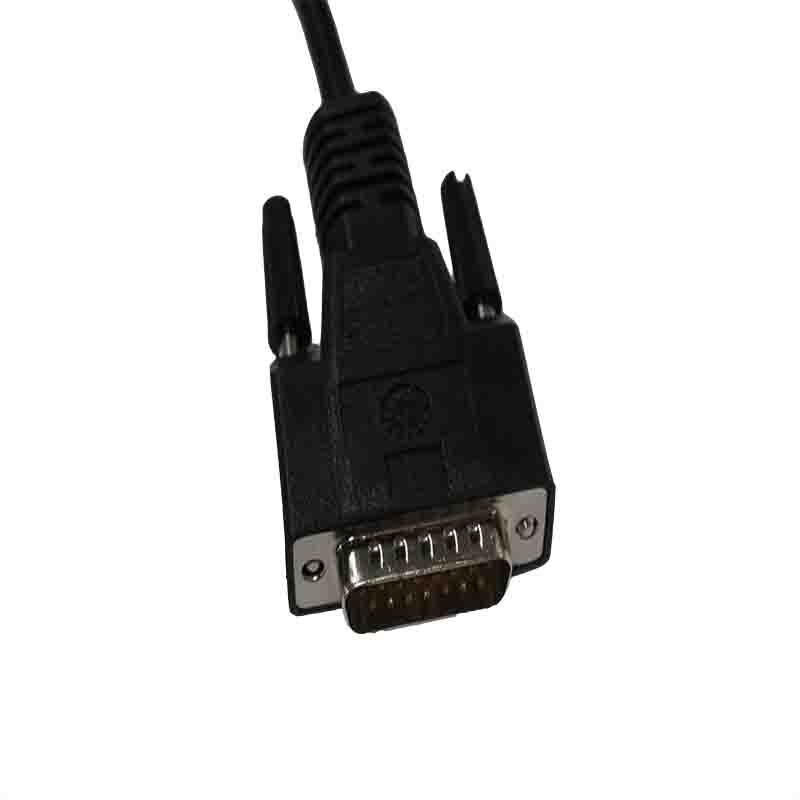

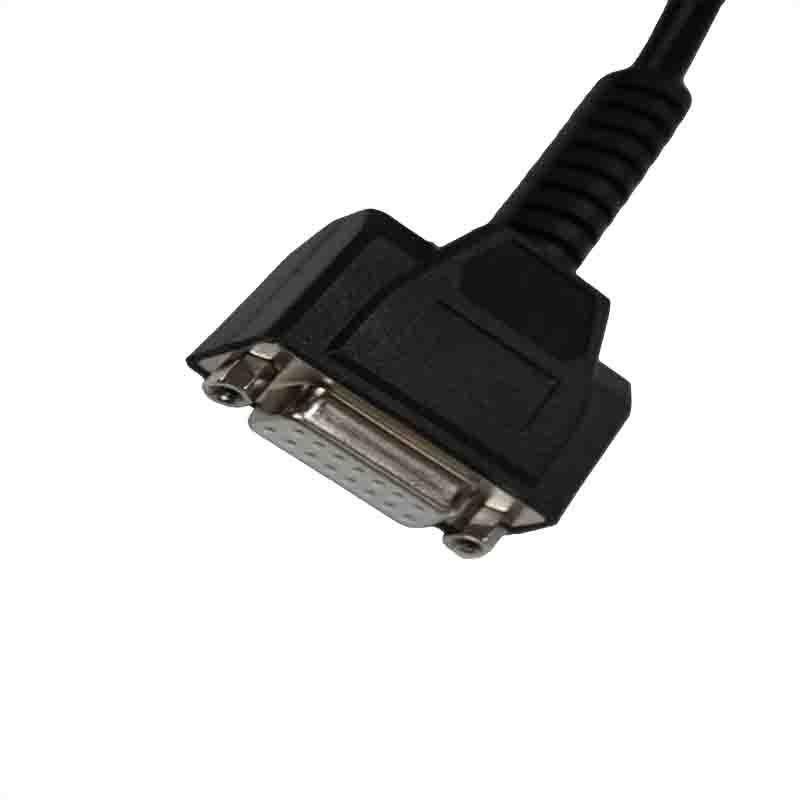

Connector Type	• P1: DB15 male connector (black molded housing, screw lock type, notched on the large side) • P2: DB15 female connector (black molded housing, screw lock type)
Length	• Total cable length: 1000 ± 20mm • Packaged folded length: ~190 ± 10mm
Appearance Features	1. Cable Jacket: Smooth, uniform black PVC outer jacket, with internal color-coded conductors (red/brown/orange/yellow/green/blue/purple/white/grey/black, 20/26AWG) 2. Connectors: Molded DB15 male/female plugs with reinforced strain relief at both ends, equipped with screw posts for secure mounting 3. Finish: No deformation, scratches, bubbles, or flow marks on the cable or connectors
Electrical Performance	• 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤2Ω • Insulation resistance: ≥10MΩ • All materials meet RoHS requirements
Application	Main extension cable for DB15-based diagnostic tools, testers, and sensor modules in automotive and industrial systems

As a core part of our diagnostic ecosystem, it pairs perfectly with our OBD diagnostic cable range. Whether you’re connecting a main tester to an adapter or extending a sensor interface, this DB15 cable maintains the stable signal path your tools need to deliver accurate readings.

It also works as a reliable extension for any OBD diagnostic adapter that uses a DB15 interface. The screw-lock connectors ensure a tight, vibration-resistant fit, eliminating loose connections that can cause intermittent issues during testing.

From basic adapters to complete test setups, our range of automotive diagnostic cables includes solutions designed to fit the unique needs of modern vehicles and equipment. This DB15 extension cable is a simple but essential addition to any professional’s tool kit, helping you work more efficiently and without signal dropouts.
