Grey DB15 Cable with Dual Male and Female Connectors

3 month ago

21 0 

2 year

Product details

FUBON designs reliable, purpose-built connection cables for automotive and industrial diagnostic systems, engineered to maintain stable communication between tools and modules in demanding environments.

This Grey DB15 Cable with Dual Male and Female Connectors is a heavy-duty extension cable for diagnostic equipment with DB15 interfaces. Measuring 1000±20mm in length, it features a DB15 male plug on one end and a matching female receptacle on the other, making it ideal for extending the reach of your main tester or sensor modules. The grey connector housings provide a distinct visual cue to help organize and identify different cables in your toolkit.

Built with the same robust construction principles as our production-grade car wiring harness solutions, this cable uses a flexible yet durable black PVC jacket and high-quality stranded conductors. Reinforced strain relief ribs at both ends protect against repeated bending and pull forces, ensuring the cable holds up to daily use in busy workshops.

Item	Description
Product Name	Grey DB15 Cable with Dual Male and Female Connectors

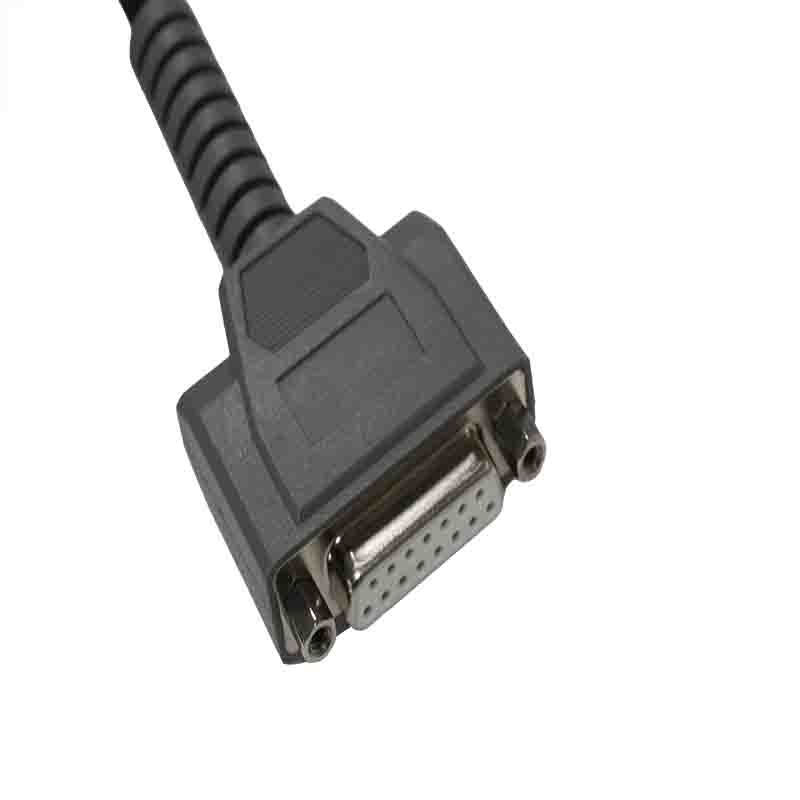

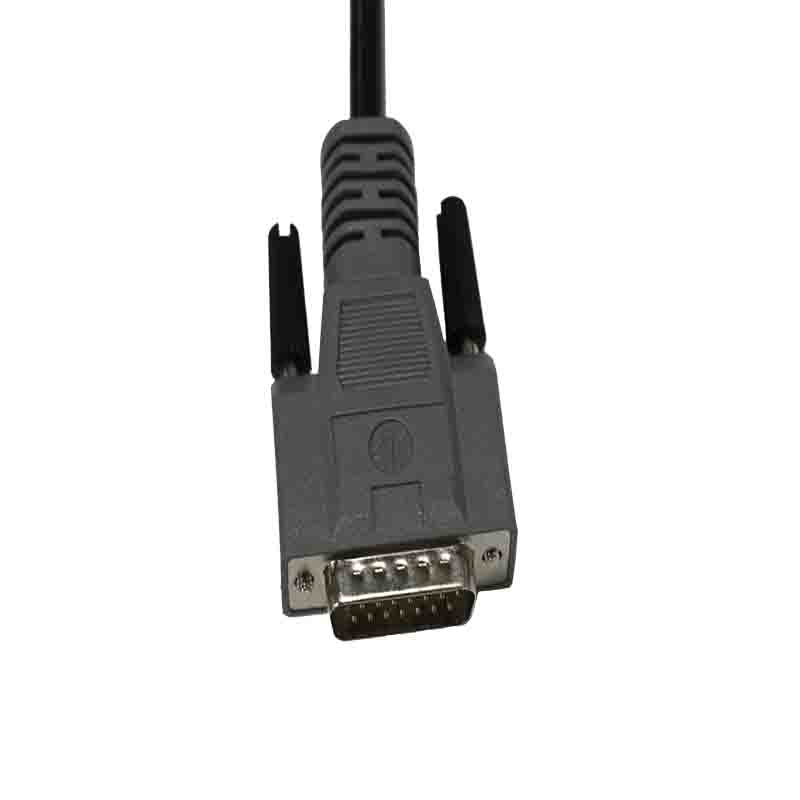

Connector Type	• P1: DB15 male connector (grey molded housing, screw lock type, notch on the large side) • P2: DB15 female connector (grey molded housing, screw lock type)
Length	• Total cable length: 1000 ± 20mm • Packaged folded length: 190 ± 10mm
Appearance Features	1. Cable Jacket: Black PVC outer jacket, printed with UL specifications (AWM 2464, 80°C, 300V) 2. Connectors: Grey molded DB15 male/female plugs with reinforced strain relief ribs, screw posts for secure mounting 3. Internal Wiring: Color-coded conductors (red/brown/orange/yellow/green/blue/purple/white/grey/black/pink/light blue/light green, 20/26AWG)
Electrical Performance	• 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤2Ω • Insulation resistance: ≥10MΩ • All materials meet RoHS requirements
Application	Main extension cable for DB15-based diagnostic tools, testers, and sensor modules in automotive and industrial systems

As a versatile extension, it complements our full range of OBD diagnostic cable products, enabling you to extend the connection path between your scan tool and adapters without compromising signal integrity. It supports the power, ground, and data lines required for reliable communication with vehicle systems.

It is also a dependable vehicle diagnostic cable for extending sensor interfaces or connecting multiple modules to a single tester. The screw-lock connectors provide a secure, vibration-resistant fit, eliminating loose connections that can disrupt readings during live testing.

As part of our family of professional automotive diagnostic cables, this DB15 extension is built to meet the strict electrical and mechanical standards technicians rely on. Whether used as a main lead or an extension, it ensures consistent performance and long service life.
