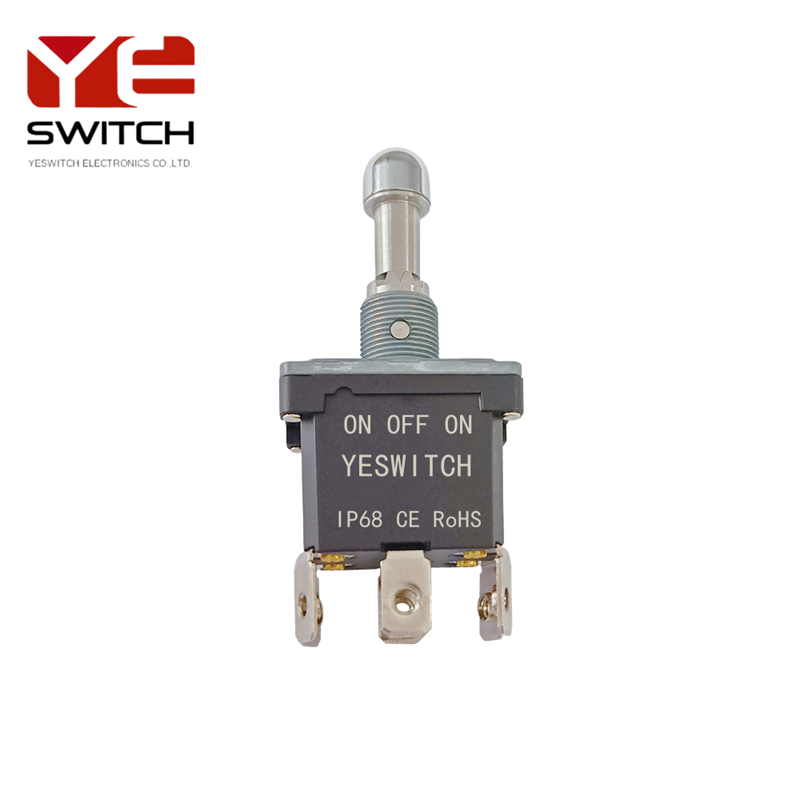

Aerial Work Platform Toggle Switch 3Position Non-momentary
3 month ago
Product details
YESWITCH HT802 Series is an industrial-grade toggle switch with a lock-style anti-misoperation handle design, ensuring no accidental operation. It is safer and more convenient to use. It comes with standard external screw terminals, making wiring simple, firm, and shock-resistant, anti-loosening. No welding is required, and installation and maintenance are completed in one step.
Equipped with dual DPDT structure plus classic ON-OFF-ON three-position function, it can easily achieve forward and reverse rotation, dual power supply switching, and gear control and other diverse control requirements. It has strong current capacity for large loads, stable contact conductivity, and is durable. The entire waterproof toggle switch is dustproof, resistant to high and low temperatures, anti-vibration, and corrosion-resistant. It can be used in industrial equipment, construction machinery, vehicles, ships, and outdoor electrical control equipment. It can operate stably for a long time even in harsh conditions, making it the preferred switch for highly reliable circuit control! Also it is a perfect choice as an Aerial Work Platform Toggle Switch.
SPECIFICATION
| CONTACT RESISTANCE | 20m ohm(Max) |
| INSULATION RESISTANCE | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE | 100.000 CYCLES |
| OPERATING TEMPERATURE | -40 to +85 DEGREES |
| FRONT SEAL | IP68 |
RATING
| RESISTIVE LOAD | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD | 15A 28VDC |
MATERIAL
| ACTUATOR | COPPER ALLOY |
| O-RING | SILICONE RUBBER |
| HOUSING | NYLON (UL94V-0) |
| BUSHING | ZINC ALLOY |
| TERMINAL | COPPER ALLOY |
Product Features and Advantages
1. Core Electrical Performance

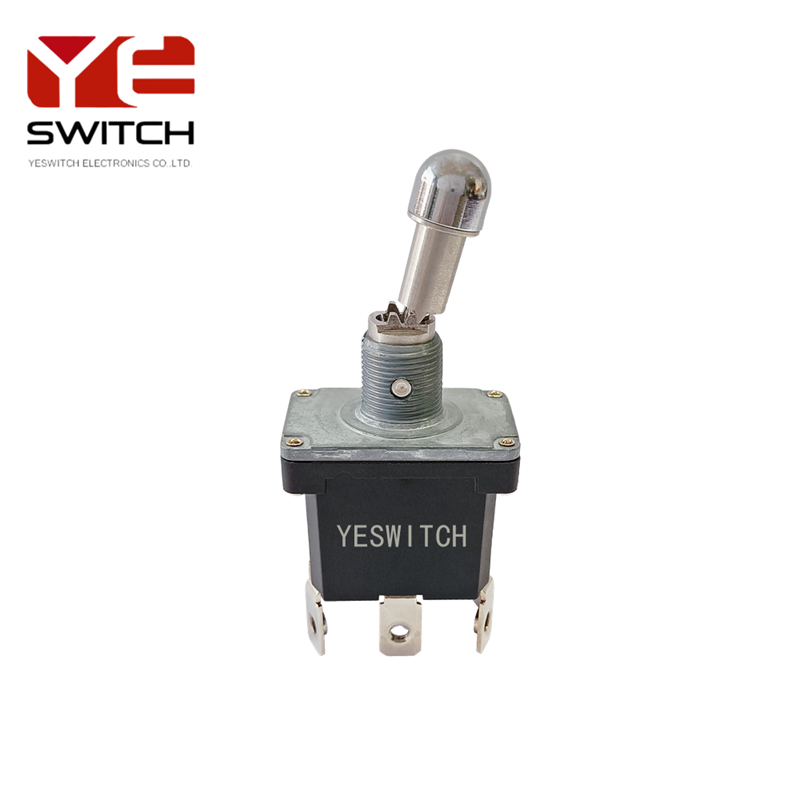

Dual DPDT: Three Position ON-OFF-ON Toggle Switch, dual independent control, meeting requirements for forward/reverse rotation and dual power supply switching.
High current load: Resistive 15A 125/250VAC, 15A 28VDC; Inductive 15A 28VDC, suitable for high-power circuits.
Low contact resistance: ≤ 20mΩ, silver alloy contacts (optional gold plating), stable conductivity, anti-oxidation.
Insulation withstand voltage: Insulation resistance ≥ 100MΩ (100VDC); Withstand 1500VAC/1min, reliable safety isolation.
2. Structure and Materials
Locking anti-misoperation handle: Copper alloy handle + zinc alloy sleeve, with locking mechanism, preventing accidental operation, enhancing operational safety.
External terminal screws: 6mm screw connection, no soldering, easy maintenance, suitable for thick wire diameters, shock-resistant, anti-loosening.
High-strength housing: DuPont nylon base, UL94 V-0 flame retardant, oil-resistant, weather-resistant, impact-resistant.
Fully sealed waterproof: IP68 panel sealing, silicone injection filling, dust-proof, waterproof, oil-proof, can be immersed in water for washing, salt spray test ≥ 96H without oxidation.
3. Lifespan and Environmental Adaptability
Extremely long lifespan: Mechanical life ≥ 100,000 times; Electrical life ≥ 50,000 times (full load), durable and reliable.
Wide temperature range operation: -40℃ to +85℃, stable performance in high and low temperature environments.
Anti-vibration and shock resistance: 10–55Hz, 1.5mm double amplitude shock resistance, suitable for mobile devices and heavy machinery.
Application
- Construction machinery: Power / function switching for aerial work platforms, elevators, cranes, excavators, and loaders.
- Vehicle / Ship: Engineering vehicles, off-road vehicles, ship equipment's lighting, motors, and pump control.
- Industrial control: Industrial control panels, aviation operation panels, dual-path switching for outdoor waterproof equipment.
- Special equipment: Medical equipment, communication base stations, environmental protection equipment's highly reliable control circuits.
Certification and Compliance
Protection level: IP68 (dust and waterproof, can be briefly immersed in water).
Environmental compliance: Compliant with RoHS and REACH standards, lead-free and environmentally friendly.
Safety certification: CE certification, passed EU safety tests.
Environmental testing: Salt spray 96H, vibration, high and low temperature cycling tests are qualified.
FAQ
Q1: How to distinguish between locked and self-resetting versions?

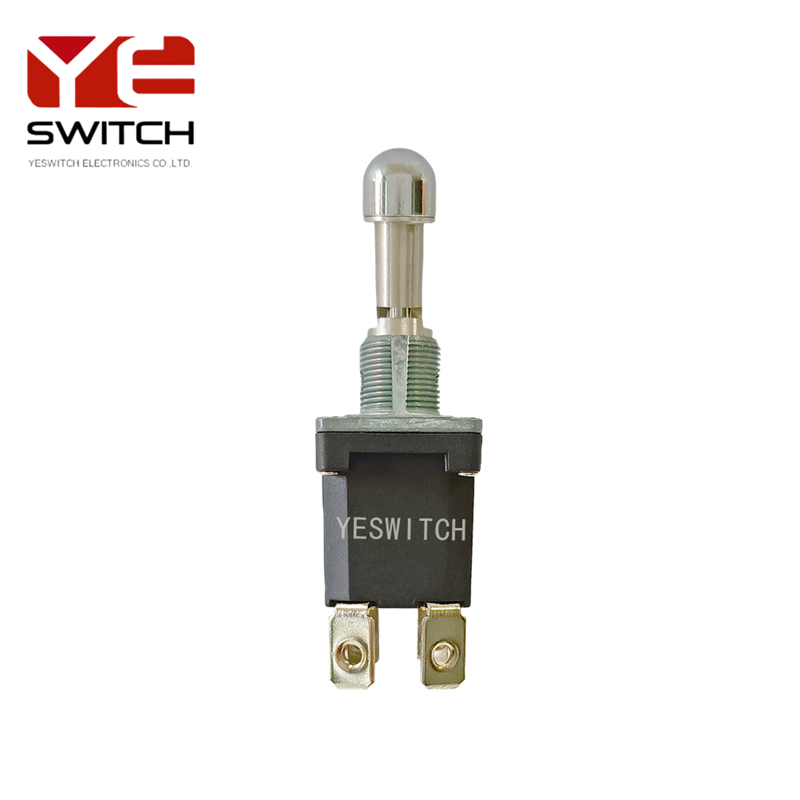

A1: Locked type: The state remains after releasing the Non-momentary Toggle Switch to the ON position, and it needs to be manually turned off again;
Self-resetting type (ON-OFF-ON): After releasing the switch to the ON position, it automatically returns to OFF. It is suitable for point control.
Q2: Can it be used in humid/dusty environments for a long time?
A2: Yes, with an IP68 fully sealed design, it can be directly washed with water, does not oxidize even under salt spray for 96 hours, and is suitable for harsh environments such as outdoors, mines, and construction sites.
Q3: What is the wiring method?
A3: External terminal screw terminals (3.5mm screws), dual-channel 6-pin design, DPDT wiring, supports independent control of two paths, no soldering required, and easy maintenance.
