The Operation of The Whole Process of Silicone Production Manufactering
5 month ago
Product details

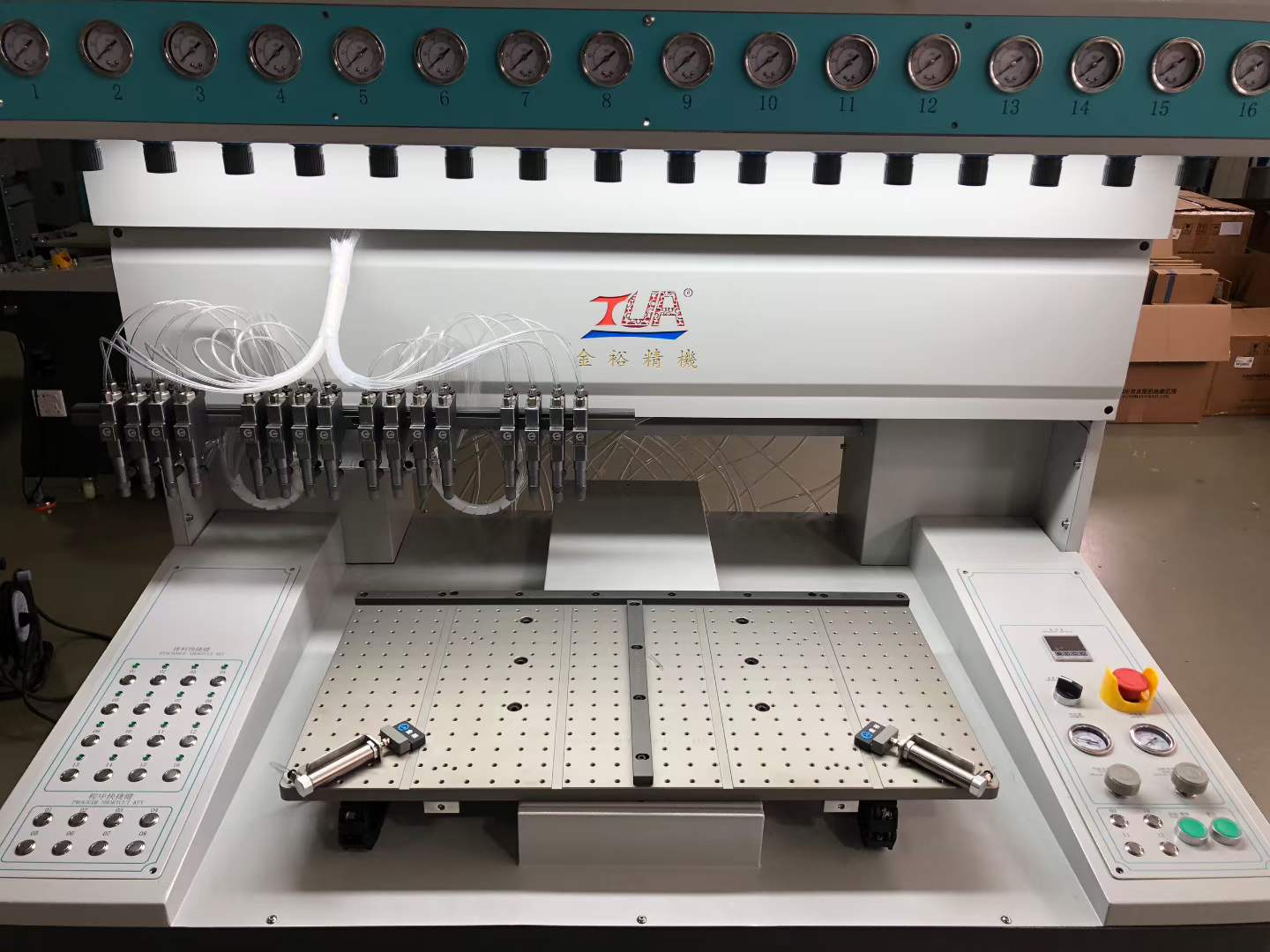

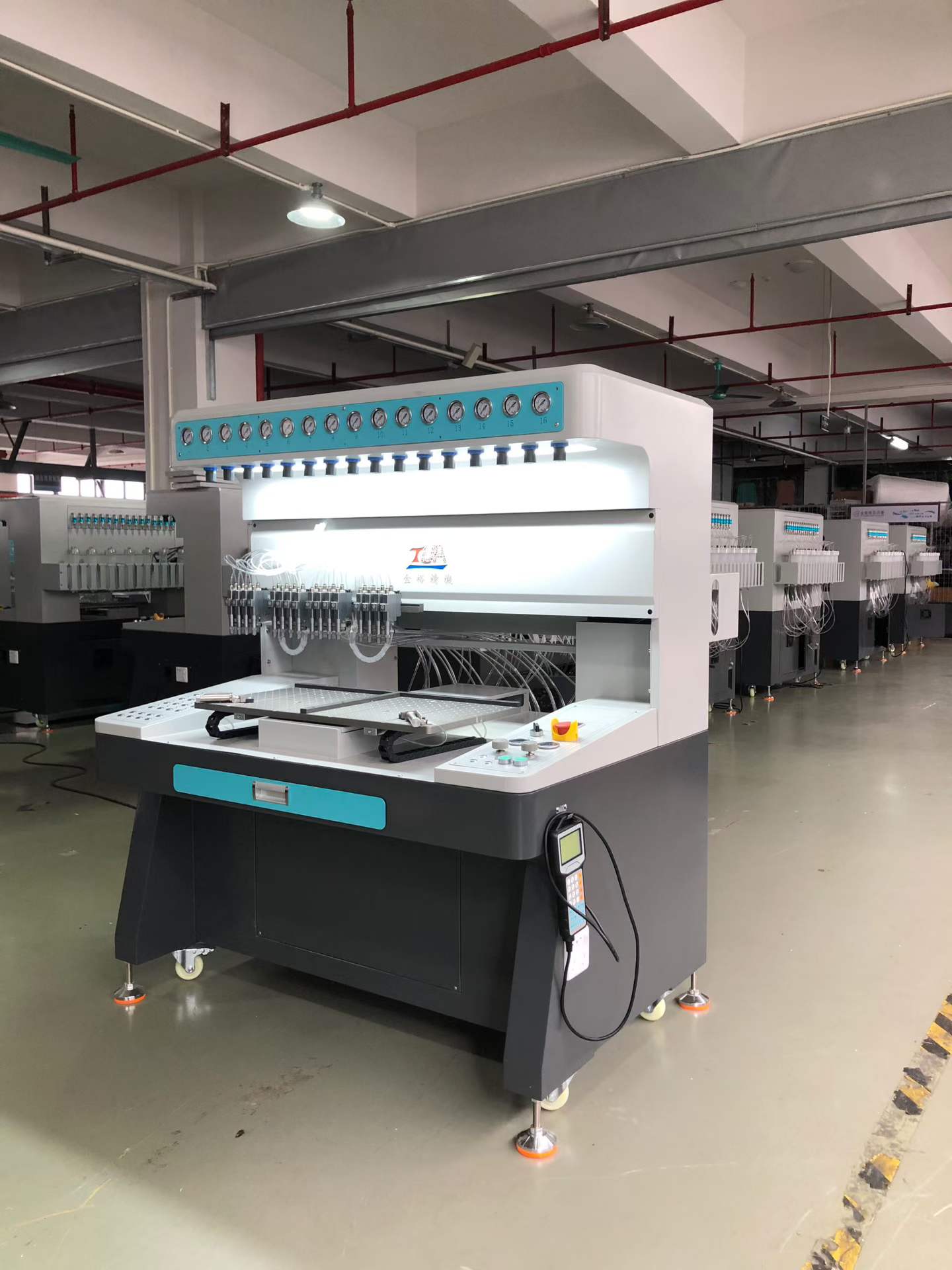

Fully Automatic Multi-Color Dispensing Machine (Automatic Multi-Color Dispensing Machine)
Main Applications:
Silicone Industry: Silicone heat transfer labels/in-mold transfer labels, silicone stamps, silicone logos for clothing and footwear, silicone trademarks; used in conjunction with a vacuum vulcanizing machine to complete the entire transfer label production process, layered dispensing for complex 2-6 color patterns.
PVC Soft Rubber Industry: PVC keychains, refrigerator magnets, shoe labels, bag labels, PVC glove embossed sheets, soft rubber dolls, zipper pulls.
Compatible with gifts, small car interior labels, and soft rubber decorative parts for electronic accessories.

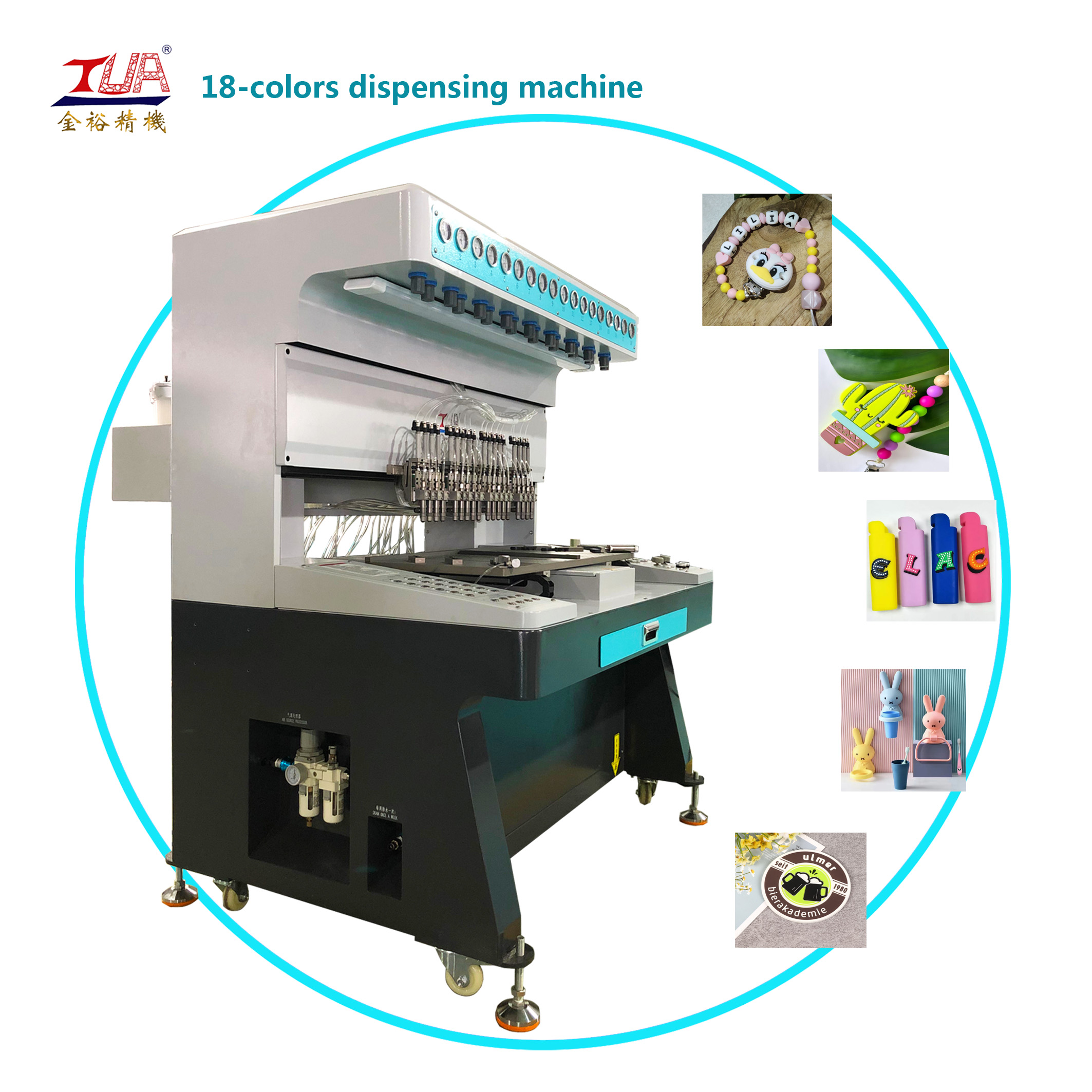

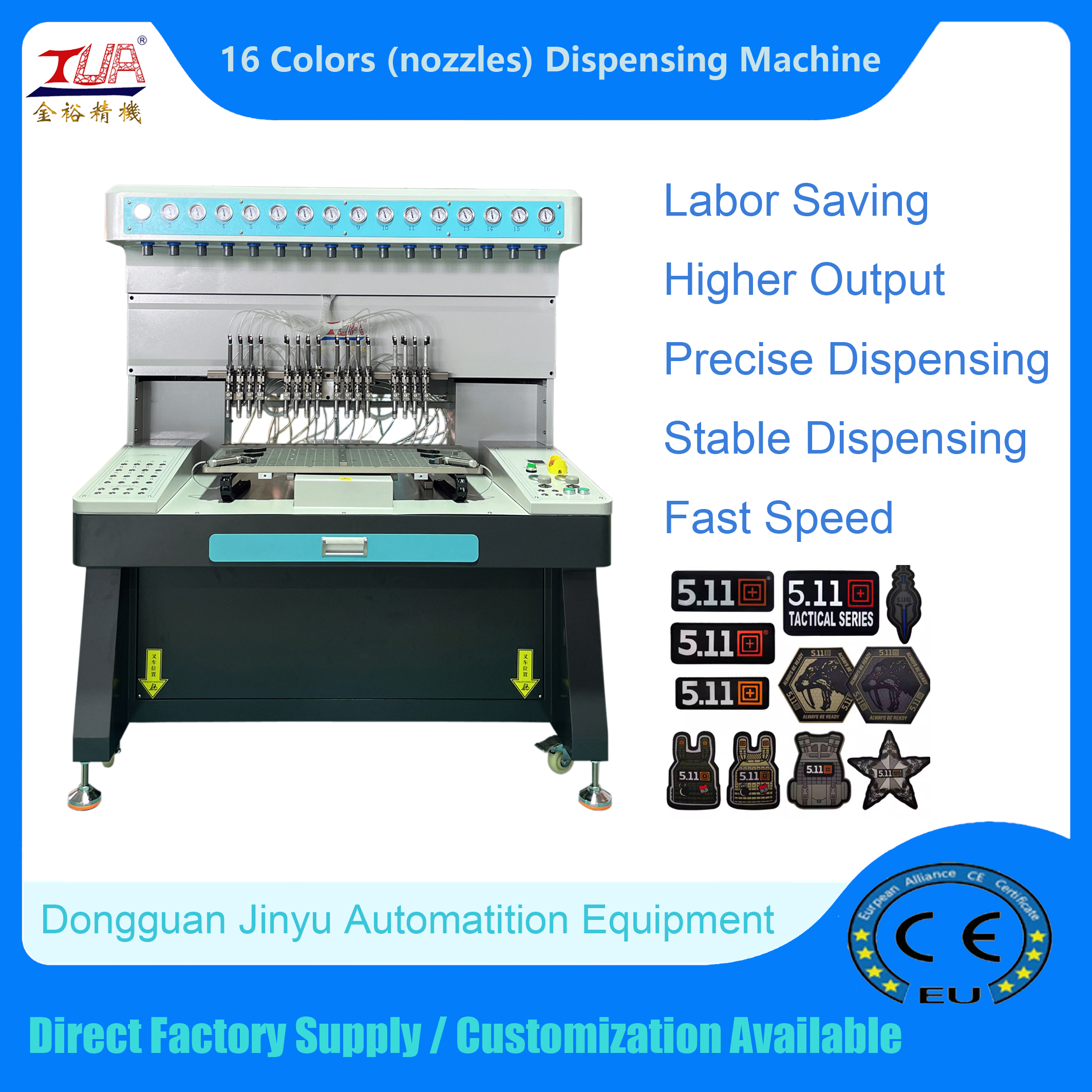

| Name | 12 Colors | 16 Colors | 18 Colors |
| Model | JY-B02 | JY-B03 | JY-B04 |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Number of valve | 12 | 16 | 18 |
| Wore area | 620*370mm | 720*370mm | 820*370mm |
| Motor power | 3*0.4kw | 3*0.4kw | 3*0.4kw |
| Heating Power | 0.6kw | 0.6kw | 0.6kw |
| Power | 1.2kw | 1.2kw | 1.2kw |
| Air pressure | 6~8/kgf/cm-2 | 6~8/kgf/cm-2 | 6~8/kgf/cm-2 |
| Dispensing speed | 400/mm.s-1 | 400/mm.s-1 | 400/mm.s-1 |
| X.Y.Z axis stroke | 470*360*90mm | 700*360*90mm | 800*360*90mm |
| Size | 1330*1000*1720mm | 1300*1150*1550mm | 1300*1150*1550mm |
| Weight | 450kg | 500kg | 550kg |
Jinyu Dispensing Equipment Core Features:
High-Precision Positioning: Servo + ball screw drive, repeatability accuracy ±0.01mm, glue volume control error ≤±1%, ensuring no misalignment of small text and fine-line logos, and uniform thickness.

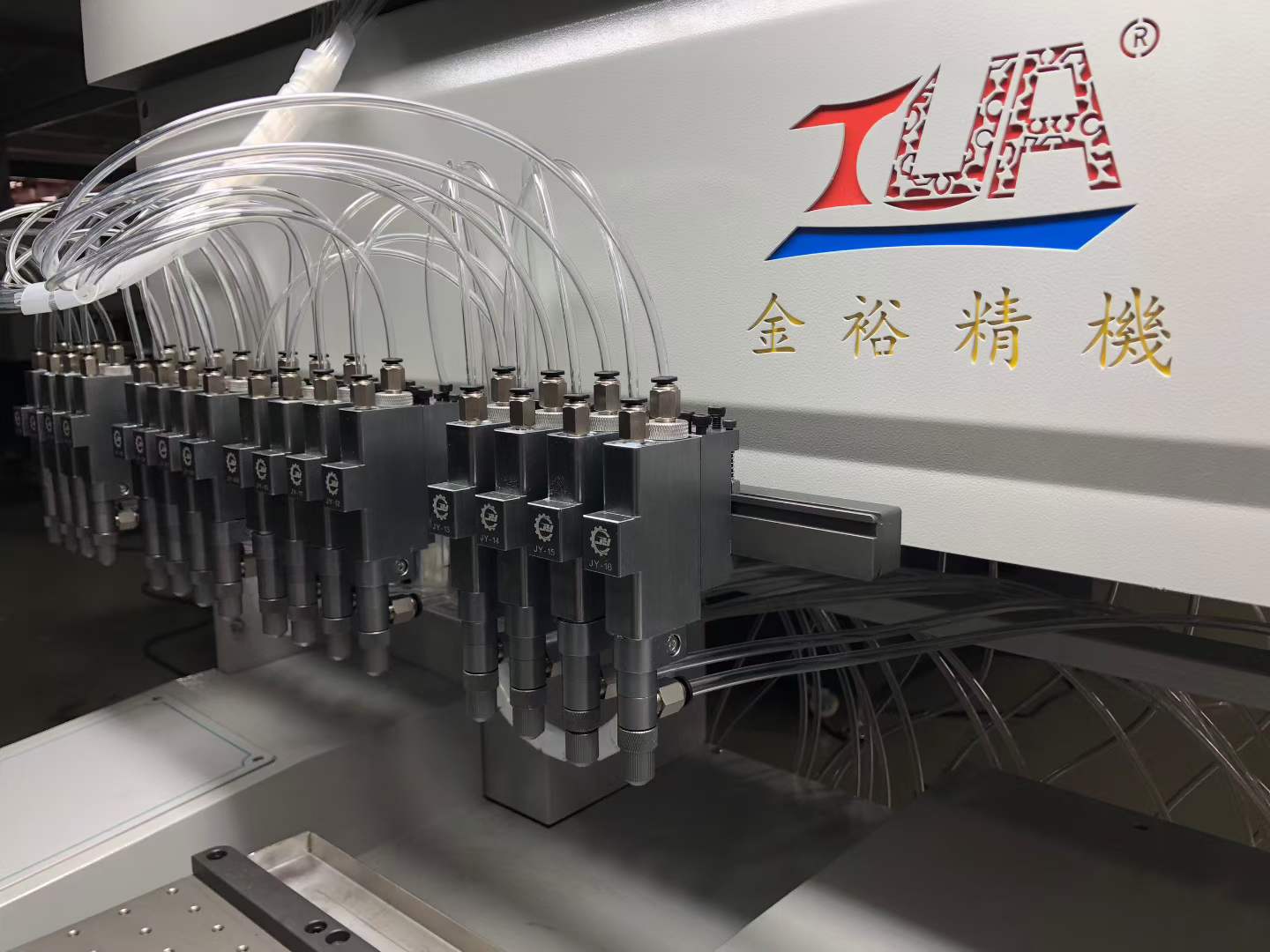

Multi-color Independent Glue Control
8-12-16-18 color independent material cylinders and independent pressure regulating valves; air pressure and glue dispensing speed of each channel can be adjusted independently; suitable for high viscosity silicone, reducing stringing, glue breakage, and glue leakage.
Easy Product Changeover
Directly import CAD and PLT vector graphics, eliminating the need for point-by-point tracing; can store hundreds of product programs, quick machine changeover, suitable for both sampling and mass production.
Labor Saving
One machine replaces 4-6 manual glue dispensing workers; one operator can oversee 2-3 machines, significantly reducing labor costs.
Durable Materials
Material cylinders and needle valves are made of 304 stainless steel, resistant to silicone and PVC color paste corrosion, easy to clean and change colors; welded steel plate body, not easily deformed during long-term production.
Dual Material Compatibility
By changing parameters and glue circuit accessories, it can produce both PVC soft silicone products and HTV liquid silicone products; silicone-specific parameter settings must be enabled for silicone transfer labels.

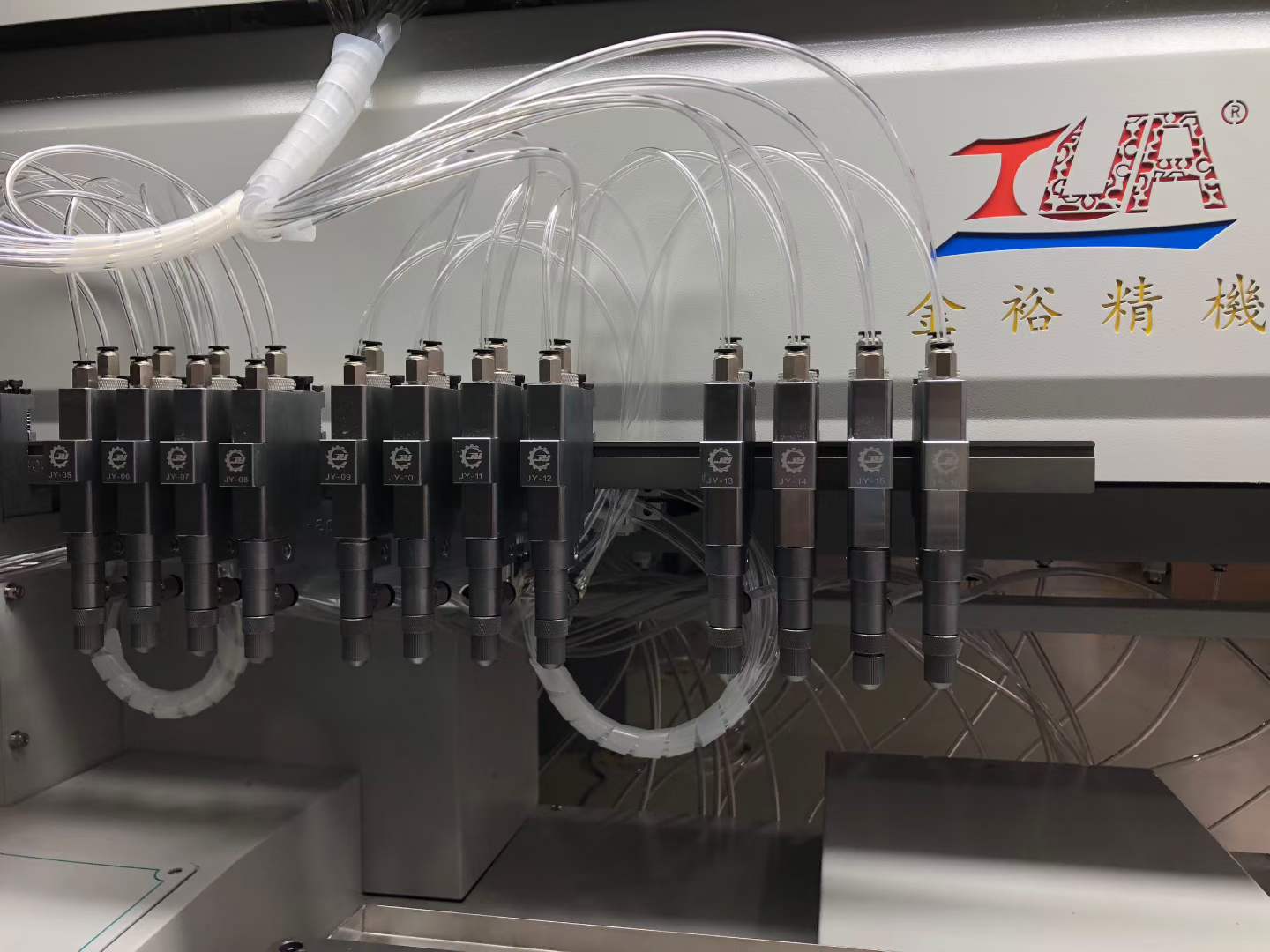

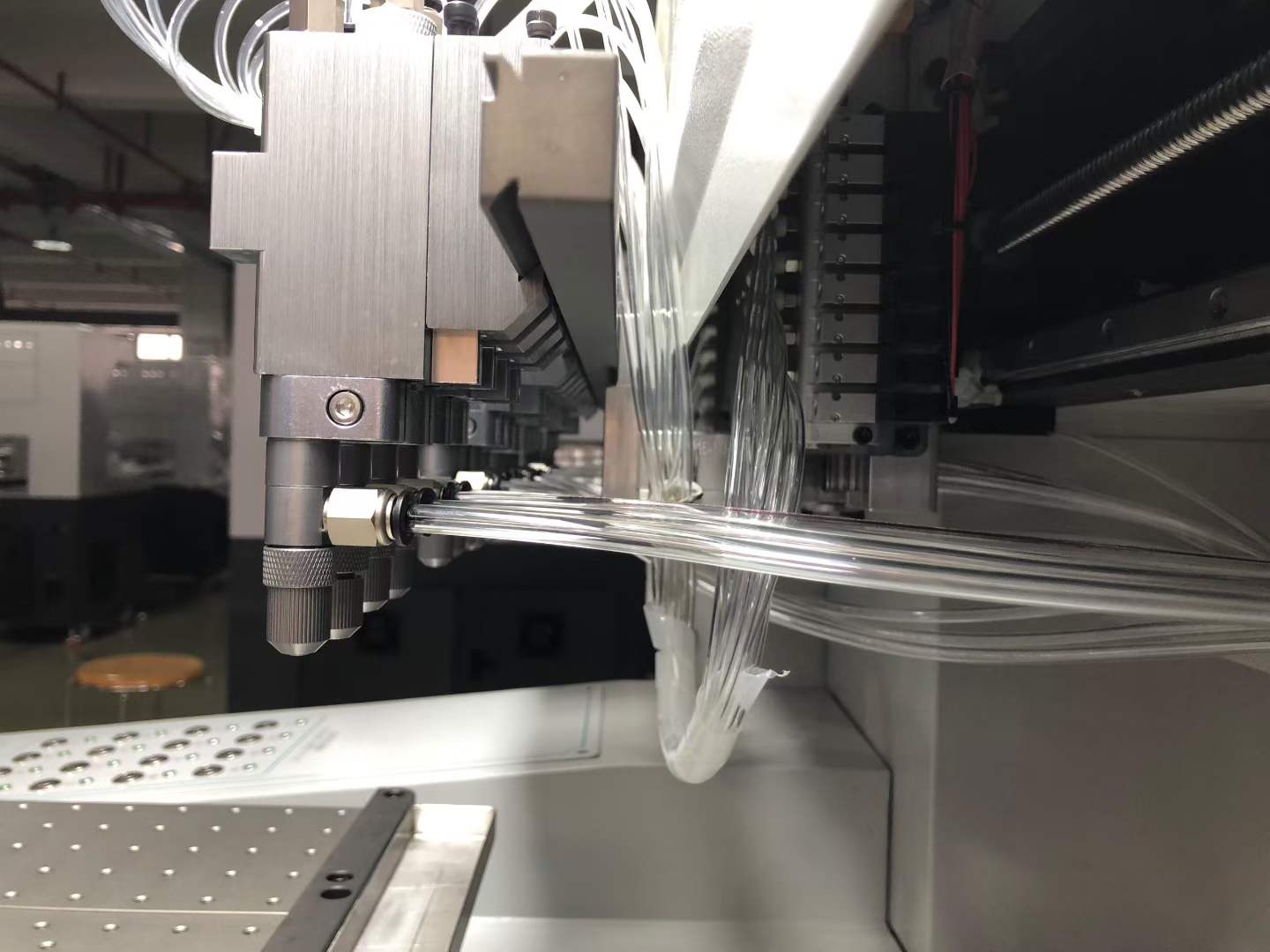

Jinyu Machinery TUA'S upgraded dispensing valve brings many improvements for PVC patch production:
It delivers higher dispensing accuracy with consistent glue volume for every dot. Greatly reduce bad items such as overflow and burr.
Built‑in suck‑back design achieves clean glue cut‑off, no dripping or stringing when nozzle lifts up.
It keeps stable performance during long‑time non‑stop running, less frequent parameter adjustment and machine downtime.
It reduces PVC material waste. Wear‑resistant internal components extend spare‑part service life and lower your maintenance cost.
It supports both thick large patches and tiny fine‑line logos for more product possibilities.
Many long‑term customers of Jinyu Machinery have our older machines that have been running for years. The main hardware is still solid and durable, so there is no need to replace the whole machine.

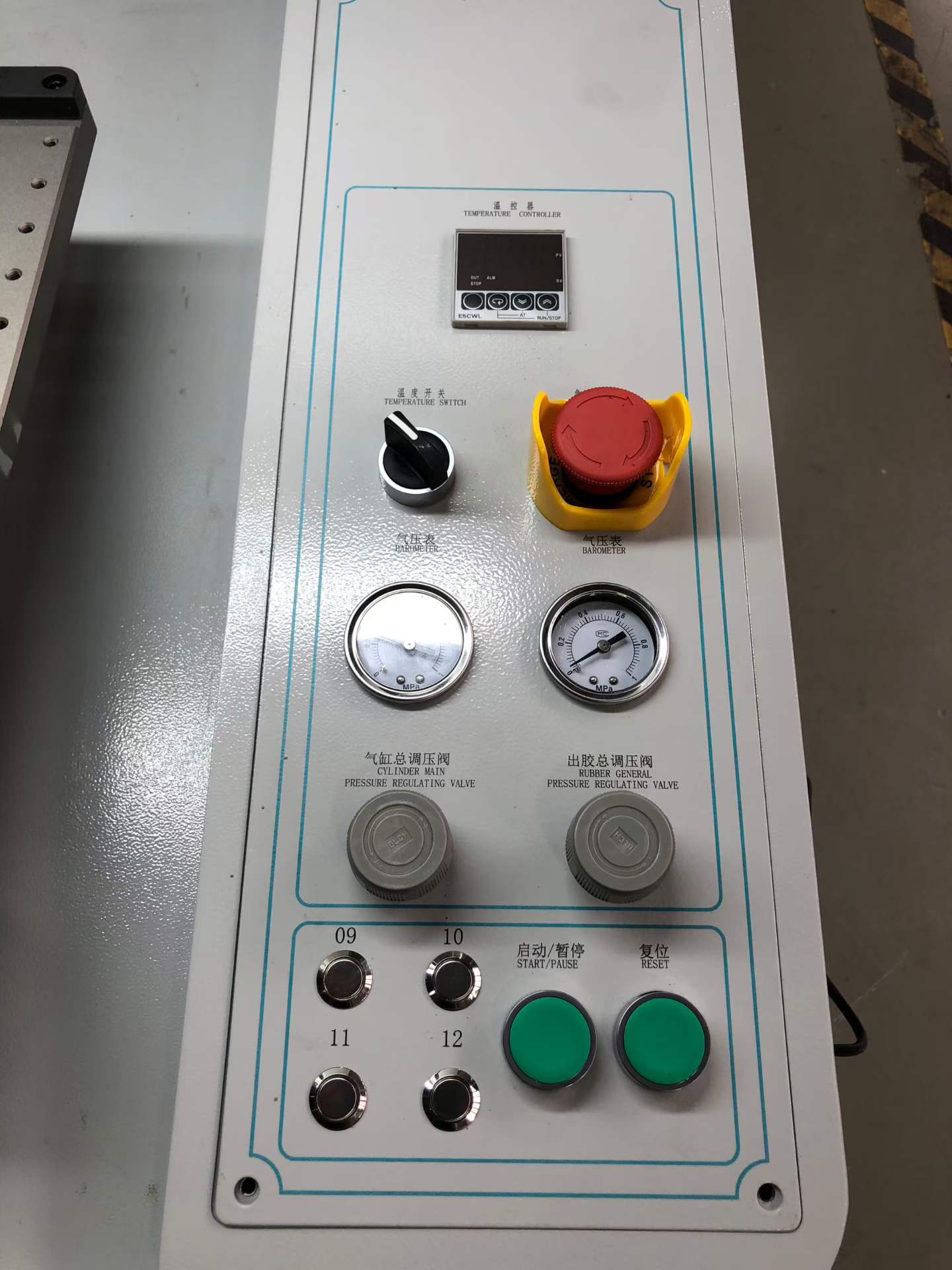

We provide retrofitting & upgrade service: upgrade high‑performance dispensing valve and related spare parts, internal mixing configuration, air pressure pump components. We can also modify the machine frame appearance, optimize ergonomic design and improve the operation control panel.
Our old‑generation machines are already very durable. After this upgrade, they can achieve much better yield rate with performance close to new machines. Of course, our brand‑new machines deliver even better durability and overall performance.
