Product details

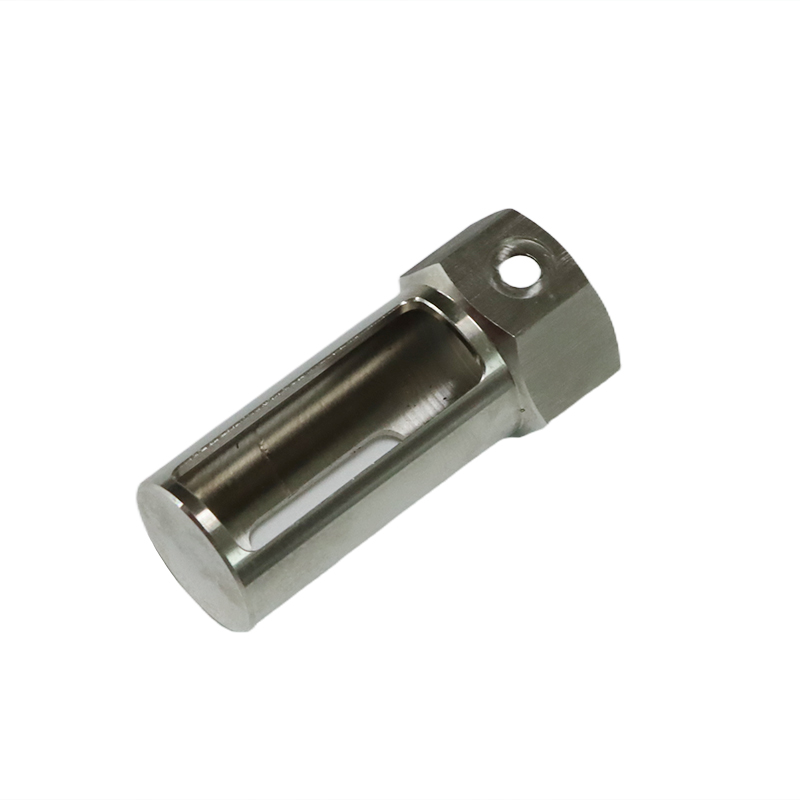

The automotive drive shaft sleeve part is a compact, 304 stainless steel one-piece machined component. It has a hexagonal head (with a central transverse opening) at one end in order to attach the head with a key and secure the position, while the other end is a hollow cylinder having internal openings directed to fasten the screw to the transmission or to the central screw. An annular slot is formed in the middle of the coating to reduce the weight and serve as a housing for O-seals or sealing rings. The entire surface is exposed to a satin finish that combines anti-slip, corrosion resistance and an aesthetic appearance.

Step 1: The product is machined using the composite CNC turning and milling technology and relying on the high precision CNC turning center "MAZAK", to complete the training of the main body. In response to the simple cutting properties of SS303 stainless steel, the crude processing speed of 3500 rpm is used first, to complete the raw treatment of the inner hole, leaving a uniform margin of 0.3 mm for subsequent precision treatment;

Step 2: Insert the precision processing process, increase the screw speed to 4500 rpm, set the rotation feed value to F0.08 rpm, correspond to the precision processing parameters of the tool tip R0.2 and use diamond shaped blades for rough turning of the outer circle, leaving a distance of 0.5 mm for the precision turning to easily achieve a high sliding of the inner opening and the circular outer surface;

Step 3: After completing the rotation of the main body, the positioning openings at the hexagonal end and the elongated inner slot of the cylinder section are removed from the CNC milling center processed. This combination of turning and milling ensures measurement accuracy, significantly improves production efficiency and reduces costs. The whole process is based on the technical advantages of CNC precision turning service to ensure that the dimensional accuracy and interchangeability of each Automotive Drive Shaft Sleeve CNC part meet the standards.

ShenZhen Shengpeng Precision is a professional manufacturer of CNC machining, which specializes in the research and production of CNC turned parts and can offer services to customize the entire process. We can be flexible to your specific needs in terms of dimensional specifications, material selection, adjust structural design and surface treatment methods and create automotive drive shaft sleeve parts and various precision parts, that respond to different application scenarios and to different production and use requirements.
