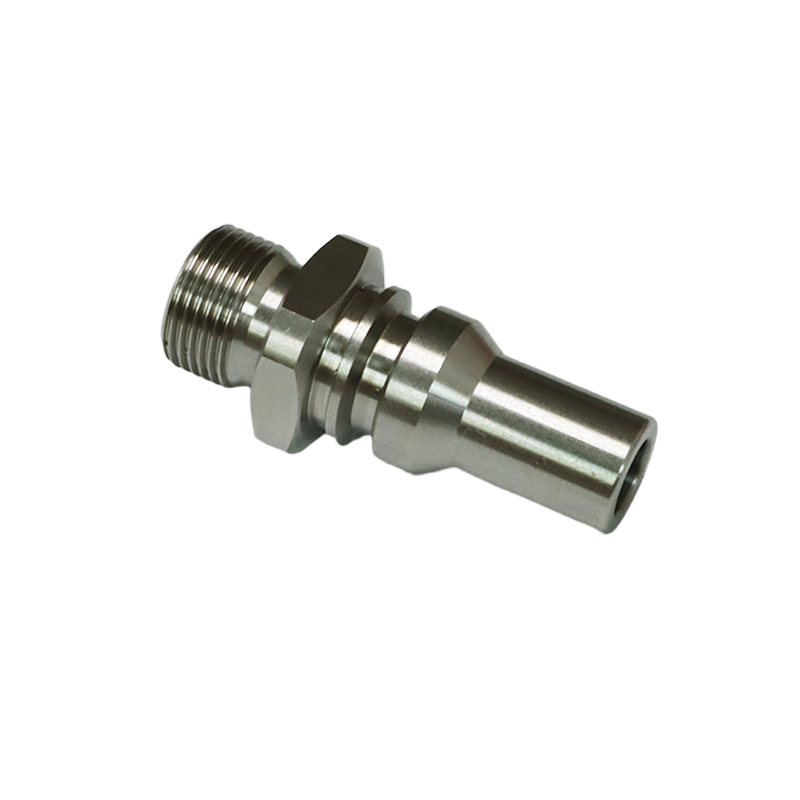

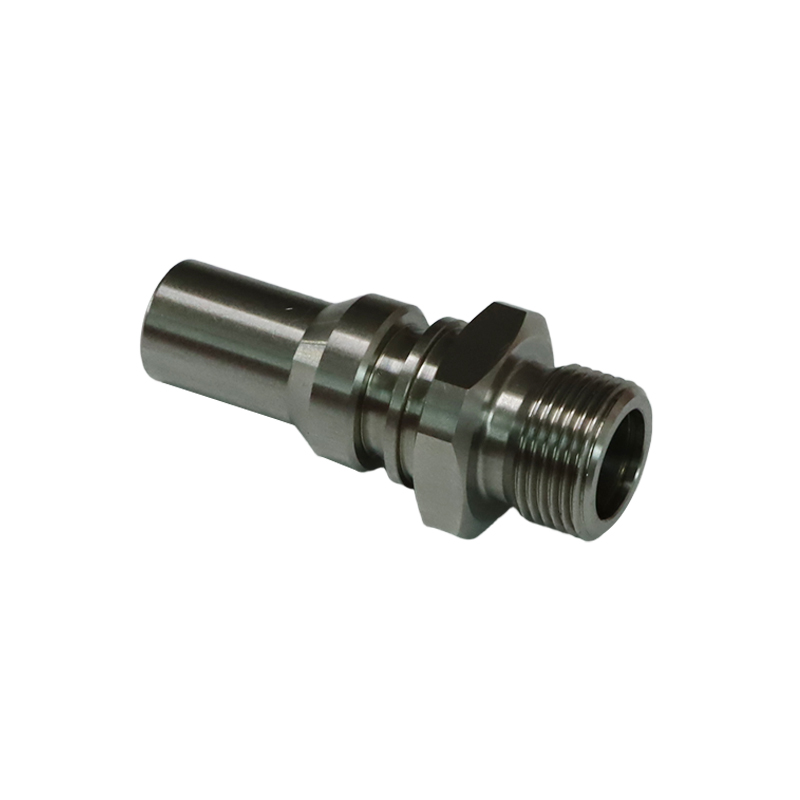

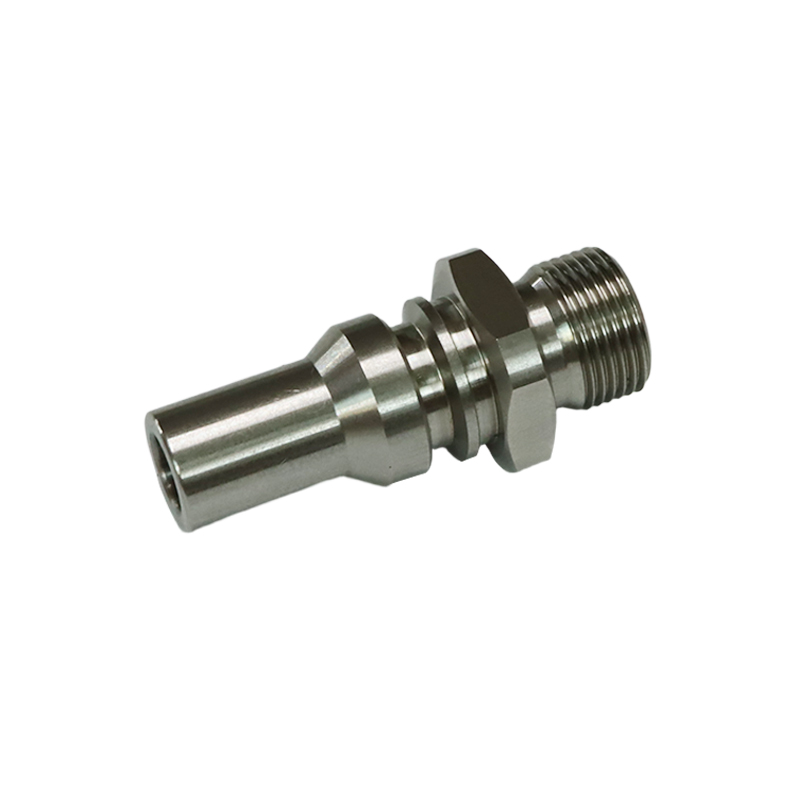

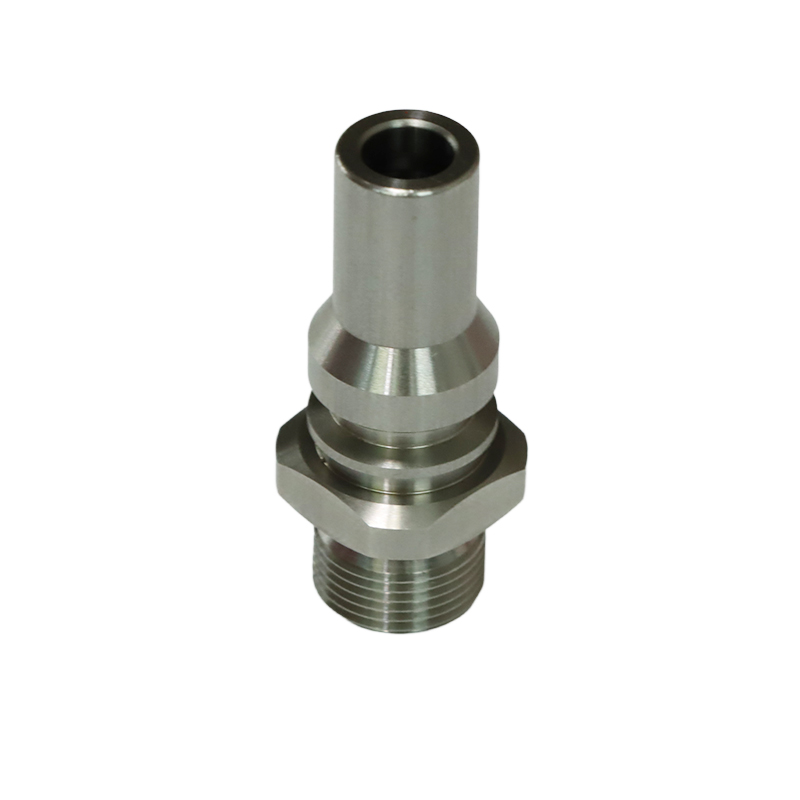

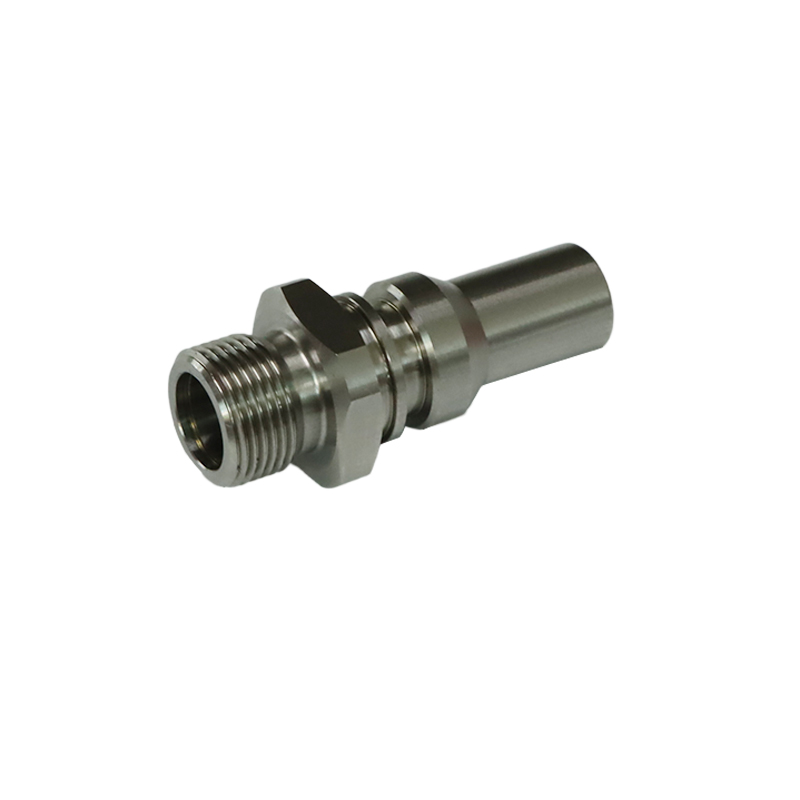

The metal quick-connect coupling parts have cylindrical shape in stages and adopts an integrated precision CNC turning structure without welding or assembly. Along the axial direction are: an externally threaded connection section with an imported chamfer, an integral hexagonal locking section and a male head section for quick insertion and removal. The outer circle of the mesh head section is equipped with a circular slot for self-locking with balls or springs made of elastic steel. The front end is equipped with a conical sealing shoulder and the inner wall of the hole is machined with a double O-ring groove or around a double seal both statically as well as dynamically. The interior is a smooth through flow channel, and some models integrate one-way valves.
Step 1: Choose 304 stainless steel round rods, eliminate the material impurities, cracks and bent defective products, perform a high-precision cut and alignment of the end side according to the specifications of the overall length and outer diameter of the quick-change joint, ensure the consistency of the blank size and lay the groundwork for post-treatment of multi-phase formation.
Step 2: Using a high-precision CNC lathe for one-time clamping and forming, the rough and fine machining of the guide insertion section, positioning groove, hexagonal section, external thread section, and inner hole flow channel are completed in sequence. Based on the mature machining resistance of CNC turning parts, we strictly control the coaxiality, roundness, thread profile accuracy and inner wall smoothness of the flow channel. The dimensional tolerances are precise and controllable, which ensures a uniform connection space and smooth insertion and removal without jamming.
Step 3: Use specialized forming tools to precisely shape the locking hexagonal section, while completing the precision machining of the sealing groove and retaining spring groove. Accurately control the groove width, depth, and positional tolerance.
Step 4: Double deburring and precision chamfering of the thread tip, plug port, slot edge, and inner wall of the flow channel by manual and machine methods, removing sharp iron chips, improving smoothness, preventing scratches on the sealing ring and pipeline, and optimizing the smoothness of the flow channel.
Step 5: The industrial ultrasonic cleaning removes the stains of oil, dust and metal debris from the surface and then performs a complete inspection of the dimensions, through the slot, appearance and channel smoothing with clamps, slot manometers and shape and position tolerance testers. Metal Quick connect Coupling Turned Parts that have passed inspection can be classified, packaged, and stored for shipment.
ShenZhen Shengpeng Precision is a professional manufacturer of precision cnc turning services that can be professionally customized metal quick-connect coupling CNC turned parts. Supports customized non-standard dimensions, special slots, flow channel structures and sealing channel projects based on drawings and samples. You can choose different materials and surface treatments. We use small batch sampling on production orders from medium to large batches, with strict quality control throughout the process and stable delivery times to fully meet the needs of customer-specific customization.
