Product details

YESWITCH HT802 Series Toggle switches feature a metal circular handle, standard PCB terminals, and a dual DPDT architecture. They adopt a classic (ON)-ON-(ON) bilateral self-resetting design.

The integrated metal circular handle is sturdy and resistant to impact, maintaining its shape and not deforming under high and low temperatures. The switching positions are clearly marked and the operation feels smooth. The terminals are suitable for PCB board assembly and are suitable for mass production. The dual-channel synchronous circuit control ensures the middle position is centered, while both sides are instant self-resetting and return to the middle position upon release. The IP68 Toggle Switch offers dust and moisture protection, strong insulation, stability under high current loads, excellent shock resistance and weather resistance, long service life, and is widely applicable to industrial control equipment, construction machinery, vehicle-specific special machinery, and automation equipment. The Dual Poles Three Position (ON)-ON-(ON) Toggle Switch enables bidirectional point operation, instantaneous direction change, and dual-channel signal switching, making it an ideal rotary switch for high-reliability control in harsh conditions.

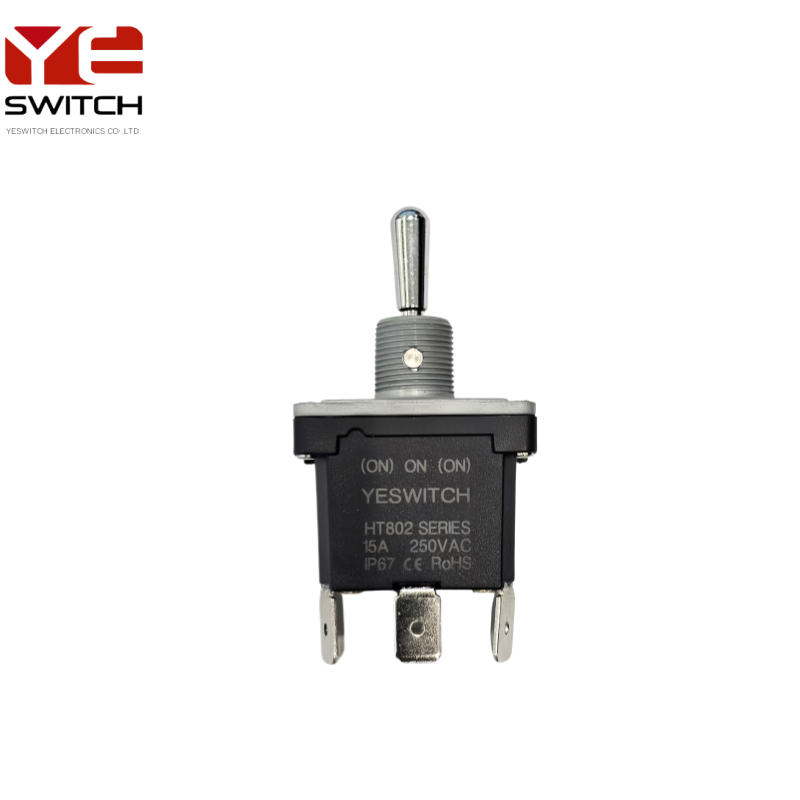

Three Position (ON)-ON-(ON) Toggle Switch

SPECIFICATION

CONTACT RESISTANCE	20m ohm(Max)
INSULATION RESISTANCE	100VDC-100M ohm(Min)
DIELECTRIC STRENGTH	1500VAC-1MINUTE
MECHANICAL LIFE CYCLE	100.000 CYCLES
OPERATING TEMPERATURE	-40 to +85 DEGREES
FRONT SEAL	IP68

RATING

RESISTIVE LOAD	16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD	15A 28VDC

MATERIAL

ACTUATOR	COPPER ALLOY
HOUSING	NYLON (UL94V-0)
BUSHING	ZINC ALLOY
TERMINAL	COPPER ALLOY
CONTACT	COPPER ALLOY
O-RING	SILICONE RUBBER
SHEEL	STAINLESS STELL

Core Advantages

1. Integrated metal round handle: Sturdy and durable with excellent hand feel, impact-resistant, heat-resistant, shock-resistant, anti-loosening during long-term and frequent operation. The Toggle Switch has a strong industrial feel and is suitable for high-frequency use scenarios in heavy machinery.

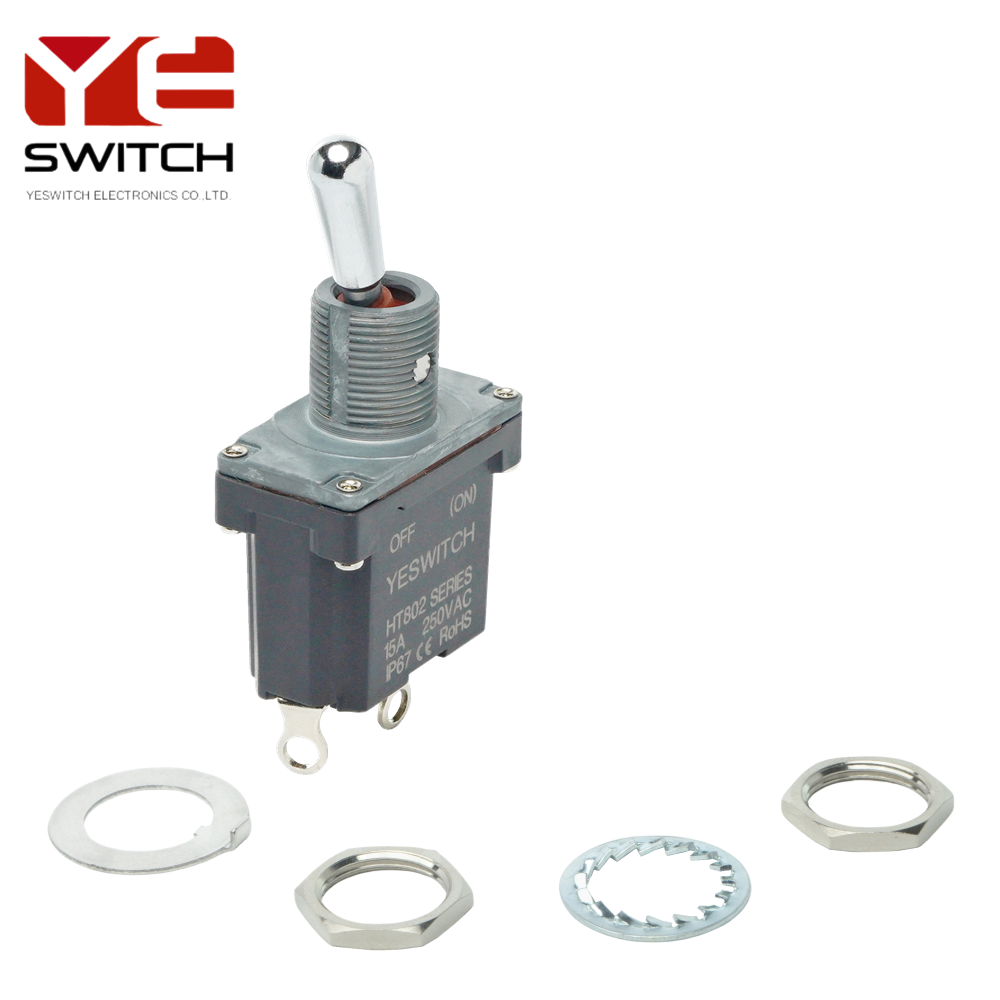

2. PCB pin terminals: Compatible with the standard straight-pin structure for mass production assembly, suitable for PCB circuit board welding, with precise alignment and firm welding. The Panel Mount Toggle Switch meets the requirements for standardized mass production of the entire machine.

3. Dual-channel DPDT & (ON)-ON-(ON) self-resetting: Dual-channel synchronous independent control. It perfectly suits bidirectional point operation, short-term motor reversing, and instantaneous start/stop control on both sides. The control logic is flexible and the application range is wide.

4. High current carrying capacity: Stable and high-quality alloy contacts with low contact resistance, supporting a 15A large current load; stable conduction, resistant to electric arcs, not prone to burning the contacts, long mechanical and electrical lifespan, and low failure rate during long-term operation.

5. Standard universal installation, with strong compatibility: Compatible with the same specification switch hole positions available on the market. Easy replacement and modification. Suitable for various industrial control, construction machinery, vehicle-mounted and automation equipment.

Application

-Industrial automation equipment: Automated machine tools, conveying equipment, industrial control operation consoles, enabling bidirectional point operation start/stop, instantaneous direction change fine-tuning, dual-channel synchronous control, and precise control of the equipment's forward/reverse short-term actions.

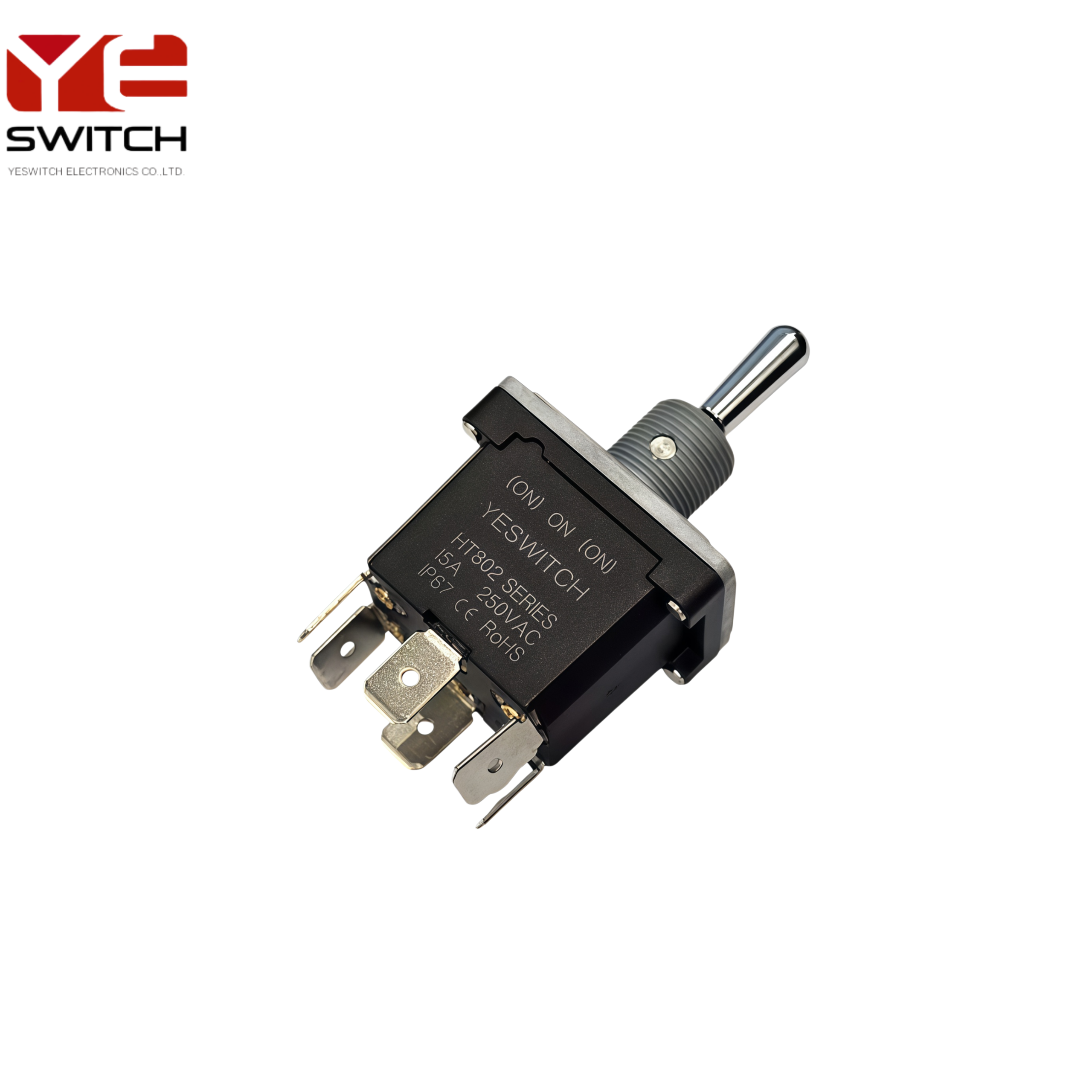

-Construction machinery and agricultural machinery: Excavators, loaders, aerial work platforms, harvesters, tractors, etc.; The metal handle of the Universal Tractor Toggle Switch is resistant to rough operation and is suitable for dusty and vibrating environments in construction sites and fields.

-Specialized and modified vehicles for vehicles on board: Engineering vehicles, sanitation vehicles, new energy modified vehicles, and special operation vehicles, featuring instantaneous light switching, point motor control for pumps and valves, and bidirectional short-time reversing switches for motors.

-Boats and outdoor waterproof electrical control equipment: deck machinery, marine control panels, outdoor industrial control boxes, with gasketed bases for moisture and salt spray protection, (ON)-ON-(ON) self-resetting function suitable for temporary signal triggering and two-way instantaneous control.

-Commercial mechanical and electrical industrial instruments, testing equipment, fitness equipment, small mechanical and electrical devices, and PCB socket terminals, which are suitable for mass assembly on motherboard and soldering boards.

Certification and Compliance

-Environmental Compliance: Compliant with RoHS and REACH lead-free environmental standards

-Safety Certification: CE European safety certification

-Reliability Testing: Passed industrial-level tests including high/low temperature, vibration, salt spray, and insulation withstand voltage

-Material Flame Retardancy: UL94 V-0 flame retardant grade, safer to use

FAQ

Q1: What is the function of (ON)-ON-(ON)?

A1: The middle part is the normal position. Pressing left causes instantaneous conduction and releasing returns to the middle position; pressing right causes instantaneous conduction and releasing returns to the middle position. It is a Two-sided Three Position (ON)-ON-(ON) Toggle Switch, suitable for point control operation.

Q2: What kind of wiring method is the terminal?

A2: The Panel Mount Toggle Switch uses PCB pin terminals, suitable for soldering board installation, not suitable for on-site screw wiring, and is specifically used for batch circuit board assembly.

Q3: What are the advantages of the metal round handle?

A3: The all-metal round handle is sturdy, resistant to dropping, does not deform, and is resistant to high-temperature aging. The gear position feels clear, resistant to vibration and loosening, and is suitable for long-term and frequent industrial heavy-duty operation.

Q4: Can the motor be controlled for bidirectional point operation?

A4: Yes, it is possible. The dual-channel DPDT plus (ON)-ON-(ON) self-resetting structure is very suitable for left and right point operation of the motor and short-term direction change control.
