XH DEUTSCH DT connector 12P Male Cable

3 month ago

11 0 

2 year

Product details

FUBON designs high-performance connector cables built to handle the unique connection challenges of modern automotive and industrial systems. We focus on durable, precision-engineered harnesses that deliver consistent signal flow even in harsh environments.

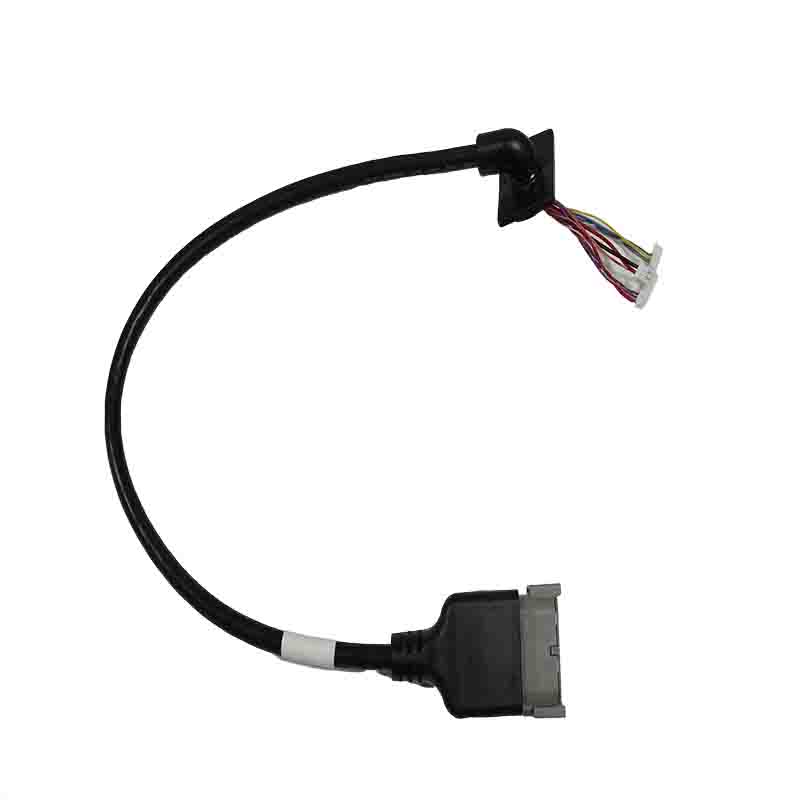

This XH DEUTSCH DT connector 12P Male Cable is a purpose-built multi-interface adapter for connecting Deutsch-style DT devices to multi-pin signal modules. Measuring 500±50mm in length, it features a 12-pin Deutsch DT male connector on one end, paired with a 90-degree strain relief mount for enhanced durability, and splits into 10-pin, 16-pin, and 2-pin connectors on the other. The black PVC jacket meets UL specifications, with color-coded conductors for clear, reliable signal routing.

Item	Description
Product Name	XH DEUTSCH DT connector 12P Male Cable

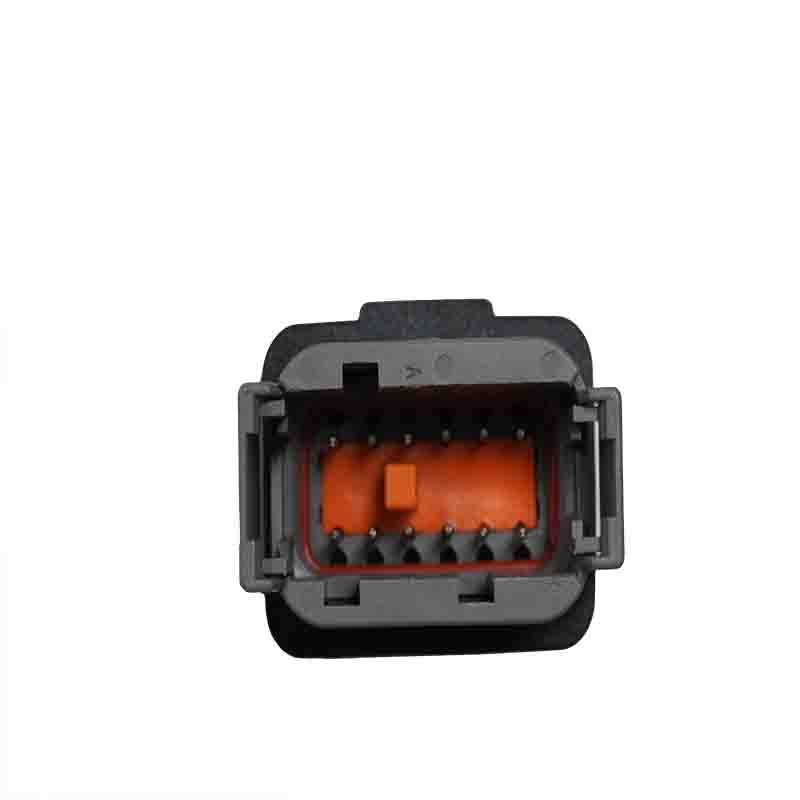

Connector Type	• P4: TE DTM04-12PA 12-pin male connector (grey housing) • P2: 10-pin connector • P3: 16-pin connector • P1: XH2.54 2-pin connector
Length	500 ± 50mm
Appearance Features	1. Cable Jacket: Black PVC outer jacket (UL2464, -40℃ to +80℃), color-coded internal conductors (red, black, brown, yellow, purple, grey, light green, etc.) 2. Connectors: DTM-style 12-pin male plug with molded strain relief; 90-degree SR (strain relief) mount on one end; multi-pin (10P/16P) and 2P connectors on the other end with exposed color-coded wires 3. Finish: Smooth black cable surface, no deformation, scratches, or bubbles
Electrical Performance	• 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤2Ω • Insulation resistance: ≥10MΩ • Tensile strength: meets 22AWG ≥3.63kg / 26AWG ≥1.37kg • All materials comply with RoHS requirements
Application	Custom adapter cable for connecting DTM-style automotive/industrial devices to multi-pin signal modules

Built to the same rugged standards as our production-grade car wire harness solutions, this cable uses flexible yet durable black PVC insulation and high-quality stranded conductors. The molded strain relief and reinforced bend protection prevent damage from vibration and repeated use, while the multi-pin design ensures compatibility with complex vehicle and industrial signal systems.

As a versatile addition to our line of automotive cables, this adapter is ideal for custom installations, bench testing, and specialized diagnostic setups. It’s engineered to maintain stable power and signal transmission across multiple connection points, making it a dependable choice for technicians and engineers working with non-standard or mixed-interface equipment.

From simple adapters to fully customized multi-branch harnesses, FUBON delivers the connection solutions you need to keep your systems running reliably.
