Product details

This Custom USB Adapter Harness Android OTG Connection Cable is a purpose-built solution designed to bridge I/O control boards and Android devices, delivering stable USB OTG and host communication for embedded systems, test equipment, and custom electronics projects.

Built with precision, this assembly features tailored custom electrical connectors and pre-terminated, color-coded conductors that align with Android USB pinouts, eliminating guesswork during installation. Each end includes heat-shrink protected leads ready for direct soldering or crimping, making integration fast and reliable without compromising signal integrity.

As part of our line of customized electrical harnesses, this cable is constructed with a UL2725-compliant black PVC jacket, engineered to withstand the rigors of compact installations and everyday use. Reinforced strain relief at both connection points prevents wear from repeated bending or vibration, ensuring consistent performance in even demanding environments.

Item	Description
Product Name	Custom USB Adapter Harness Android OTG Connection Cable

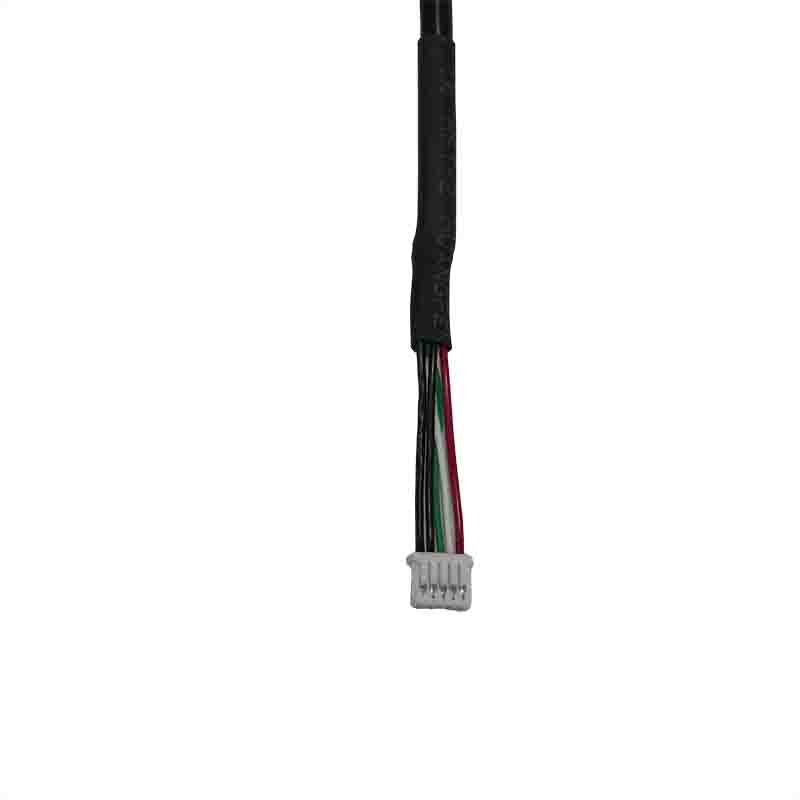

Connector Type	• P1: PH2.0 5-pin white connector • P2: 5-pin connector (for Android USB internal wiring, OTG/HOST compatible)

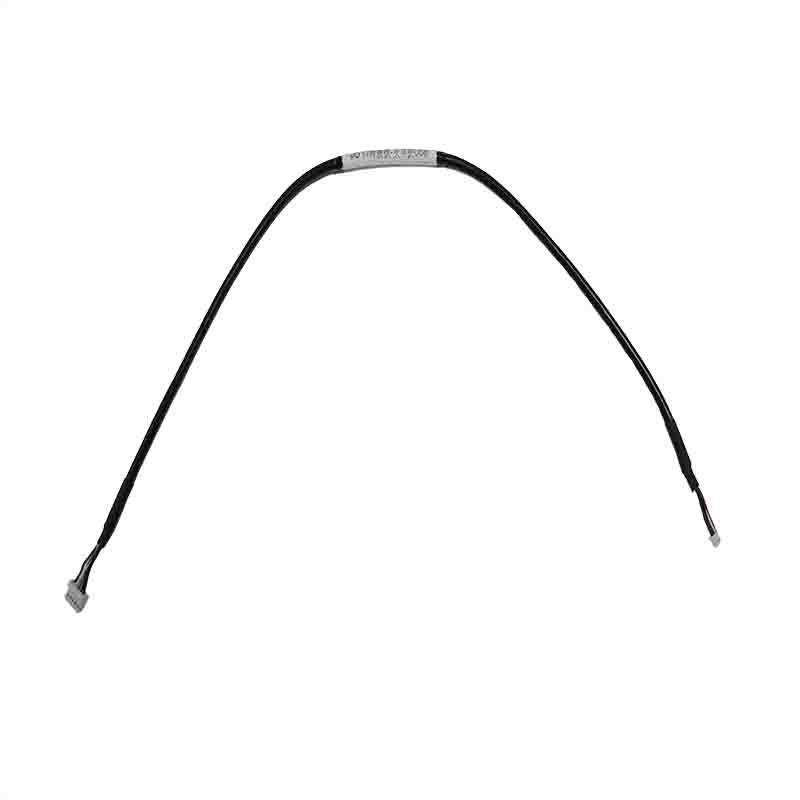

Length	Total cable length: 450 ± 10mm
Appearance Features	Cable Jacket: Black PVC outer jacket (UL2725 compliant), with a smooth and uniform surface. Markings: White heat-shrink label printed with "I/O interface adapter board - Android board USB". Termination: Both ends feature exposed color-coded wires (red, white, green, black, ground) with heat-shrink protection, ready for soldering or crimping. Finish: No deformation, scratches, bubbles, or flow marks on the cable or connectors.
Electrical Performance	• 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤2Ω • Insulation resistance: ≥10MΩ • All materials comply with RoHS requirements
Application	Adapter cable for connecting I/O interface boards to Android USB devices (OTG/host functionality) in embedded systems and test equipment

Every detail of this custom cable assembly is tested to meet strict quality standards, including 100% continuity checks to rule out shorts, opens, or miswiring. Made with RoHS-compliant materials, it offers the durability and reliability you need for OEM builds, industrial applications, and one-off projects alike.

From concept to finished product, we design each harness to fit your exact connection needs—no generic one-size-fits-all compromises. Whether you need to connect control boards, extend USB functionality, or adapt non-standard interfaces, our custom cable solutions deliver the performance and peace of mind your project requires.
